The 4K endoscopic fluorescence imaging system can not only be used as a 4K white light endoscope system to meet the clinical needs of various departments for ultra-high-definition endoscopes, but also can be used in combination with the ICG fluorescent tracer. It provides one-click selection of color images, black and white fluorescent images, color fluorescent images, and multiple images in minimally invasive endoscopic surgery.
It can switch lymphatic imaging mode, organ imaging mode, and lesion imaging mode with one click, and reserve custom modes according to the needs of the operator. The 4K endoscopic fluorescence imaging system can also be equipped with a data workstation to achieve quantitative analysis of color gamut images and fluorescence intensity.
| Laser source pulse width | N/A (continuous laser emission) |
| Chip structure | 4CMOS |
| Handle function keys | 4 remote control buttons |
| Optical adapter | Fixed focus/zoom |
| Monitor size | 32 inches and above |
| Monitor resolution | ≥3840×2160P / 4096×2160P |
| Pixels and frame rate | ≥8.29 million pixels, 60 FPS |
| Endoscope | 0° or 30° field of view, 5mm or 10mm |

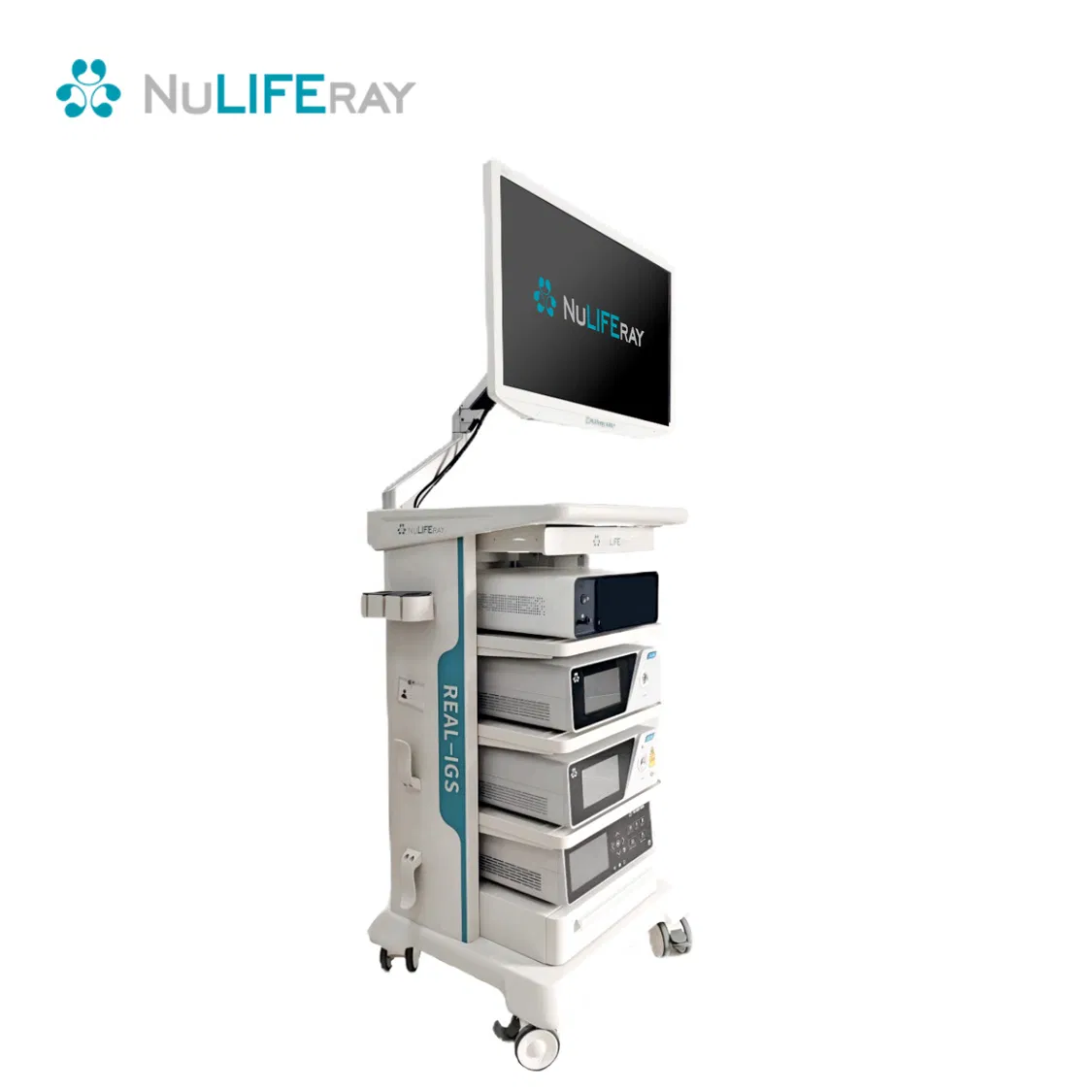

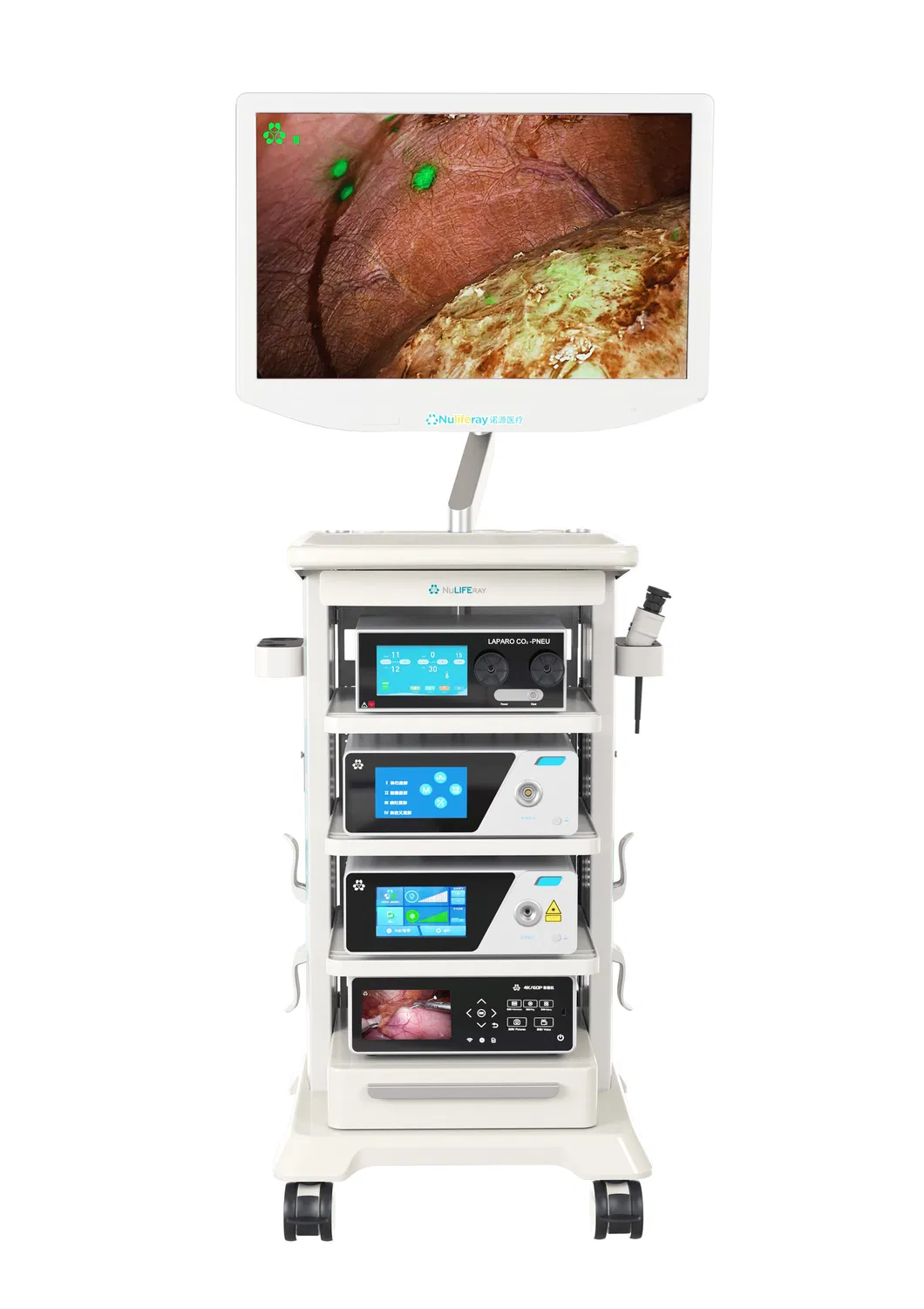

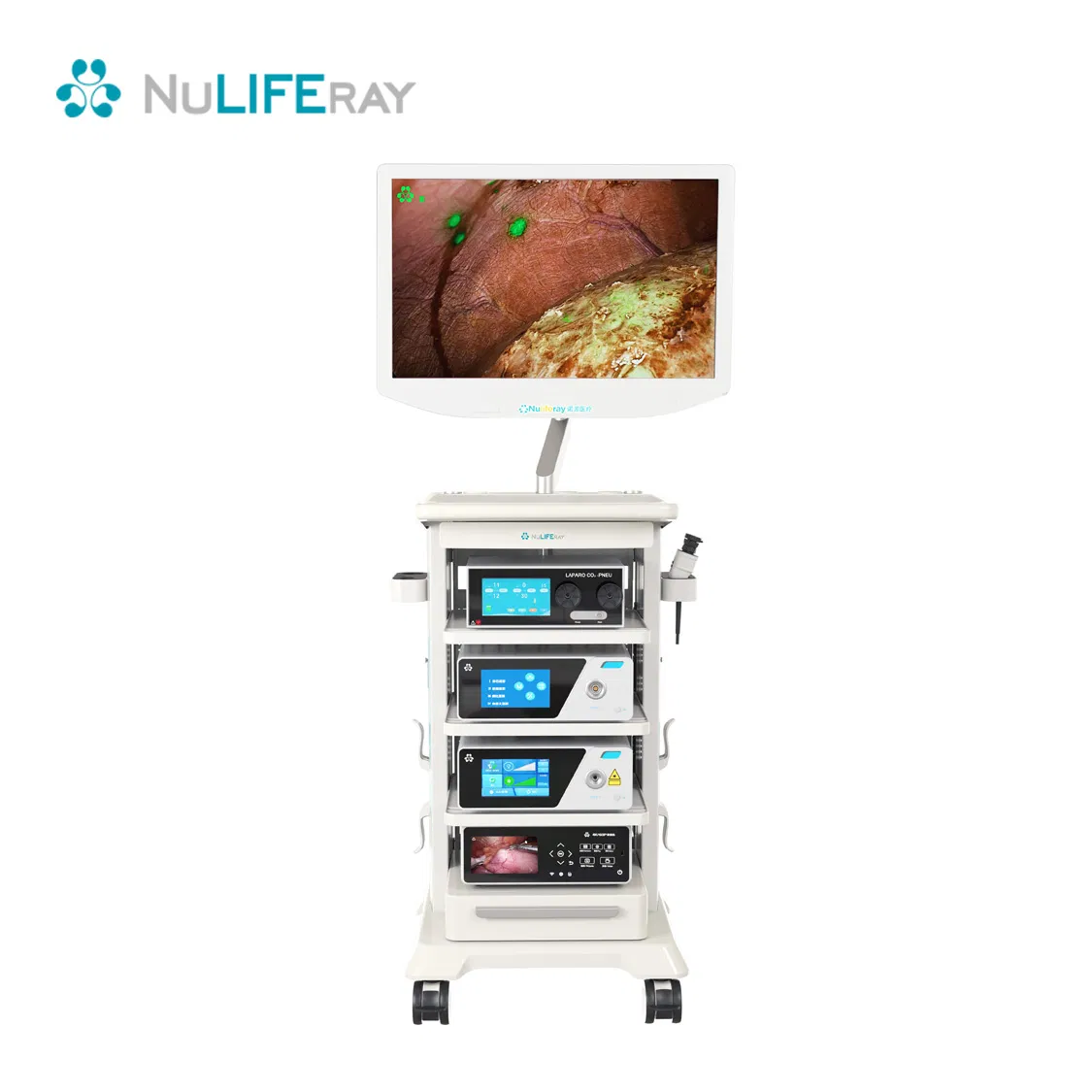

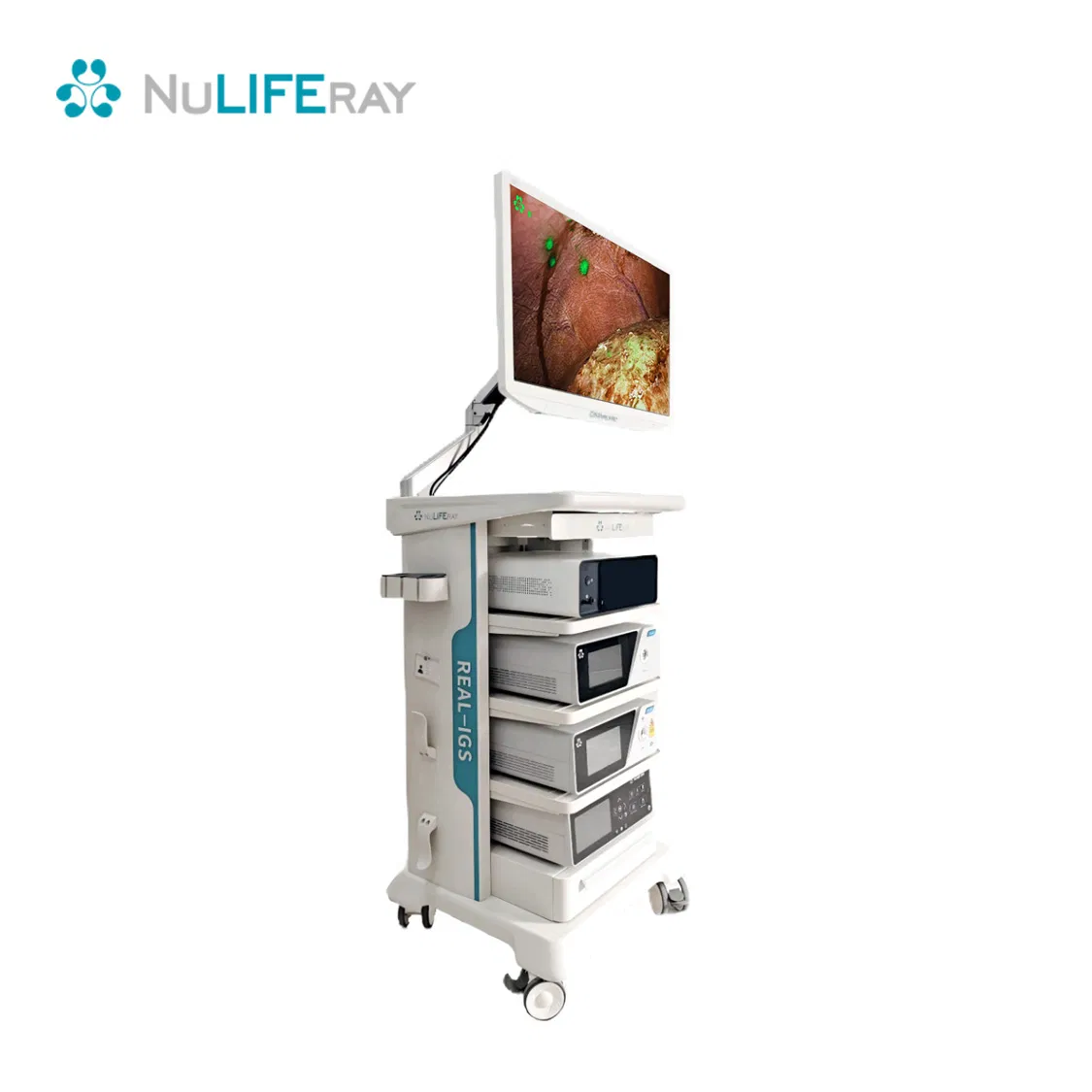

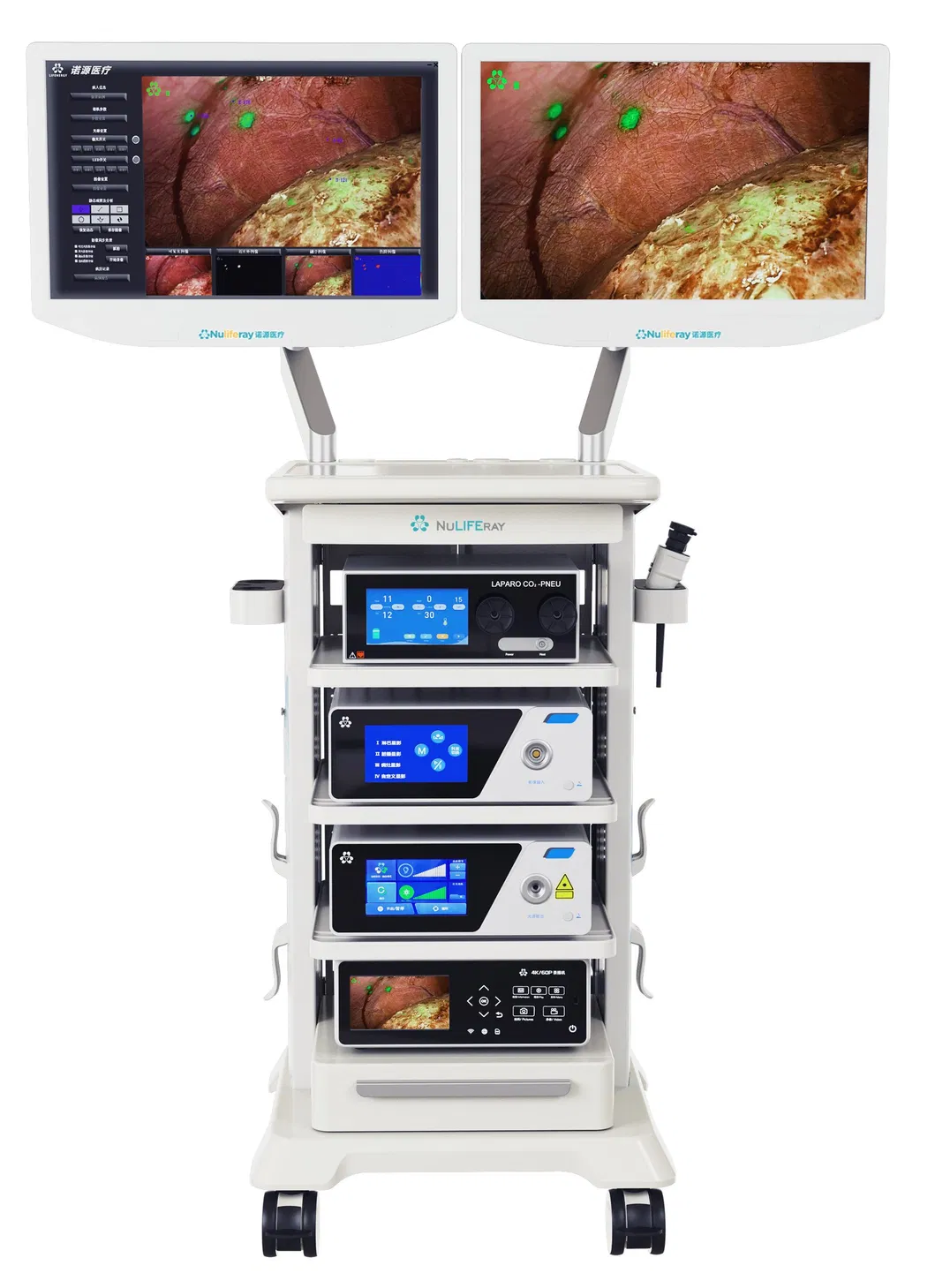

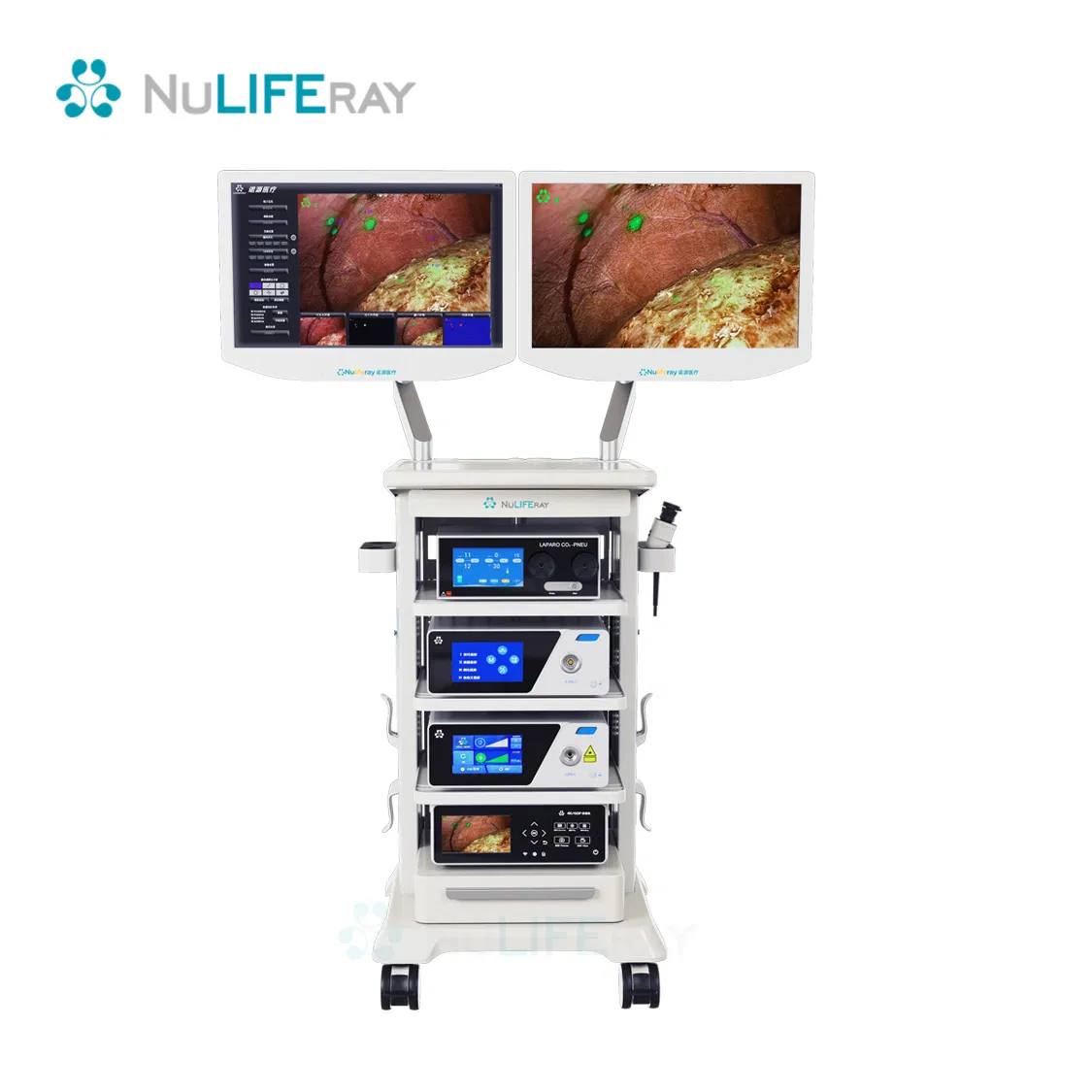

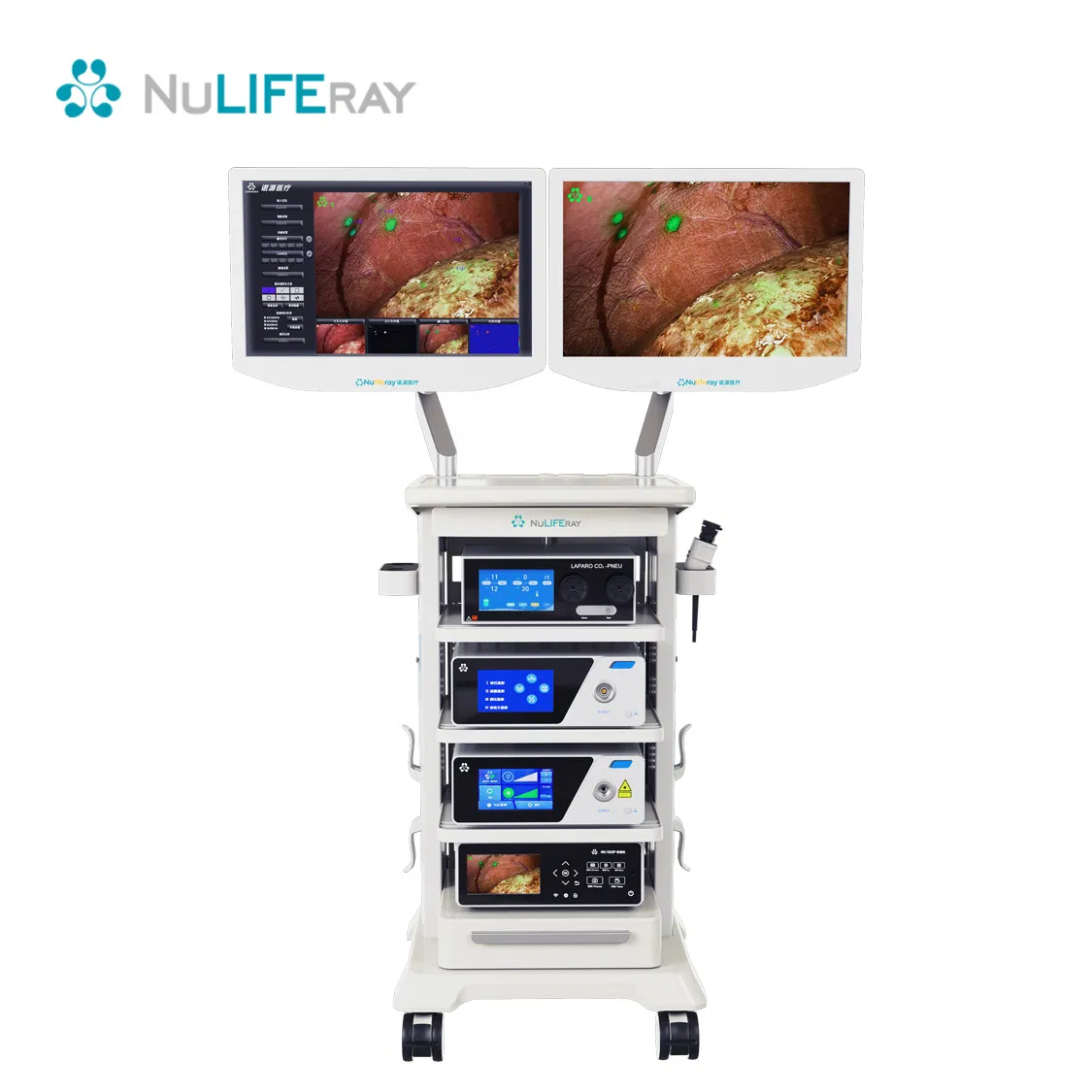

4K endoscopic fluorescence imaging system

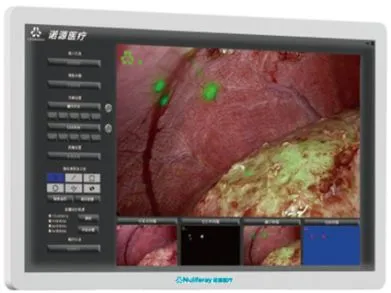

Embedded software for workstation

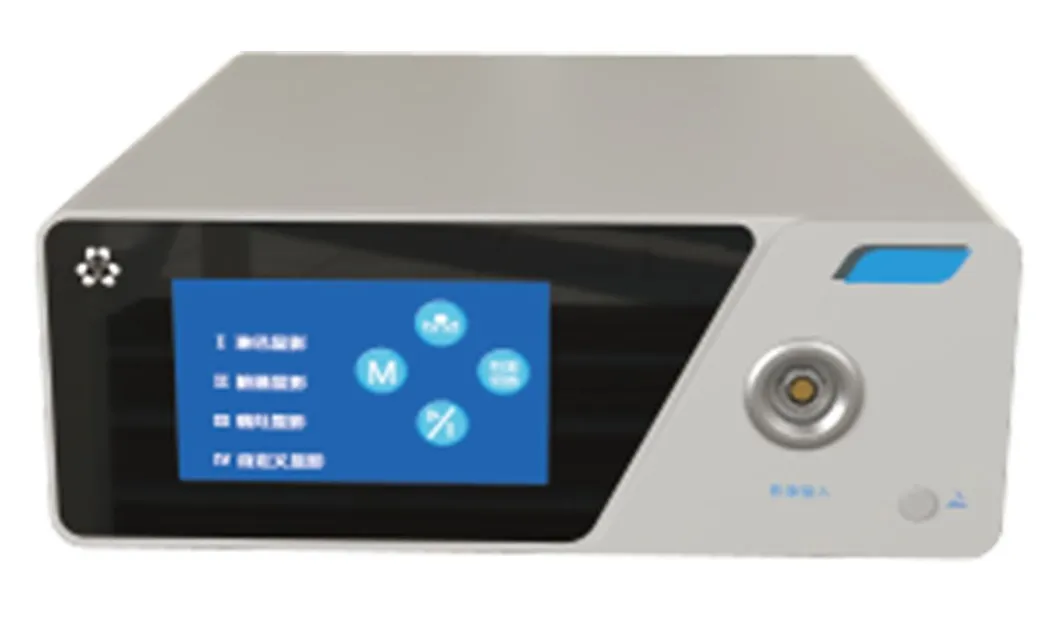

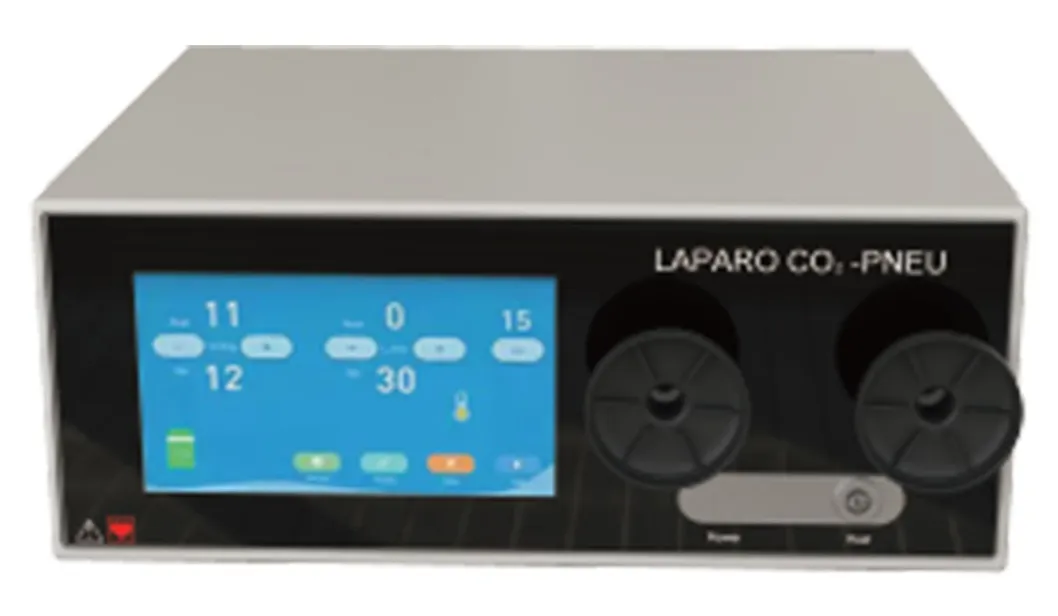

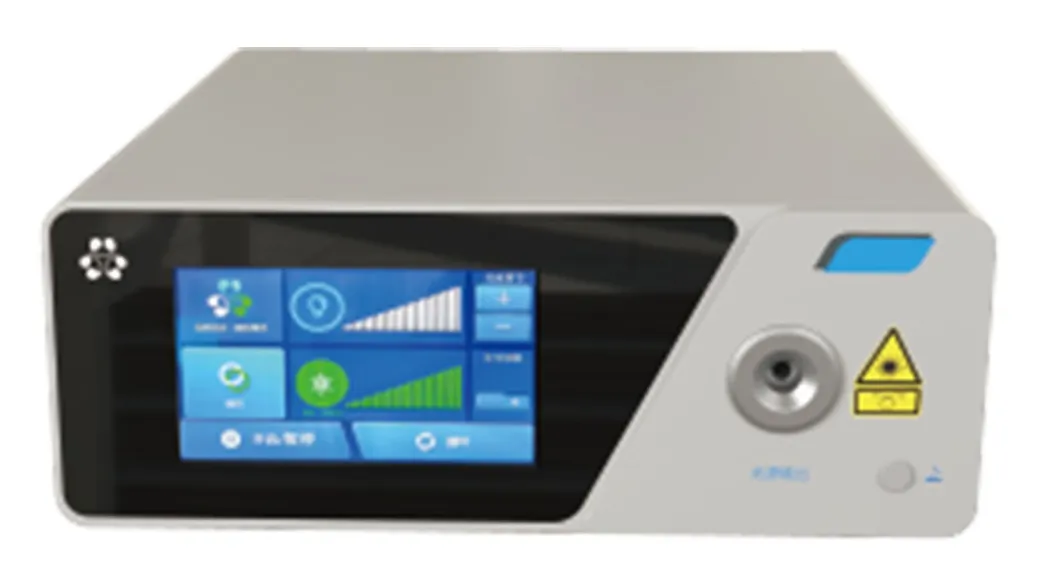

P1: Independent dual light source | P2: Ultra HD Camera System | P3: Fully automatic insufflation system

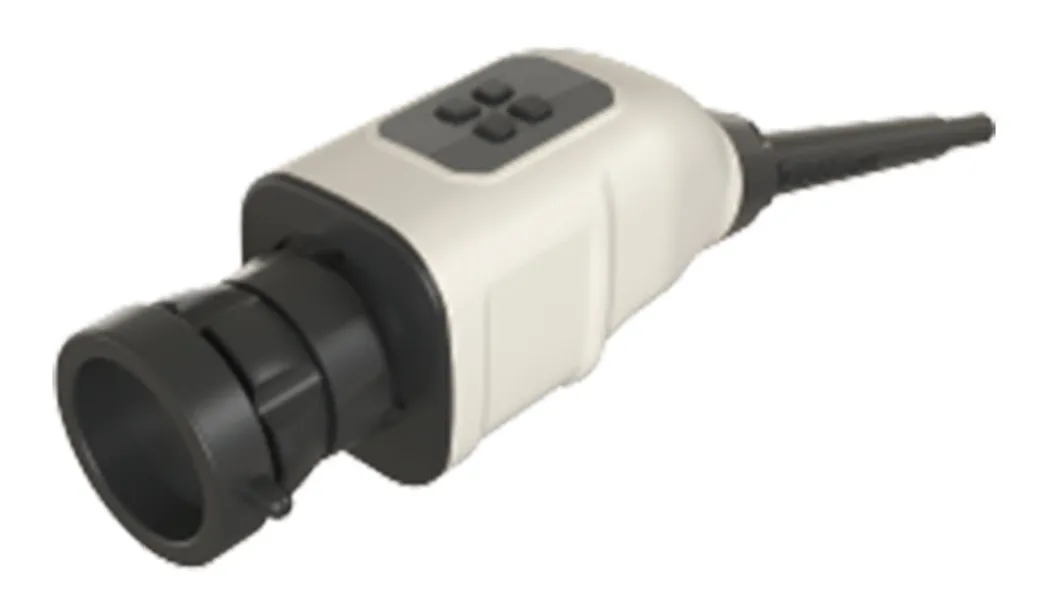

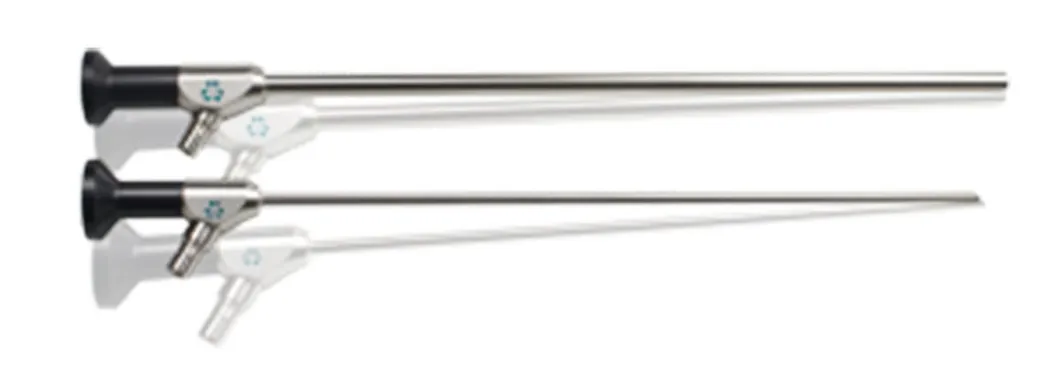

P4: True 4K recording system | P5: 4CMOS 4K handheld camera | P6: Antireflective fluorescent endoscope

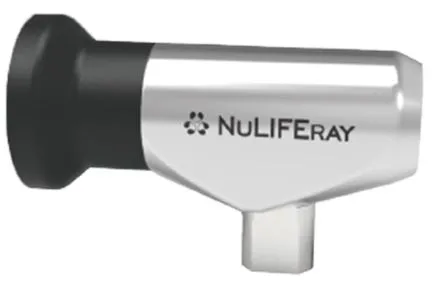

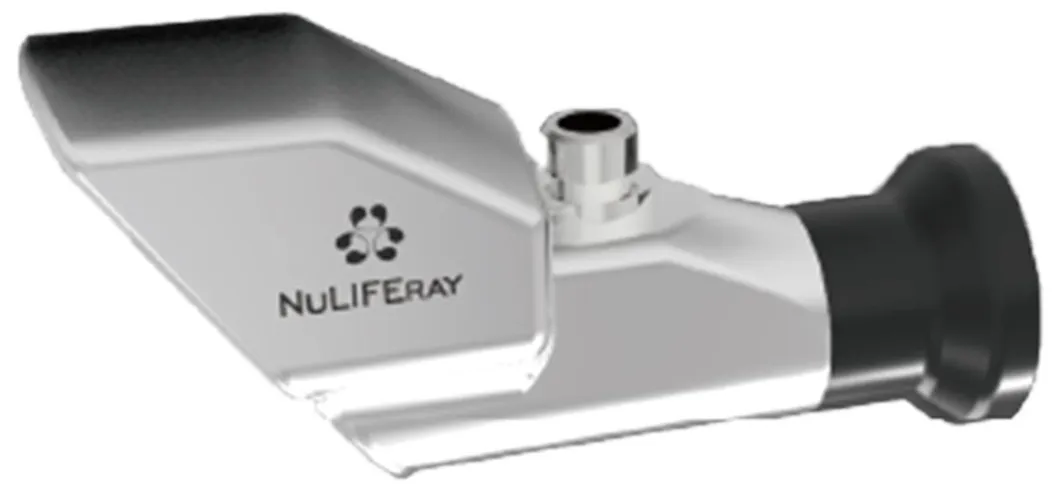

P7: 0° High-resolution objective | P8: 28° High-resolution objective
Hepatobiliary: Liver cancer surgery imaging, liver segment marking, and bile leakage identification.
Gastrointestinal: Tumor localization, sentinel lymph node labeling, and blood supply evaluation.
Thoracic: Thoracic duct identification, pulmonary segment resection marking, and nodule localization.
Gynecology/Urology: Pelvic tumor tracing and real-time identification of ureter and urethra.

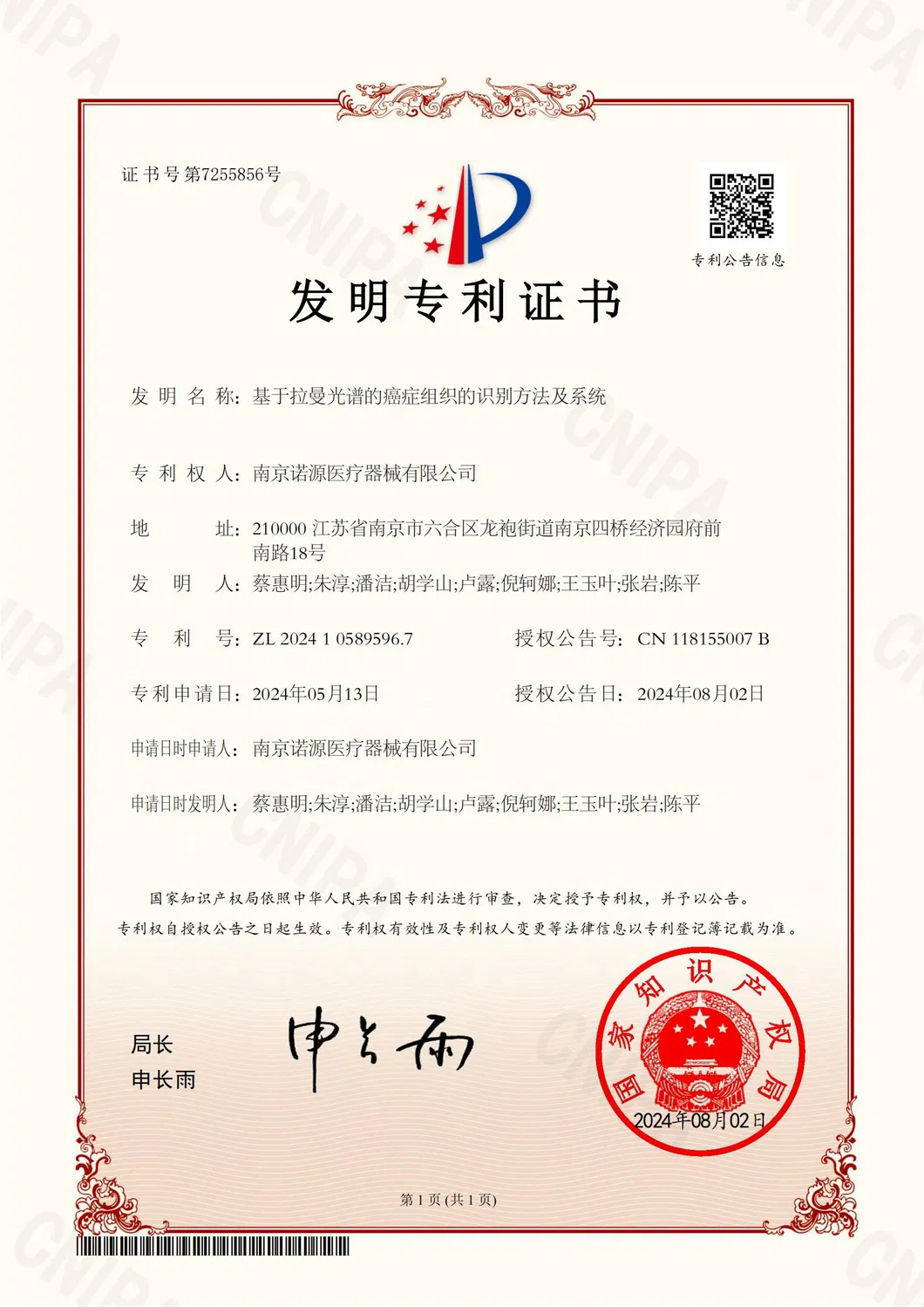

Holding 131 core invention patents and multiple international patents, recognized as a "little giant" enterprise in molecular fluorescence.

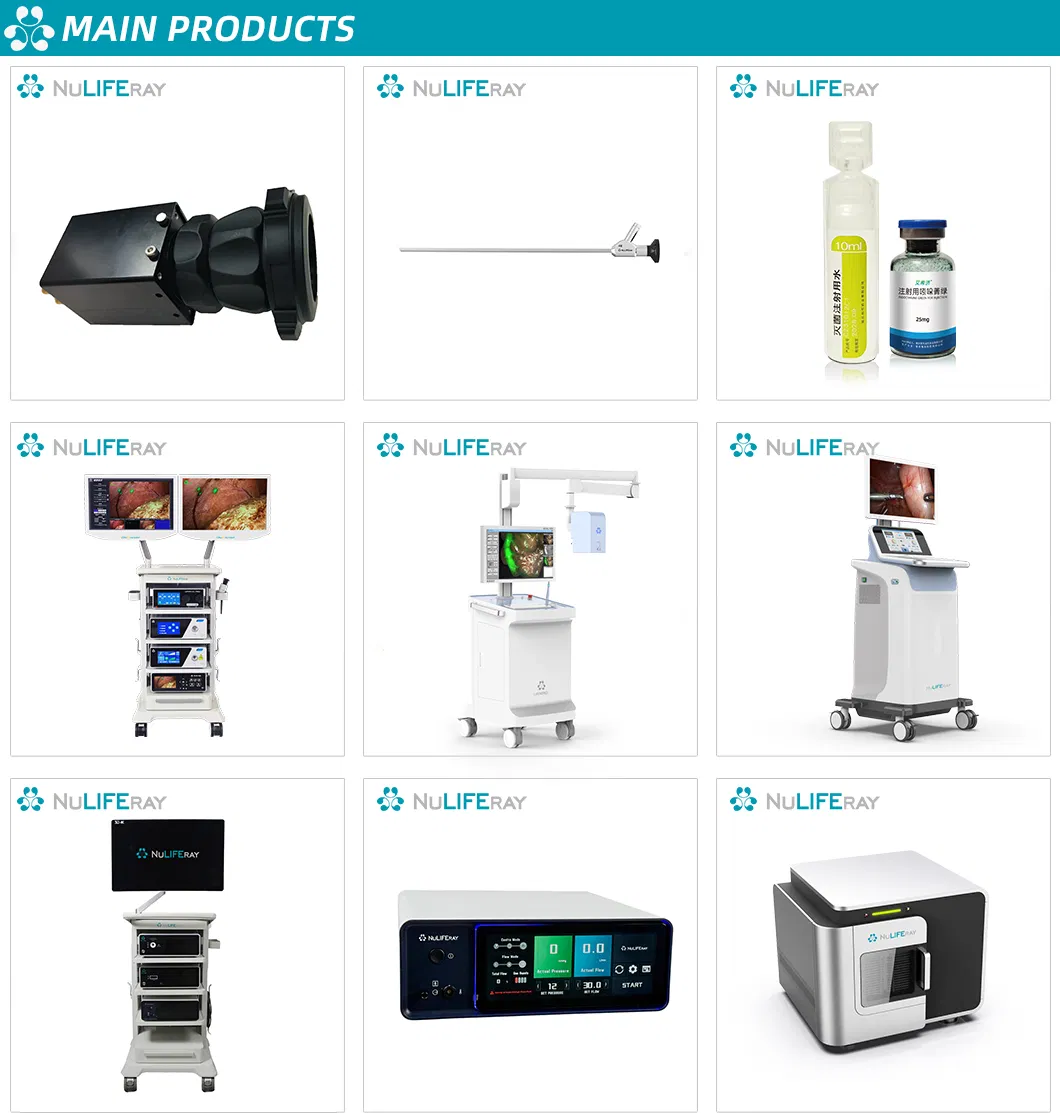

The product range includes research, development, and production of high-end medical devices (fluorescence imaging), contrast agents (ICG), and core components like CMOS camera modules and endoscopes. These solutions are used in more than 500 large hospitals.
