Product Description

Basic Information

Model NO.
YT-YS3000A
Max Diameter
<500mm
Mass Scope
<900kg
Type
Strength Testing Machine
Maxcapacity
>1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Display
Digital
Power Source
AC220V
Dimension
350(L)×300(W)×510(H)mm
Standards
ISO 3035, ISO 3037, ISO 7263
Measuring Range
10-3000N
Package
Wooden Box
HS Code
9024800000

Packaging & Delivery

Package Size
51.00cm * 49.00cm * 62.00cm
Gross Weight
65.000kg

Product Description

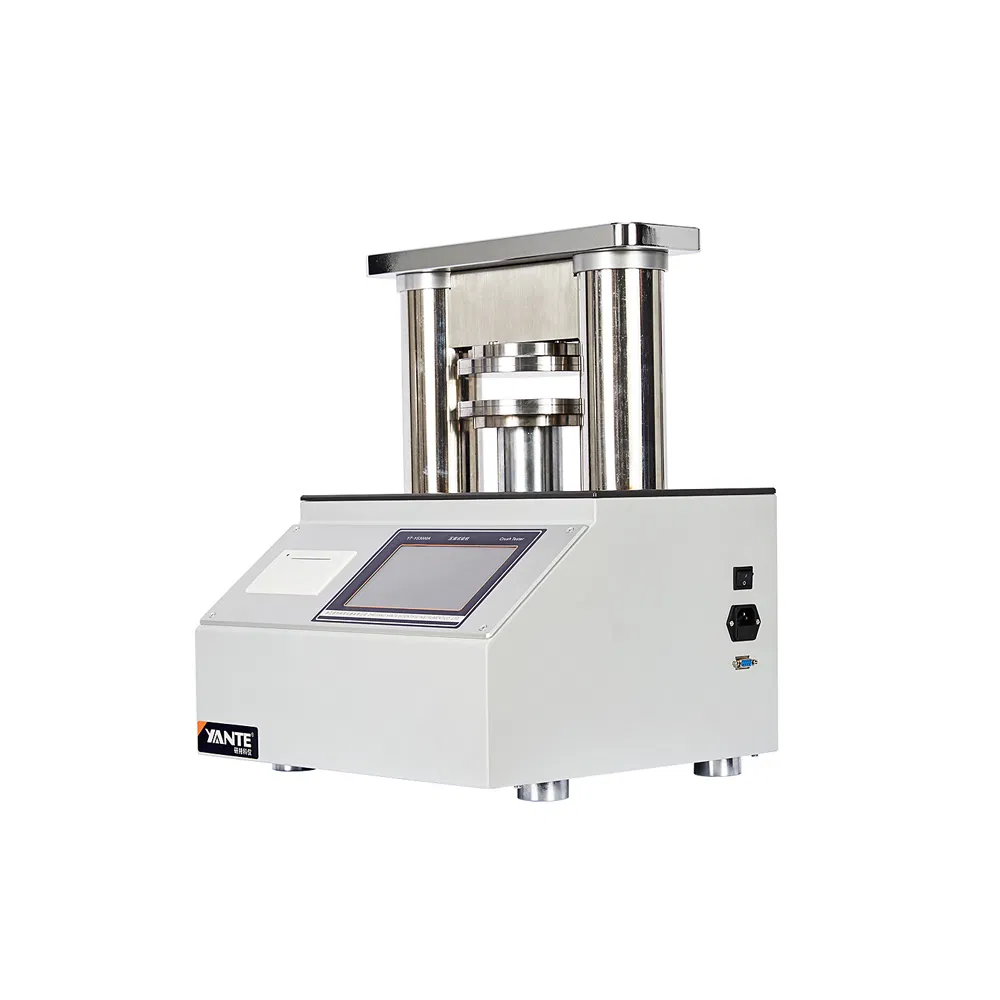

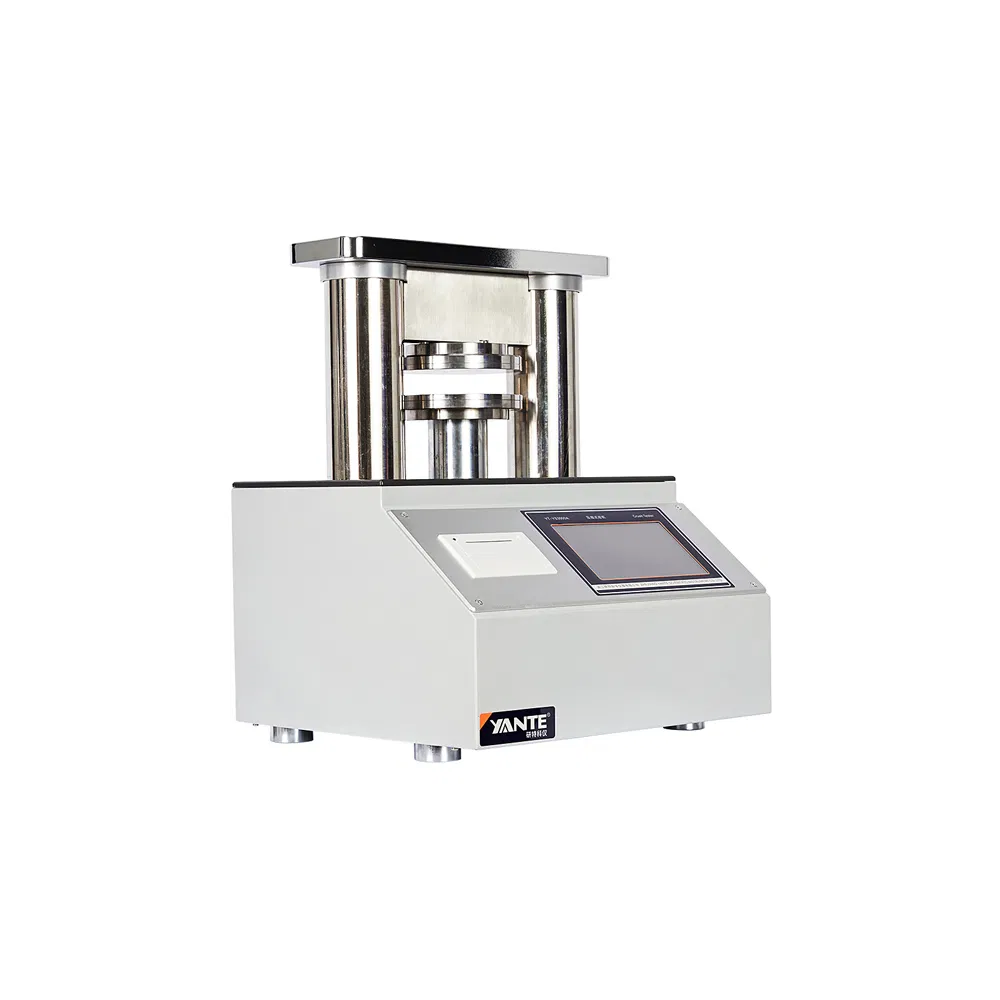

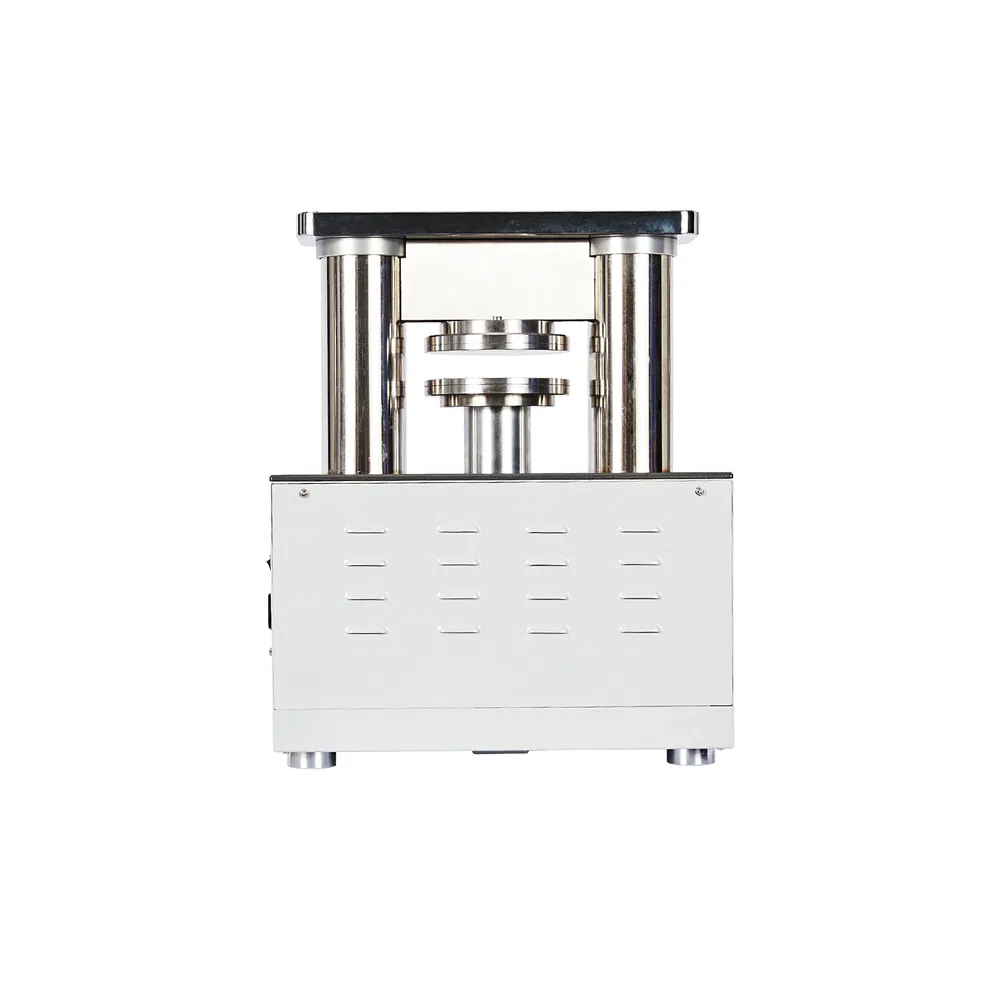

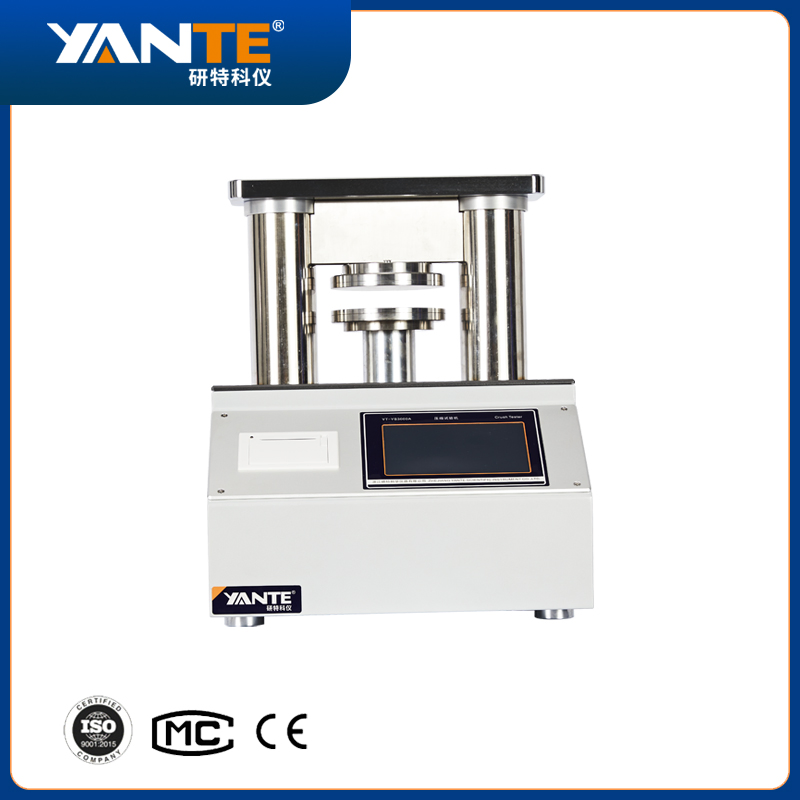

Programmable Paper Testing Equipment

The Crush Tester is an ideal auxiliary test tool for papermaking companies, cardboard manufacturers, carton manufacturers, carton users, and quality supervision and inspection departments.

Main Application Functions

  • Measure corrugated base paper ring crush strength (RCT)
  • Measure corrugated cardboard edge crush strength (ECT)
  • Measure corrugated cardboard flat crush strength (FCT)
  • Measure corrugated cardboard pin adhesion (PAT)
  • Measure corrugated base paper corrugating medium strength (CMT)
  • Measure corrugated base paper corrugated crush strength (CCT)

Product Features

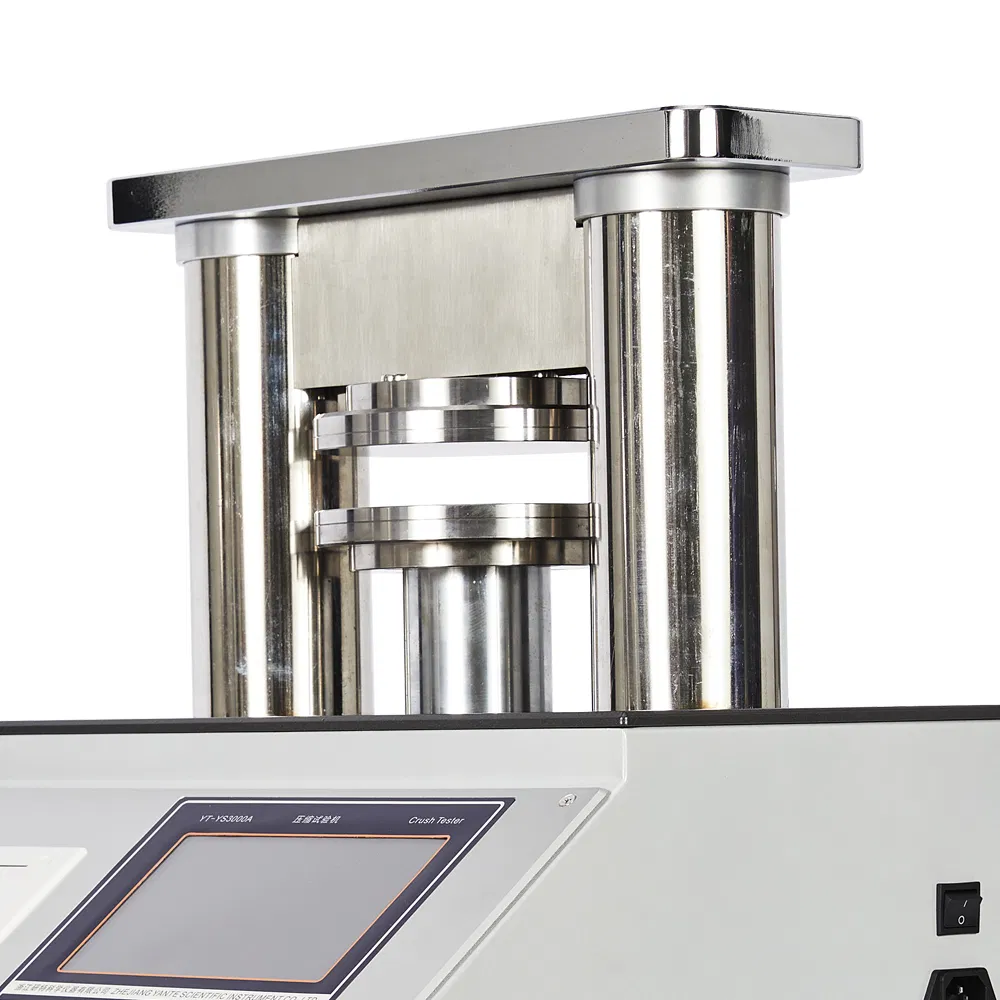

  • High-precision load cell, ball screw drive, dual guide shafts.
  • ARM processor with 24-bit imported analog-to-digital converter for superior accuracy.
  • Real-time display of pressure change curves during the test process.
  • Over-range automatic reset to protect precision sensors.
  • Data storage function for sudden power failure protection.
  • Compatible with computer communication software.

Supporting Accessories

No. Accessory Name Model Preview Optional
1 RCT Sample Cutter YT-H152 √
2 RCT Central Panel YT-SQ √
3 ECT (PAT) Sample Cutter YT-BY25 √
4 PAT Accessories YT-NH23 √
5 Concora Medium Fluter YT-CMFA √

Compliance Standards

International Standards: ISO 12192, ISO 3037, ISO 3035, ISO 7263, ISO 16945
TAPPI Standards: TAPPI T822, T839, T825, T809, T843
GB Standards: GBT 2679.8, GBT 6546, GBT 22874, GBT 6548, GBT 2679.6

Technical Parameters

No. Parameter Item Technical Index
1Power SupplyAC 100~240V, 50Hz/60Hz 100W
2EnvironmentTemp (10~35)ºC, Humidity ≤ 85%
3Display7 inch color touch screen
4Range(10~3000)N, customizable to 5000N
5Indication Error±0.5% (Range 5%~100%)
6Resolution0.1N
7Test Speed(12.5±1)mm/min, (1~500) mm/min adjustable
8Platen Parallelism<0.02mm
9Max Distance80mm
10PrinterBuilt-in thermal printer
11InterfaceRS232 (Default), USB/WIFI (Optional)
12Dimension415×370×505 mm
13Net WeightAround 58 kg

Recommended Products

Paper Testing Machine
Carton Box Compression Tester
Auto Mullen Burst Test Machine

Frequently Asked Questions

What are the primary test functions of this machine?
The equipment is designed to measure Ring Crush Strength (RCT), Edge Crush Strength (ECT), Flat Crush Strength (FCT), Pin Adhesion (PAT), and Corrugating Medium/Crush Strength (CMT/CCT).
What is the accuracy level of the YT-YS3000A?
It features an accuracy grade of 0.5, with an indication error within ±0.5% in the 5%~100% range.
Is the testing speed adjustable?
Yes, the standard test speed is (12.5±1)mm/min, but it is fully adjustable from 1 to 500 mm/min.
Does the machine save data during a power failure?
Yes, it includes a sudden power failure data storage function. Data from before the failure is retained and testing can continue once power is restored.
What type of display and interface does it use?
The machine is equipped with a 7-inch color touch screen and supports RS232 communication by default, with USB and WIFI as optional interfaces.
Which international standards are supported?
It complies with multiple international standards including ISO 3035, ISO 3037, ISO 7263, ISO 12192, and various TAPPI protocols like T822 and T839.
