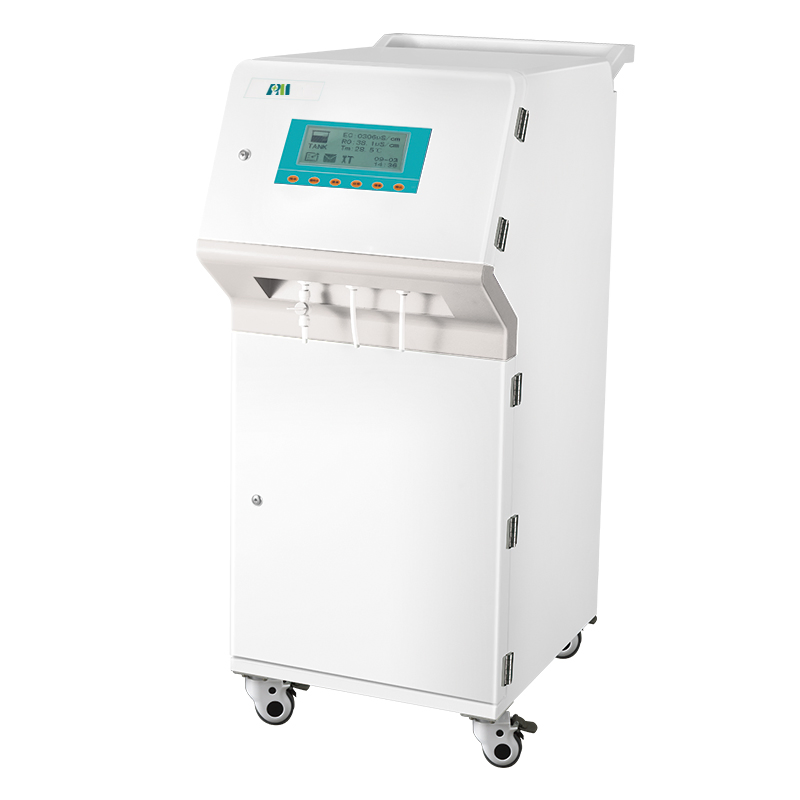

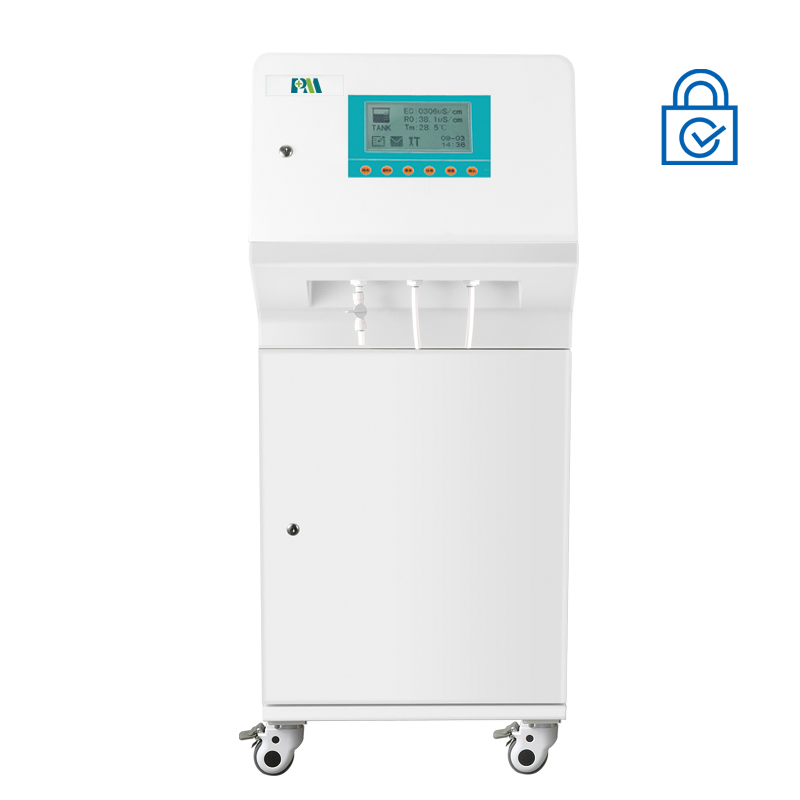

Promed High-Quality Online Display Ultra-Pure Water Purifier for Molecular Diagnostics Dl-M2-40tj

Customization: Available
Product Name: Dl-M2-40tj
Influent Requirement: Urban Tap Water : TDS<200pdl

Product Description

Basic Specifications

Model NO.
DL-M2-40TJ
System Process
PF+PP+RO+Di+UV
Resisivity
18.2mΩ.Cm@25°C
Pm (>0.2 Um)
<1/Ml
Water Yield (25°C)
40L/H
Specification
560*500*1060mm
Production Capacity
1000 unit/Month
Package Size
55.00cm * 50.00cm * 106.00cm
Gross Weight
85.000kg

Key System Features

💧 Precision Dispensing

Timed and volumetric water dispensing with high accuracy control up to ±2ml.

📊 Real-time Monitoring

Online display for continuous assessment of water quality, volume, and flow rate.

🛡️ UV Sterilization

Japanese-imported UV lamps and DOW RO membranes ensure maximum purification.

⚙️ Intelligent Protection

Password-protected settings and safety alerts for water shortages or high pressure.

Product Description

The ultra-pure water purification system is a versatile solution that transforms tap water into pure and ultra-pure water. Its all-in-one design offers convenience and flexibility for various applications. Key features include timed and volumetric water dispensing, allowing precise control with an accuracy of up to ±2ml. The online display provides real-time monitoring of water quality, total volume, and flow rate, ensuring transparency and ease of use.

The system supports time settings for standby and shutdown, maximizing energy efficiency. It also features online monitoring of source water, RO permeate water, and UP water, ensuring continuous water quality assessment. Customizable lifespan settings for filters, membranes, and purification columns ensure optimal component performance. The system integrates large-capacity purification units with imported resin for water quality up to 16-18MΩ.cm.

With a Japanese-imported UV sterilization lamp, durable alloy electrodes, and NSF-certified pipelines, the system guarantees reliable operation. The use of DOW RO membranes and anti-scaling flushing programs extends the membrane lifespan. It is an indispensable asset in laboratories, research facilities, and other settings requiring high-quality water for molecular diagnostics.

Visual Presentation

Frequently Asked Questions

What level of water purity does the DL-M2-40TJ achieve?
The system produces ultra-pure water with a resistivity of 18.2mΩ.Cm at 25°C, suitable for sensitive molecular diagnostic applications.
Can I control the exact volume of water dispensed?
Yes, the system features both timed and volumetric dispensing modes with a precision accuracy of ±2ml.
How does the system monitor water quality?
It provides integrated online monitoring for source water, RO permeate water, and UP water, displaying real-time quality and flow data on the control panel.
What purification technologies are used in this model?

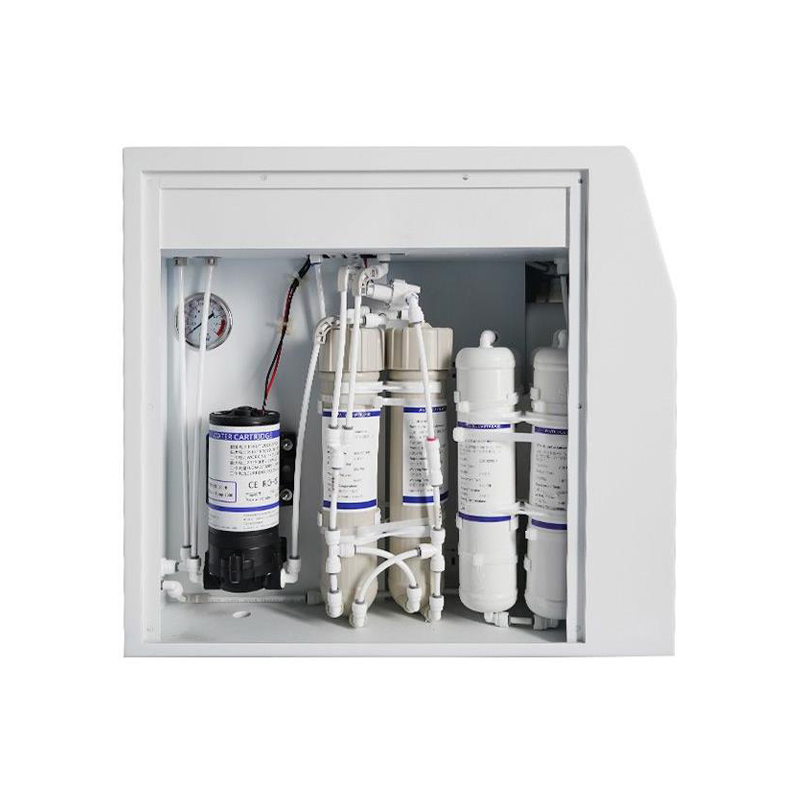

The DL-M2-40TJ utilizes a five-stage purification process: Pre-filtration (PF), Polypropylene (PP), Reverse Osmosis (RO), Deionization (Di), and Ultraviolet (UV) sterilization.
How is the lifespan of the RO membrane protected?
The system uses high-quality DOW RO membranes and includes an automated anti-scaling flushing program to prevent mineral buildup and extend component life.
Is the system suitable for energy-saving laboratory environments?
Yes, it includes customizable time settings for automatic standby and shutdown to maximize energy efficiency during periods of inactivity.
