Introduction

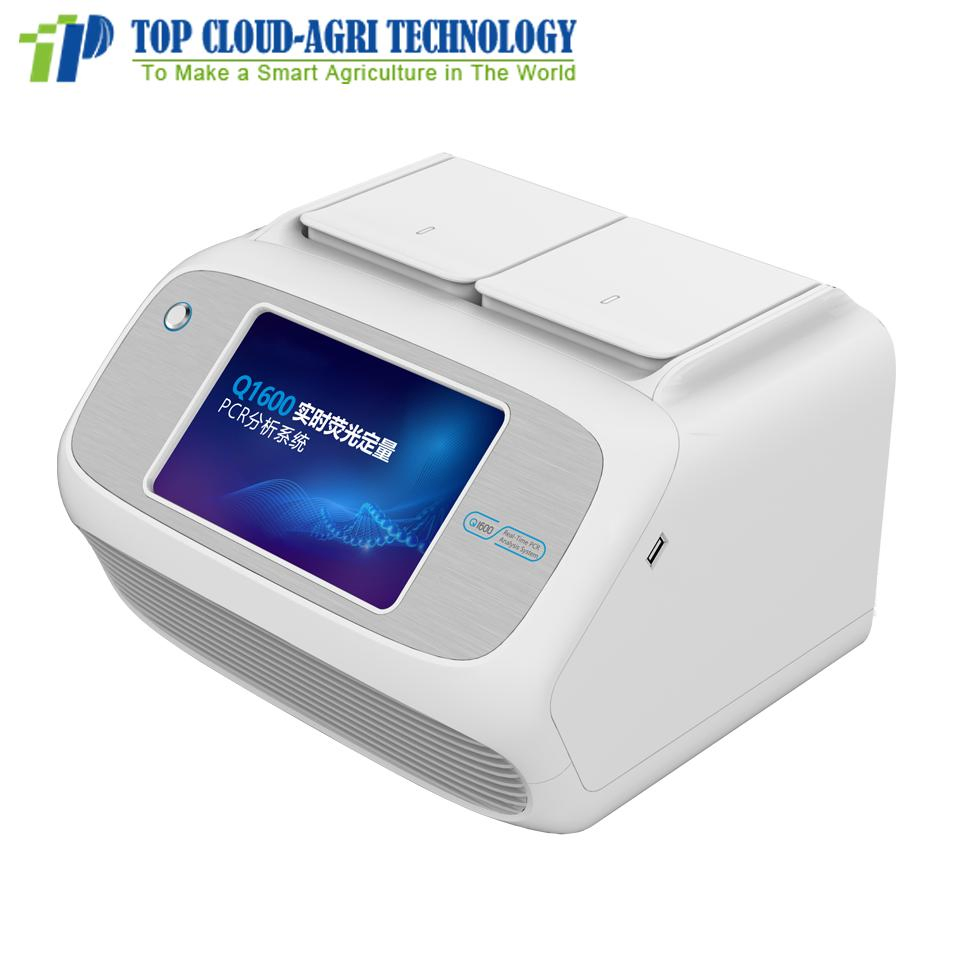

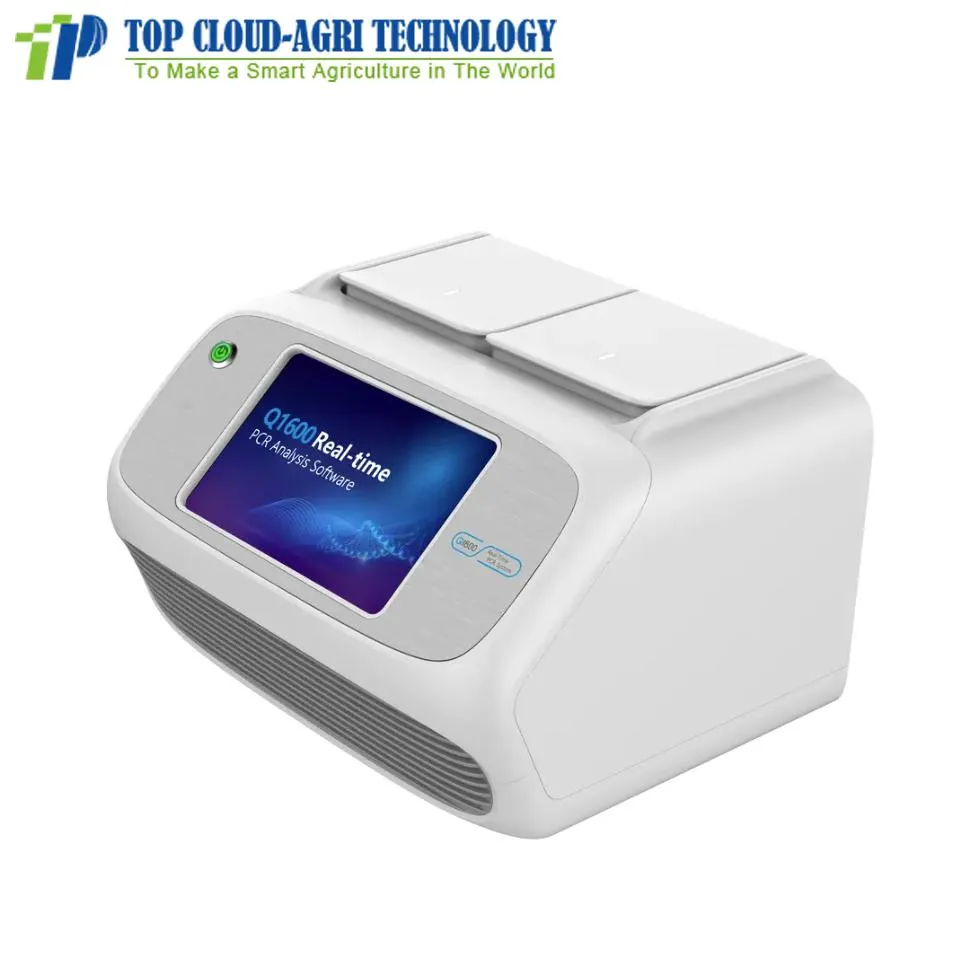

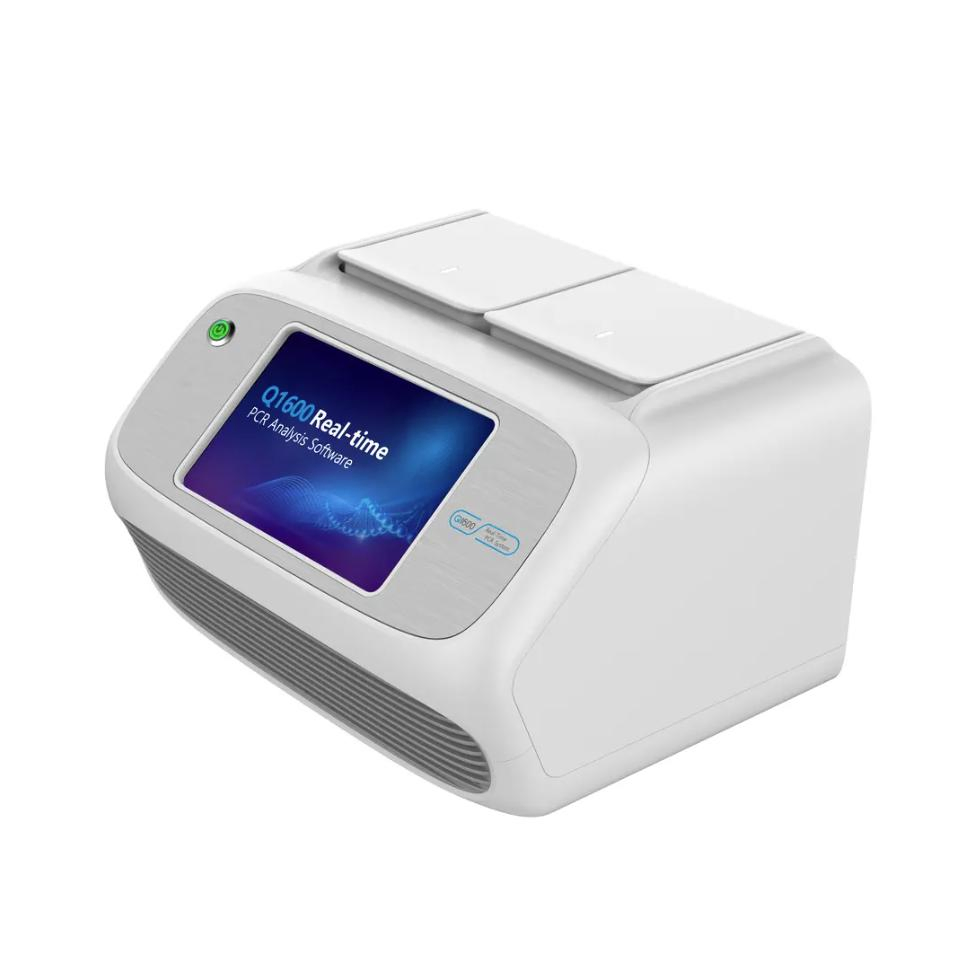

This product adopts double channels and double 8-well blocks design, which can realize the multi-purpose of one machine. Featuring an embedded 7-inch high-definition TFT color touch screen and Windows operating system with analysis software, it can complete quantitative analysis and printing without an external computer.
Equipped with an American Marlow custom-made Peltier module, high-sensitivity photoelectric detector, and side scan technology, the system ensures superior performance and stable detection results. It is ideal for real-time detection in pasture, forest farms, breeding farms, and water sources, as well as rapid diagnosis in food safety and biological research.
| Model No. | Q1600 | Q1602 |
| Sample Capacity | 16X0.2ml (2X8 well, double block) | |
| Consumable | Clear 0.2 ml PCR tube / 8-tube strips | |
| Reaction Volume | 10-100μl | |
| Temp Control Tech | Marlow customized Peltier (1,000,000 cycles) | |
| Temperature Range | 0-100°C (Resolution: 0.1°C) | |
| MAX. Ramp Rate | 6°C/s | |
| Accuracy | ± 0.25°C | |
| Excitation Wavelength | 460-550nm | |
| Emission Wavelength | F1: 520-540nm | F1: 520-540nm; F2: 540-580nm |
| Factory Calibrated Dyes | F1: FAM/SYBR Green | F1: FAM/SYBR Green; F2: HEX/VIC/JOE/TET |
| Detection | High-sensitivity photoelectric detector | |
| Dimension | 300x267x198mm (LxWxH) | |
| Net Weight | 5.5KG | |
We have a professional after-sales team with global service coverage and a 24-hour time difference free to provide you with solutions.

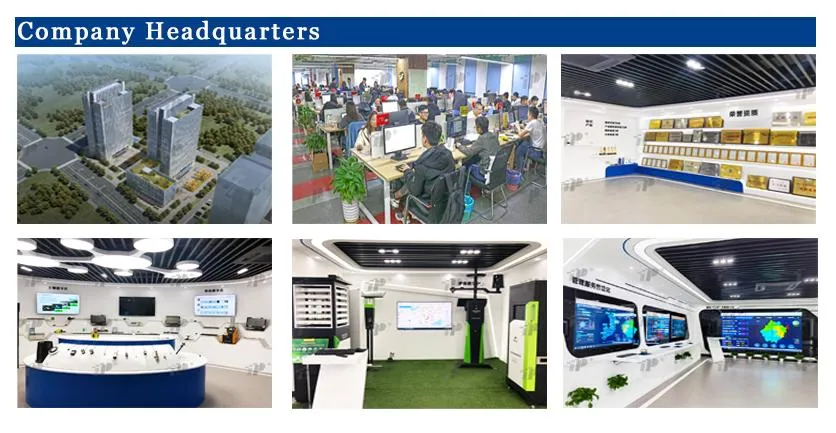

Established in 2008, the enterprise specializes in the design, development, and manufacture of high-tech agricultural testing instruments and laboratory equipment. Our core expertise includes seed shape measurement, seed vigor research, plant physiology, and food safety detection.

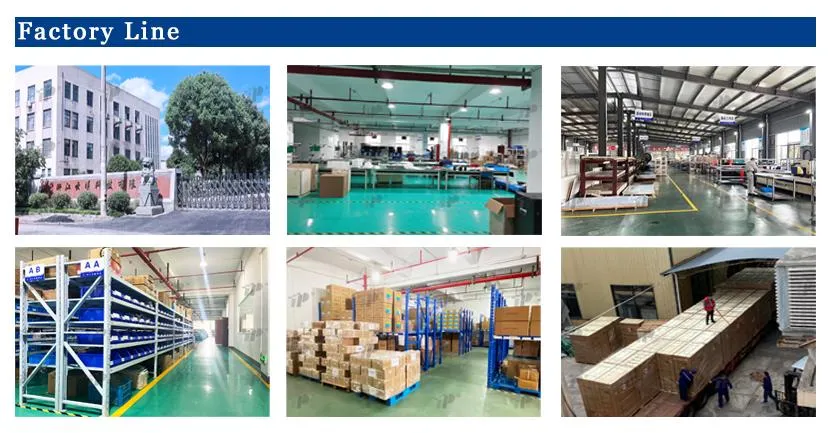

The facility has passed ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. We hold multiple national patents and software copyrights, ensuring that every product meets rigorous scientific standards.
