After-Sales Service
Overseas Service Center Available
Type
Carton Packaging Machinery

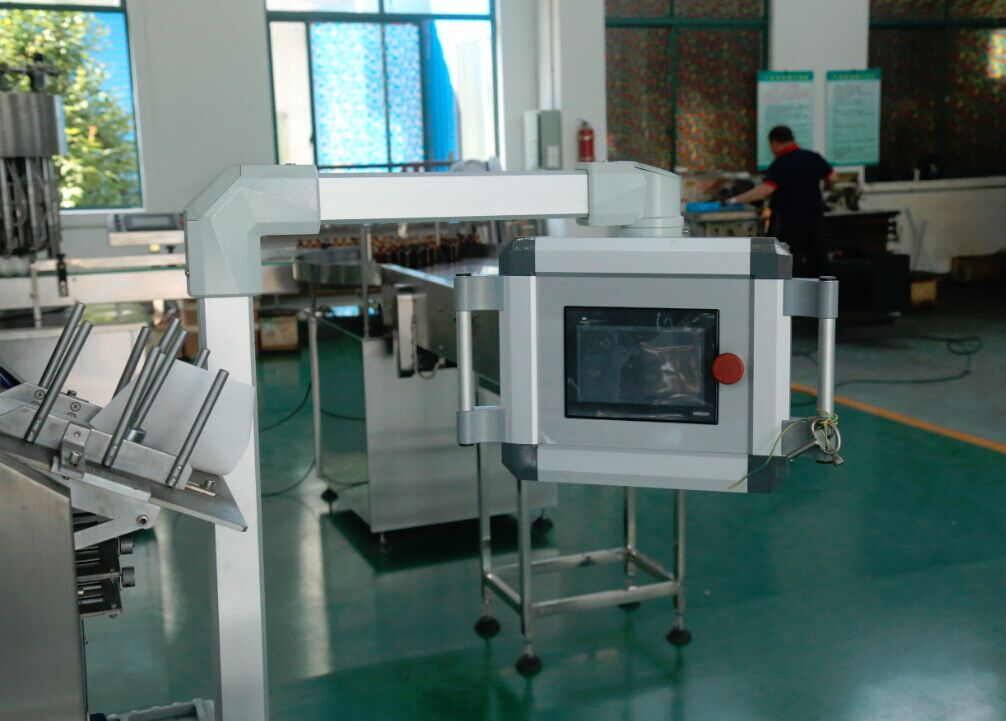

HMI
7.5” Color Touch Screen Control
Protection
Comprehensive Safety Alarm System
Detecting System
Vial Detector & Counter
Noise Reduction
Blimp for Vibrator
Specification
1200*900*2200mm

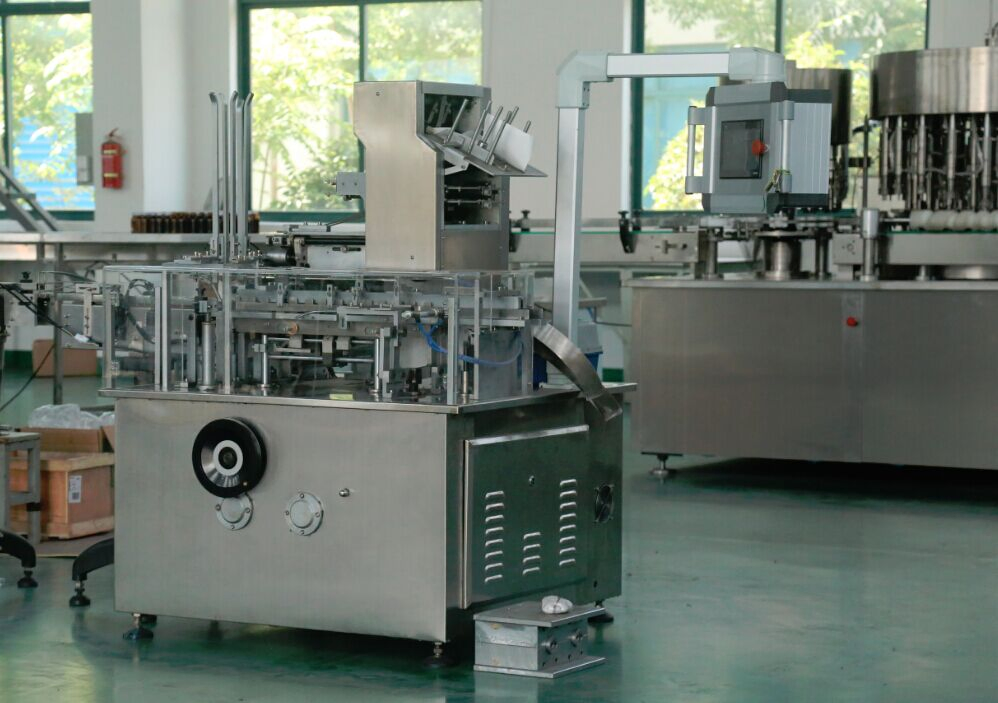

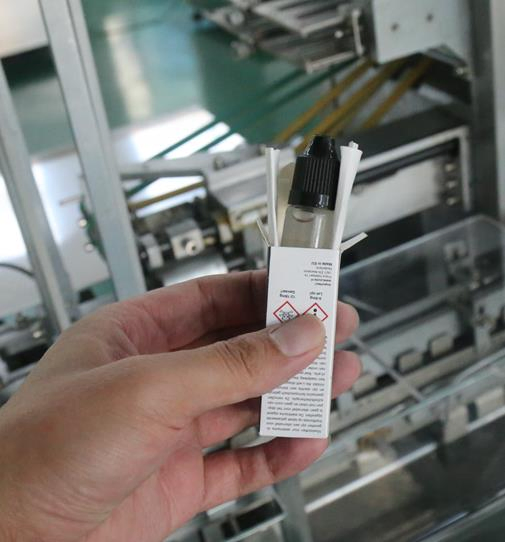

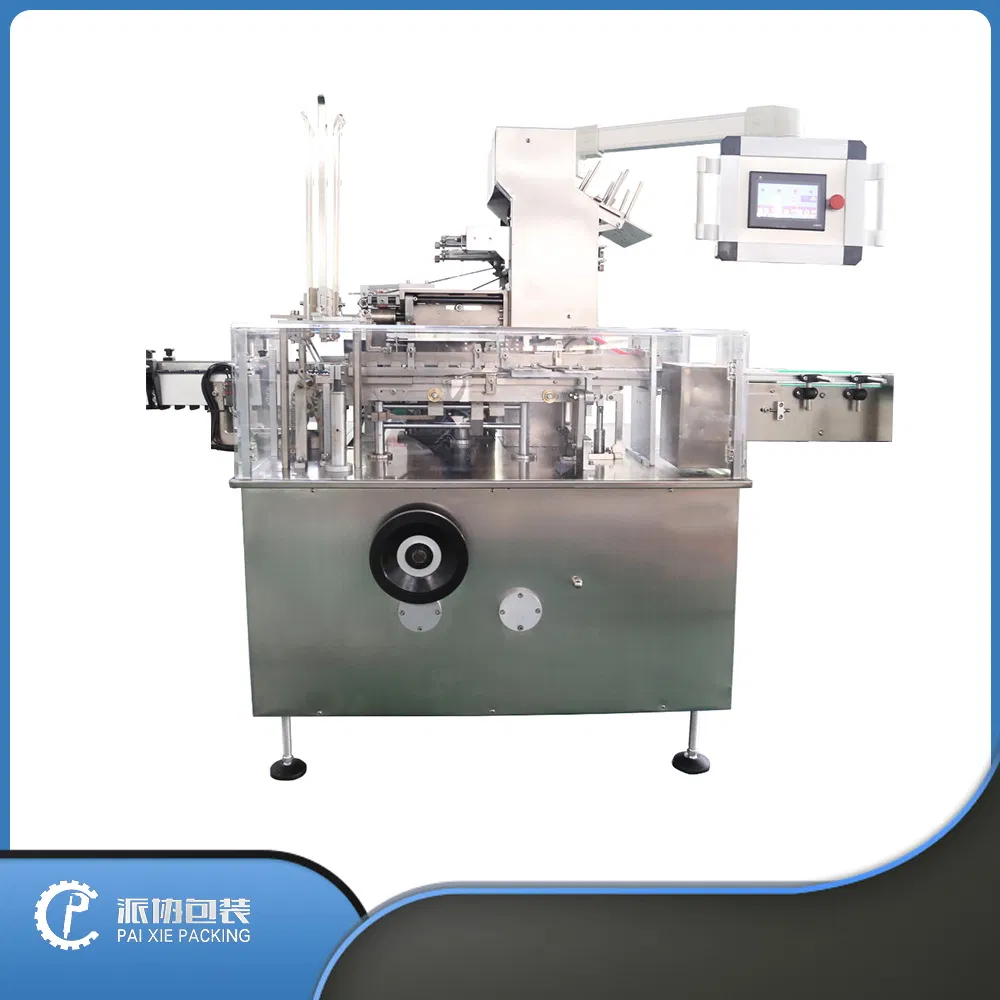

The latest horizontal cartoning machine is customized for essential oils, syrups, spray disinfectant, electronic cigarettes, and other products. It is suitable for boxes with openings on both sides, regardless of whether the sealing direction of the box is the same. Manual boxing is optional; using PLC control, users can freely choose manual embedding.
- 1How to fill multiple bottle formats without complex adjustments?
- 2How to verify equipment quality and investment value?
- 3What is the expected lifespan of the machine in a real production environment?
- 4Is the installation process manageable for large-scale machinery?
- 5How to identify superior engineering in a crowded market?
Compared with traditional machinery, our smart filler provides an enhanced operation experience through several key advantages:
- ✓Servo Driving: Operators simply edit filling parameters on the HMI to accommodate various product types.
- ✓Safety Protection: A 150mm width SS304 frame with induction switches stops the machine instantly if doors are opened.
- ✓Scale Precision: All units are equipped with scale rules for different bottle types, simplifying data recording and adjustment time.
- ✓Material Quality: Constructed from SS304 and SS316 to prevent pollution and maintain product integrity.
- ✓Ready to Run: Machines are delivered as a whole unit to minimize on-site installation stress.
| No. |
Name |
Unit |
Description |
Remark |
| 1 | Total power cartoner | KW | 1 - 1.5 | - |
| 2 | Working voltage | V | 380 | - |
| 3 | Encasing speed | B/min | 40-120 | - |
| 4 | Carton Specification | mm | (20-170)*(20-90)*(12-55) | General requirements |
| 5 | Paper carton weight | g | 220-350 | Per square meter |
| 6 | Start-up current | A | 8 | - |
| 7 | Full load running current | A | 2.5 | - |
| 8 | Manual Specification | mm | (60-200)*(50-160) | General requirements |
| 9 | Manual paper weight | g | 50-80 | Per square |
| 10 | Air consumption | L/min | 5-8 L/Minute | - |
| 11 | Compressed air | MPa | 0.6 | - |
| 12 | Total weight | kg | 960 | - |
| 13 | Noise | ≤dB | 75 | At 80B/min |
| 14 | Dimension | mm | 1200×1220×1500 | Host size |

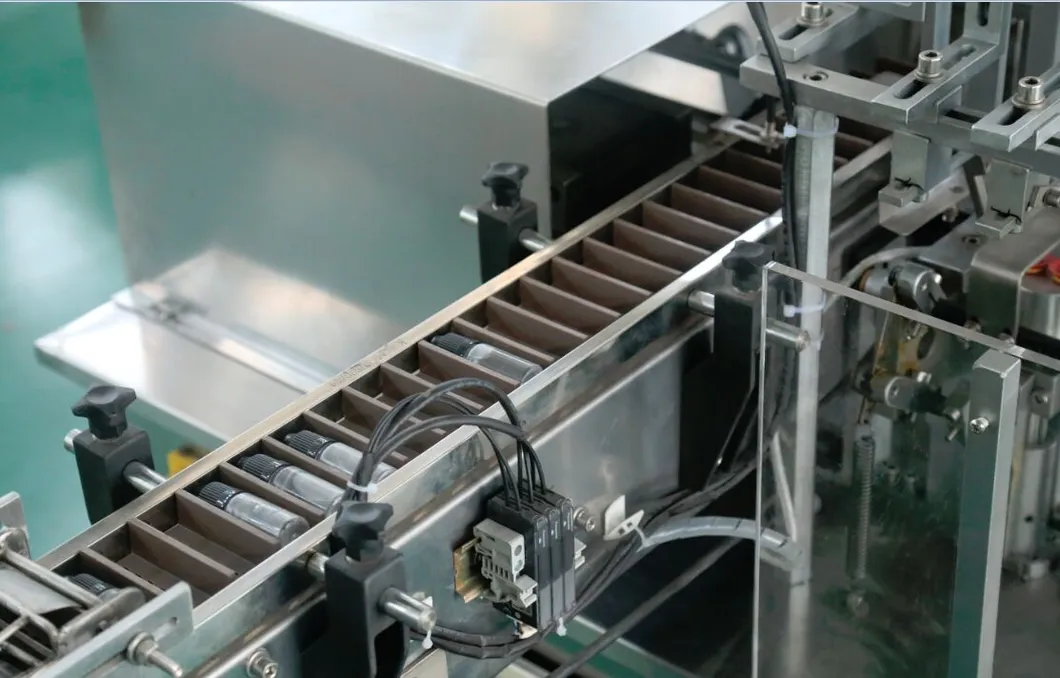

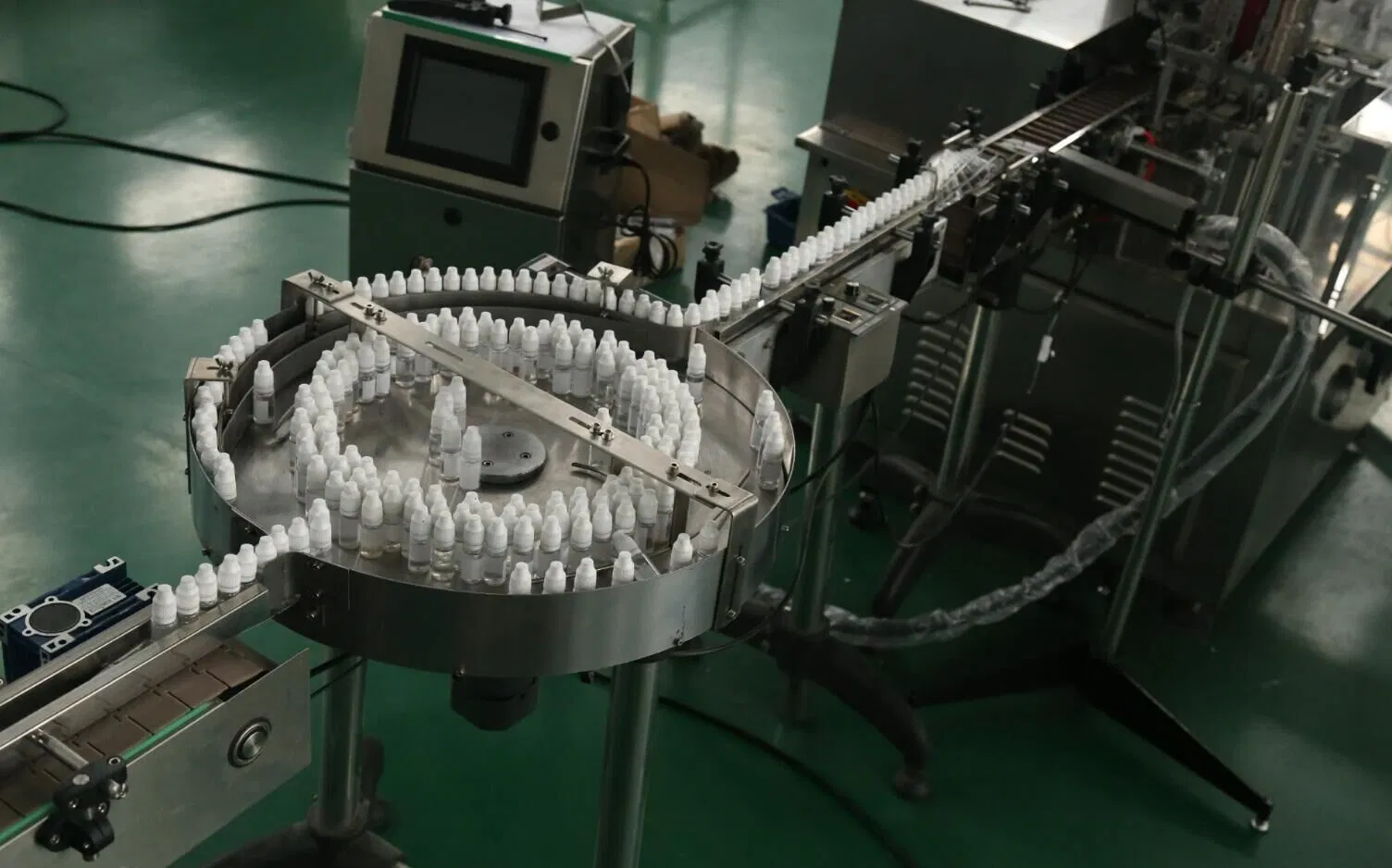

Bottle Feeding System

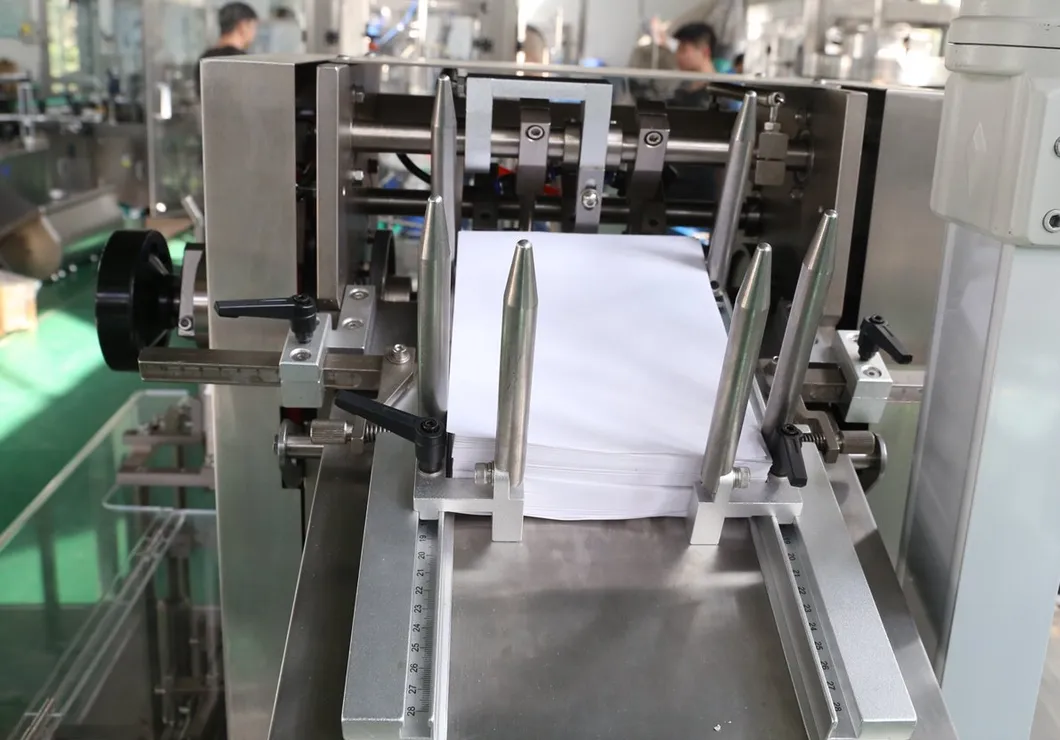

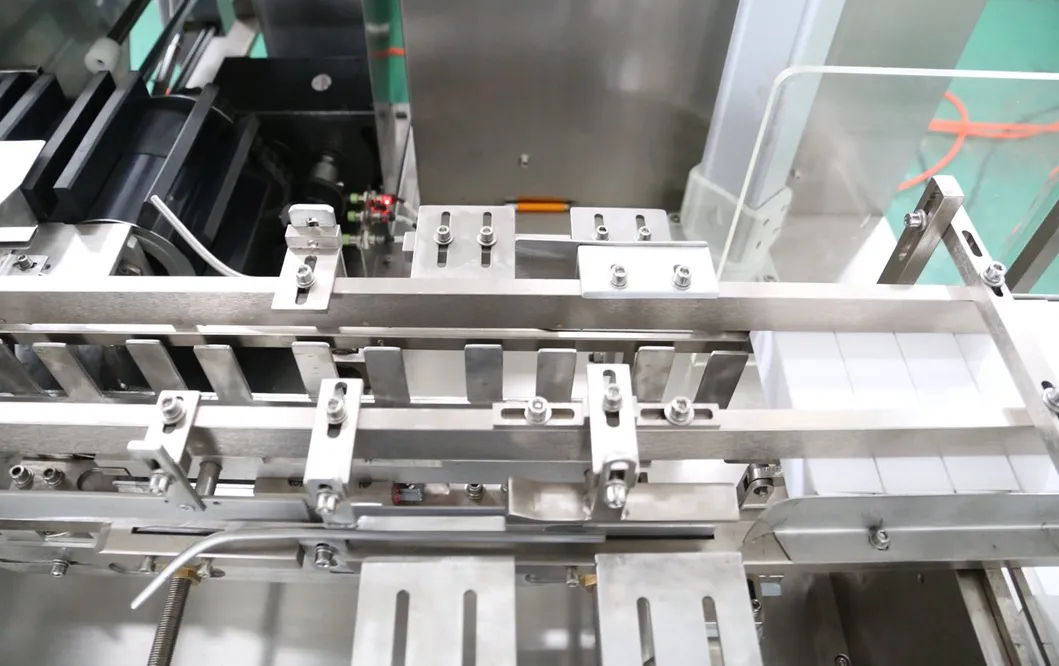

Paper Inserting & Carton Folding
What bottle sizes can this production line handle?
The system is highly versatile, specifically designed to handle bottle sizes ranging from 10ml, 30ml, 50ml, 60ml, up to 100ml.
How difficult is it to switch between different product formats?
It is very simple. Thanks to the servo driving system, operators can change filling parameters directly via the HMI touch screen without complex mechanical adjustments.
What safety features are included for operators?
The machine includes a 150mm SS304 protection frame with induction switches. It automatically stops whenever the plexiglass door is opened to ensure human safety.
What are the material specifications for hygiene?
All machine components are constructed from high-grade SS304 and SS316 stainless steel to prevent product pollution and comply with healthcare standards.
Does the machine arrive ready for use?
Yes, the machines are delivered as whole units. This solves the stress of complicated after-sale installations and ensures a faster production startup.
What is the production speed of the cartoning unit?
The encasing speed ranges from 40 to 120 boxes per minute, depending on the product and carton specifications.
