Professional Tool-Setting Solution

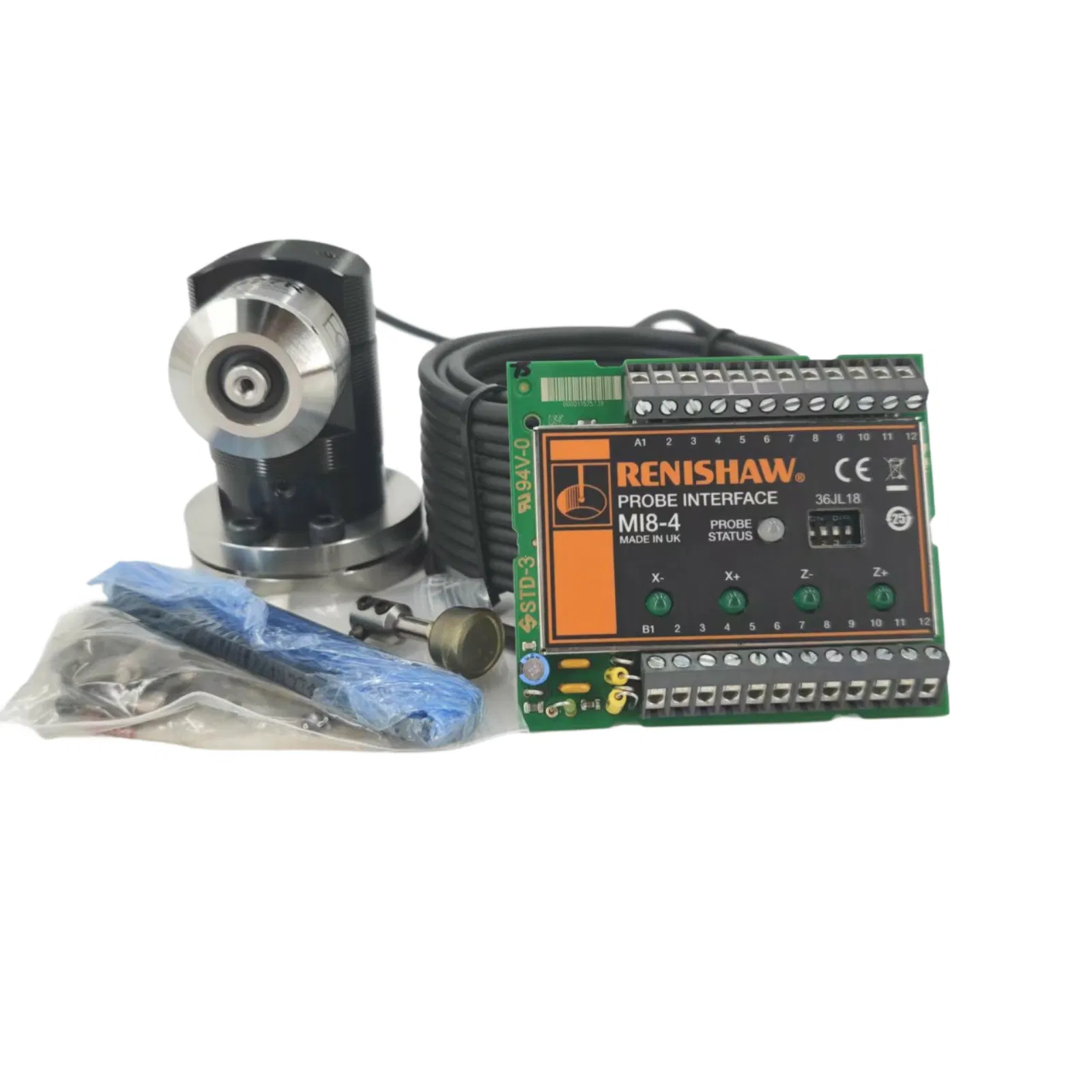

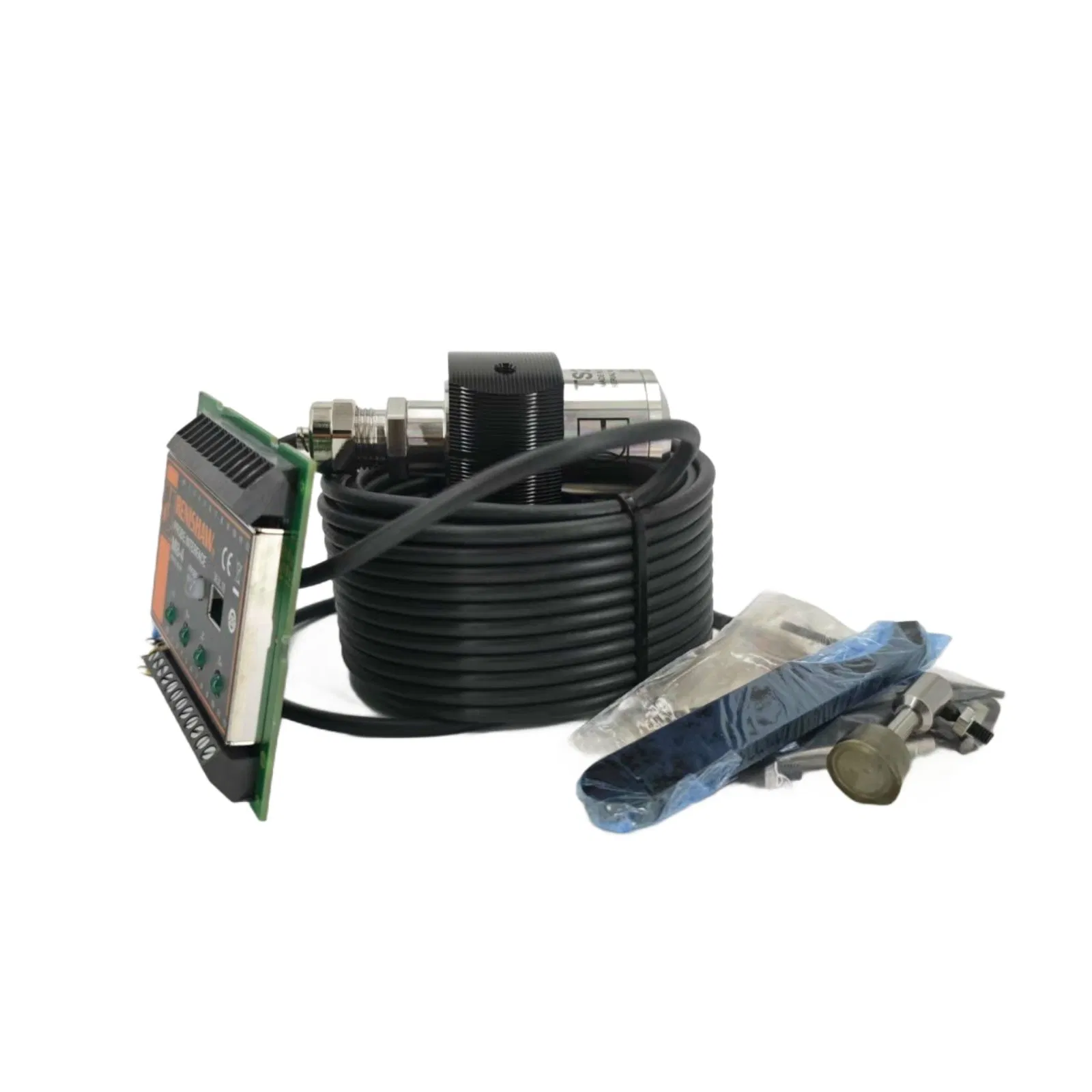

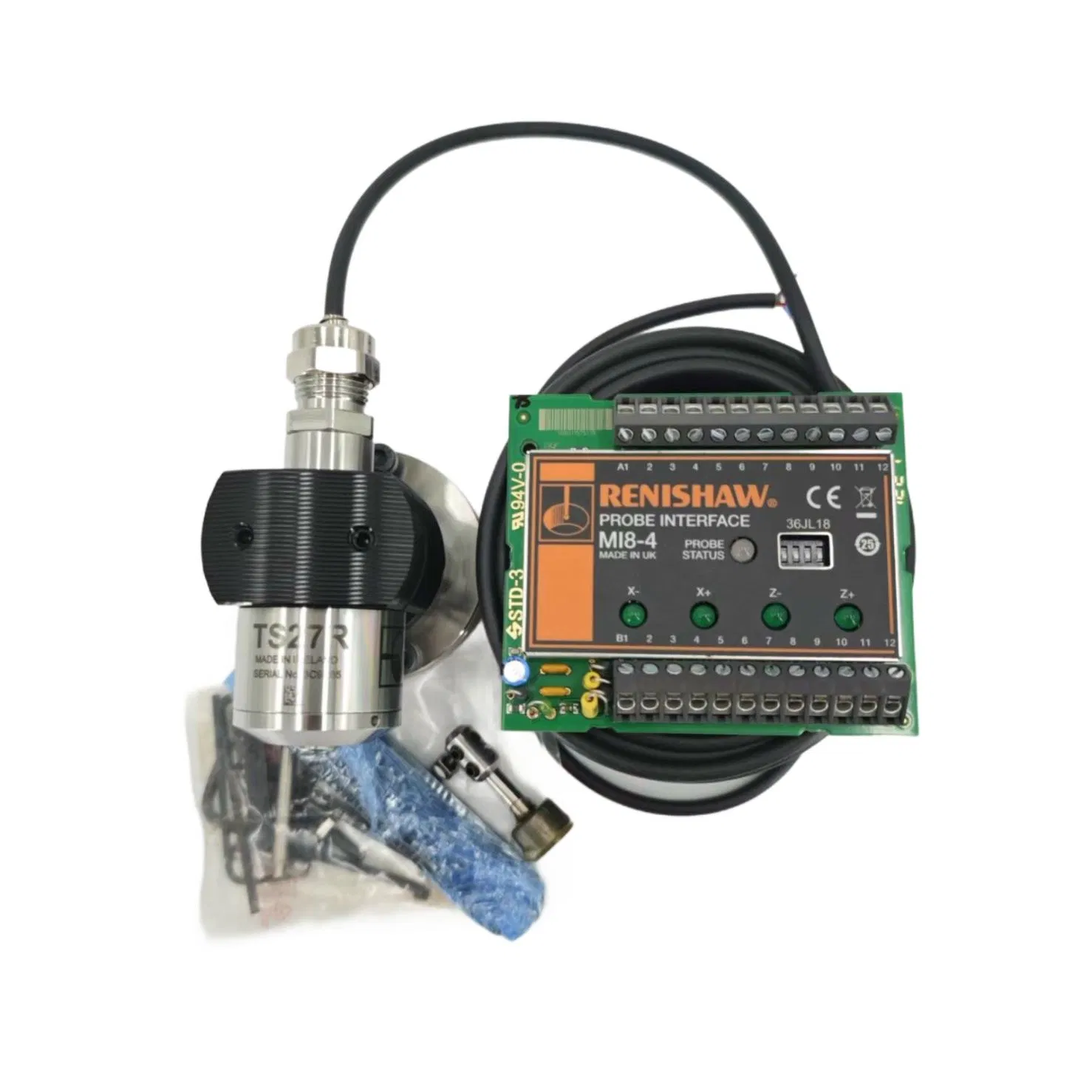

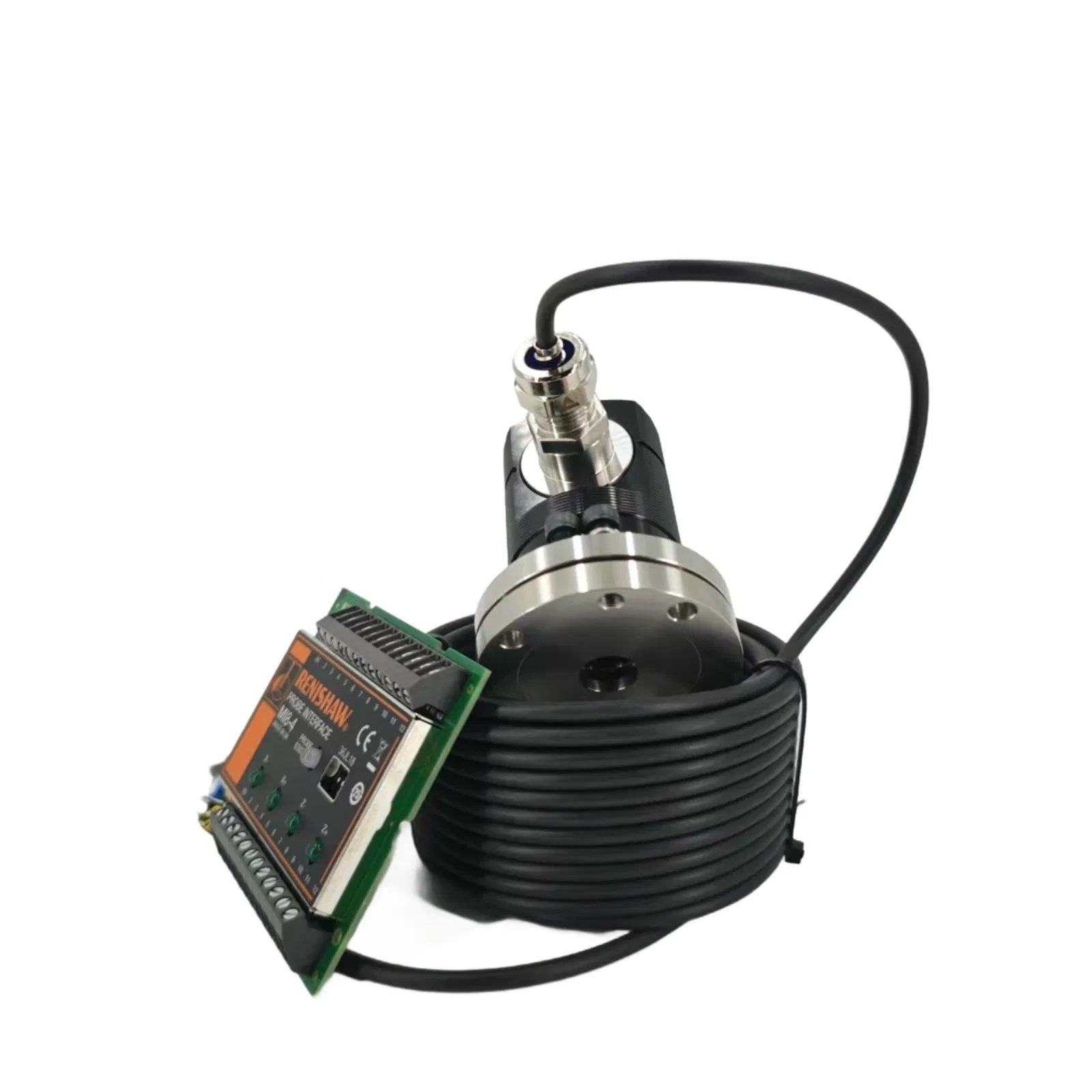

The Renishaw TS27R together with the MI 8-4 interface provides a rugged, hard-wired tool-setting solution for vertical and horizontal machining centres. The TS27R probe measures tool length and diameter and detects broken tools with unidirectional repeatability down to 1.0 µm.

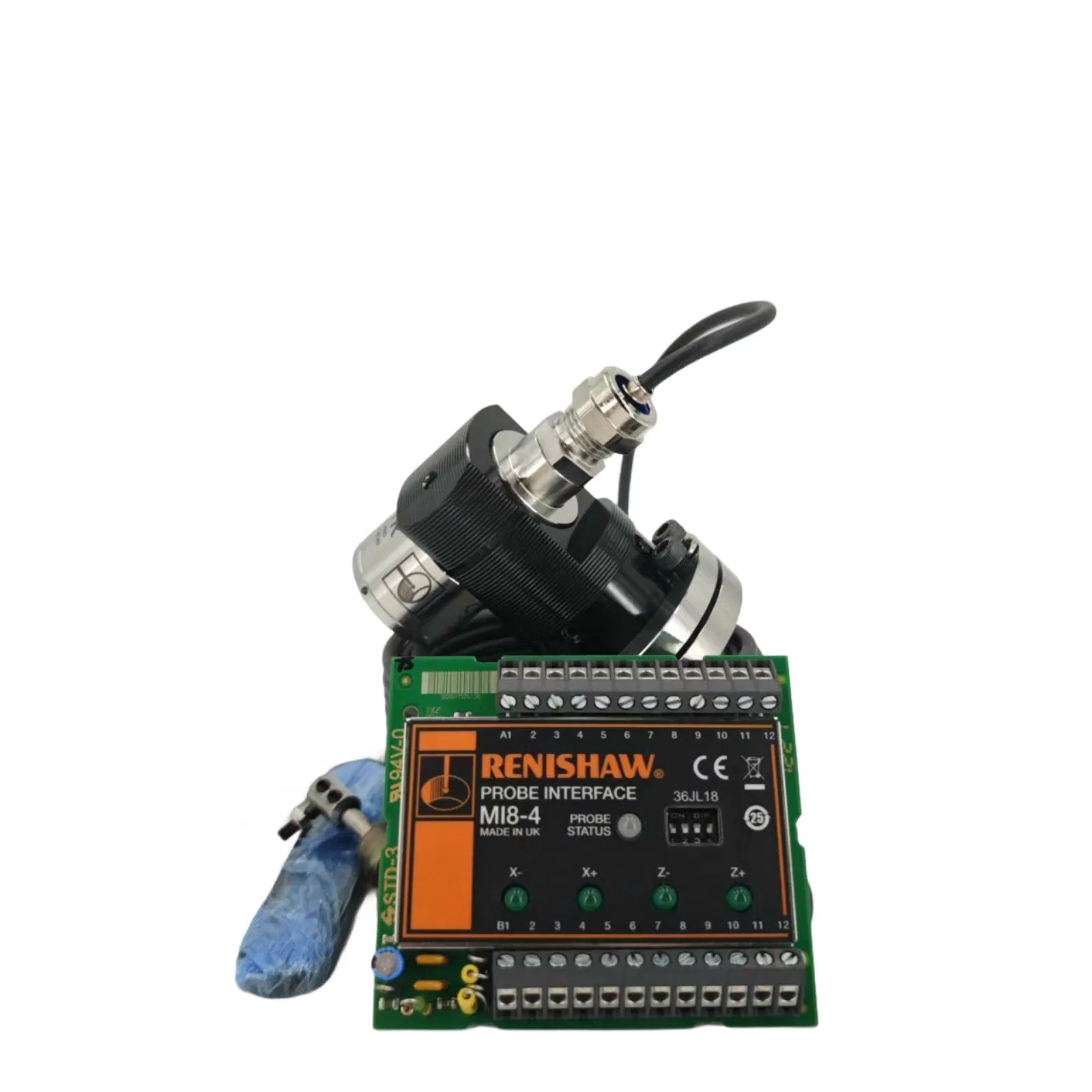

Its stylus options include disc and square tips for different tool geometries. The MI 8-4 interface accepts the TS27R hard-wired output, provides configurable axis selection and protected transistor outputs, and presents probe status plus axis movement LEDs for easy diagnostics. The combined kit simplifies wiring and automates accurate tool set-up and in-cycle broken-tool checks — ideal for production machining and robotic cell integration.
| Unidirectional repeatability | 1.0 µm (2σ) | Sense directions | ±X, ±Y, +Z |
| Trigger force | ~1.30–2.40 N | Mounting (TS27R) | Base fixed via T-bolt (M12 T-slot) |
| MI 8-4 supply | 15–30 Vdc | Outputs (MI 8-4) | Isolated and non-isolated transistor outputs |
| Operating temp | +5 °C to +60 °C | Recommended styli | Tungsten carbide disc or Ceramic square tip |

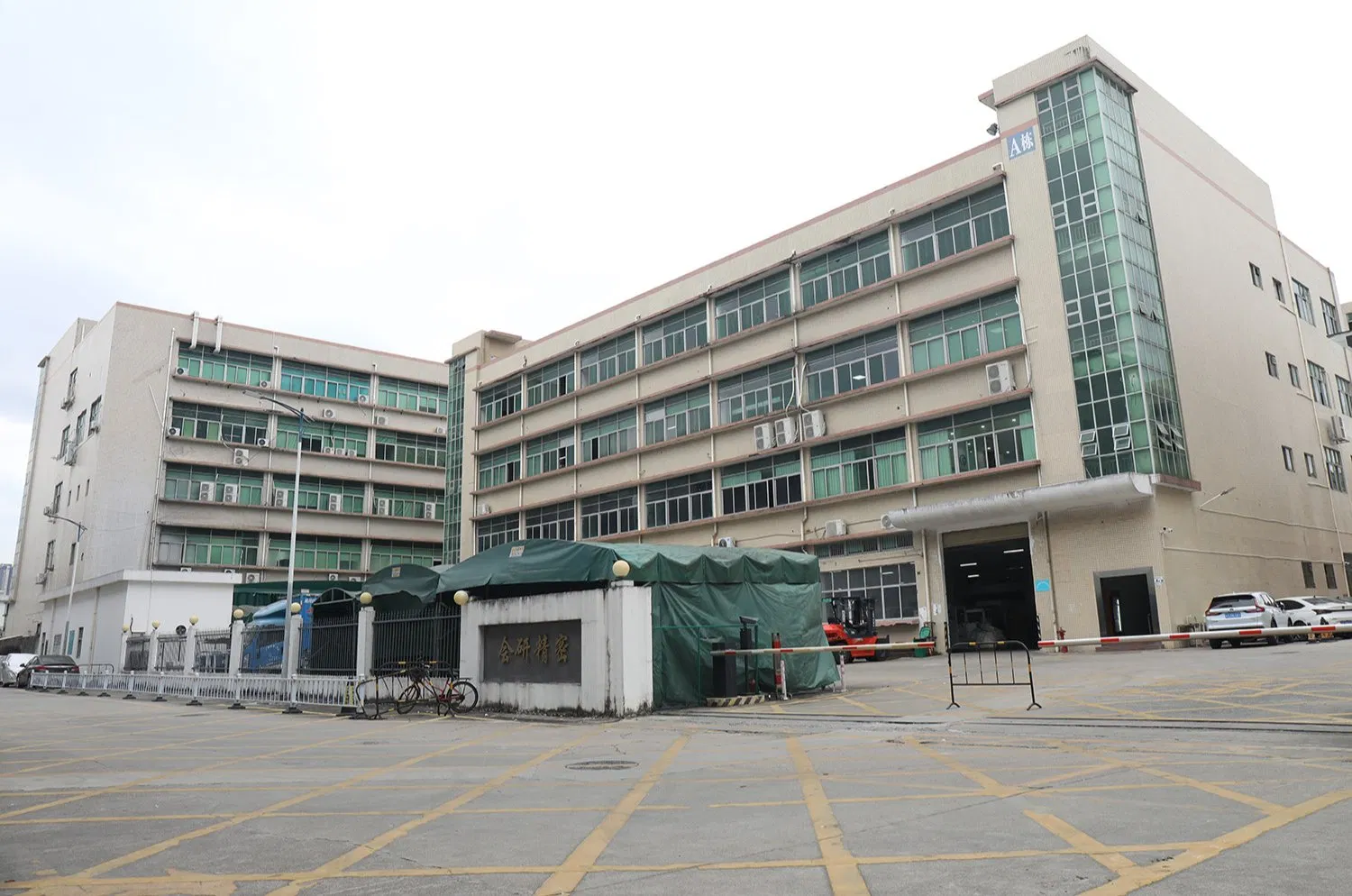

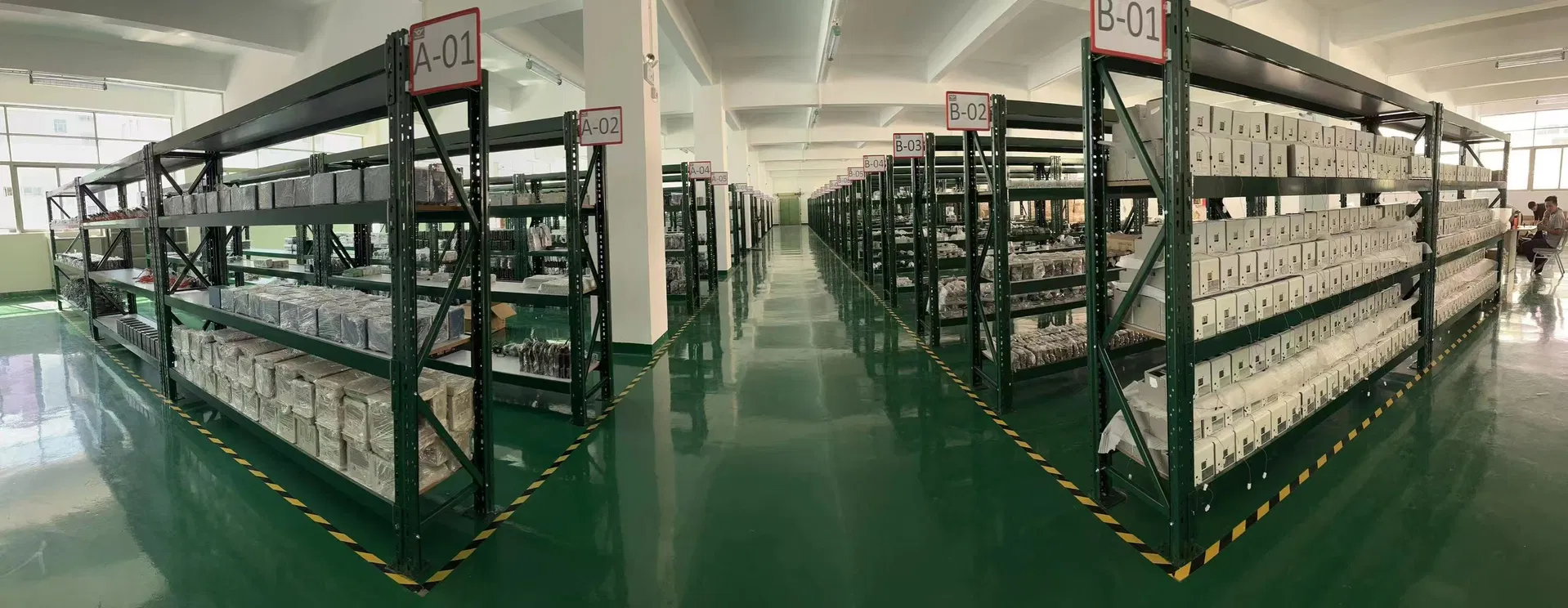

Established in 2010, our facility spans 20,000 square meters. We focus on providing full-chain industrial production solution services for manufacturing chain equipment. From equipment sales to precise matching of visual systems, and from industrial data services to equipment recycling, we maintain professional teams and rich industry experience. We work closely with leading global manufacturers to provide reliable and efficient precision solutions.
