Snagging Testing Machine /Tester /Laboratory Equipment Yg518-II

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Machine Type

Pilling Tester

Certification

ISO9001: 2000

Condition

New

Transport Package

Wooden Case

Origin

China

HS Code

9024800000

Capacity

1000 pieces/Year

★

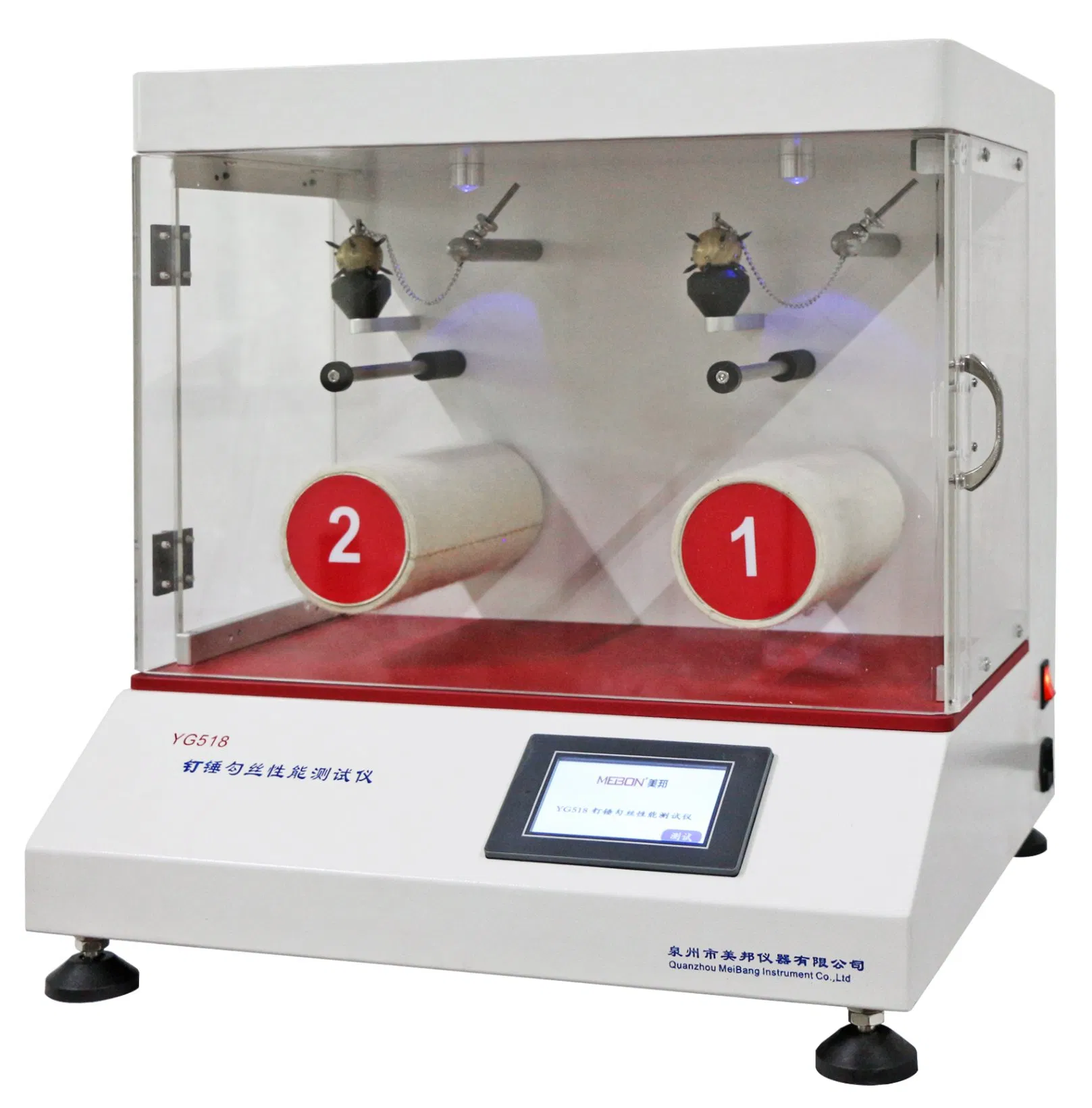

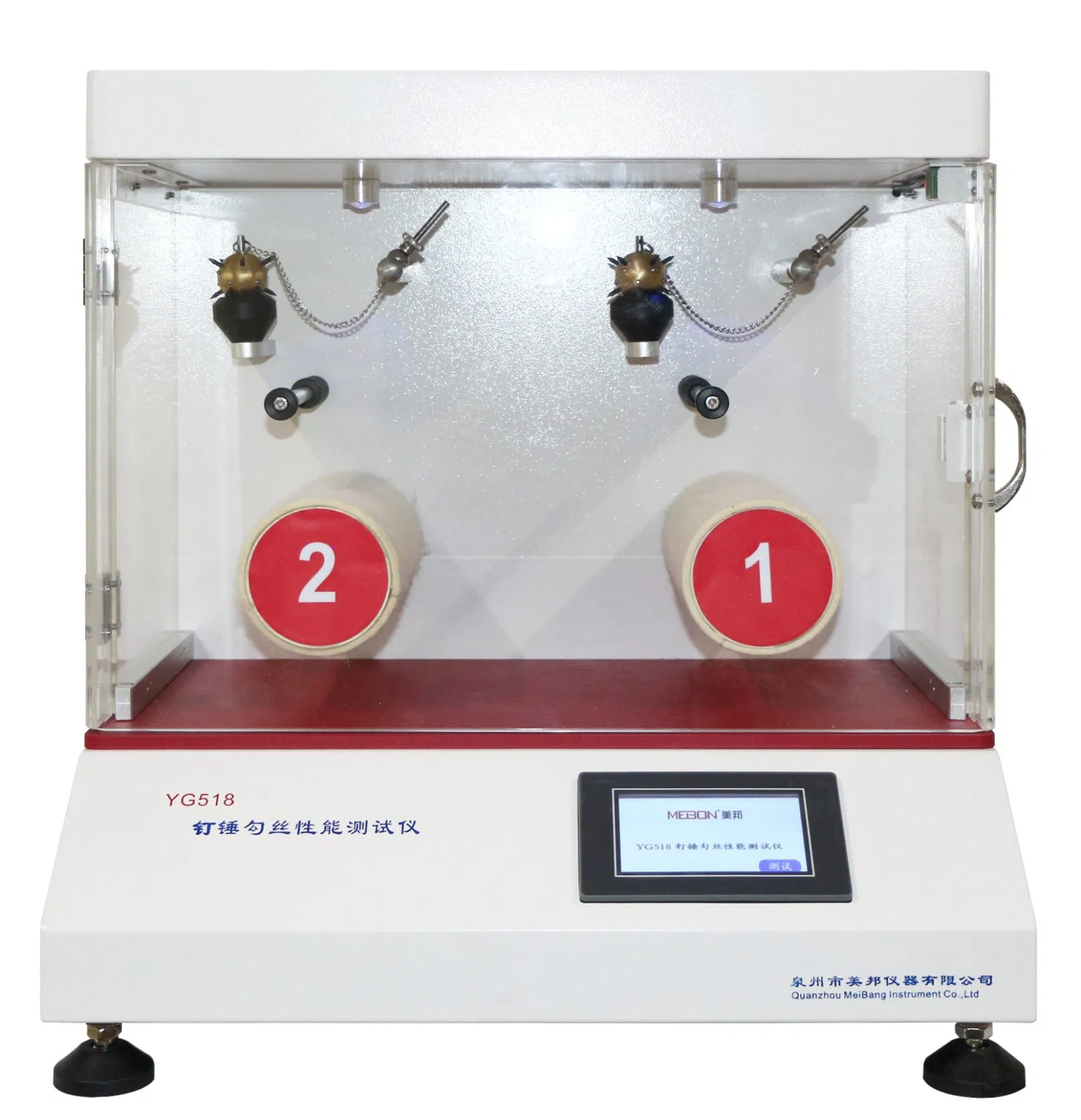

ASTM D3939 Snagging Testing Machine YG518

Application Range

The YG518 Snagging Testing Machine is specifically designed to evaluate the snagging resistance of outerwear fabrics and other materials prone to snagging. It is highly effective for testing chemical filament and textured yarn fabrics.

Key Features

Touch Screen Control: Advanced interface for intuitive and easy operation.
Acrylic Test Station: Transparent design providing a professional appearance and clear visibility.
Integrated Lighting: Built-in station lighting allows for direct and precise observation of the test sample.
Automatic Operation: Features automatic stop functionality after the test completes, with adjustable speeds within the specified range.

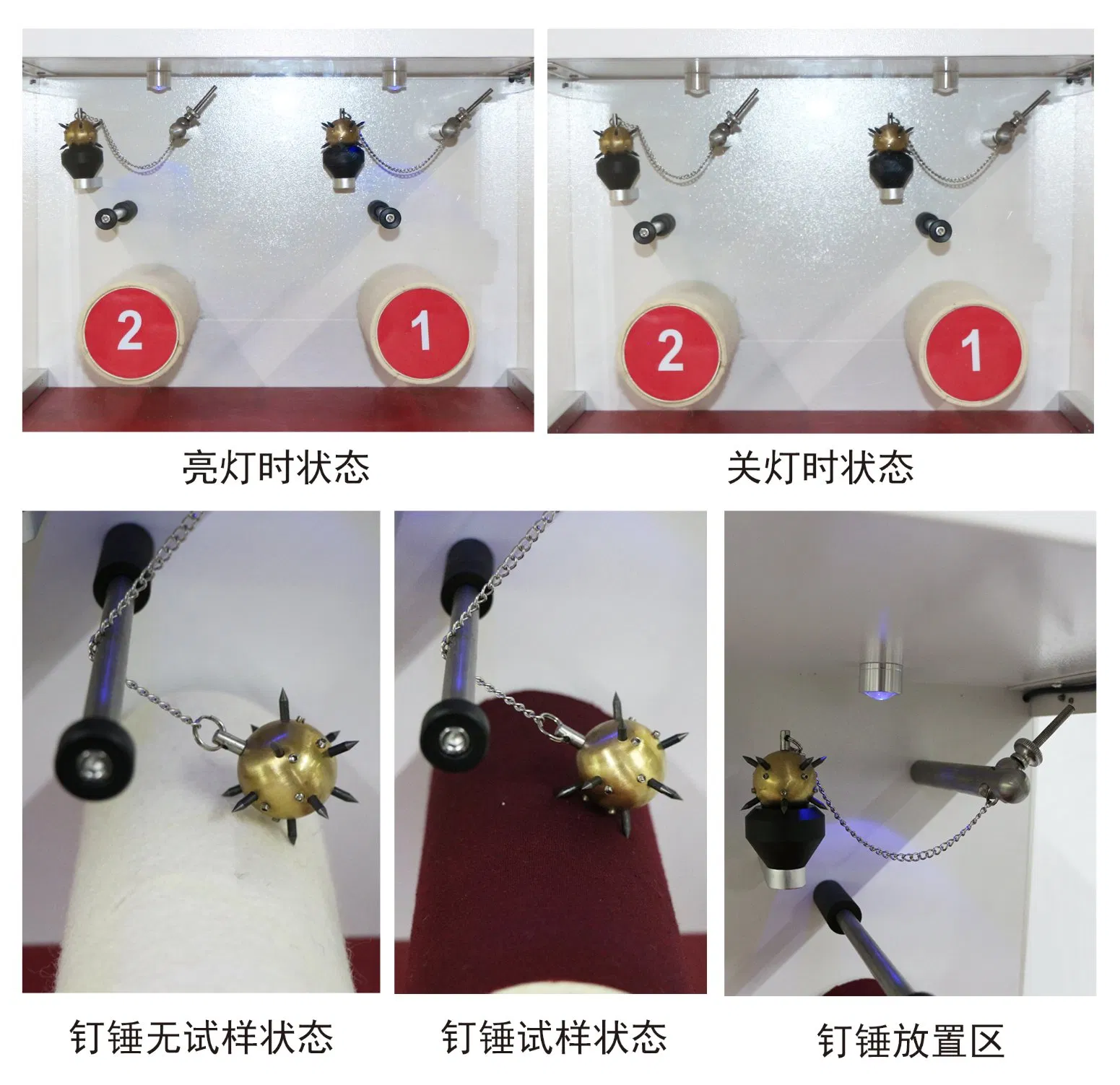

Universal Steel Ball Design: Ensures the hammer rotates flexibly without resistance, guaranteeing the randomness and accuracy of the test.

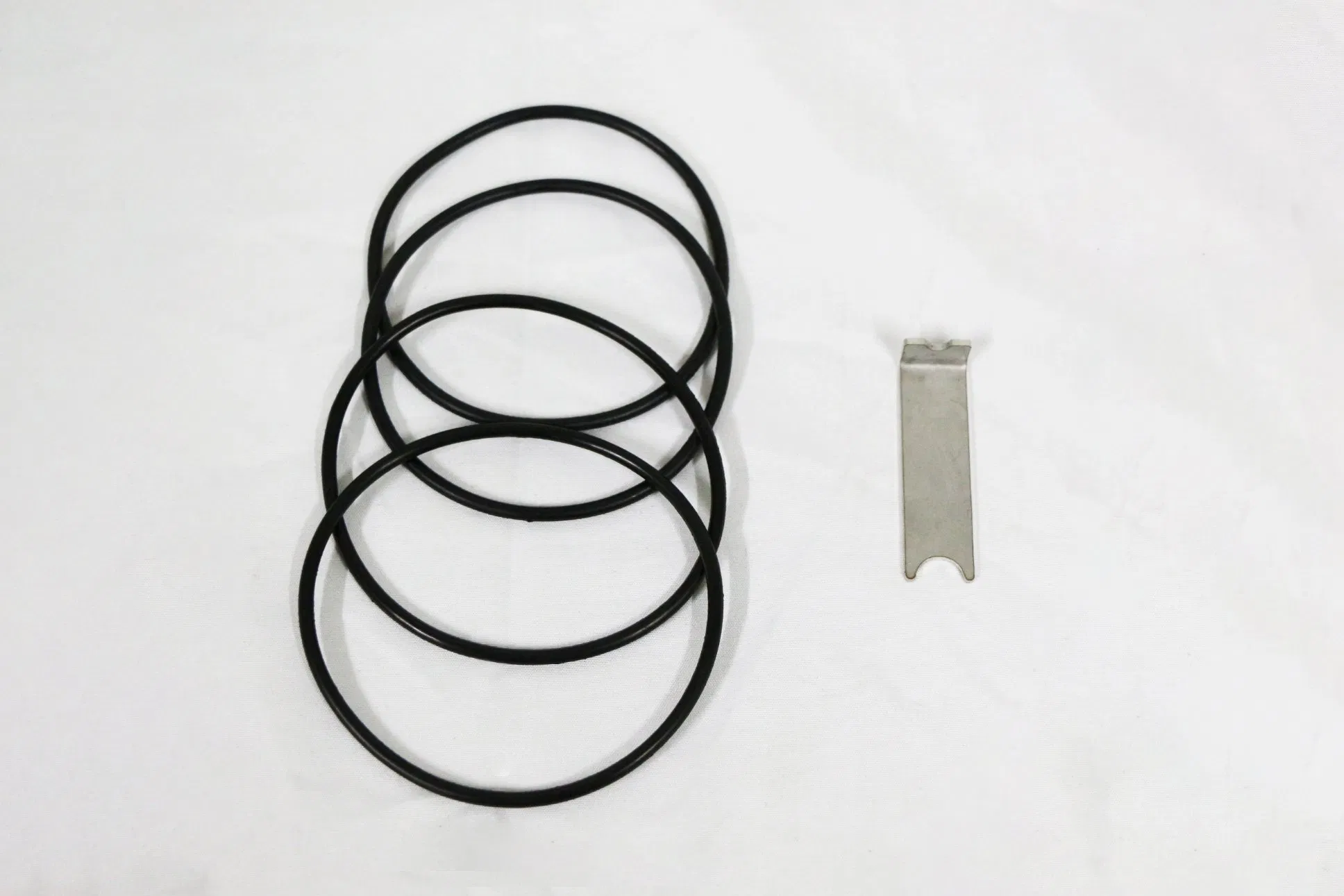

Quick "O" Ring Fixing: A convenient method for securing samples rapidly and securely.
High Precision Components: Equipped with wear-resistant hook wire needles, matching copper balls, and chains.

⚙

Technical Specifications

Number of Stations	2	Rotary Speed	60r/min (Adjustable 40-80 r/min ± 2R/min)
Counting Range	0-99999	Rotary Drum Diameter	φ 82mm, width 210mm
Hammer Weight	160 ± 10g	Number of Spikes	11
Crochet Length	10mm (Tip radius: 0.13mm)	Felt Thickness	3-3.2mm (Width: 165mm)
Guide Rod Width	125mm (Diameter: 10mm)	Hammer/Rod Distance	45mm

Testing Standards

ASTM D3939, JIS L1058, GB/T 11047

Physical Parameters

Weight	58 kg
Power Supply	220/110 V	Frequency	50/60 Hz
*Dimensions (LWH)*	500 mm x 500 mm x 500 mm

📷

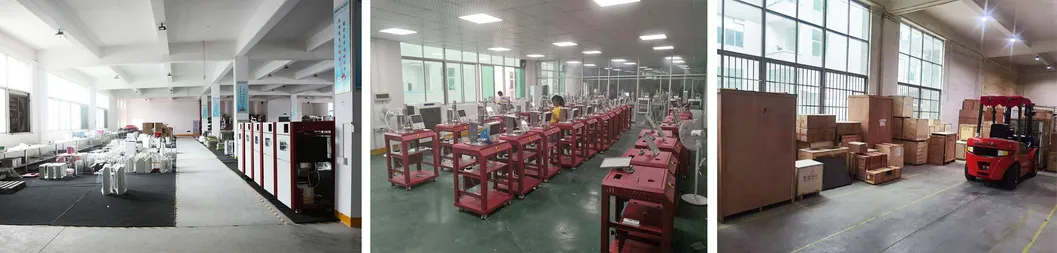

Production & Quality

Frequently Asked Questions

What materials can be tested with the YG518 Snagging Tester?

It is primarily used for outerwear fabrics, chemical filament fabrics, and textured yarn fabrics that are susceptible to snagging.

Does the machine comply with international safety standards?

Yes, the machine is manufactured under ISO9001: 2000 certification and complies with ASTM D3939, JIS L1058, and GB/T 11047 standards.

Is the operation interface user-friendly?

Absolutely. The machine features a touch screen control system that simplifies the setup and testing process for operators.

Can I adjust the rotation speed for different tests?

Yes, while the standard speed is 60r/min, it can be adjusted within the range of 40 to 80 r/min.

What kind of maintenance is required for the needles?

The machine uses high-precision, wear-resistant hook wire needles. Periodic inspection is recommended to ensure they remain sharp and properly aligned.

How are the samples fixed on the machine?

The machine utilizes an "O" ring sample fixing method, which is designed for quick and convenient installation.
