| Model NO. | M002A |
|---|---|
| Automatic Grade | Semi-Automatic |
| Testing Type | Tensile Strength / Shear and Tensile / Material Testing |
| Certification | CE, ISO 17025 |
| Condition | New |
| After-sales Service | 12 Months |
| Standard Compliance | GB/T 3917.1; ASTM D1424, DIN 53862; EN ISO 13937-1 |
| Power Supply | AC 220V 50/60Hz 20W |
| Weight | 120kg |
| Dimensions | 670X480X1440mm |

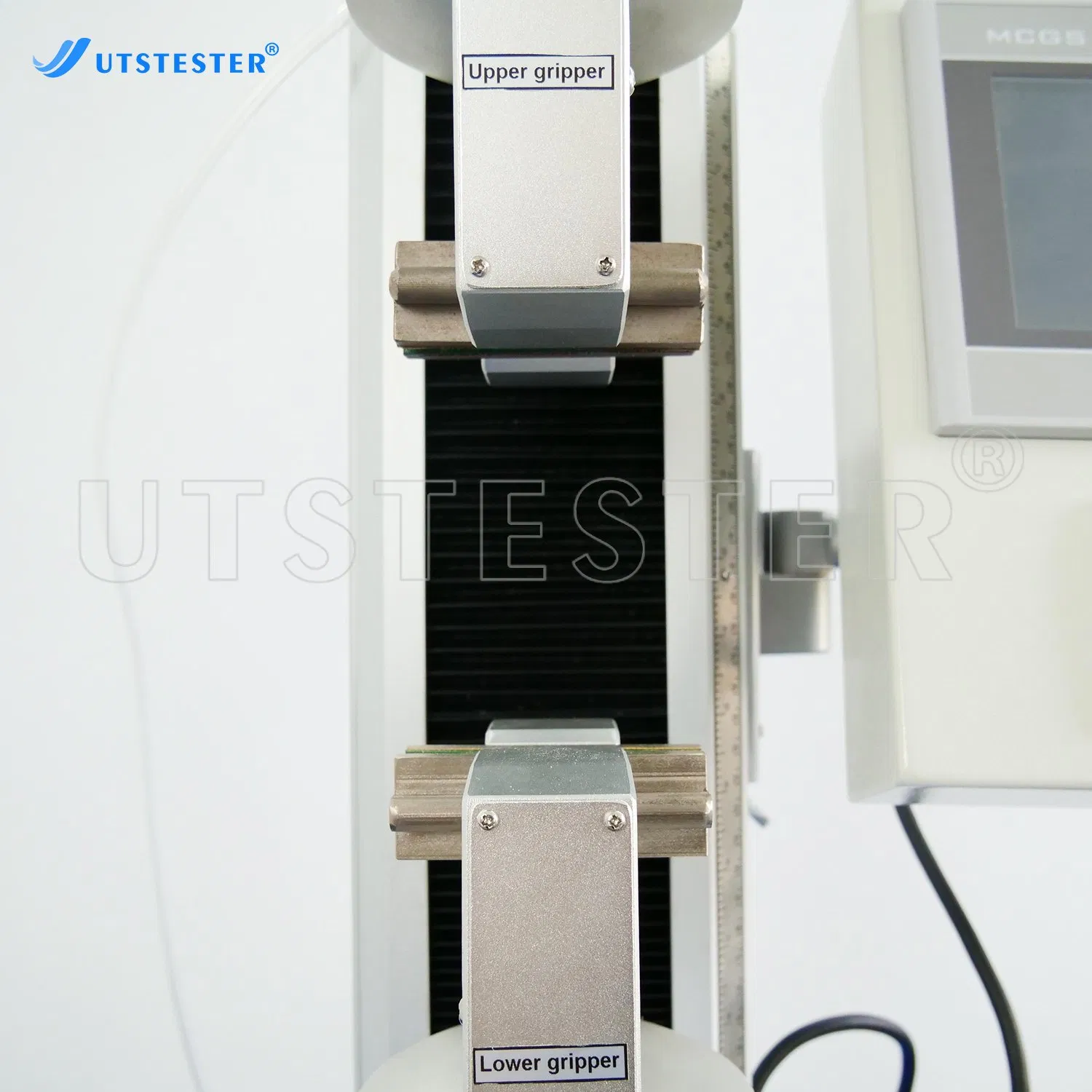

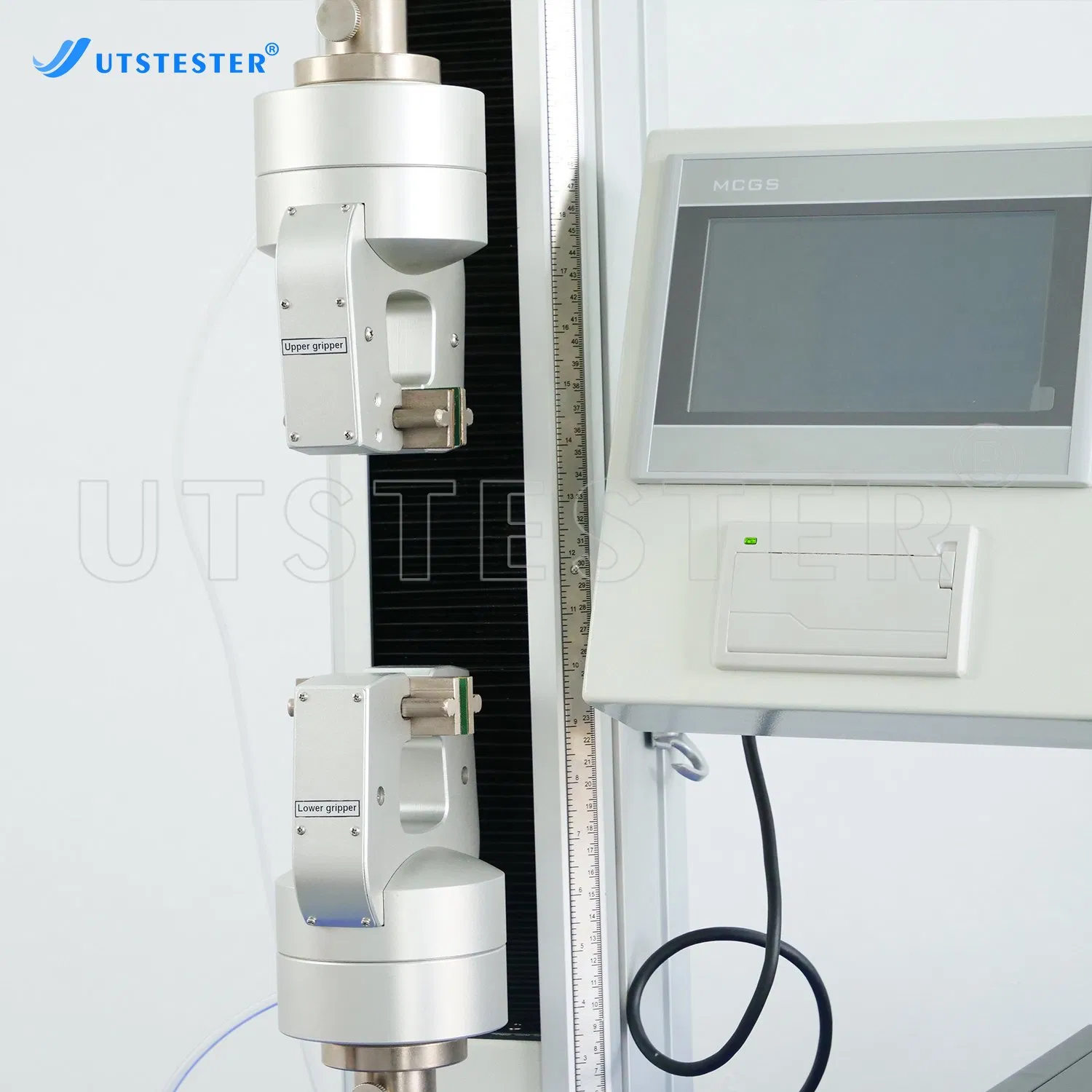

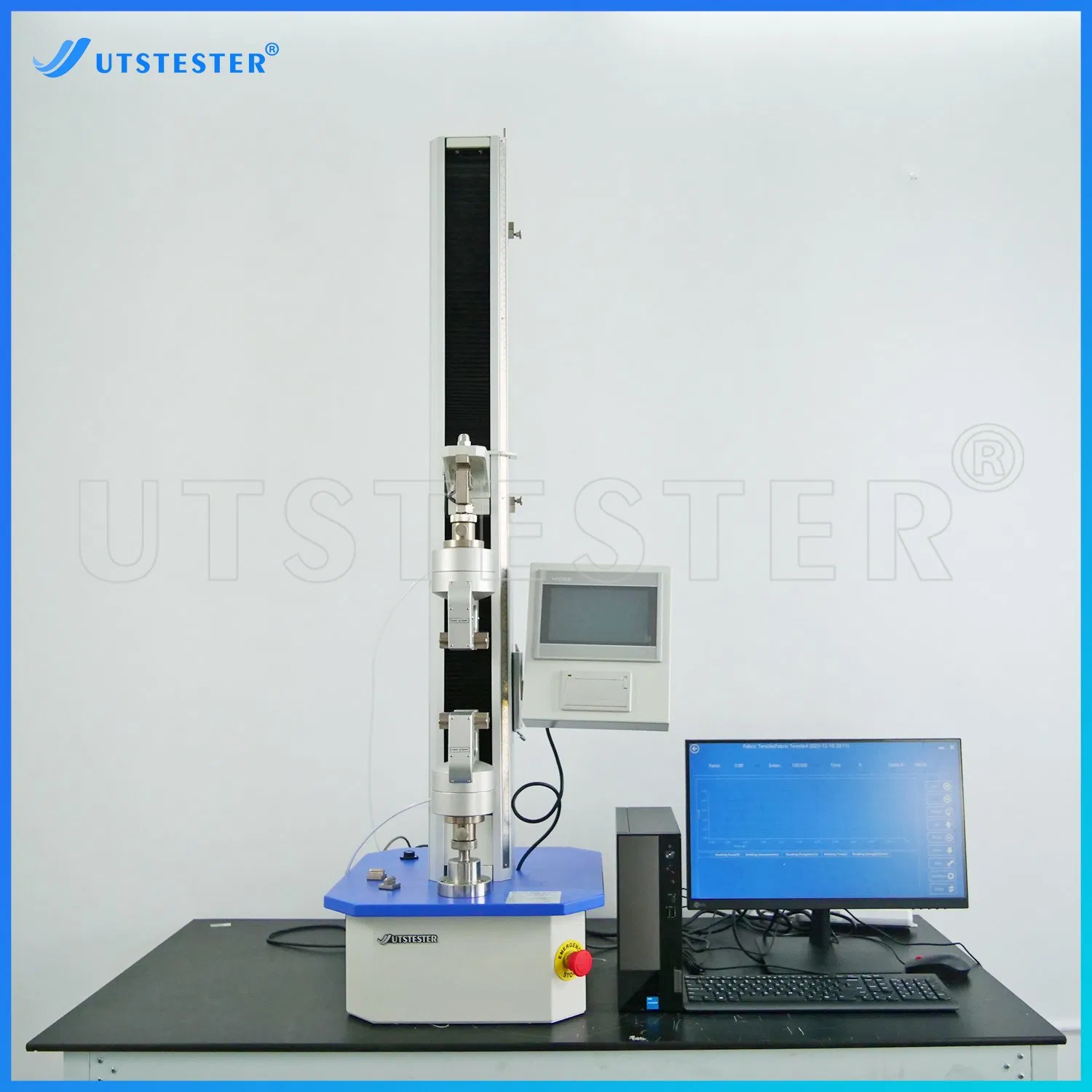

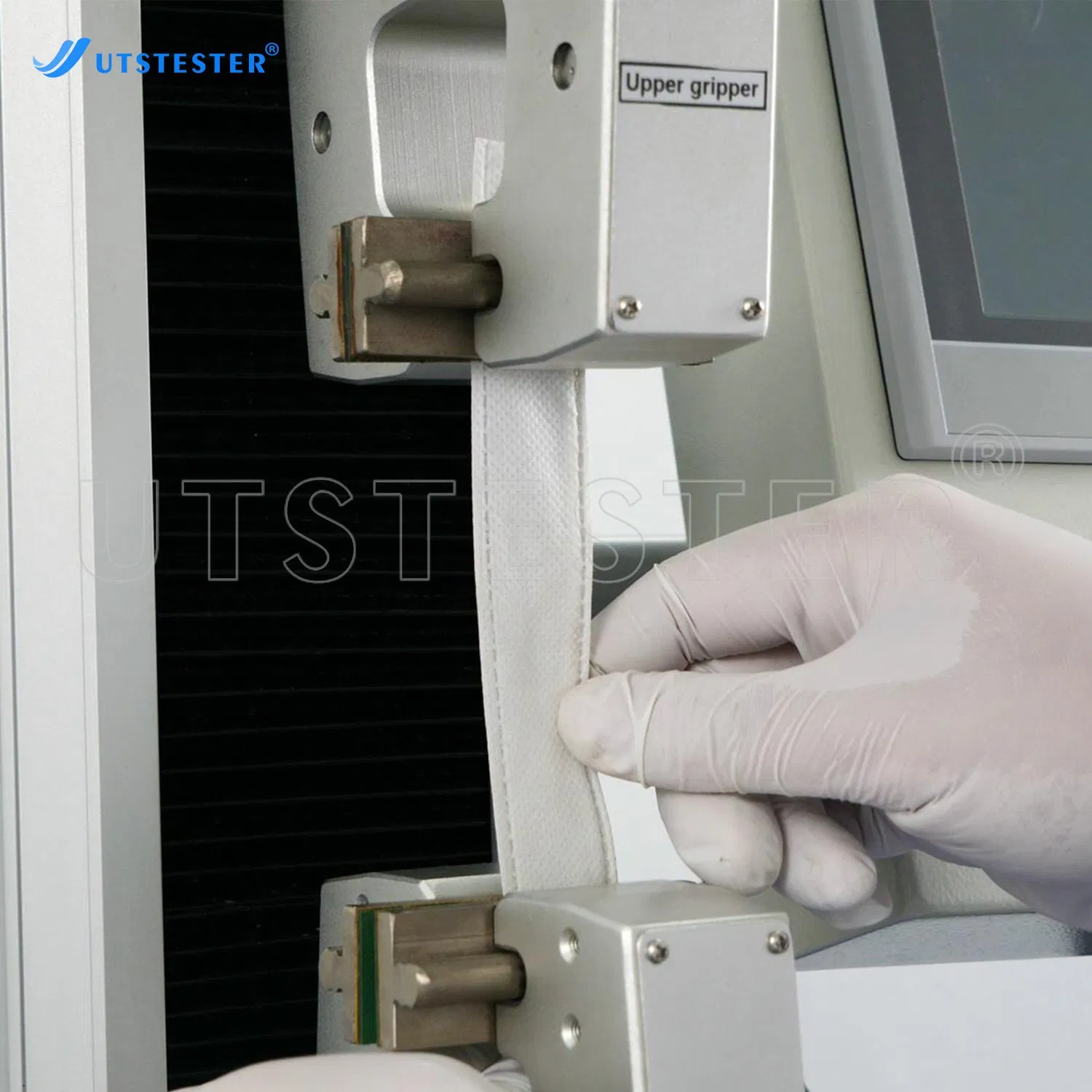

The Universal Testing Machine is essential for quality control, physical testing, and material development. It operates in tensile or compression modes, supporting a wide range of tests including tension, bend, shear, bonding strength, peeling, tearing, and cyclic flexure.
This equipment is widely utilized across various industries: Rubber, Plastics, Leather, Textiles, Metal, Aviation, and Automotive. It is optimized for both R&D and high-volume production environments.
Capacities range from low-load forces of 10N up to 10KN, with optional stroke lengths of 900mm and 1100mm, or customized strokes to meet specific testing requirements.
| Model | M002A-1 | M002A-2 |
| Stretch Speed | 0.001-500mm/min | 0.001-1000mm/min |
| Max. Capacity | 100N, 200N, 500N, 1KN, 2KN, 2.5KN | |
| Effective Stroke | 600mm | |
| Test Method | CRE Principle (Constant Rate of Elongation) | |
| Force Accuracy | ≤±0.2% F·S | |
| Protection Measures | Beam limit, Sensor overload, Overcurrent, Overvoltage, and Real-time monitor. | |
