Tianlong GeneMix Pro Automatic Sample Processing System for Laboratory

Customization:	Available
Classification:	Biochemical Apparatus
Type:	Sample Processing System

Send Inquiry

Product Description

Overview & Basic Info

ModelGeneMix Pro

CertificationCE, FDA, ISO13485, Rohs

Warranty5 Years

Throughput96

Handling Time≤20 mins for 96 samples

Touch Screen12.1 inch LCD

InterfaceUSB 3.0 / Ethernet

HS Code8428909090

Product Description

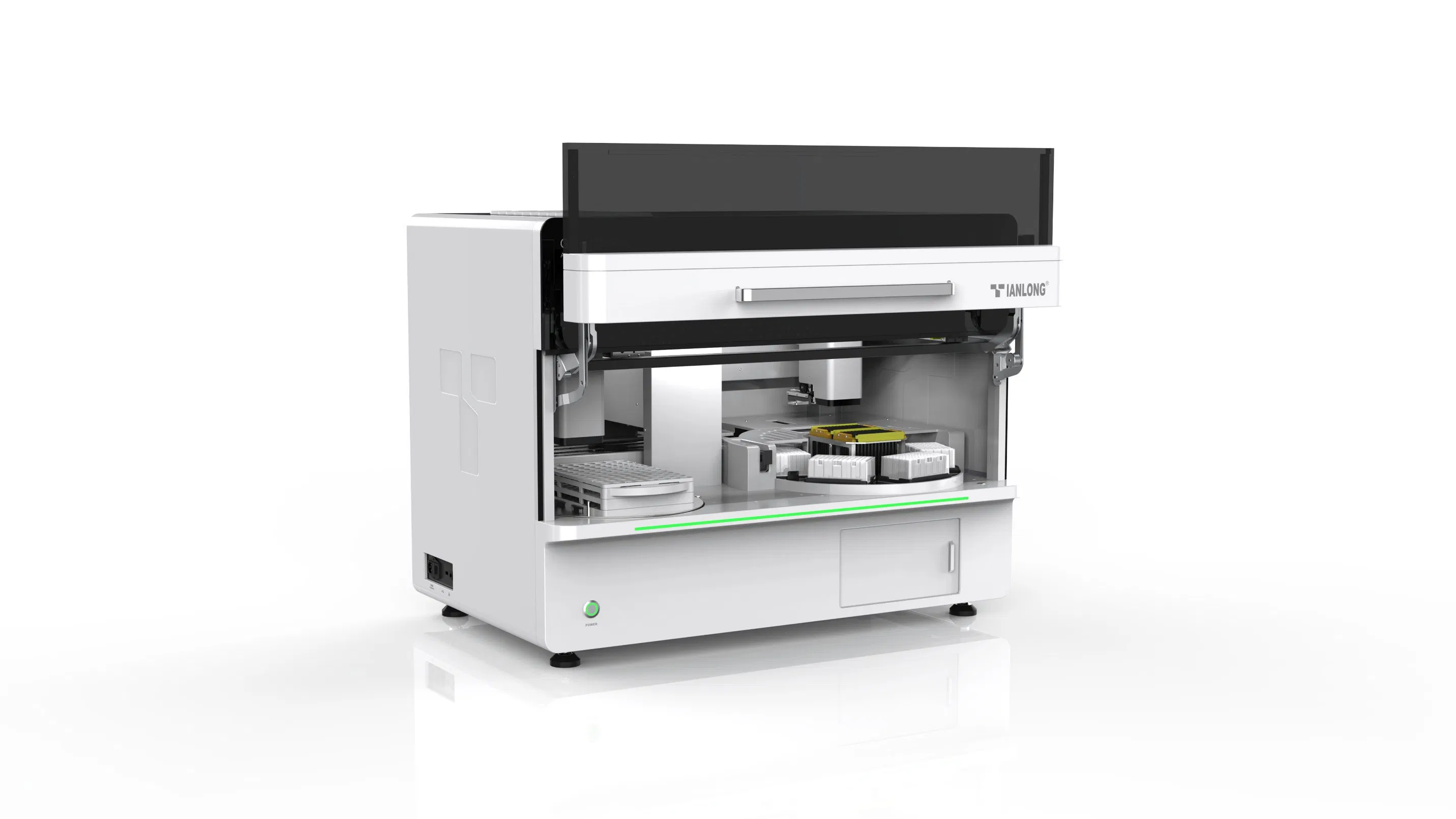

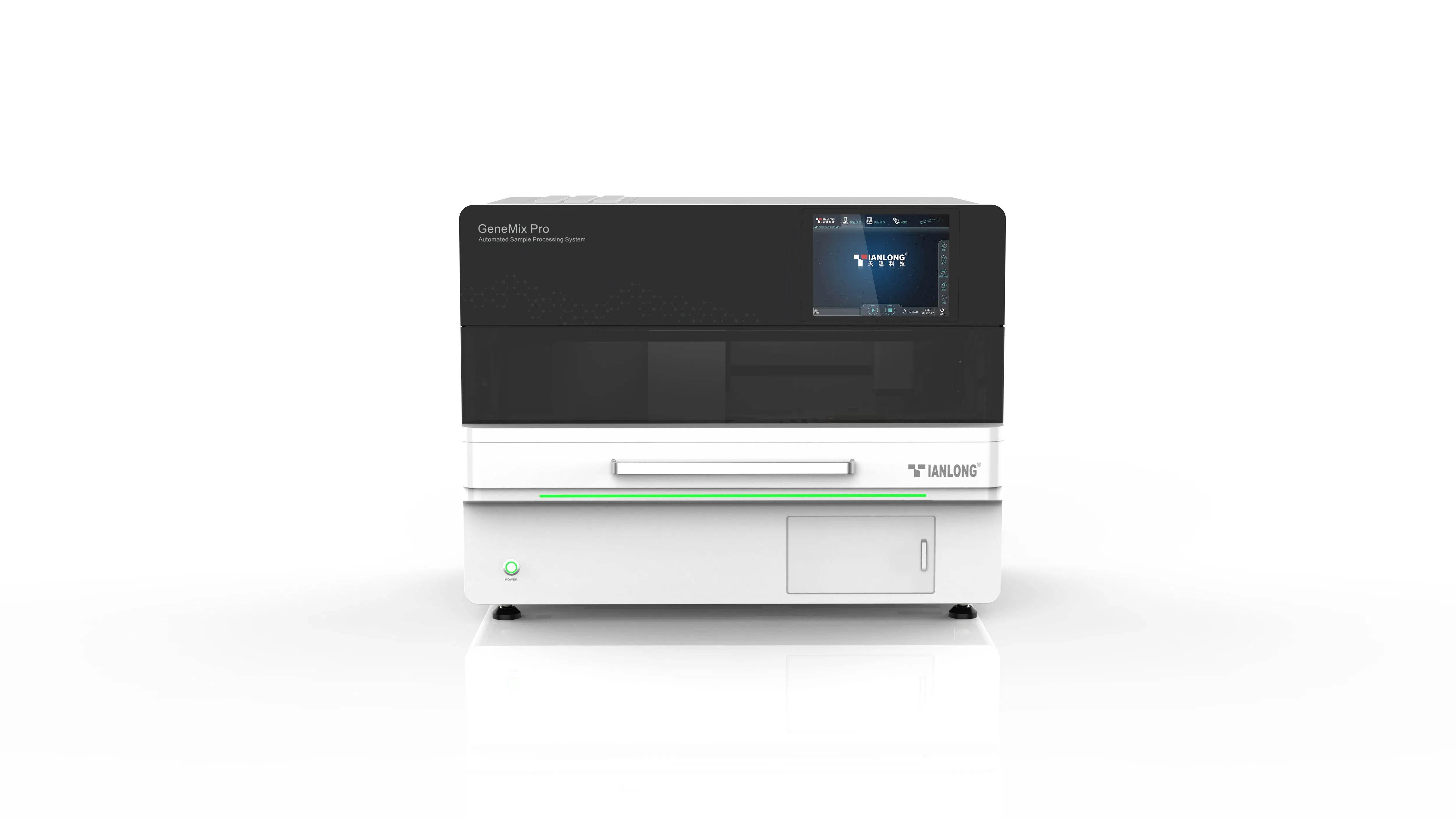

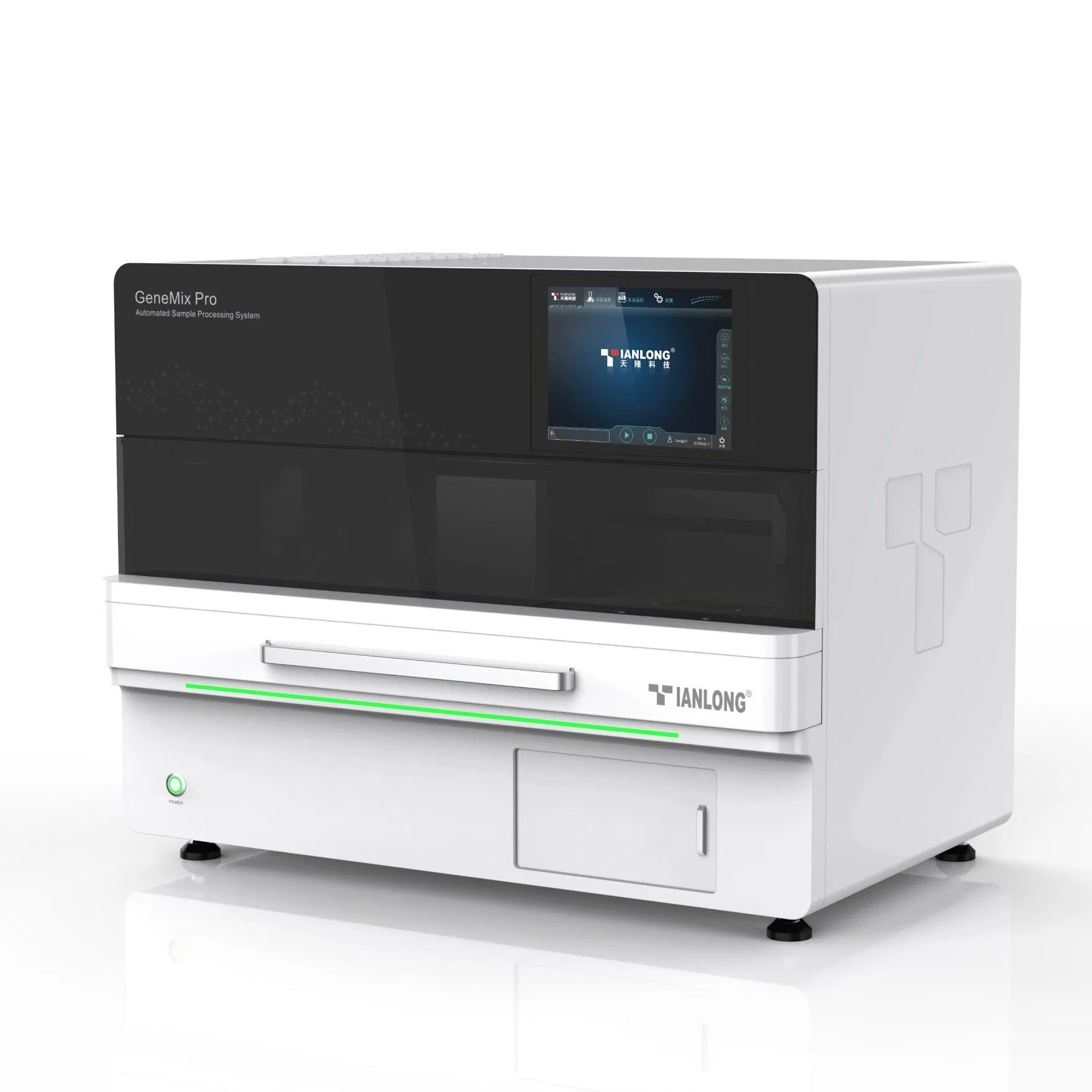

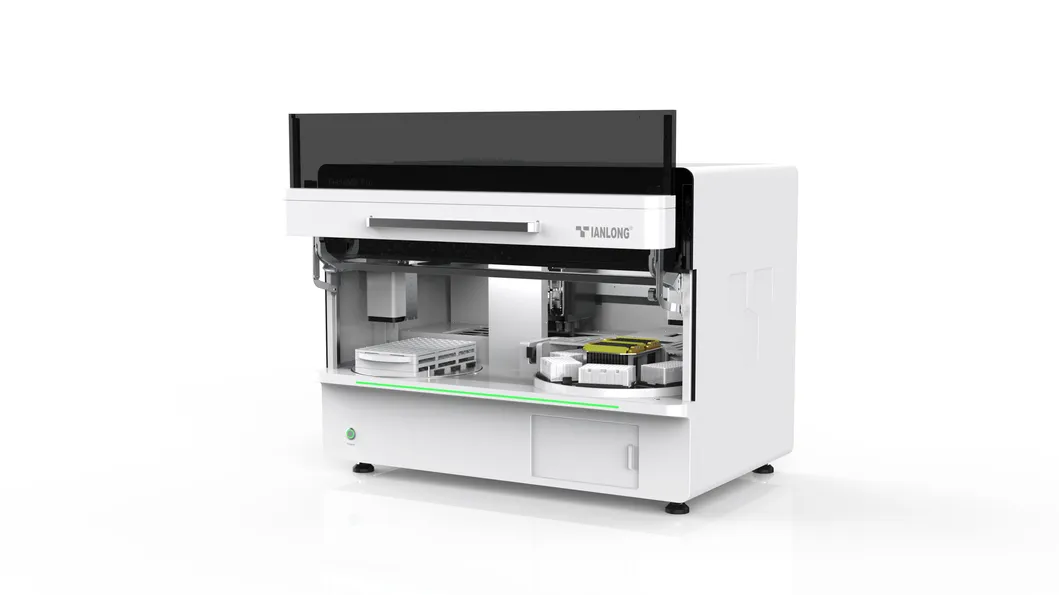

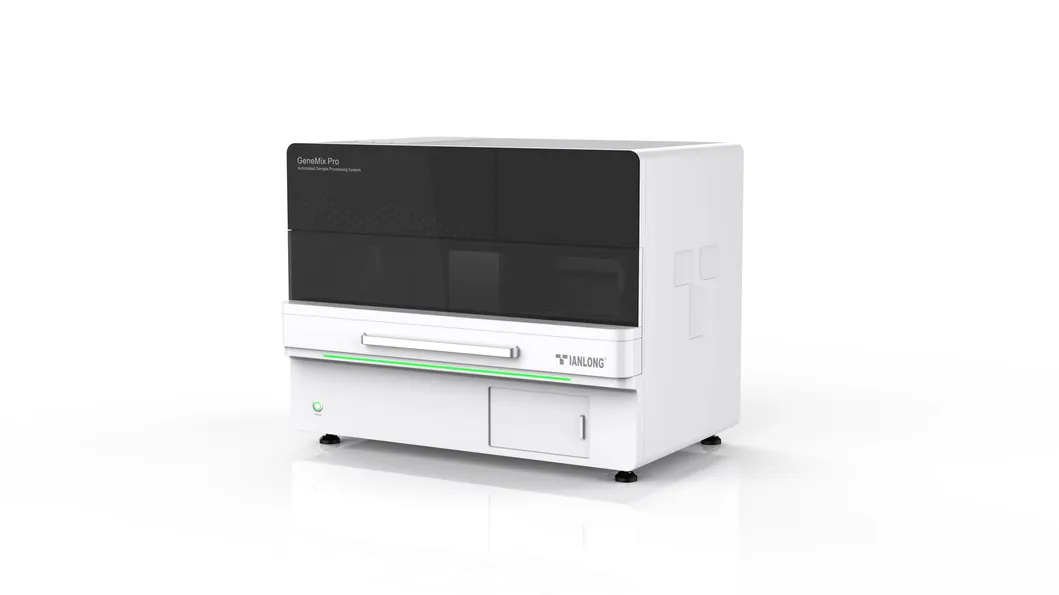

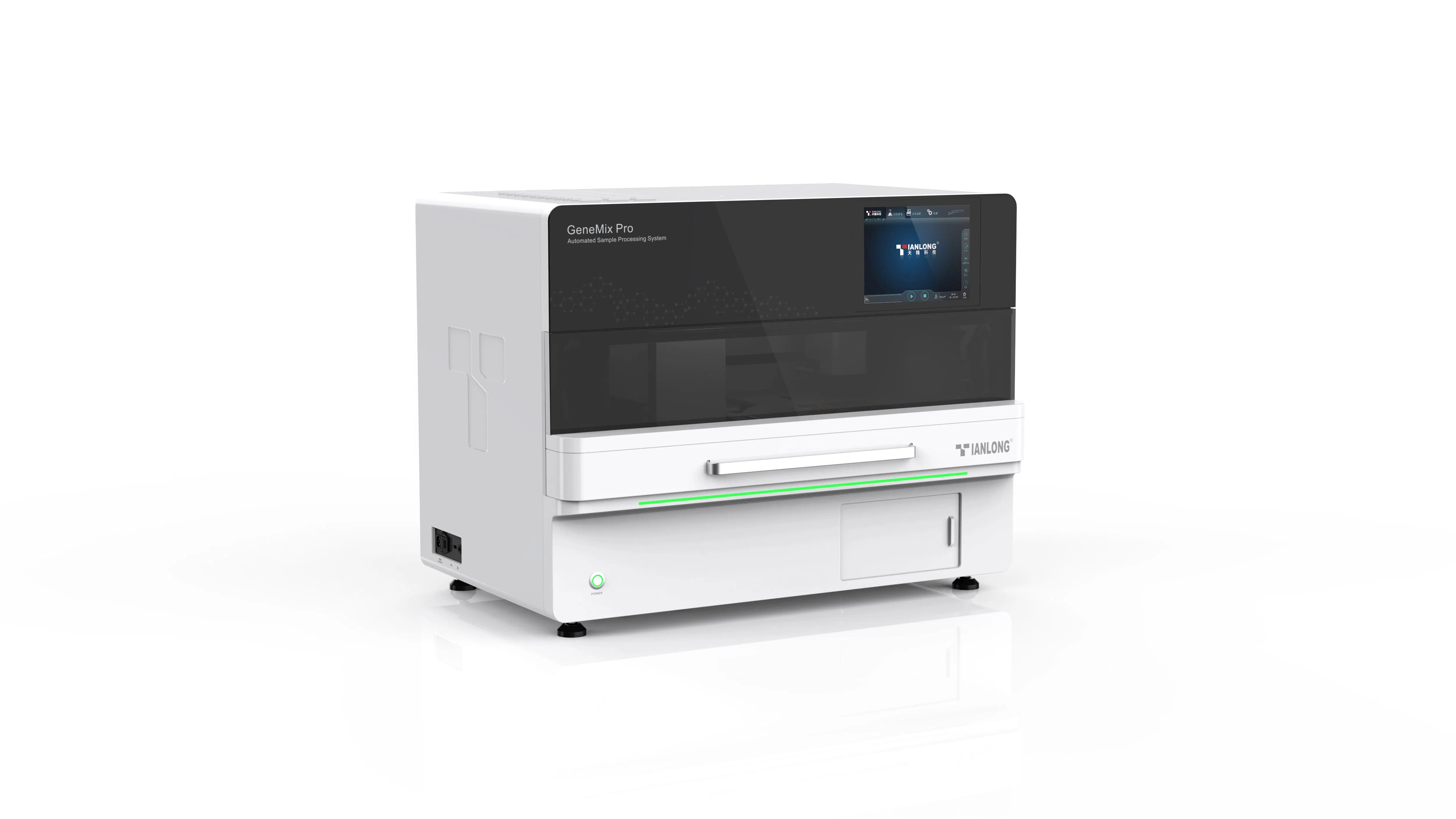

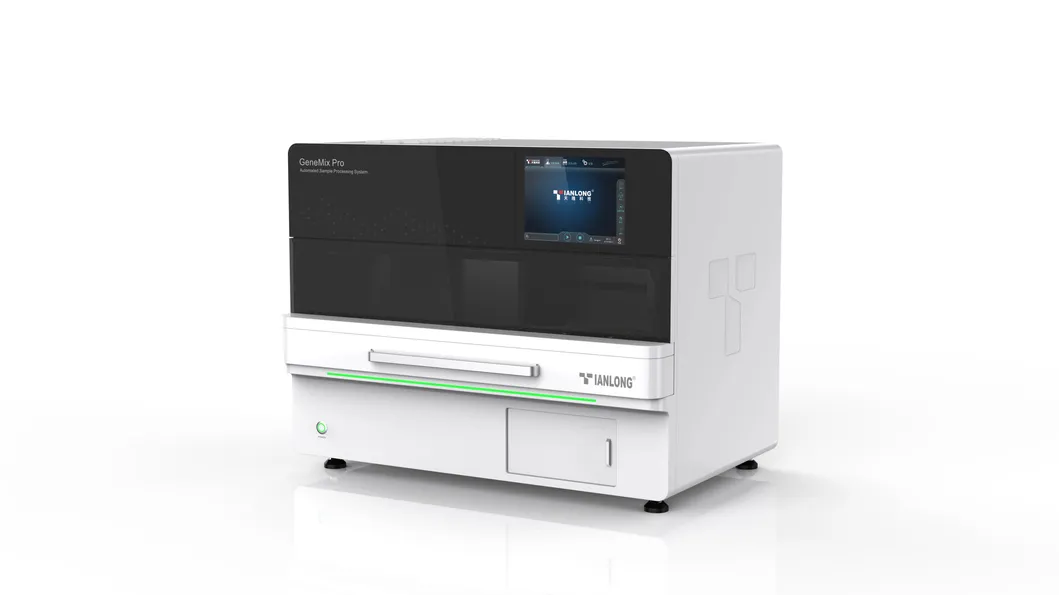

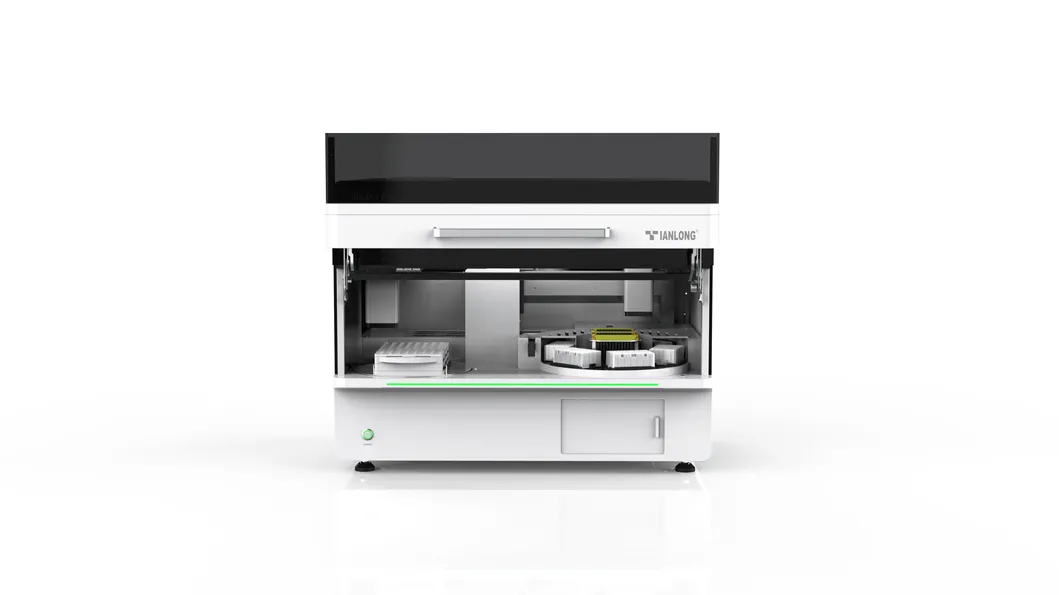

Maintain sample integrity with a hands-free method of capping and decapping tubes quickly and easily with the GeneMix Pro Automatic Sample Processing System. Designed for automating laboratory workflow, GeneMix Pro can process 96 samples within 20min and free professionals from tedious mechanical operations.

The workflow includes automated uncap/recap for sample tubes, sample pipetting and dispensing, Proteinase K/Internal reference reagent loading, and automatic mixing of sample tubes. GeneMix Pro can automate laboratory workflow and improve efficiency and safety for medical professionals.

Key Features

Automate laboratory workflow With an automated sample preparation process, 96 samples can process within 20 minutes from sample tube scanning to deep well plate scanning.

Highly compatible Compatible with various specifications of sampling tubes and deep-well plates, ready for use with customized specifications.

Easy of use "Sample - rack - plate" information scanning automatically; closed-loop management saves time and minimizes human error.

Superior sample protection Built-in UV light disinfection, drop catcher technology, and an enclosed design with an internal negative pressure system ensure sample integrity.

Technical Parameters

Parameter	Specification
Product Name	Automatic Sample Processing System-GeneMix Pro
Throughput	96
Handling Time	≤20 minutes for 96 samples
Compatible Tubes	Diameter: 13-19mm; Height: 55-115mm (5mL, 10mL, 20mL screwcap)
Compatible Plates	Standard 1mL deep-well plates (616T / 196T); 3mL plates
Pipetting Volume	5 - 1000 μL (Dual independent modules)
Pipetting Accuracy	Er: ≤2.0% (for ≥ 200 μL)
Smart System	ID/QR code scanning, LIS system link
Dimensions	1130mm(L) x 780mm(W) x 920mm(H)
Power	100 - 240 V; 50/60HZ; 600VA

Detailed Media

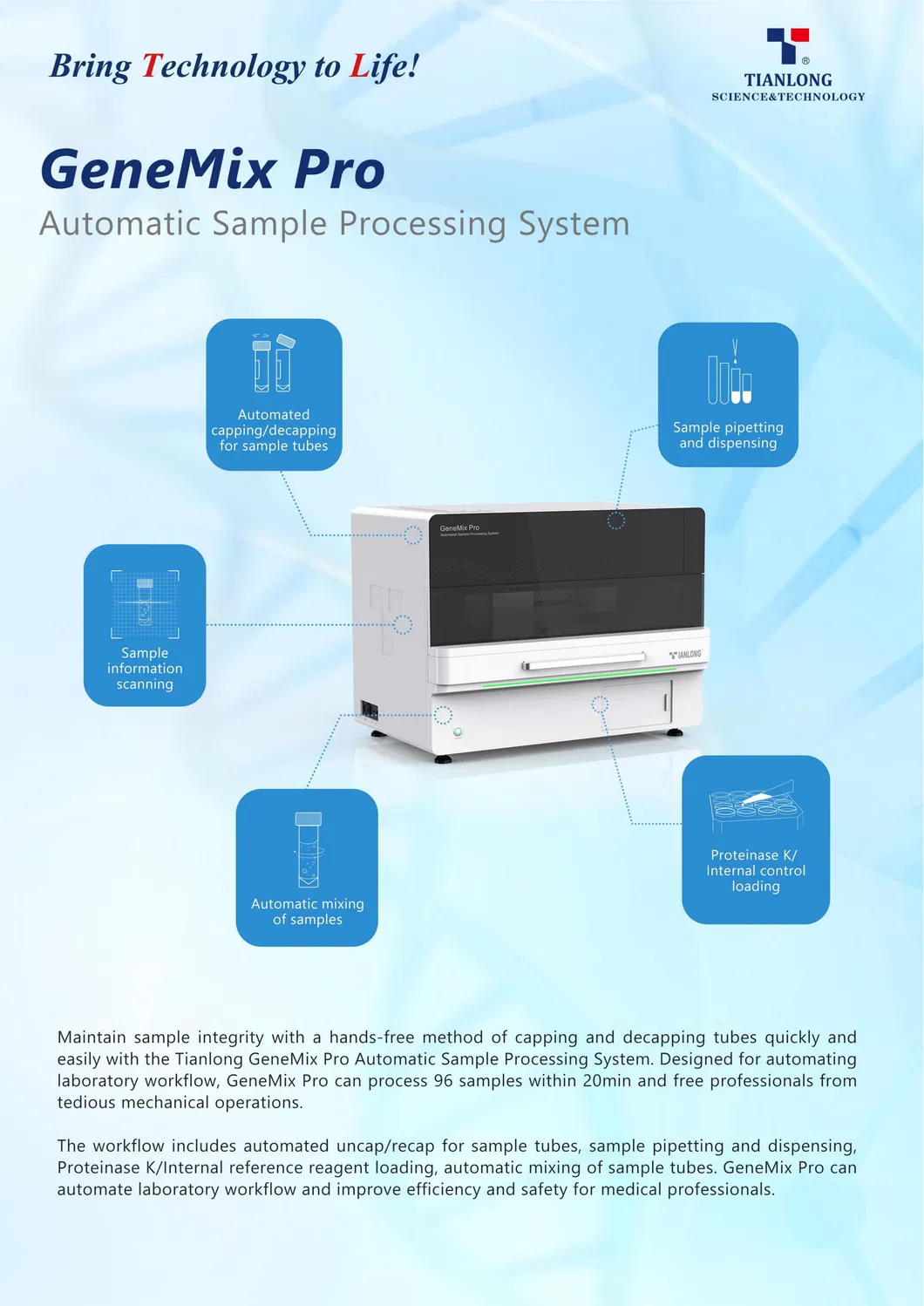

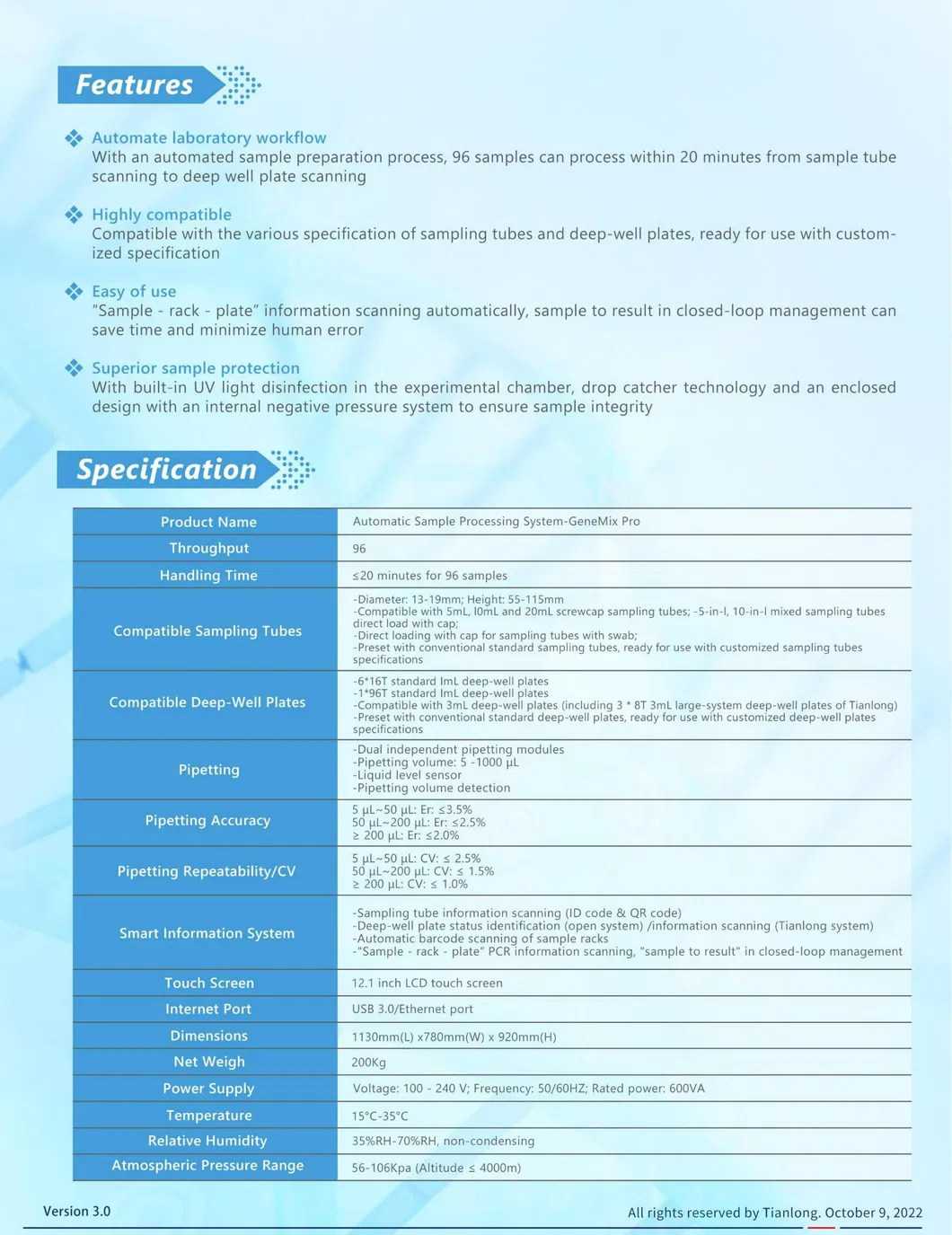

Product Leaflet & Professional Environment

Frequently Asked Questions

What is the processing capacity of the GeneMix Pro?

The system features a high throughput of 96 samples per run, processing a full batch in 20 minutes or less.

What types of tubes are compatible with this system?

It supports sampling tubes with diameters of 13-19mm and heights of 55-115mm, including 5mL, 10mL, and 20mL screwcap tubes.

Does the system provide protection against contamination?

Yes, it includes built-in UV light disinfection, drop catcher technology, and an enclosed internal negative pressure system to maintain sample integrity.

Is the system compatible with LIS?

Yes, the GeneMix Pro features smart information system management that can link directly to LIS systems for closed-loop data management.

How accurate is the automated pipetting module?

The dual independent pipetting modules offer high accuracy with an error rate (Er) of ≤2.0% for volumes ≥ 200 μL and ≤3.5% for smaller volumes.
