| Model NO. |
Gentier 48E |
Certification |
CE, FDA, ISO13485 |
| Group |
All |
Transport Package |
Paper Carton |
| Specification |
50*36*36 cm |
HS Code |
9027509090 |
| Production Capacity |
5000 Units/Year |
Throughput |
1-48 samples |

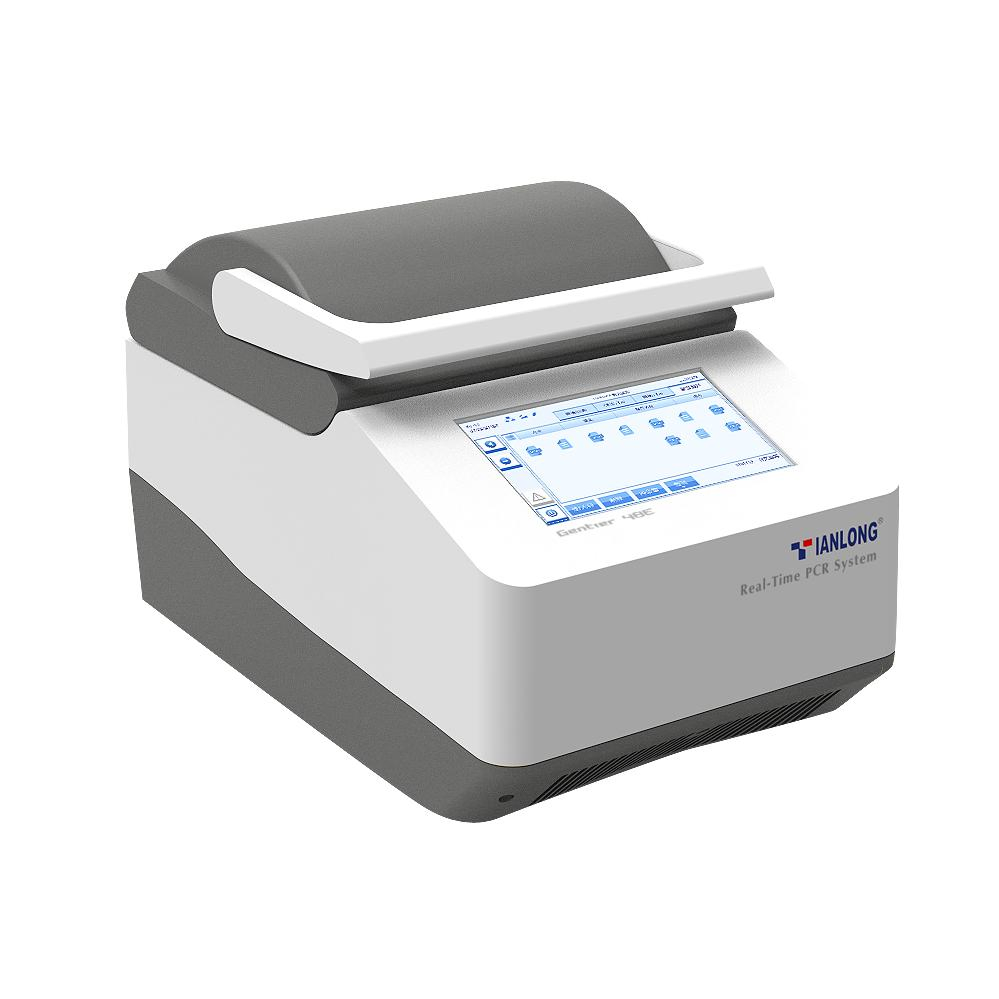

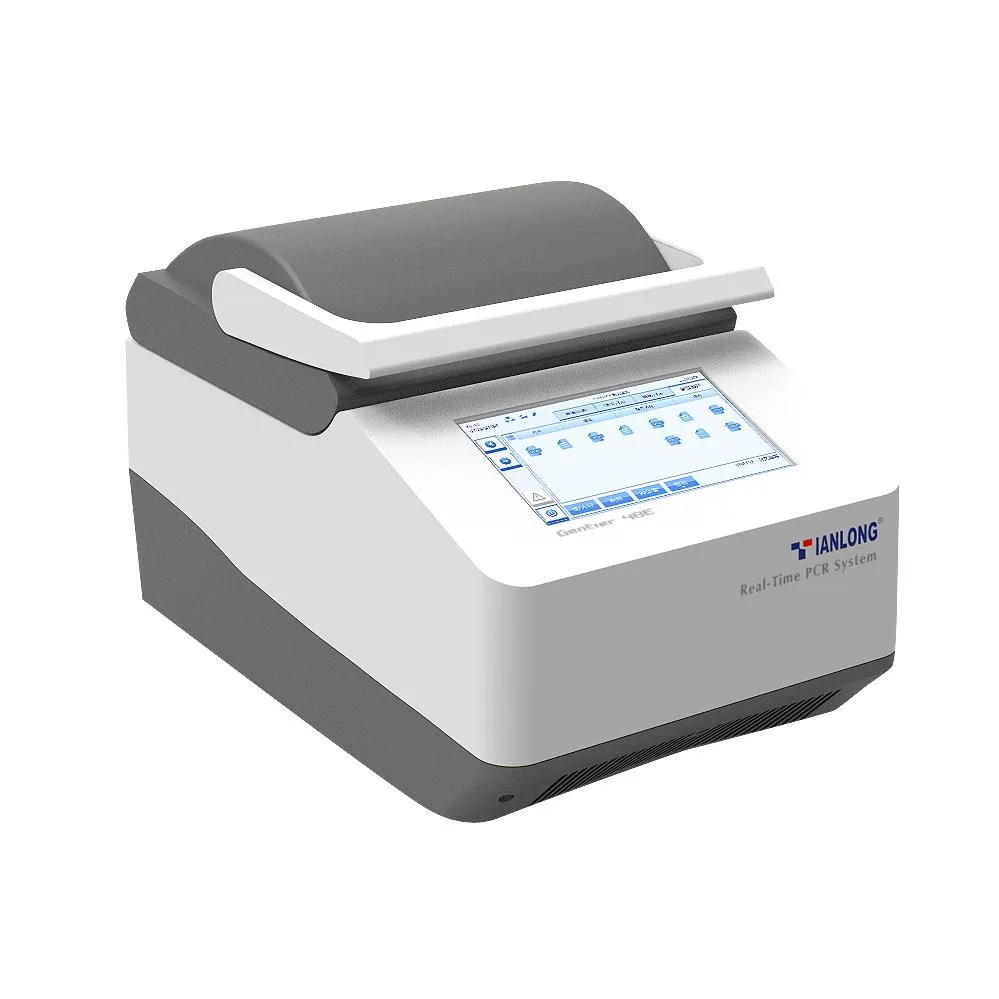

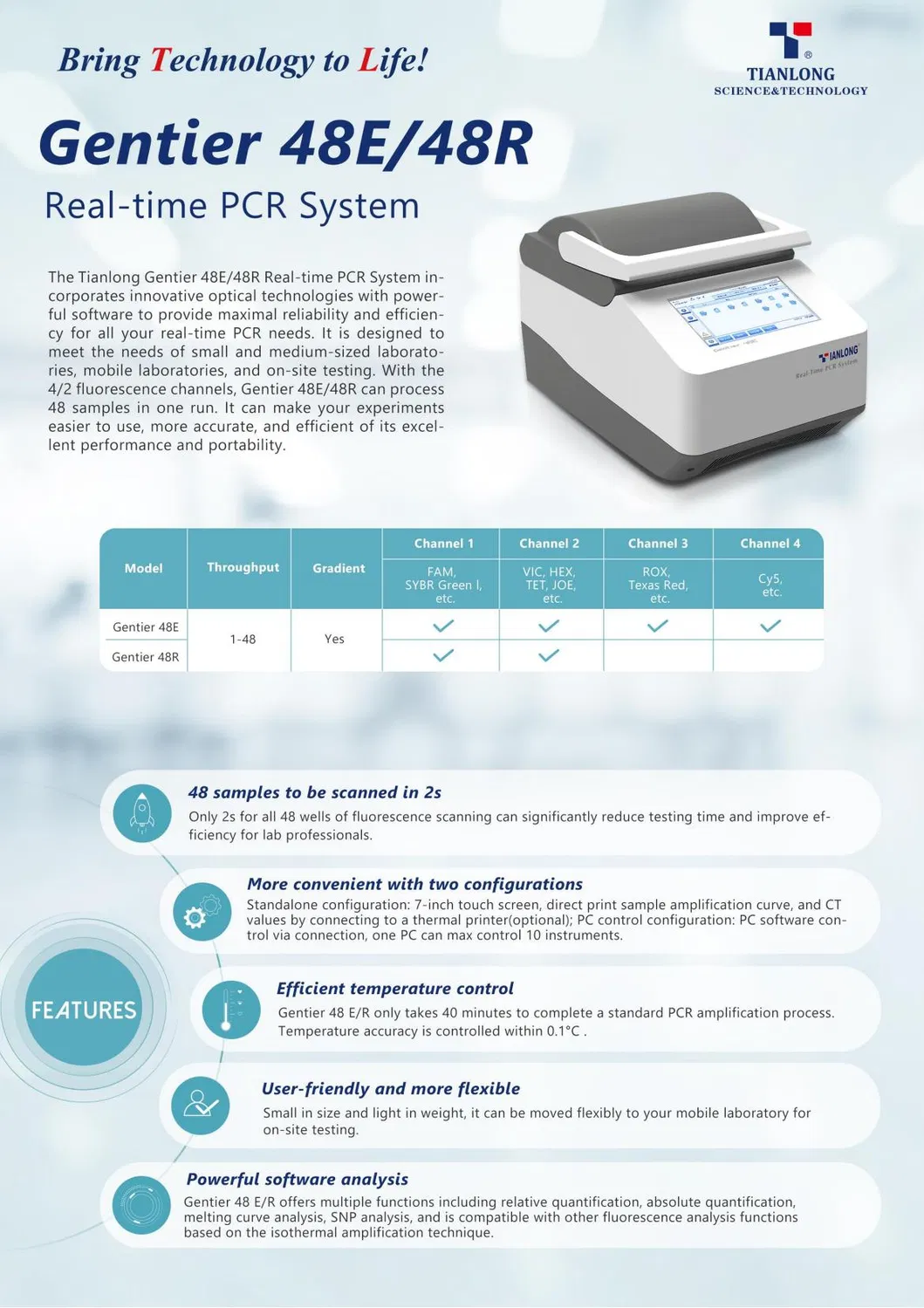

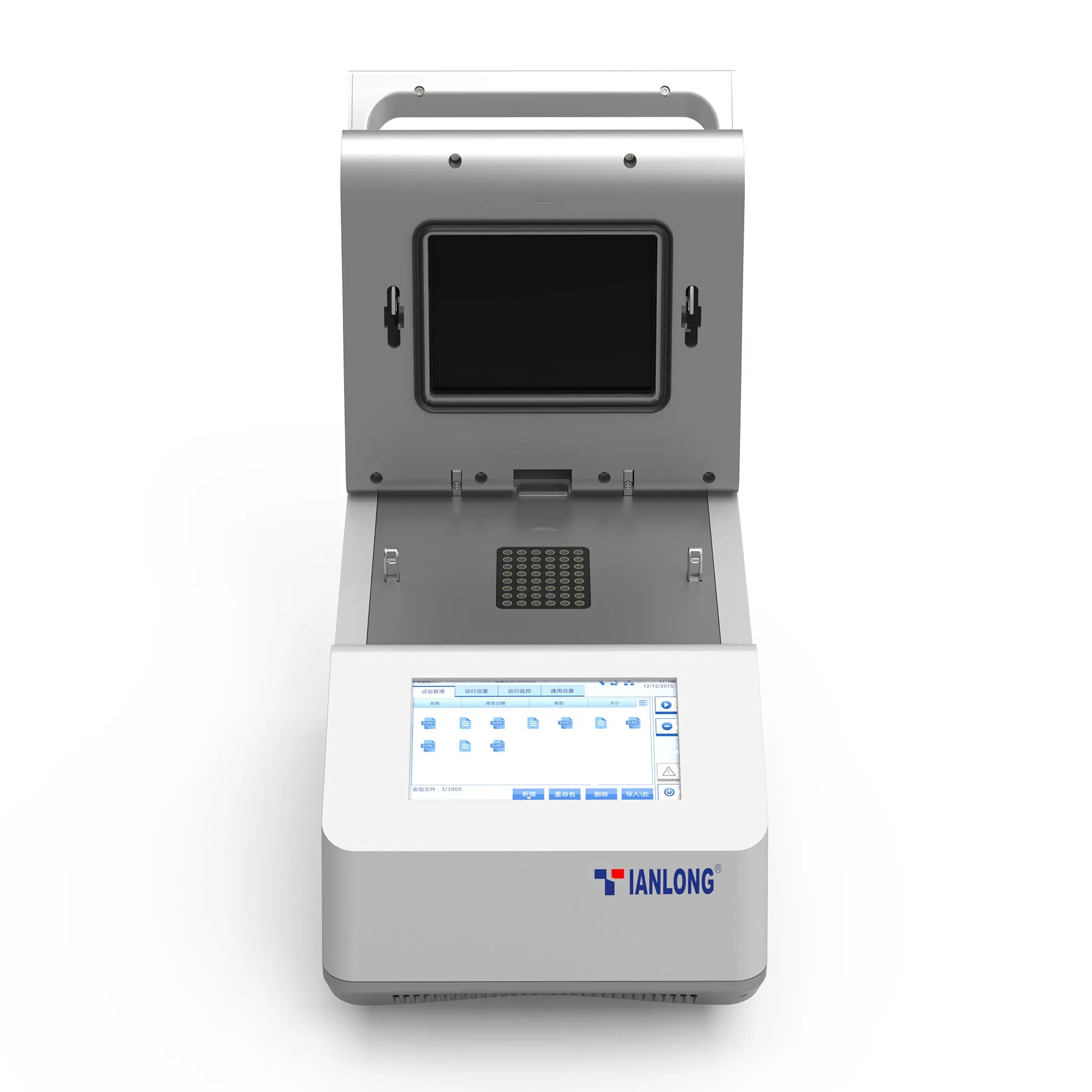

The Gentier 48E Real-time PCR System incorporates innovative optical technologies with powerful software to provide maximal reliability and efficiency for all your real-time PCR needs. It is designed to meet the needs of small and medium-sized laboratories, mobile laboratories, and on-site testing. With the 4/2 fluorescence channels, Gentier 48E can process 48 samples in one run. It can make your experiments easier to use, more accurate, and efficient because of its excellent performance and portability.

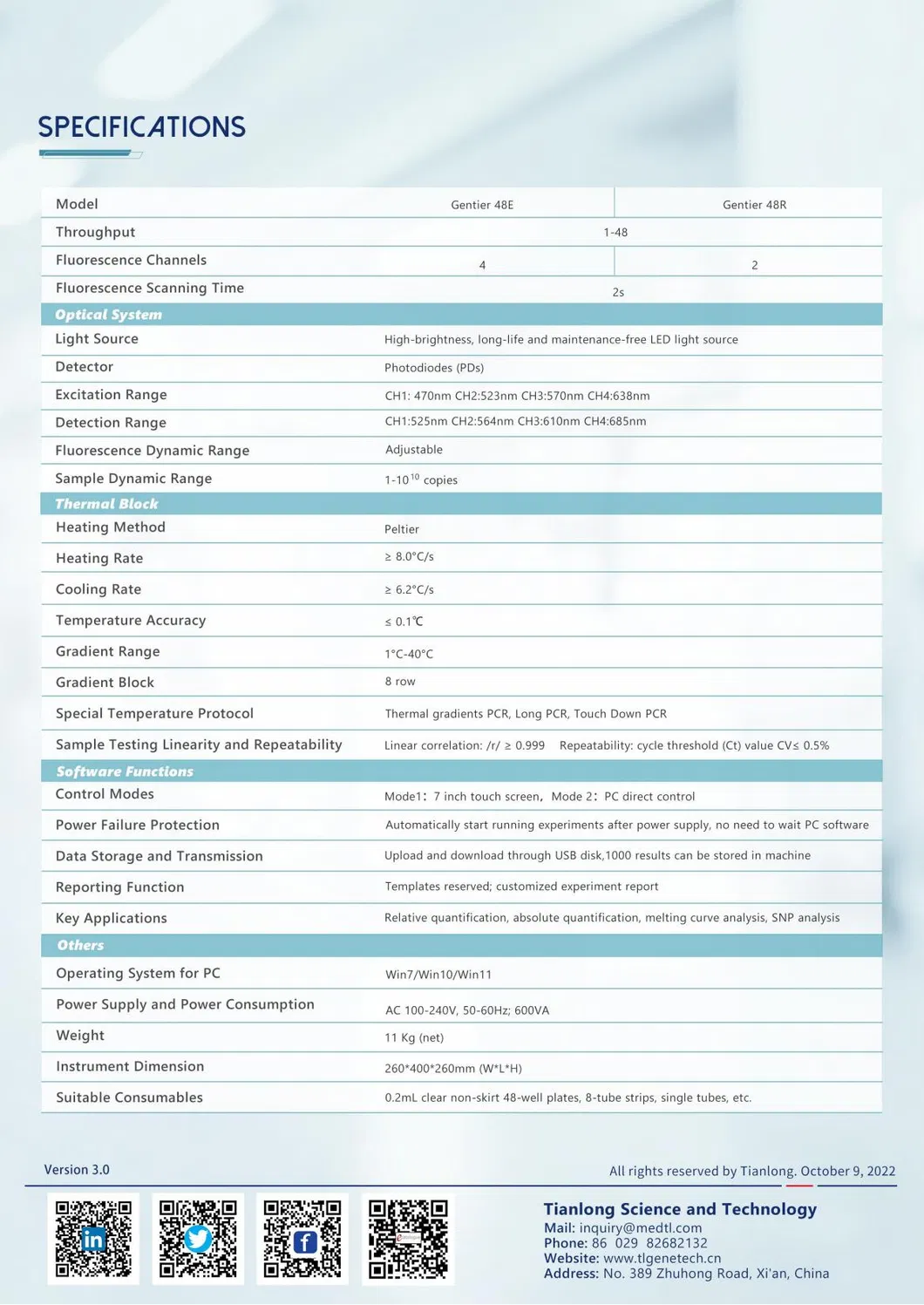

| Model |
Throughput |
Gradient |
Channel 1 |
Channel 2 |
Channel 3 |
Channel 4 |
| Gentier 48E |
1-48 |
Yes |
FAM, SYBR Green l, etc. |
VIC, HEX, TET, JOE, etc. |
ROX, Texas Red, etc. |
Cy5, etc. |
48 samples scanned in 2s
Only 2s for all 48 wells of fluorescence scanning can significantly reduce testing time and improve efficiency for lab professionals.
Two configurations
Standalone: 7-inch touch screen with direct print option; PC control: One PC can control up to 10 instruments.
Efficient temperature control
Takes only 40 minutes for standard PCR. Temperature accuracy is controlled within 0.1°C for excellent repeatability.
Powerful software analysis
Offers relative/absolute quantification, melting curve analysis, SNP analysis, and isothermal amplification compatibility.
E

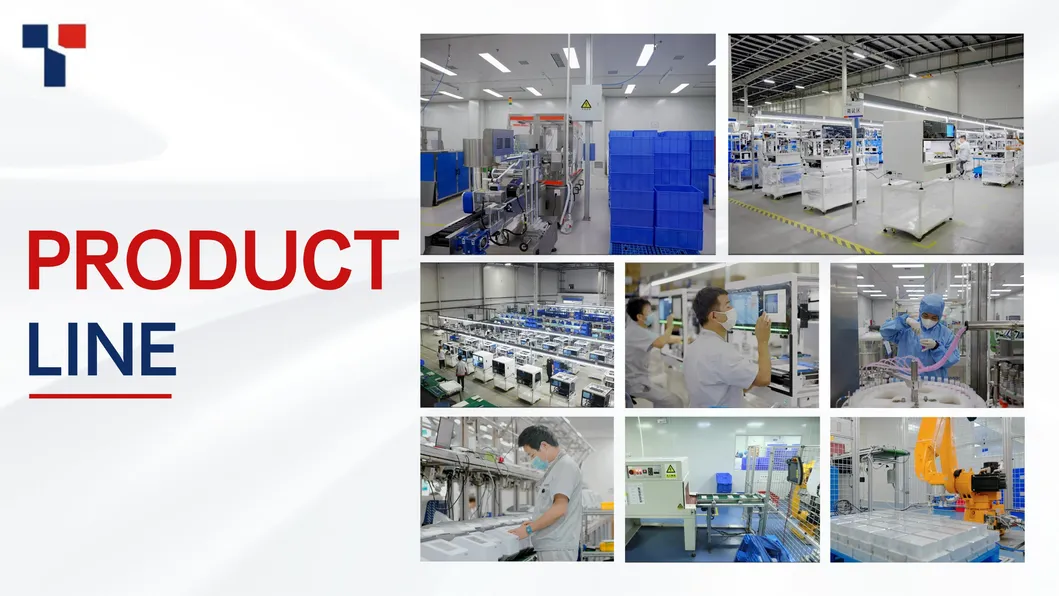

Facility & Manufacturing
?
Frequently Asked Questions
How many samples can the Gentier 48E process in a single run?
The system is designed to process 1 to 48 samples per run, making it ideal for small to medium-sized laboratory throughput needs.
What is the fluorescence scanning speed of this system?
The Gentier 48E can complete a full 4-channel fluorescence scan of all 48 wells in just 2 seconds.
Does the system require a computer to operate?
It offers two configurations: a standalone mode using a built-in 7-inch touch screen, or a PC control mode where one computer can manage up to 10 instruments.
How accurate is the temperature control for PCR amplification?
The system features highly efficient temperature control with an accuracy of within 0.1°C, ensuring excellent repeatability across experiments.
What types of software analysis are available?
The system supports absolute and relative quantification, melting curve analysis, SNP analysis, and is compatible with isothermal amplification techniques.
Is this PCR system suitable for on-site testing?
Yes, its small size and light weight make it highly portable and suitable for mobile laboratories and on-site testing requirements.
