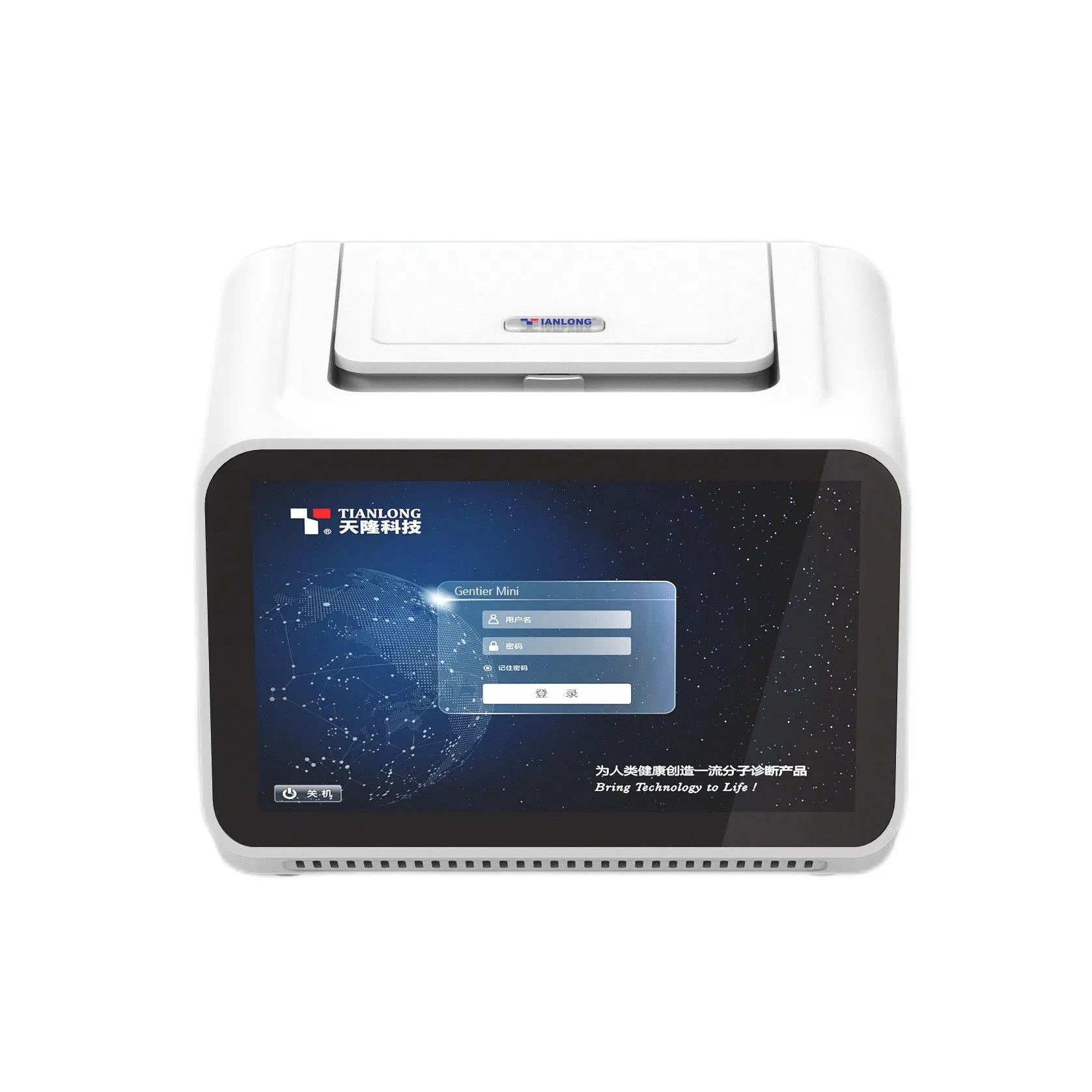

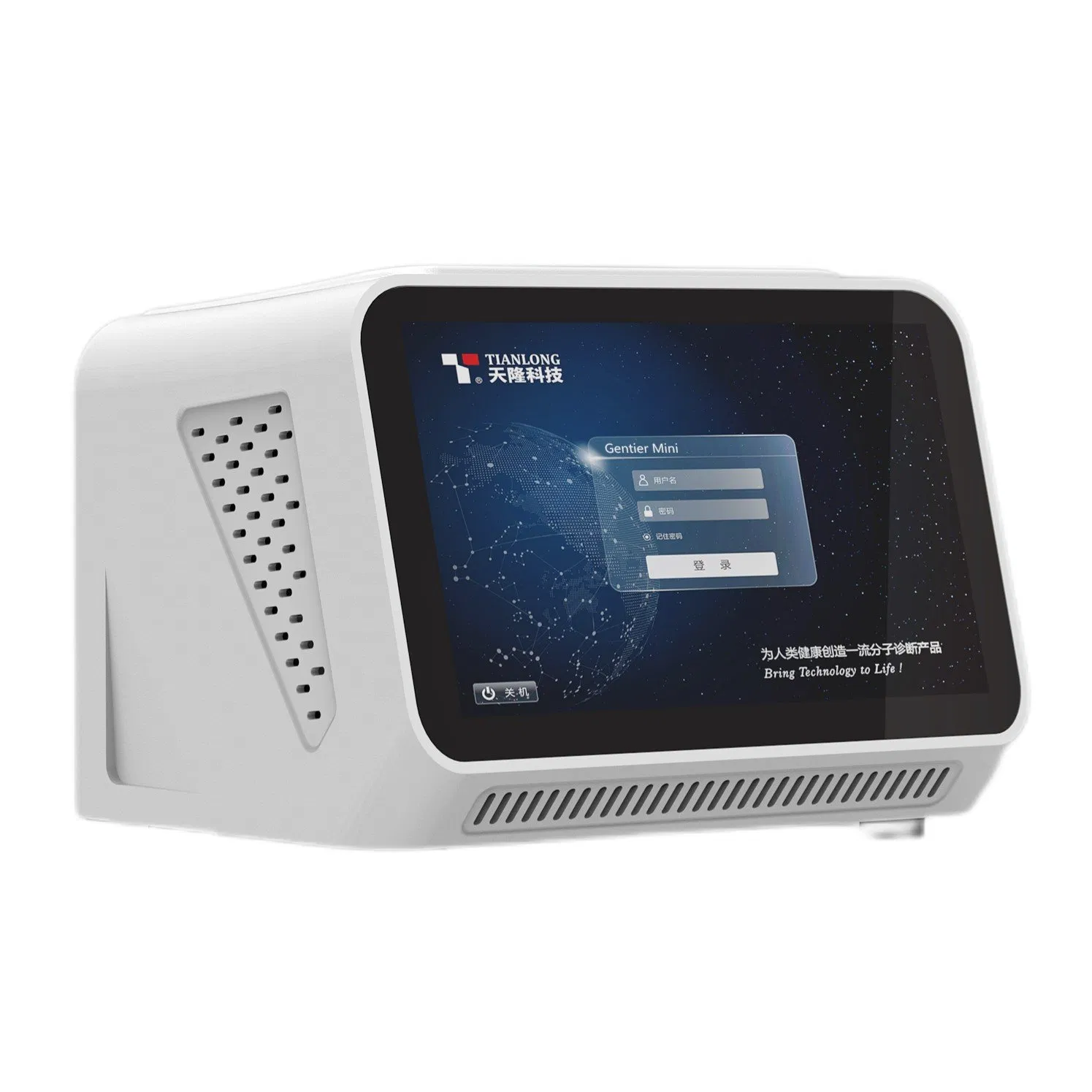

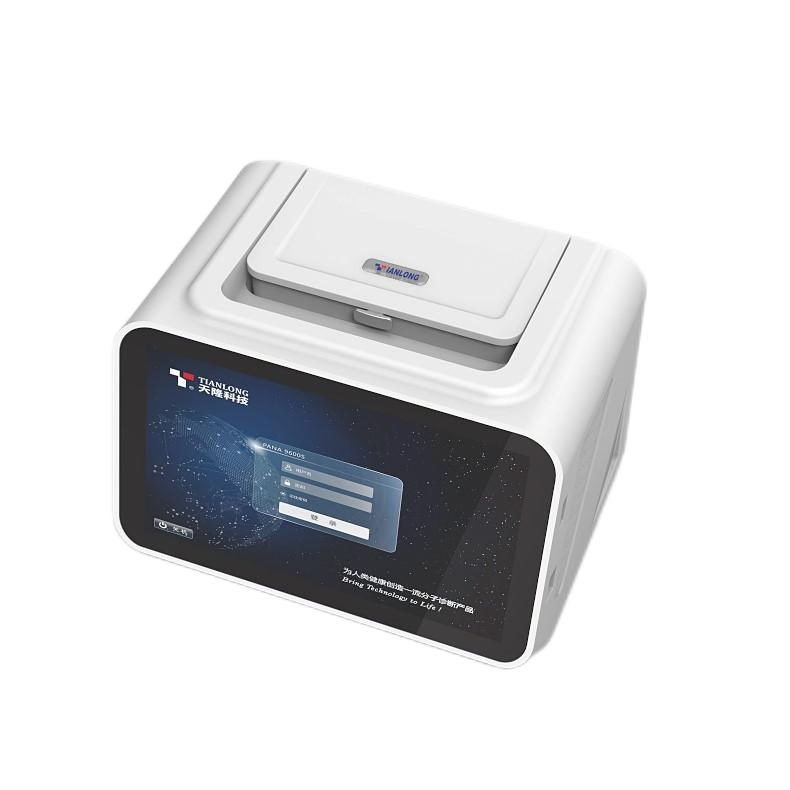

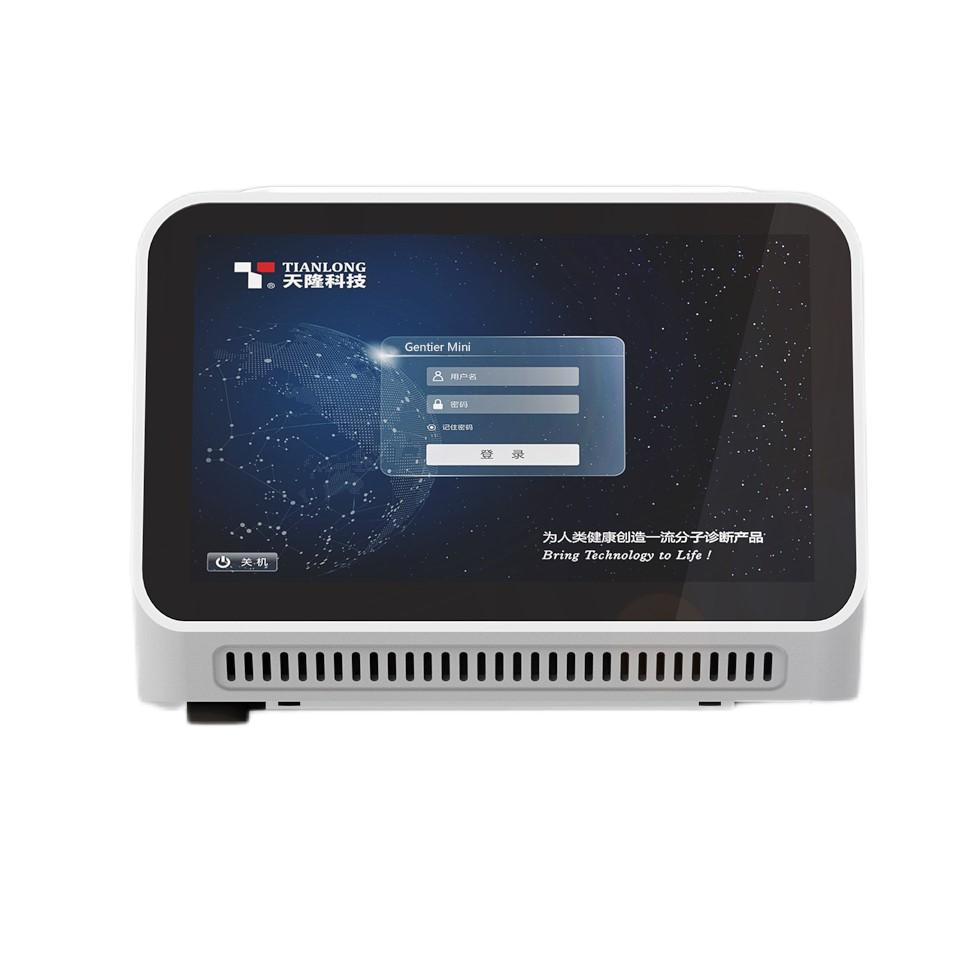

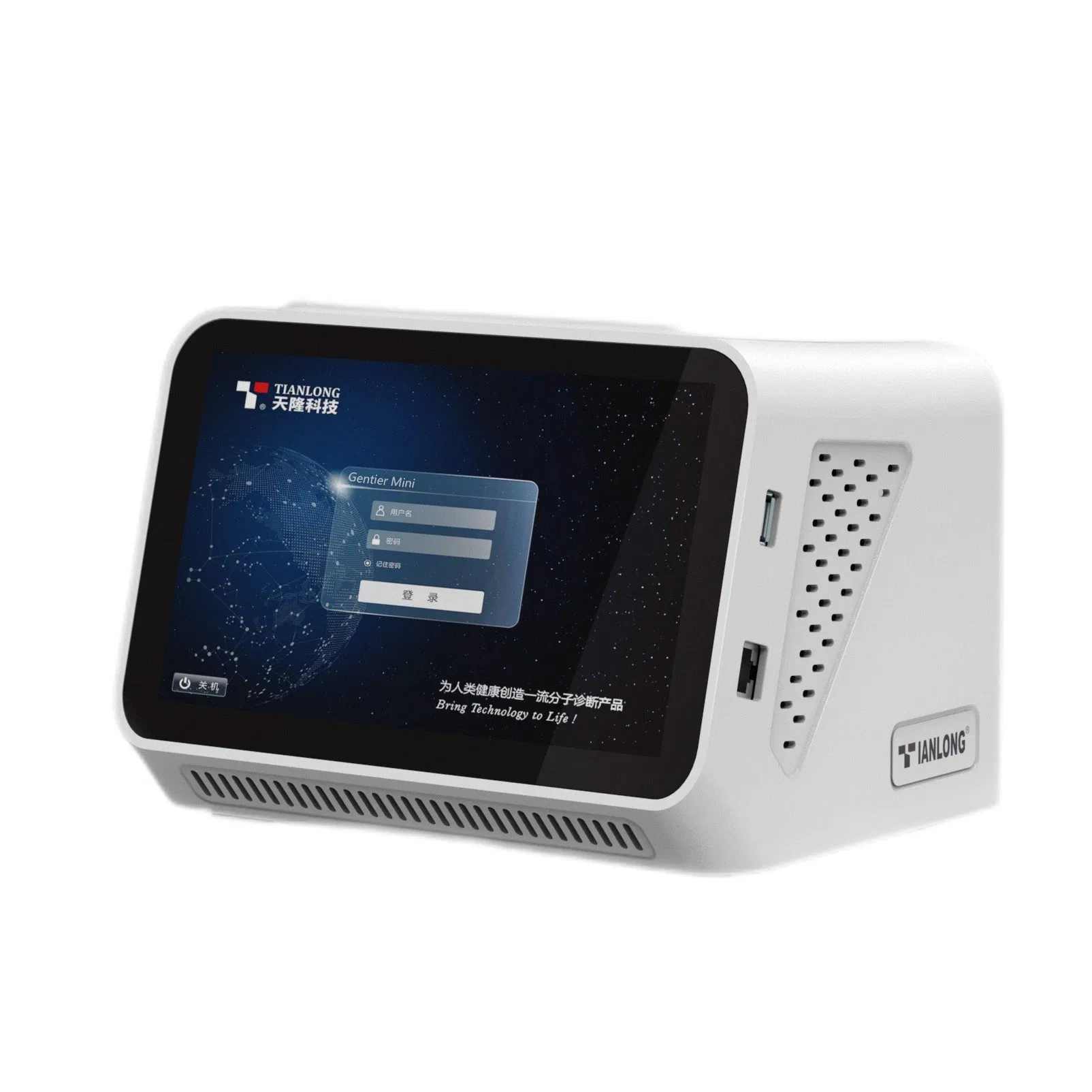

Tianlong Gentier Mini 2-Channel 16 Wells Portable Real Time PCR System

Customization:	Available
Type:	IVD Instrument
Certification:	CE, FDA, ROHS

Basic Info.

Model NO.

Gentier Mini

Transport Package

Paper Carton

Specification

27.5*19*23 cm

HS Code

9027509090

Production Capacity

5000 Units/Year

Product Description

Based on years of application-oriented R&D, Gentier Mini Portable Real-Time PCR System is developed and launched to meet the increasing needs for on-site and rapid testing. This product is compact and portable, easy to use, high efficiency in real-time PCR testing with accurate temperature control, allowing real-time PCR tests out of your labs for all types of fields for your applications.

Designed for mobile, small laboratories or on-site testing, Gentier Mini can be widely applied in food safety, animal disease and infectious disease prevention and control, scientific research, environmental monitoring and other fields, especially animal disease detection. Gentier Mini playing an important role in animal disease detection and solve the problems of limited space and fragmented samples.

Product Features

THOUGHTFUL DESIGN

Compact size, 3.2kg, hand-held, easy to carry.
7-inch high-definition LCD capacitive touch screen, for your smooth operating experience.
Patented design, no need for fluorescent calibration after moving.
Instant power failure protection, seamless automatic recovery of the operation, no fear of unexpected situations.

HIGH-EFFICIENCY TESTING

16-well dual-color fluorescence scanning within 1 second, to fight for results against time.
Independent temperature control module, supporting touchdown PCR, long-range PCR, qualitative and quantitative, melting curve, SNP site analysis, etc.
The software analysis function is powerful, to meet the diverse testing needs of customers in various fields!

EASY TO OPERATE

Special shortcut mode, preset programs for convenient and fast testing.
Various ways to stay online: Internet interface, USB, WiFi.
It can directly analyze the data in the stand-alone state, and the results are printable immediately after connecting to the printer.
Various control modes including stand-alone, PC and tablet for the applications of multiple scenarios.

Technical Parameters

Item	Parameters
Product Model	Gentier Mini
Sample Throughput	16
Fluorescence Channels	2
Suitable Consumables	0.2mL transparent single tubes and 8-strip tubes
Compatible Fluorophores	Channel 1: FAM, SYBR Green I, SYTO 9, Eva Green, LC Green; Channel 2: HEX, VIC, TET, JOE
Heating Rate	Average heating rate of 3.39°C/s; maximum heating rate of 5.09°C/s
Cooling Rate	Average cooling rate of 3.0°C/s; maximum cooling rate of 4.0°C/s
Temperature Accuracy	≤0.1ºC
Lightsource	High-brightness, long-life, maintenance-free LED light source
Detection Duration	Fluorescence channel information acquisition within 1 second for all holes
Temperature Controlled Programs	Supporting conventional PCR, touchdown PCR, long-range PCR, etc.
Hot Lid Temperature	40°C-110°C
Software Analysis	Qualitative, absolute/relative quantitative, endpoint fluorescence, dissociation curve, and SNP analysis, etc.
Display	7-inch full-color HD LCD capacitive touch screen
Control Methods	Mode 1: touch-screen; Mode 2: PC software; Mode 3: remote via tablet
Network Connection	Internet interface, USB, WiFi
Dimensions & Weight	205mm (L) × 156mm (W) × 153mm (H); 3.2kg

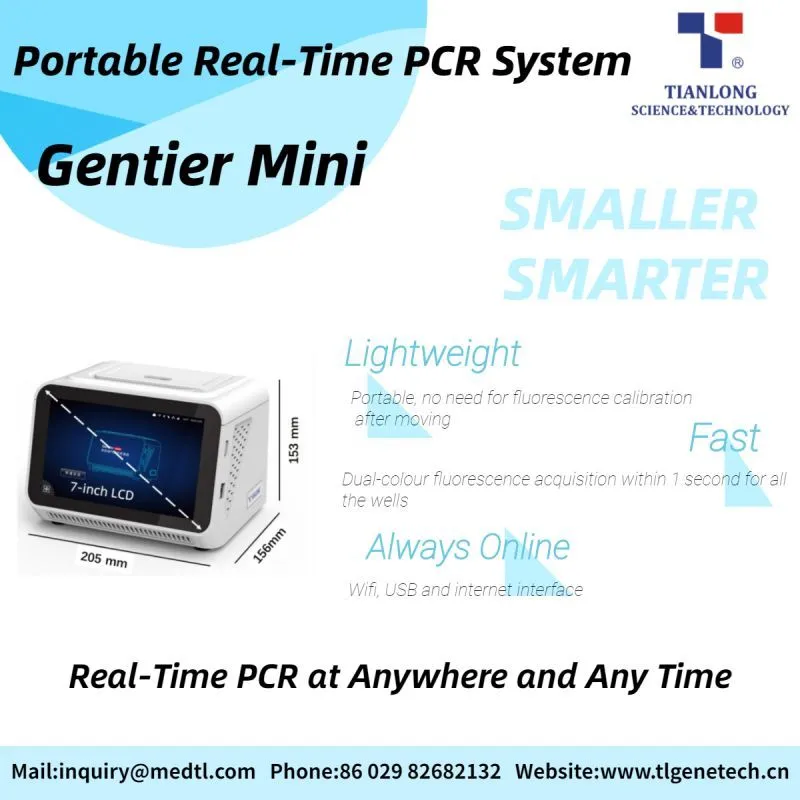

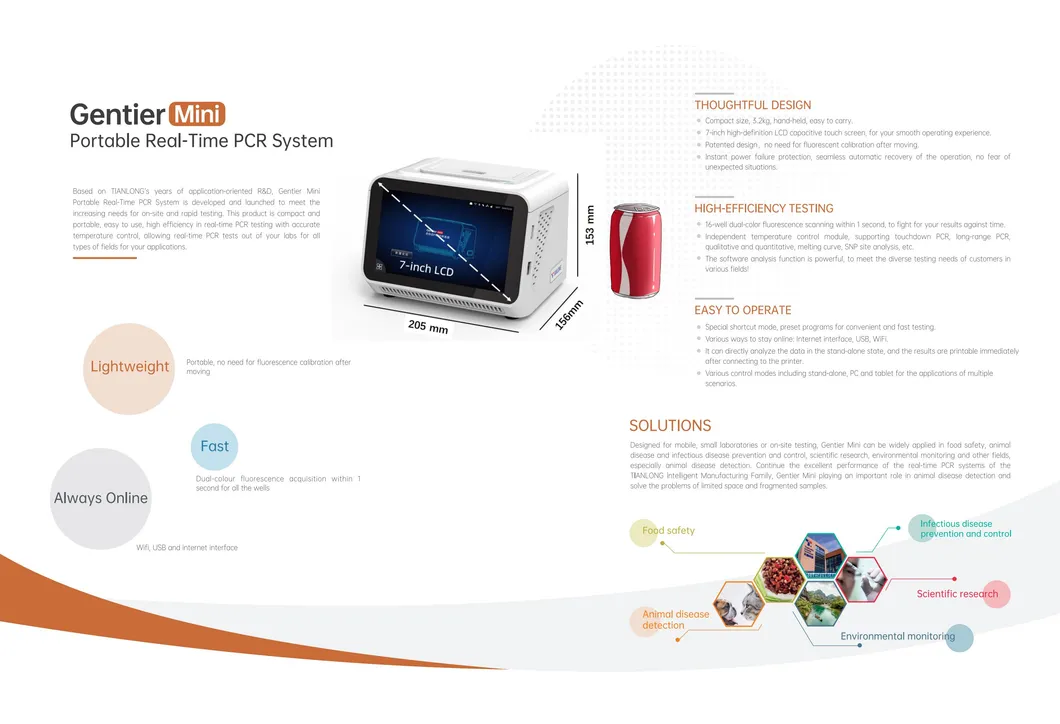

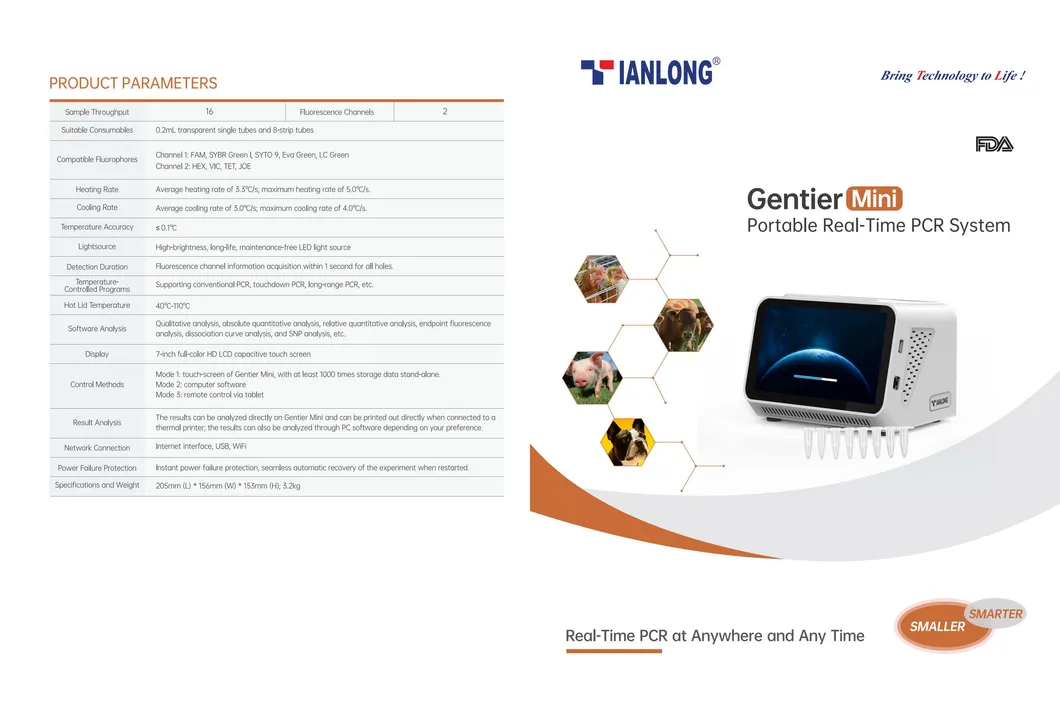

Product Leaflet & Catalogue

Frequently Asked Questions

What is the sample throughput of the Gentier Mini?

The Gentier Mini supports a sample throughput of 16 wells, making it ideal for mobile and on-site testing.

Is the system portable for field work?

Yes, it is highly portable with a compact size and a weight of only 3.2kg, specifically designed for mobile testing and small laboratories.

Does it require calibration after being moved?

No. Thanks to its patented design, there is no need for fluorescent calibration after moving the device.

What types of analysis can the software perform?

The software supports qualitative analysis, absolute and relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis.

Can I operate the Gentier Mini without a computer?

Yes, it features a 7-inch HD LCD touch screen for stand-alone operation, and data can be analyzed directly on the device.

What happens if there is an unexpected power failure?

The system includes instant power failure protection, allowing for seamless automatic recovery of the operation once power is restored.
