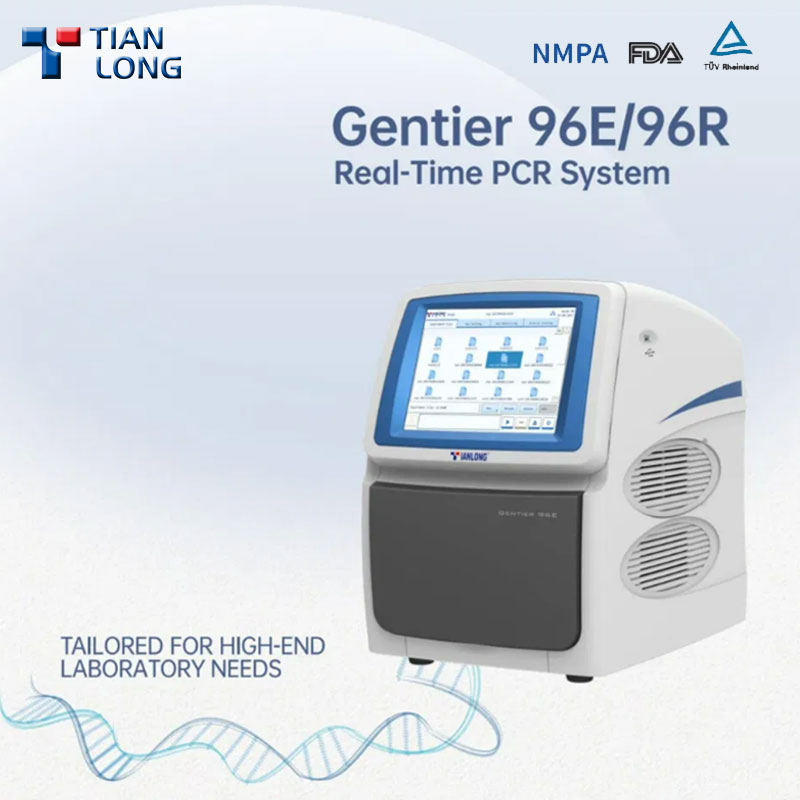

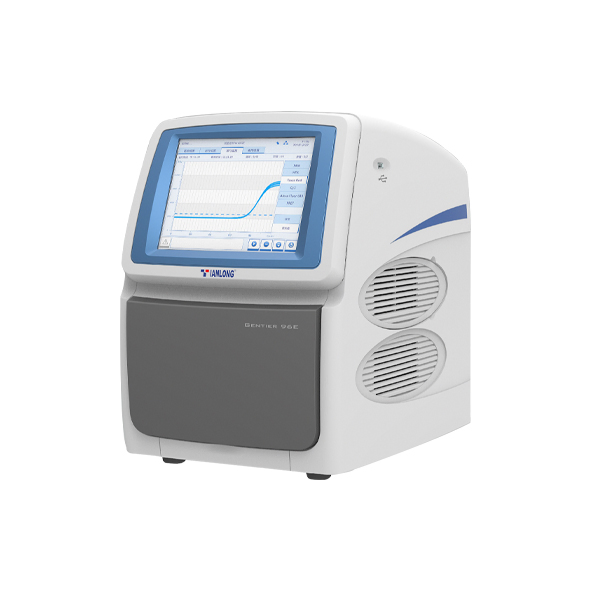

Tianlong PCR Machine Gentier96E 96 Well 6 Channel Real Time PCR System

1 / 5

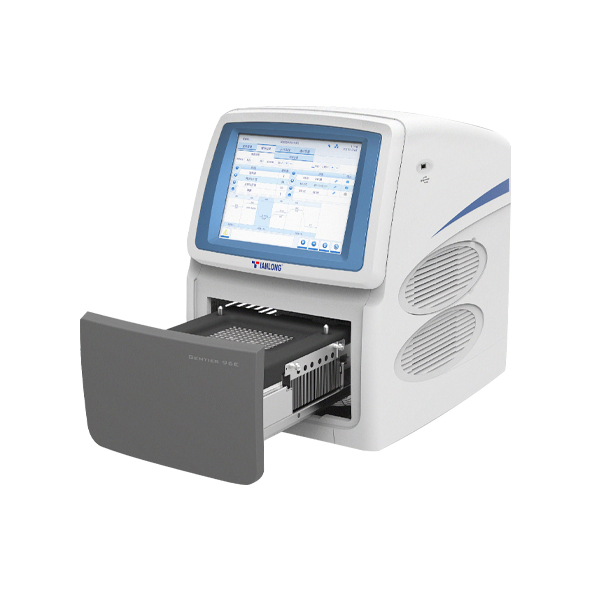

Tianlong PCR Machine Gentier96E 96 Well 6 Channel Real Time PCR System

Customization:	Available
Type:	IVD Instrument
Authoritative Certifications:	CE, ISO, RoHS, NMPA

Send Inquiry

Product Description

Basic Specifications

Model NO.

Gentier96E

Warranty

2 Years

Fluorescence Channels

Sample Throughput

OEM

Available

Touch Screen

12.1 inch LCD touchscreen

Application

Hospital, Lab, School, CDC, etc

Transport Package

Paper Carton

Specification

67*58*58 cm

HS Code

9027509090

Production Capacity

5000 Units/Year

Product Description

The Gentier96E is a real-time PCR detection system designed to meet the experimental needs of high-end users. The system features advanced, efficient temperature control and photoelectric systems, complemented by powerful, easy-to-use software analysis and user-friendly control methods.

It efficiently processes downstream multiplex gene detection, quantitative analysis, SNP analysis, dissociation curve analysis, and various other applications. It is widely utilized in medical institutions, universities, research institutes, CDC centers, inspection bureaus, and food production industries.

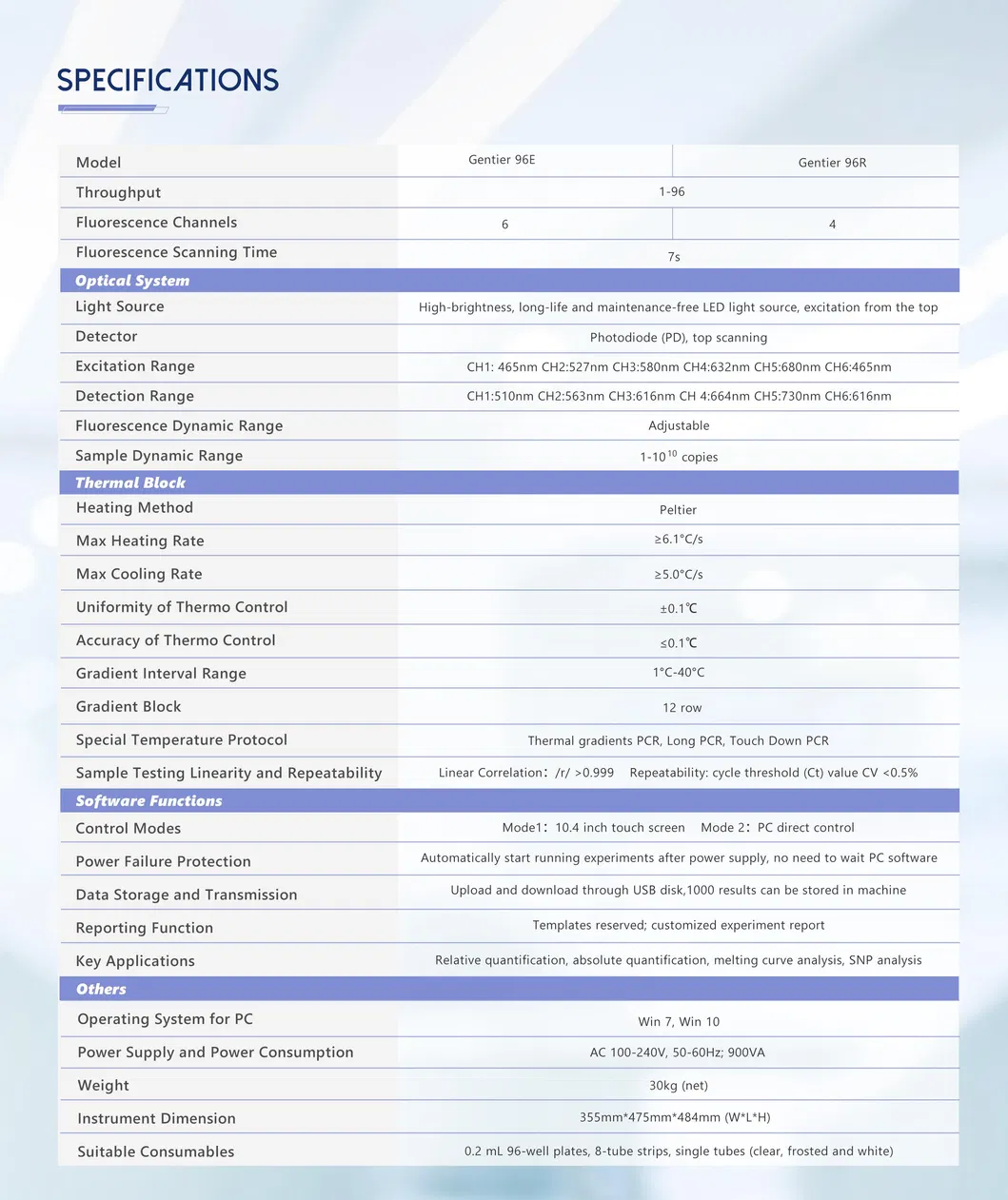

Technical Parameters

Item	Parameter Details
Product Model	Gentier96E
Fluorescence Channels	6
Sample Throughput	96
Authoritative Certifications	NMPA, CE, etc.
Compatible Fluorophores	Ch 1: FAM, SYBR Green I; Ch 2: HEX, VIC; Ch 3: ROX, Texas Red; Ch 4: Cy5; Ch 5: Alexa Fluor 680; Ch 6: FRET.
Light Source	High-brightness, long-life, maintenance-free LED
Detector	Photodiodes (PDs), top excitation and scan
Detection Method	Simultaneous well-by-well scanning, no edge effects
Detection Duration	96 wells, all channels completed in 7s
Temp Rates	Max heating 6.1ºC/s; Max cooling 5.0ºC/s
Temp Accuracy/Uniformity	≤±0.1ºC
Special Functions	12 thermal gradients, Long PCR, Touch Down PCR
Control Method	10.4-inch touchscreen or PC software control via LAN
Power Protection	Automatic experiment recovery after power restoration
Size and Weight	355mm x 475mm x 484mm, 30kg

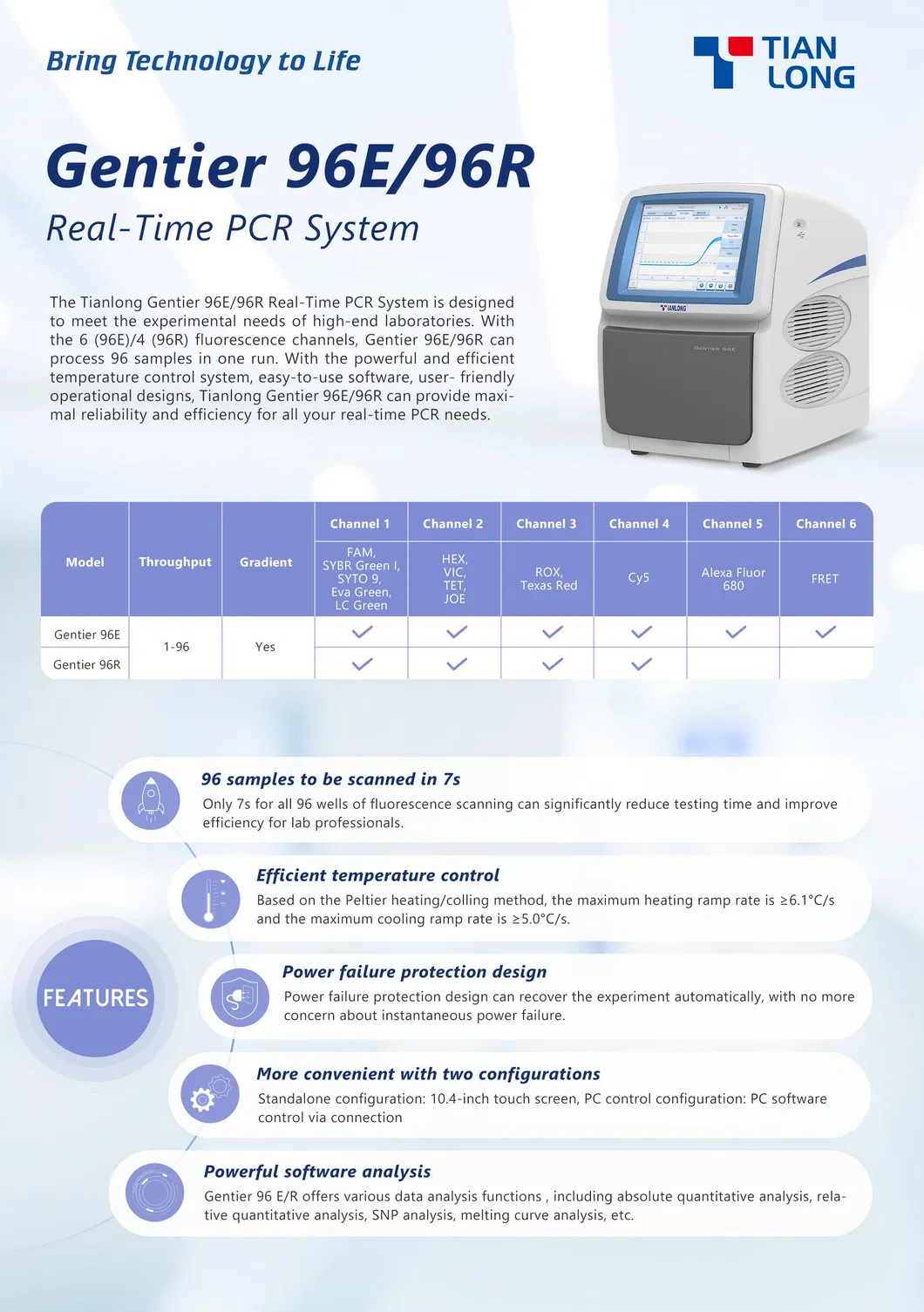

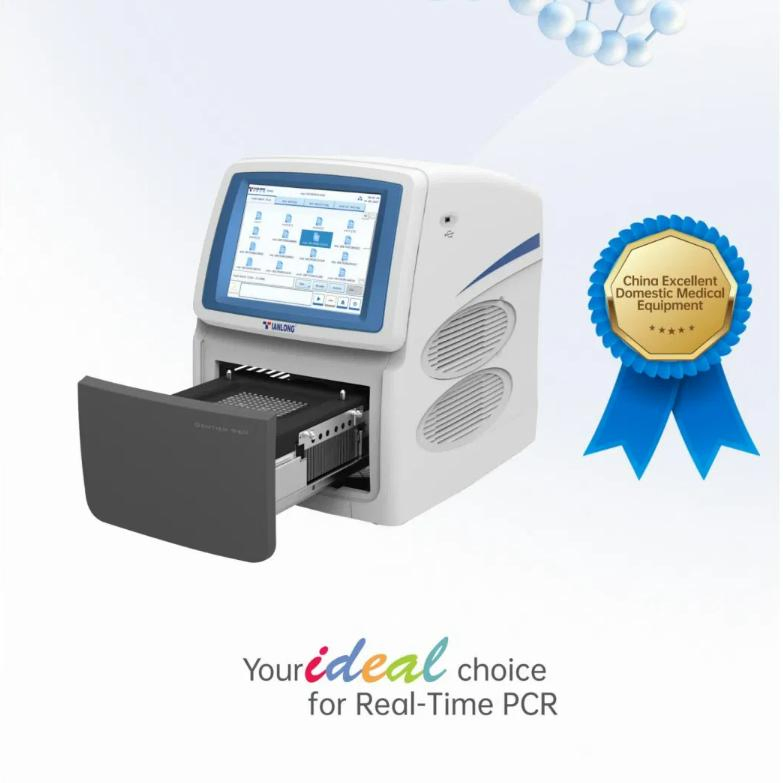

Product Visuals & Leaflet

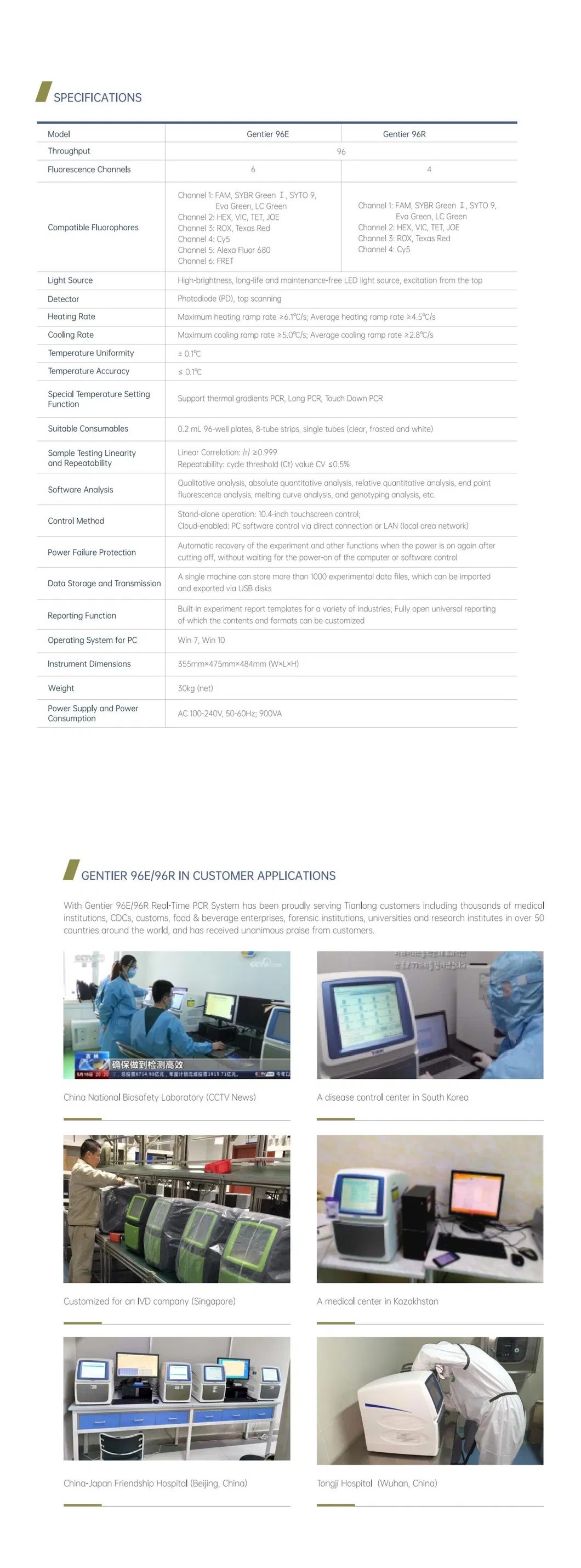

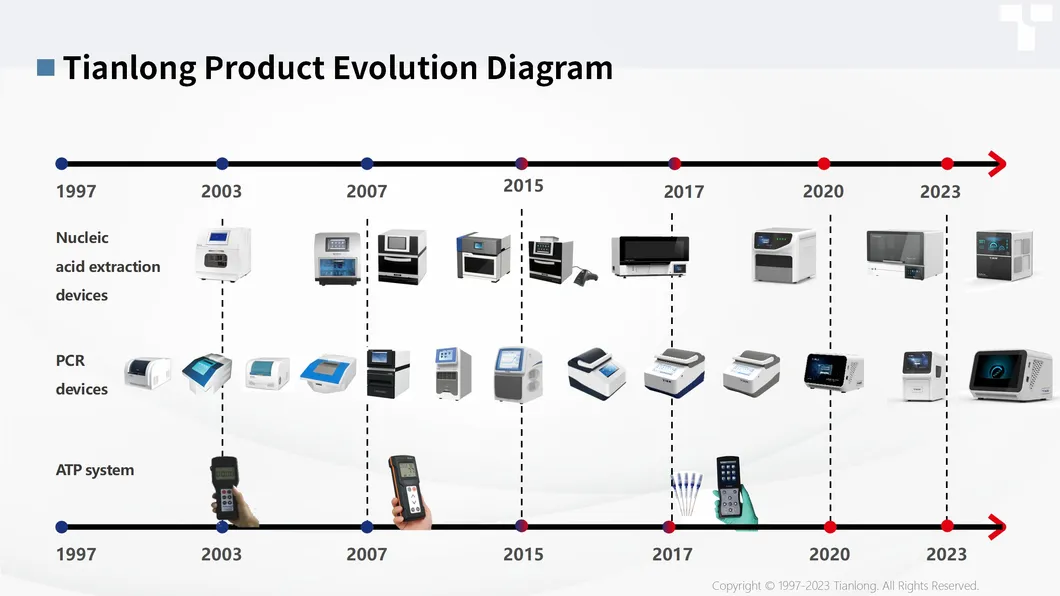

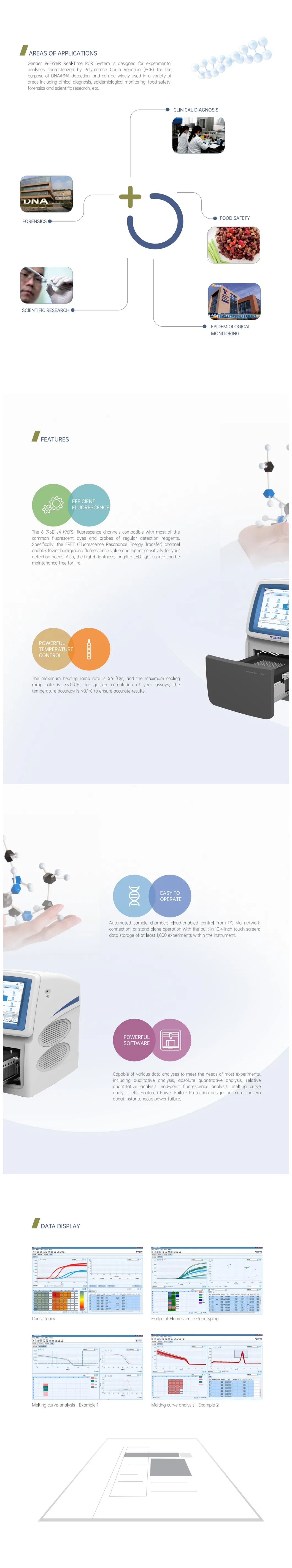

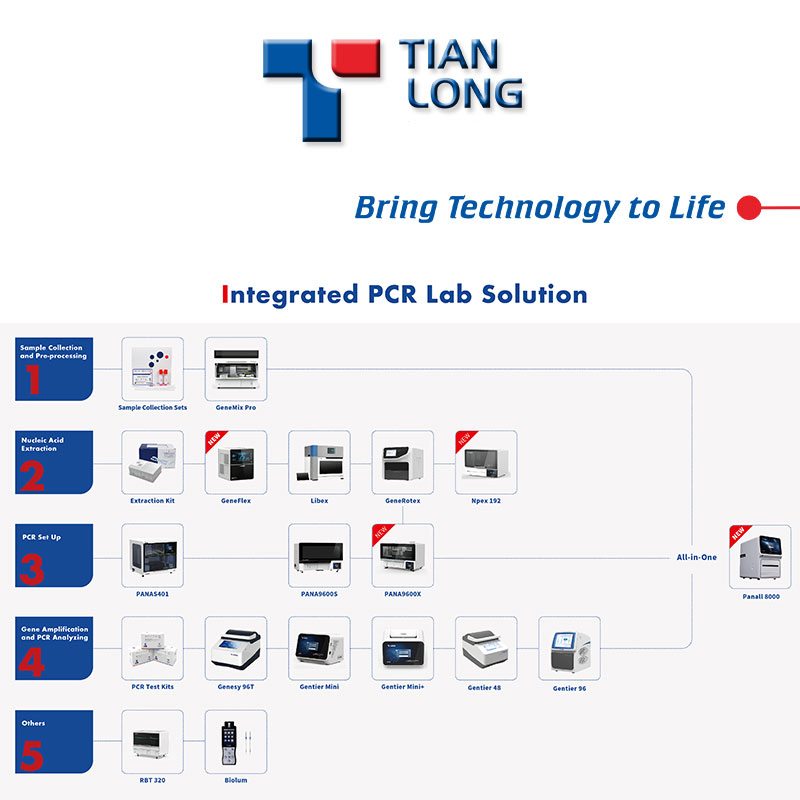

Catalogue & Solutions

Frequently Asked Questions

How many fluorescence channels does the Gentier96E support?

The system is equipped with 6 fluorescence channels, supporting a wide range of fluorophores including FAM, SYBR Green I, HEX, ROX, Cy5, and FRET for multiplex detection.

What is the scanning speed for a full 96-well plate?

The Gentier96E can complete simultaneous well-by-well scanning of all 96 wells for all fluorescence channels in just 7 seconds.

Can this PCR system operate independently without a computer?

Yes, it features a built-in 10.4-inch or 12.1-inch LCD touchscreen for stand-alone operation, and it can store more than 1000 experimental data sets directly on the device.

Does the system provide protection against power failures?

Yes, the system includes an automatic recovery function. Once power is restored, the experiment continues from where it left off without needing manual software intervention.

What types of consumables are compatible with the Gentier96E?

The system is compatible with standard 0.2 mL 96-well plates, 8-tube strips, and single-tube strips, including transparent, matte, and creamy varieties.

What analysis functions does the software provide?

The software supports a comprehensive suite of analysis tools, including qualitative analysis, absolute and relative quantitative analysis, SNP analysis, dissociation curve analysis, and endpoint fluorescence analysis.
