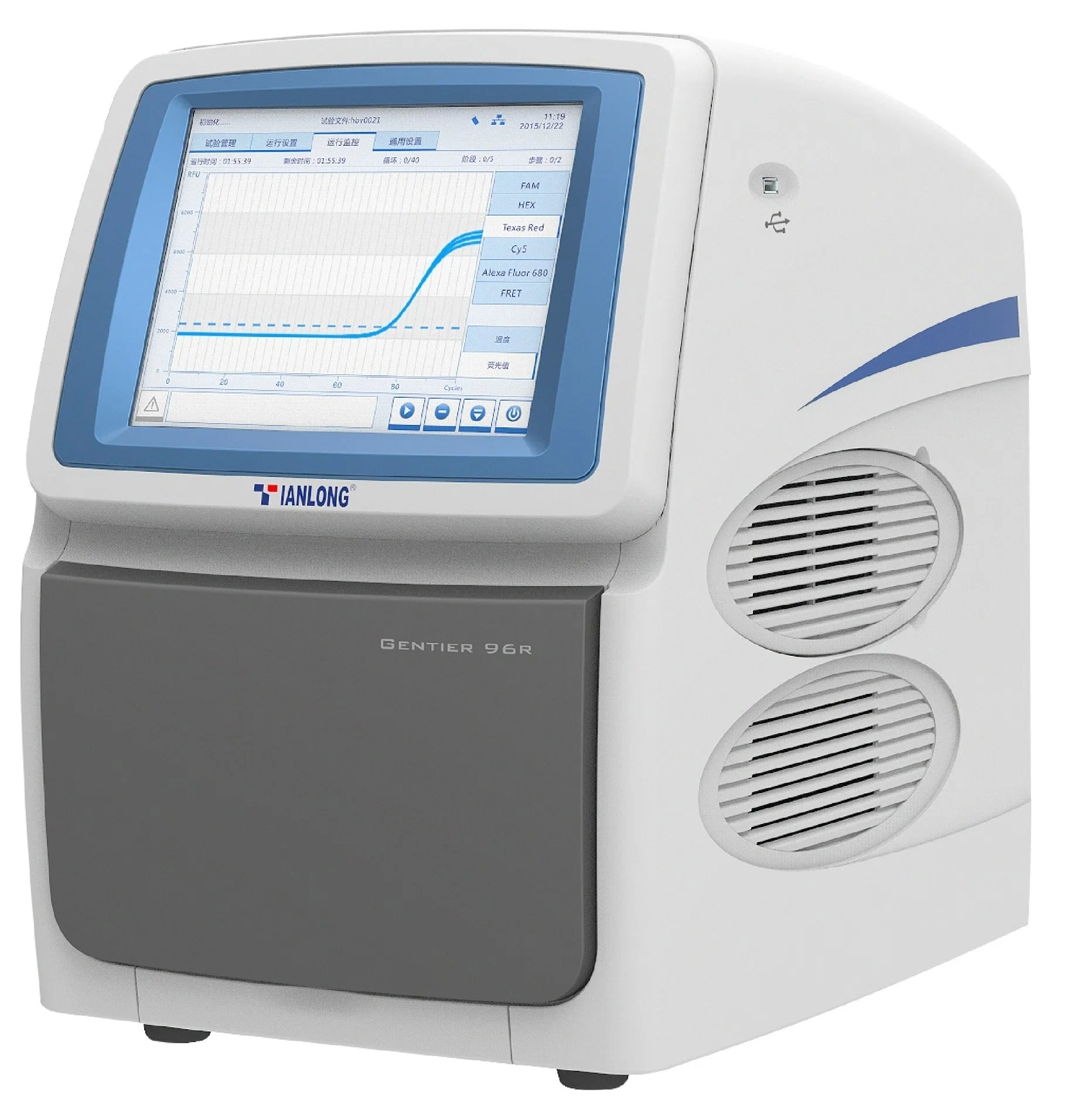

Tianlong Gentier96R 96 Well 4 Channel Real Time PCR System for Sale

Customization:	Available
Type:	IVD Instrument
Channels:	4

Send Inquiry

Product Description

📊 Basic Information

Model NO.

Gentier96R

Sample Throughput

Certifications

FDA, NMPA, CE, etc.

Warranty

2 Years

Package

Paper Carton

Specification

67*58*58 cm

HS Code

9027509090

Capacity

5000 Units/Year

💡 Product Description

Gentier96R is a real-time PCR detection system designed to meet the high-end experimental needs of modern laboratories. This system integrates an advanced, highly efficient temperature control system with a precision photoelectric system.

It provides powerful yet intuitive software analysis functions and user-friendly control interfaces. It is perfectly suited for downstream applications including multiplex gene detection, quantitative analysis, SNP analysis, and dissociation curve analysis.

The system is extensively utilized in medical institutions, research universities, CDC departments, inspection bureaus, forensic centers, and food quality control industries.

⚙️ Product Parameters

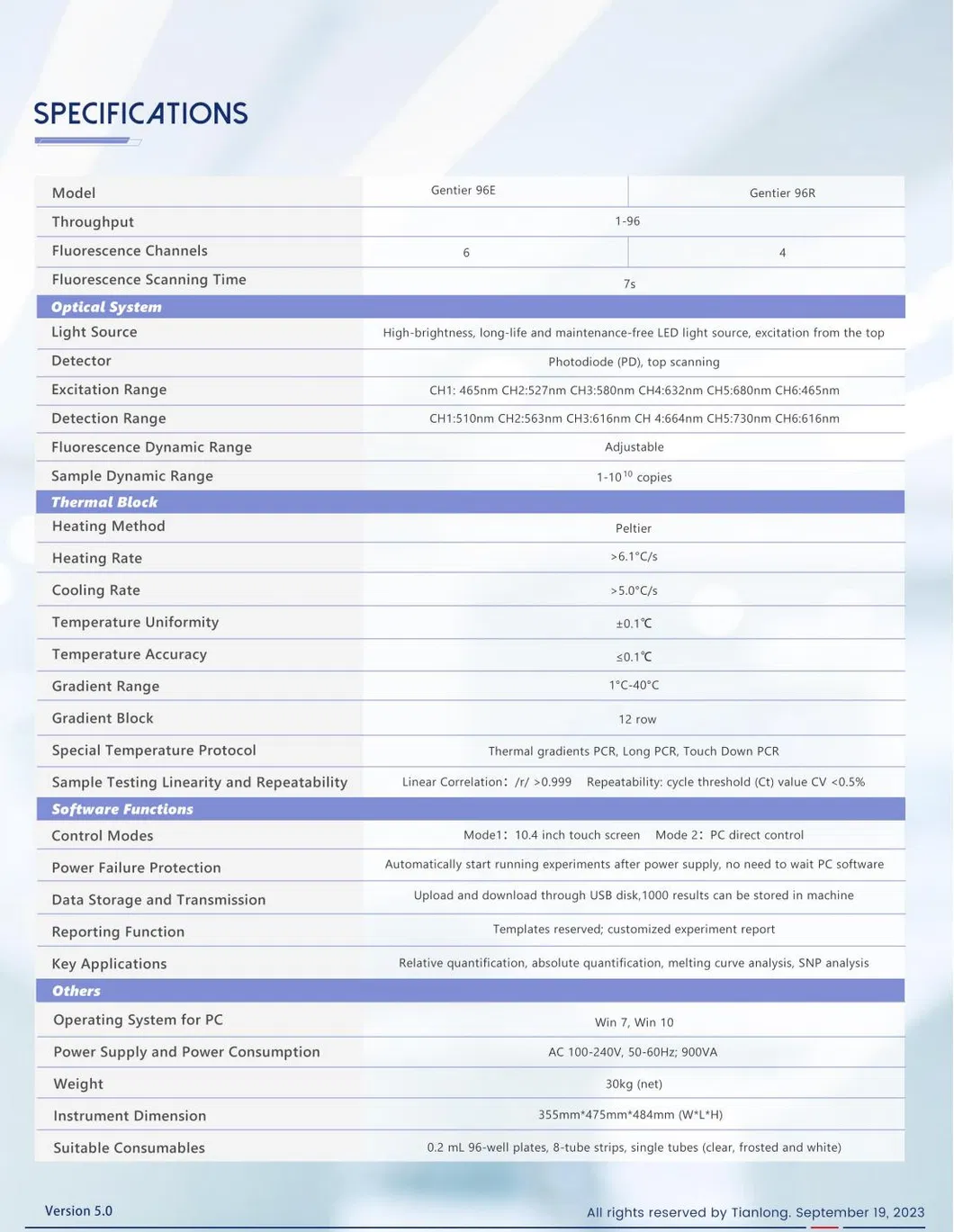

Item	Parameter Specification
Fluorescence Channels	4
Compatible Fluorophores	Channel 1: FAM, SYBR Green I, SYTO 9; Channel 2: HEX, VIC, TET; Channel 3: ROX, Texas Red; Channel 4: Cy5
Light Source	High-brightness, long-life, maintenance-free LED
Detection Method	Simultaneous well-by-well scanning of all channels (Top excitation/scan)
Detection Duration	All 96 wells for all channels completed in 7s
Heating & Cooling Rates	Max Heating: 6.1ºC/s; Max Cooling: 5.0ºC/s
Temperature Uniformity	±0.1ºC
Special Functions	Up to 12 thermal gradients, Long PCR, Touch Down PCR
Analytical Functions	Qualitative/Quantitative analysis, SNP analysis, dissociation curve, etc.
Control Method	10.4-inch touchscreen (Stand-alone) or PC software (LAN)

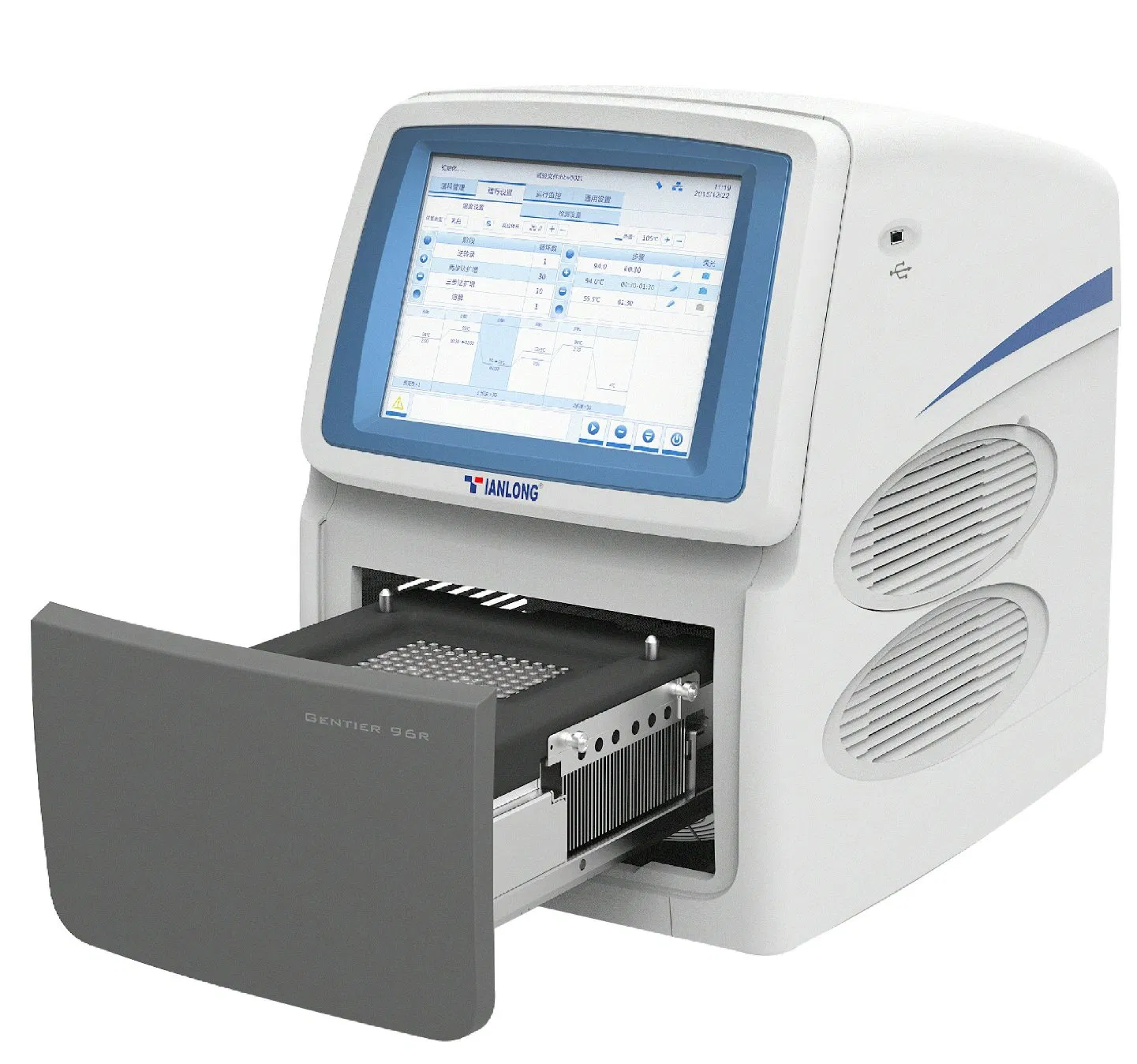

Suitable Consumables	0.2 mL 96-well plate, 8-tube strips, single tubes
Power Protection	Automatic experiment recovery after power failure
Dimensions & Weight	355mm x 475mm x 484mm (WDH), 30kg

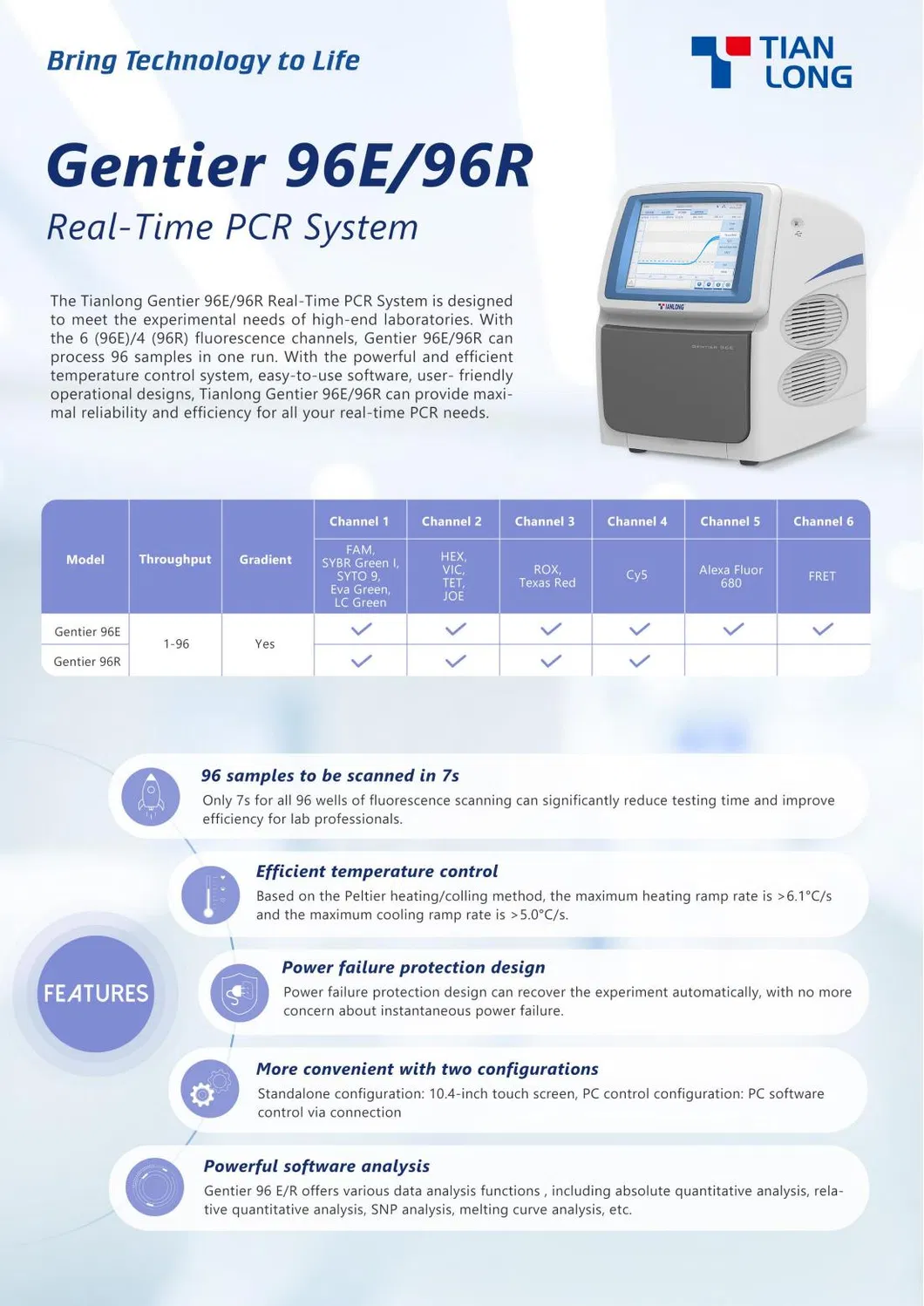

🖼️ Product Display

❓ Frequently Asked Questions

How many samples can the Gentier96R process at once?

The system features a high-throughput design capable of processing up to 96 samples per run using standard 0.2 mL 96-well plates or tube strips.

What are the heating and cooling performance specifications?

The system offers a maximum heating rate of 6.1ºC/s and a maximum cooling rate of 5.0ºC/s, with an exceptional temperature uniformity of ±0.1ºC.

Does the system require a computer to operate?

No, it supports stand-alone operation via a built-in 10.4-inch touchscreen. However, it can also be controlled via PC software through a direct network connection or LAN.

What fluorescence channels are supported?

The Gentier96R is equipped with 4 channels supporting common fluorophores like FAM, SYBR Green I, VIC, HEX, ROX, Texas Red, and Cy5.

How does the system handle power interruptions?

It includes automatic power failure protection, allowing the experiment to recover and resume automatically once power is restored without needing manual software intervention.

What types of data analysis can the software perform?

The software supports absolute and relative quantitative analysis, qualitative analysis, endpoint fluorescence analysis, dissociation curve (melting curve) analysis, and SNP analysis.
