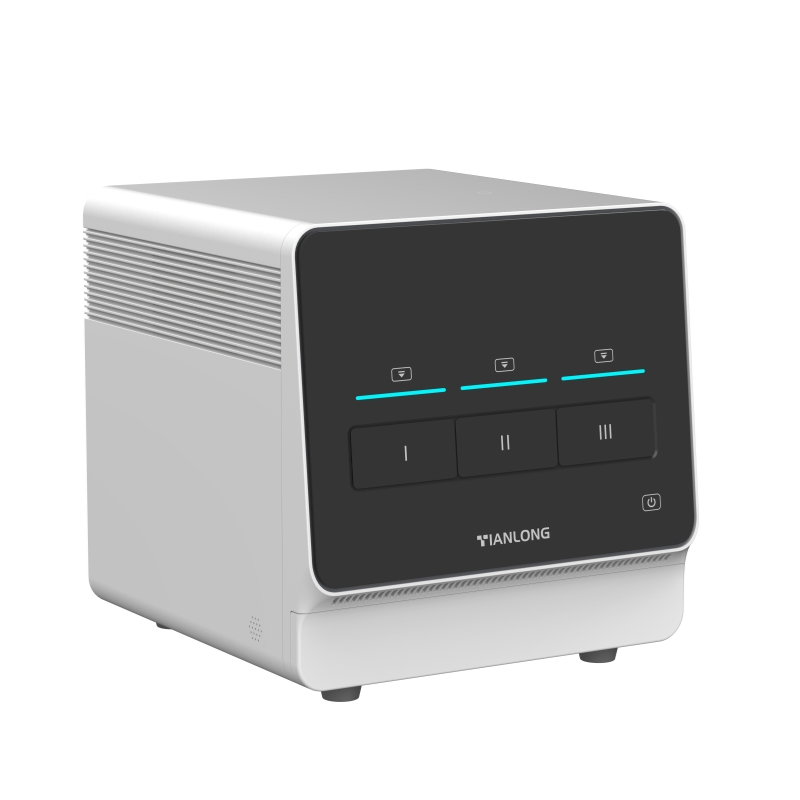

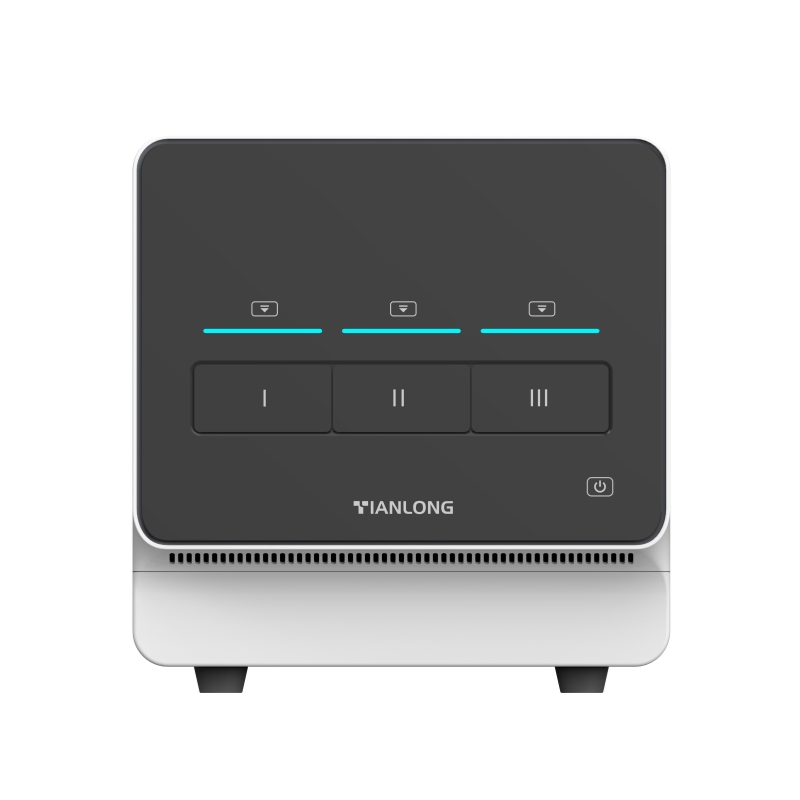

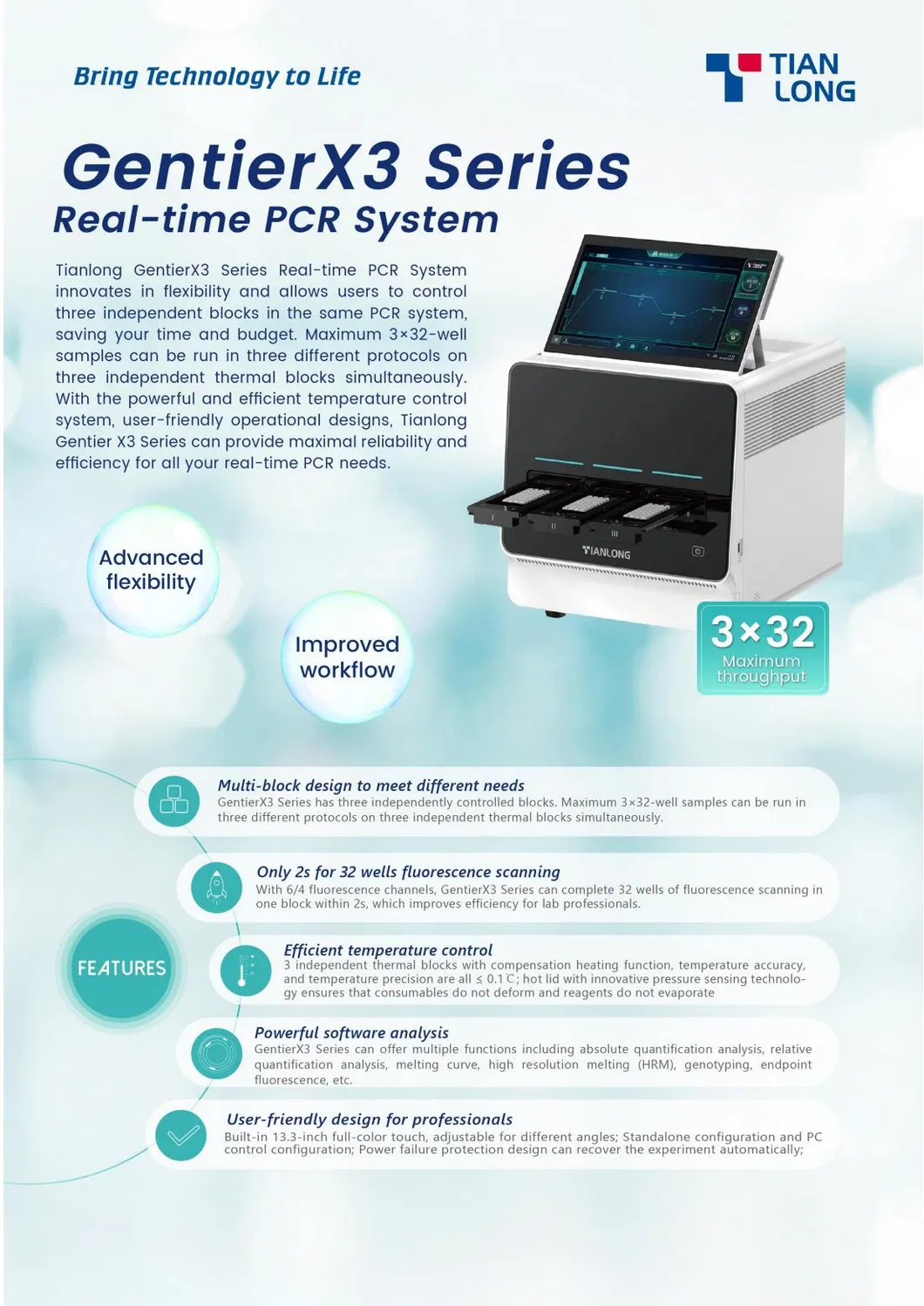

The Gentier X3 Series Real-time PCR System innovates in flexibility and allows users to control three independent blocks in the same PCR system, saving your time and budget. 3×32-well samples can be run in three different protocols on three independent thermal blocks simultaneously. With the powerful and efficient temperature control system, user-friendly operational designs, the series can provide reliability and efficiency for all your real-time PCR needs.
Three independently controlled blocks. Maximum 3×32-well samples can be run in three different protocols simultaneously.
Only 2s for 32 wells fluorescence scanning. With 6/4 fluorescence channels, it improves efficiency for lab professionals.
3 independent thermal blocks with compensation heating. Accuracy and precision ≤ 0.1ºC; innovative pressure sensing lid.
Functions include absolute quantification, relative quantification, melting curve, HRM, genotyping, and endpoint fluorescence.

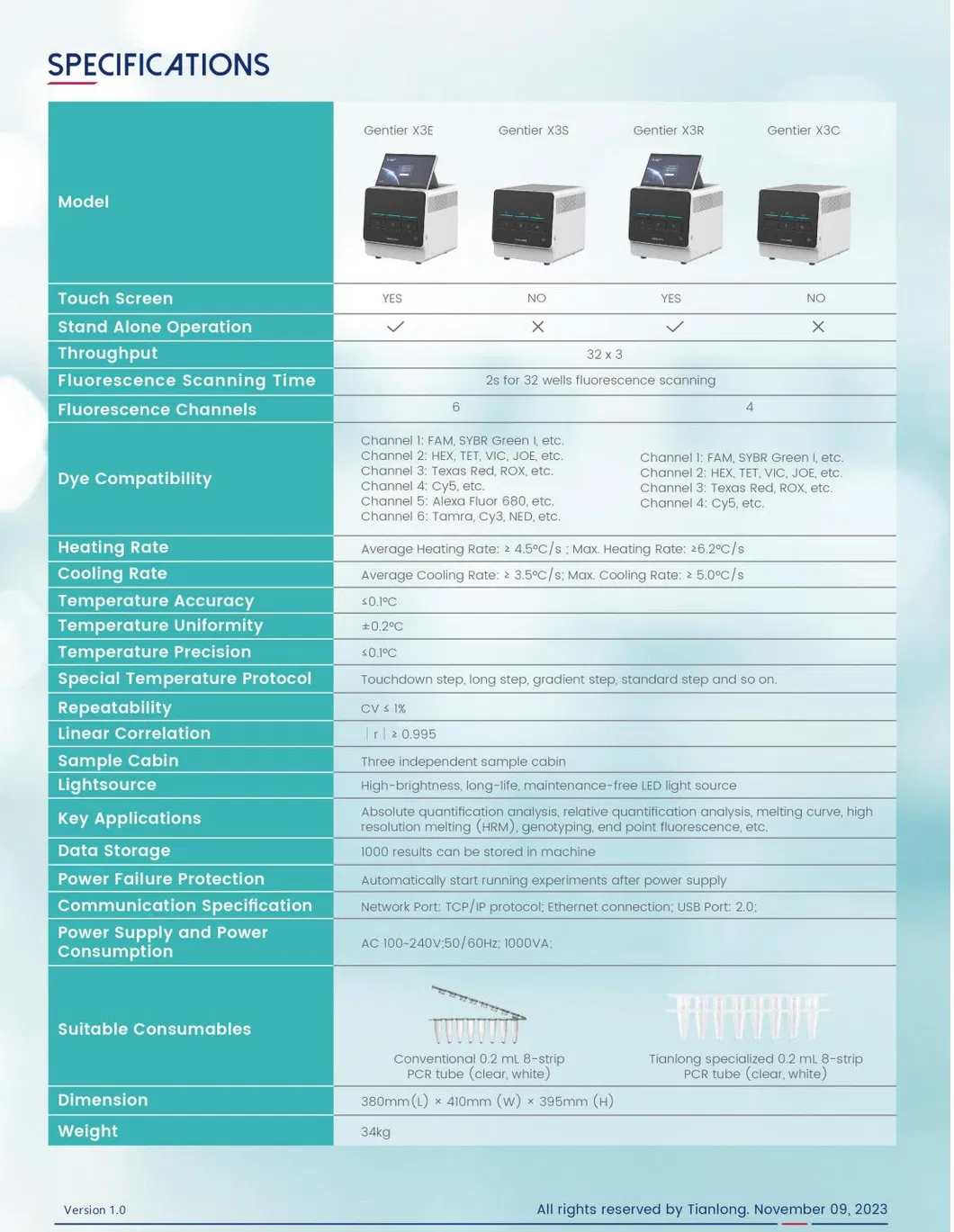

| Model | Gentier X3E | Gentier X3S | Gentier X3R | Gentier X3C |
|---|---|---|---|---|
| Touch Screen | YES | NO | YES | NO |
| Stand Alone Operation | √ | × | √ | × |
| Throughput | 32 х 3 | |||
| Scanning Time | 2s for 32 wells fluorescence scanning | |||
| Fluorescence Channels | 6 | 4 | ||
| Heating Rate | Avg: ≥ 4.5°C/s ; Max: ≥6.2°C/s | |||
| Cooling Rate | Avg: ≥ 3.5°C/s; Max: ≥ 5.0°C/s | |||
| Temp Accuracy/Precision | ≤0.1ºC | |||
| Sample Cabin | Three independent sample cabins | |||
| Data Storage | 1000 results stored in machine | |||
| Power Consumption | AC 100~240V; 1000VA | |||
