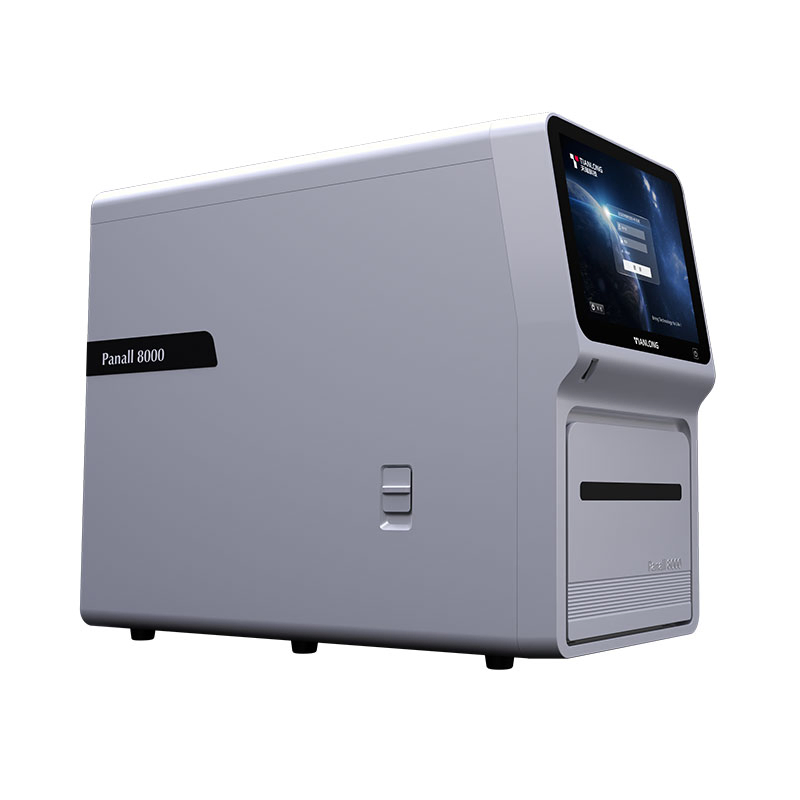

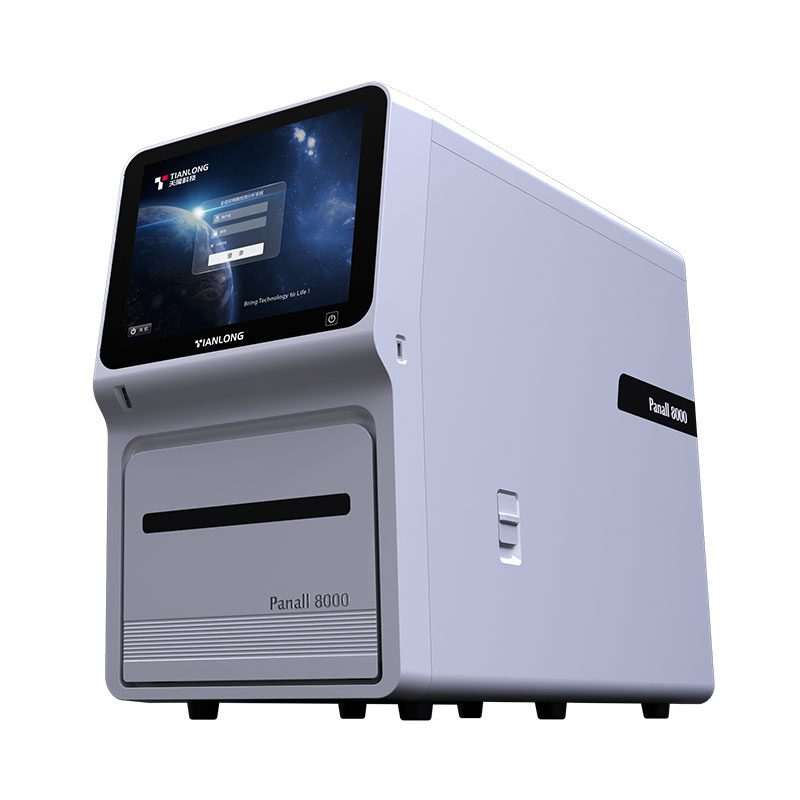

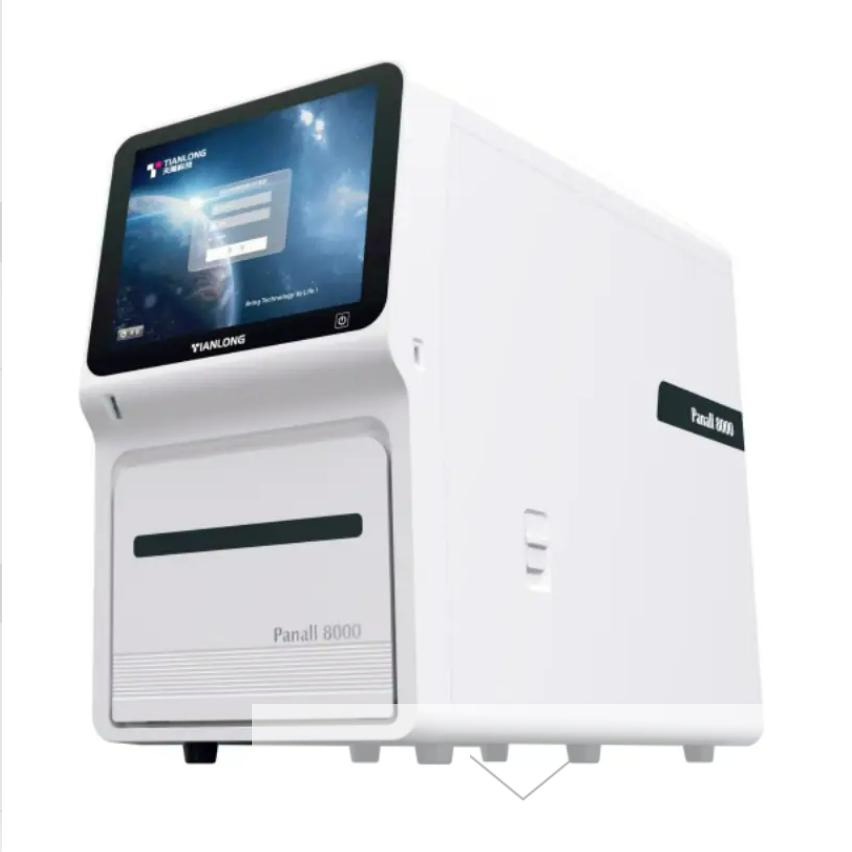

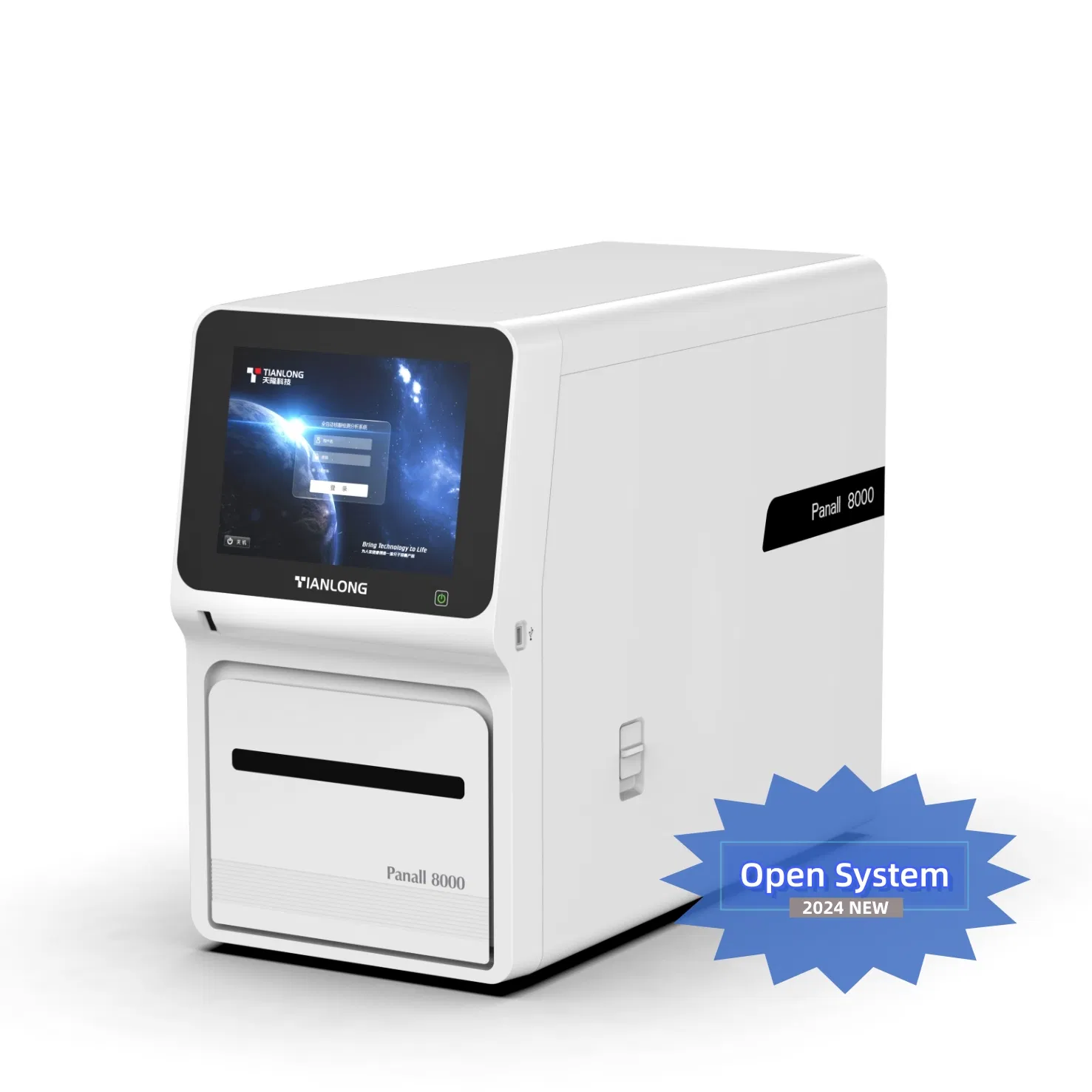

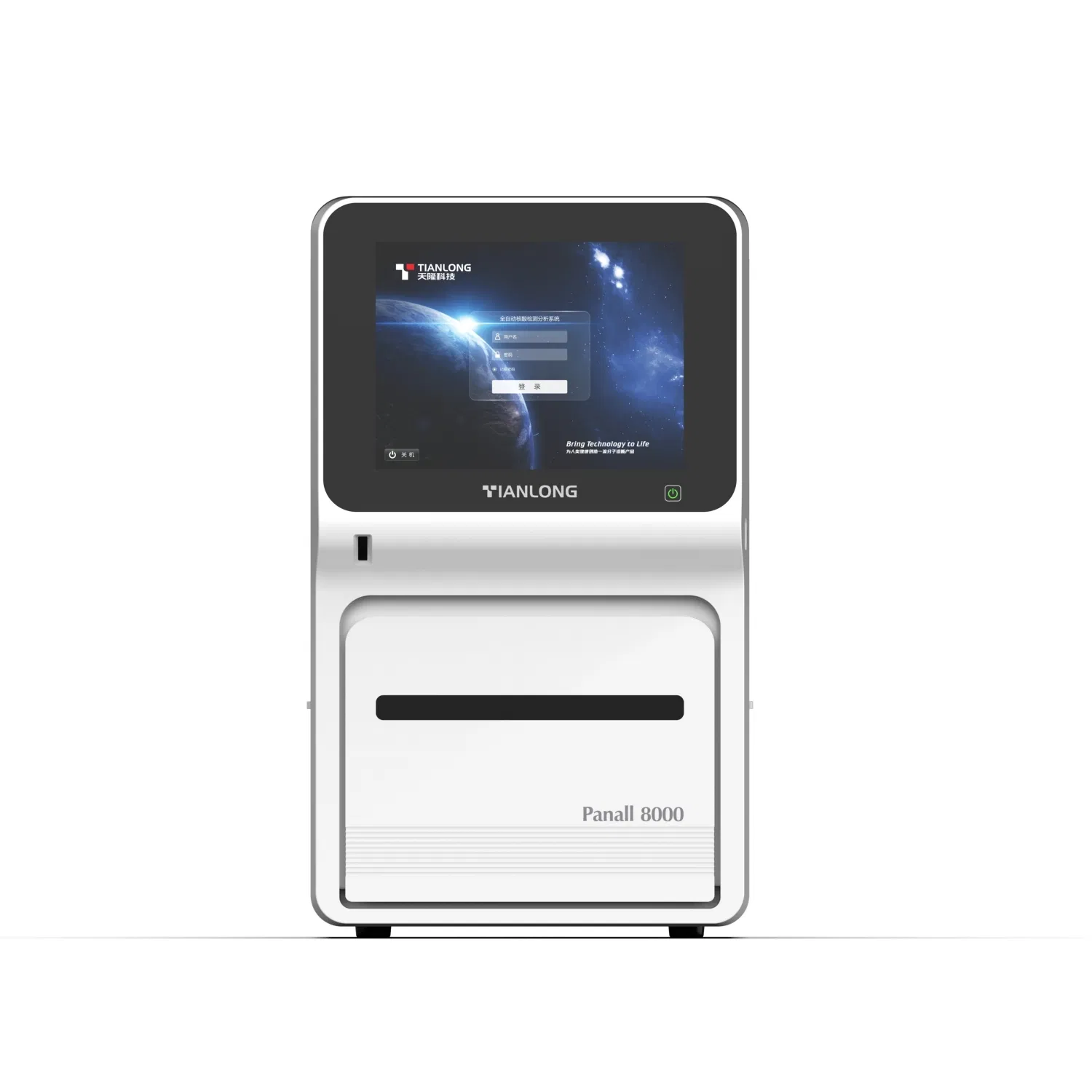

Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
1 / 5
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System

Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System

Customization: Available
Classification: Biological Diagnostics
Type: Molecular Diagnosis system
Send Inquiry

Product Description

ⓘ

Overview & Basic Info

Model NO.
Panall 8000 Open System
Certification
CE, FDA, ISO13485
Sample Throughput
1~8 samples simultaneously
Pipetting Range
20μL ~250μL
Detection Time
1~2 hours
Channels
4 Channels
Warranty
2 Years
Weight
80Kg
Feature
Sample in - result out system
Screen
12.1-inch touchscreen
HS Code
9027809990
Specification
750mm(L) × 350mm (W) × 600mm (H)
📝

Product Description

Panall 8000 is an open system that enables laboratories to program user-defined PCR analysis protocols. This flexible design allows testing of a wide range of sample types and meets emerging diagnostic requirements through customized reagents. The system has completed EU RoHS testing, ensuring it meets environmental and occupational health requirements.

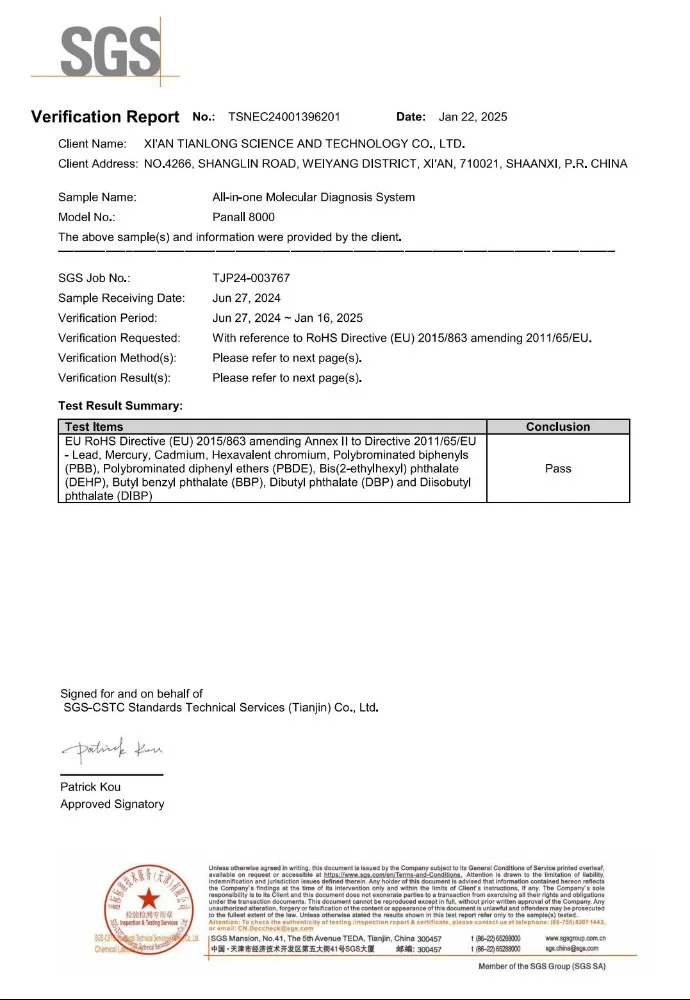

Panall 8000 Open System
⭐

Key Features

✔
Compatible with PCR reagents from different manufacturers: Empty PCR tubes work seamlessly with your existing PCR reagents.
✔
Customized collaboration for diversified menus: The system allows for customized nucleic acid extraction reagents to match specific PCR reagents, expanding business possibilities.
✔
Versatile Application Scenarios: An open system with a diversified testing menu optimizes the detection process with minimal hands-on time, improving laboratory efficiency.
📊

Product Parameters

ModelPanall 8000 Open System
Sample Throughput1~8 samples at the same time
Pipetting Range20μL ~250μL
Detection Time1~2 hours, relying on reagent
Fluorescence ChannelsChannel 1: FAM, SYBR Green I
Channel 2: VIC, HEX, TET, JOE
Channel 3: ROX, Texas Red
Channel 4: Cy5
Pipetting Performance20μL ≤ V < 40μL: Accuracy A≤5.0%, CV≤3.0%
V ≥ 100μL: Accuracy A≤1.0%, CV≤1.0%
Heating/Cooling RatePCR Max Heating: ≥ 6.1ºC/s; Max Cooling: ≥ 5.0ºC/s
Temperature AccuracyPCR: ≤ 0.1ºC; Extraction: ≤ 1.0ºC
Information ManagementInternal scanner for sample information; Automatic reagent kit identification
Contamination ControlDirectional exhaust, Negative pressure, HEPA filtration, UV disinfection
Data StorageUp to 1000 experiment files
Dimensions750mm(L) × 350mm (W) × 600mm (H)
📷

Detailed Photos

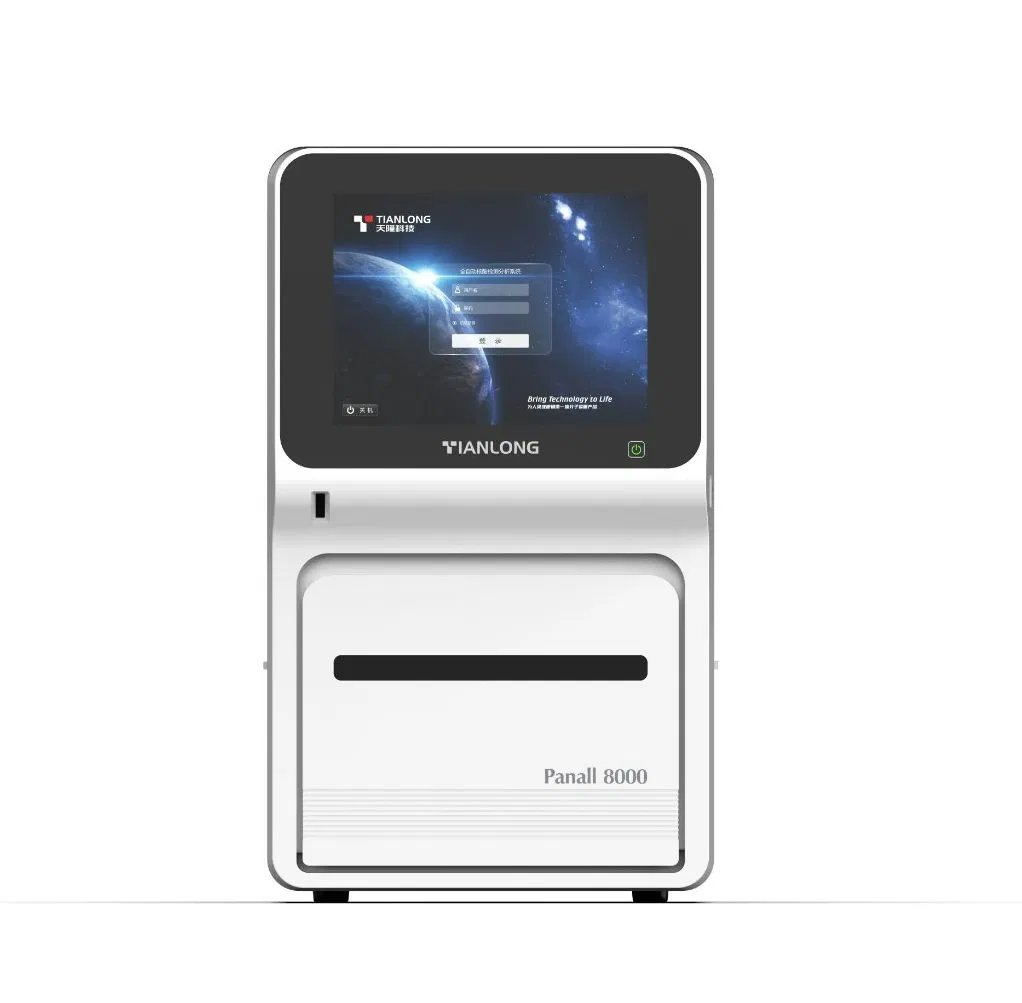

Details 1

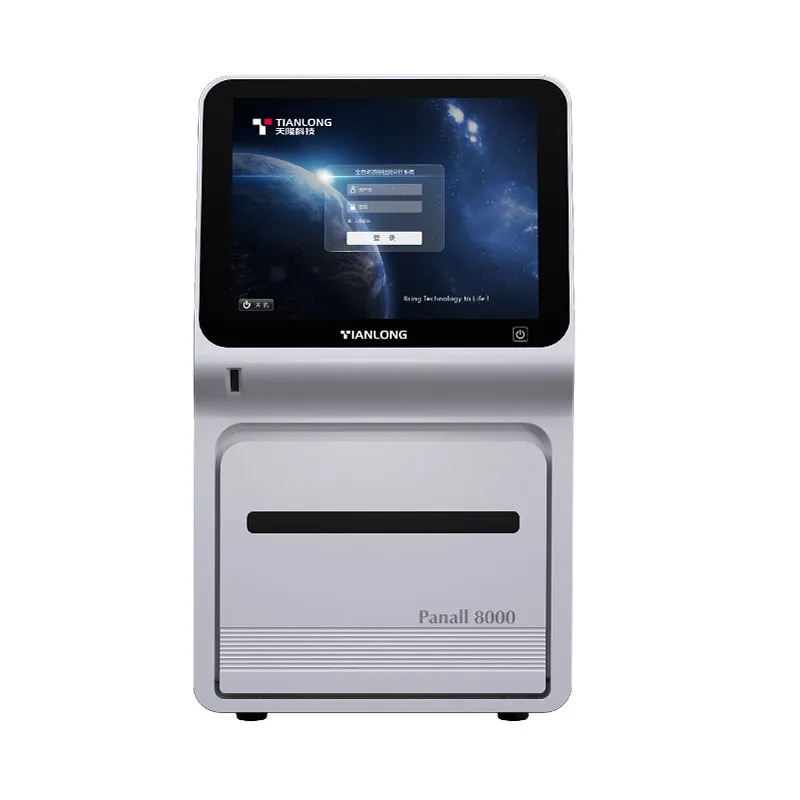

Details 2
Details 3
📄

Product Leaflet

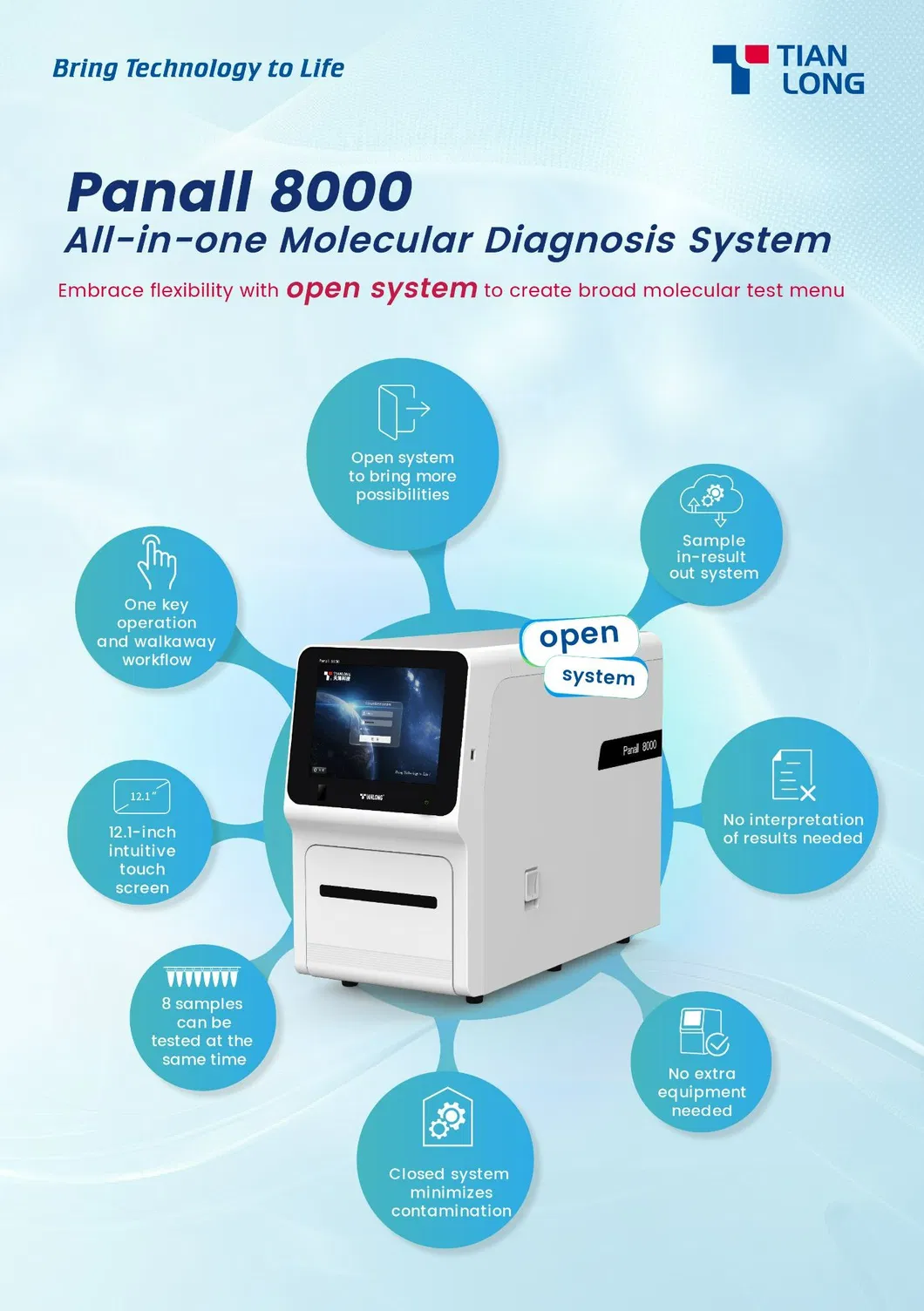

Leaflet 1

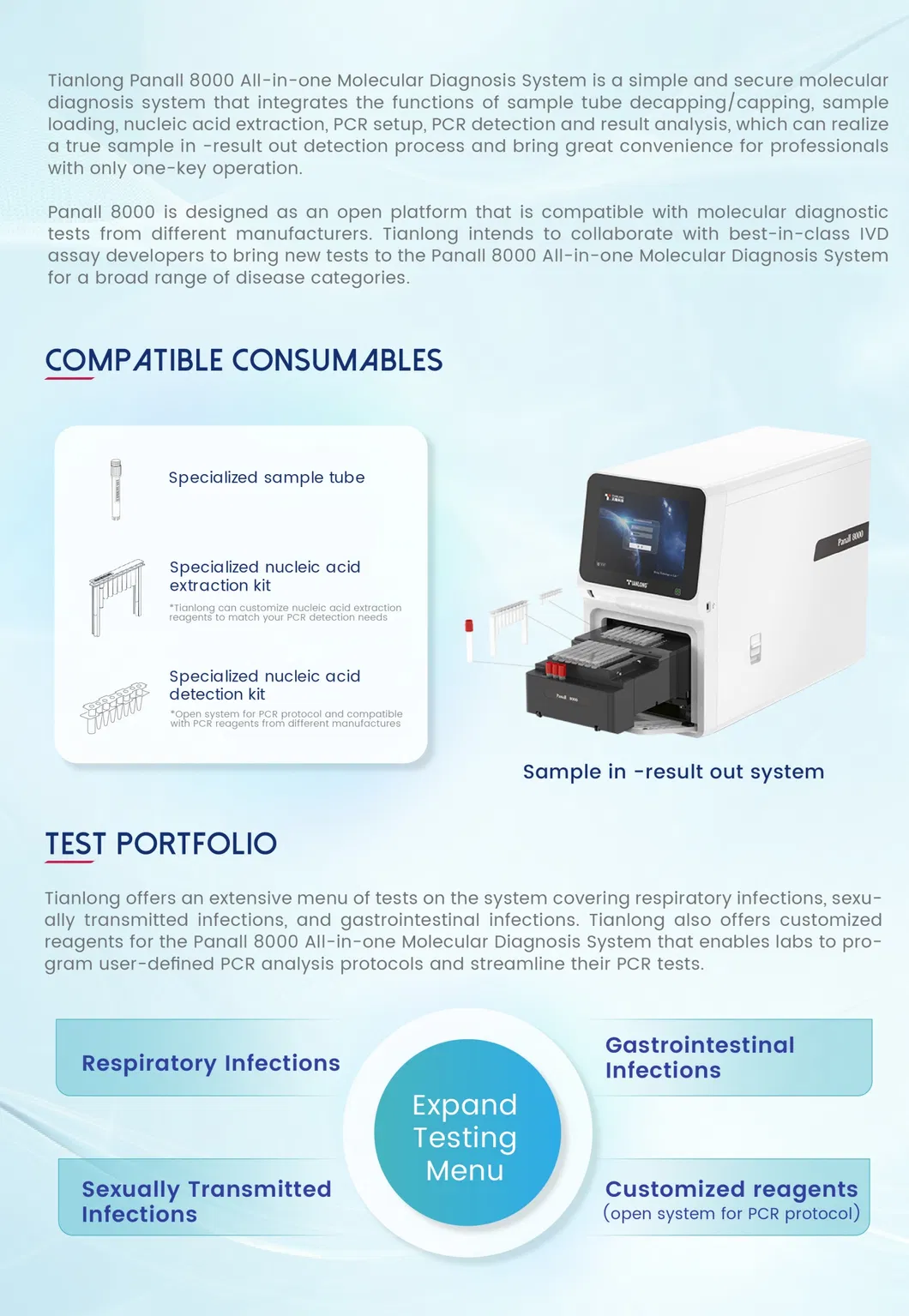

Leaflet 2

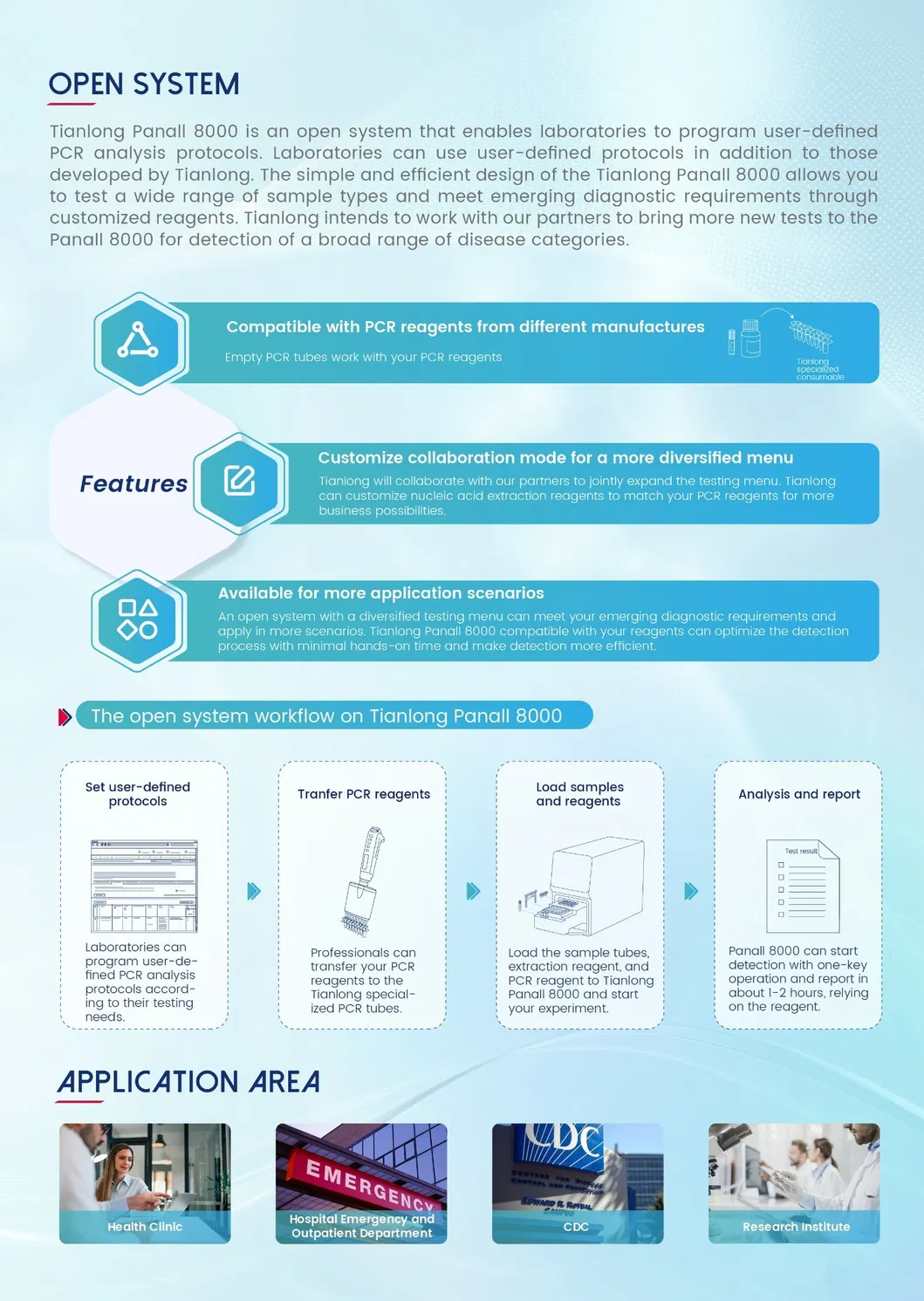

Leaflet 3

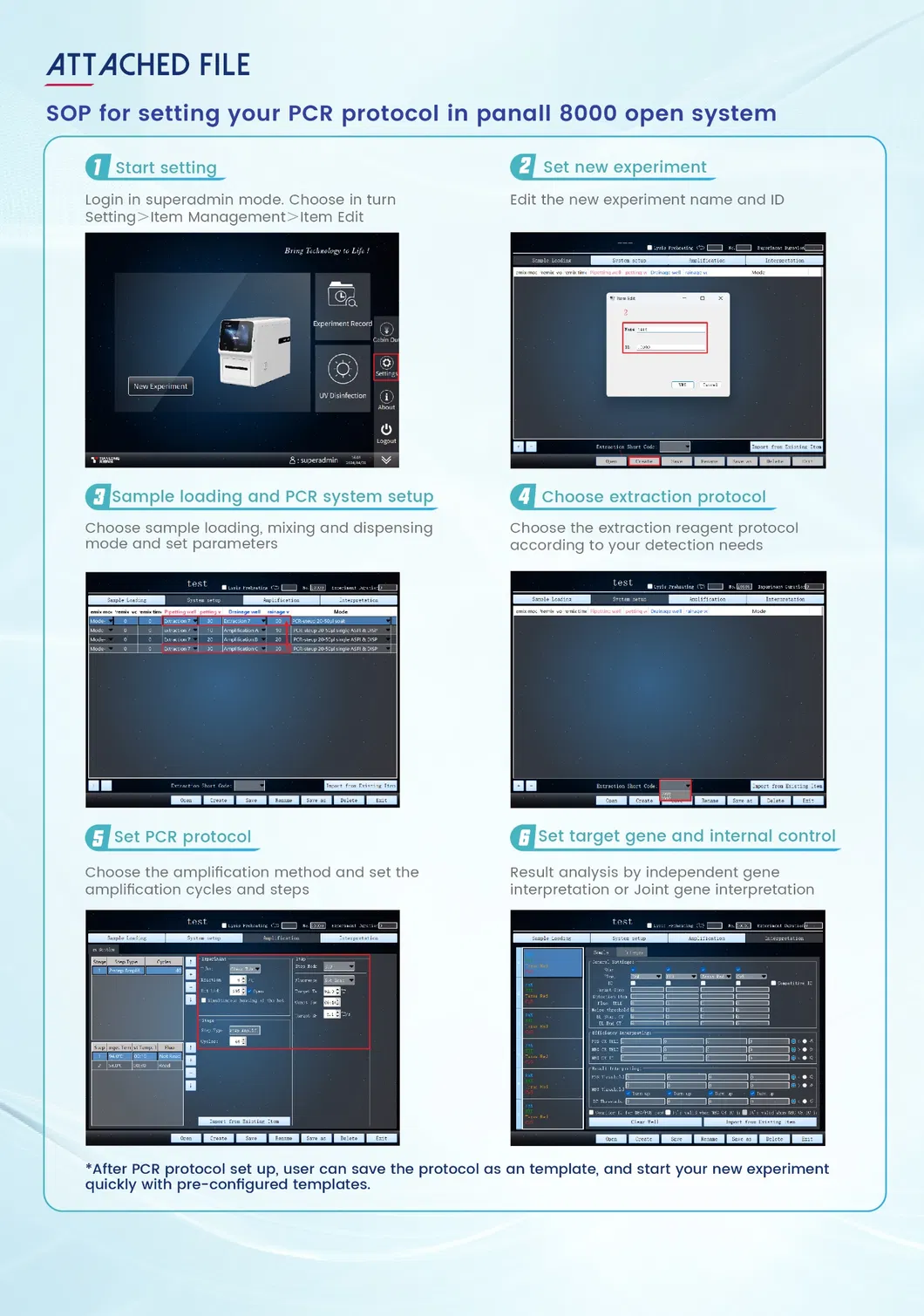

Leaflet 4

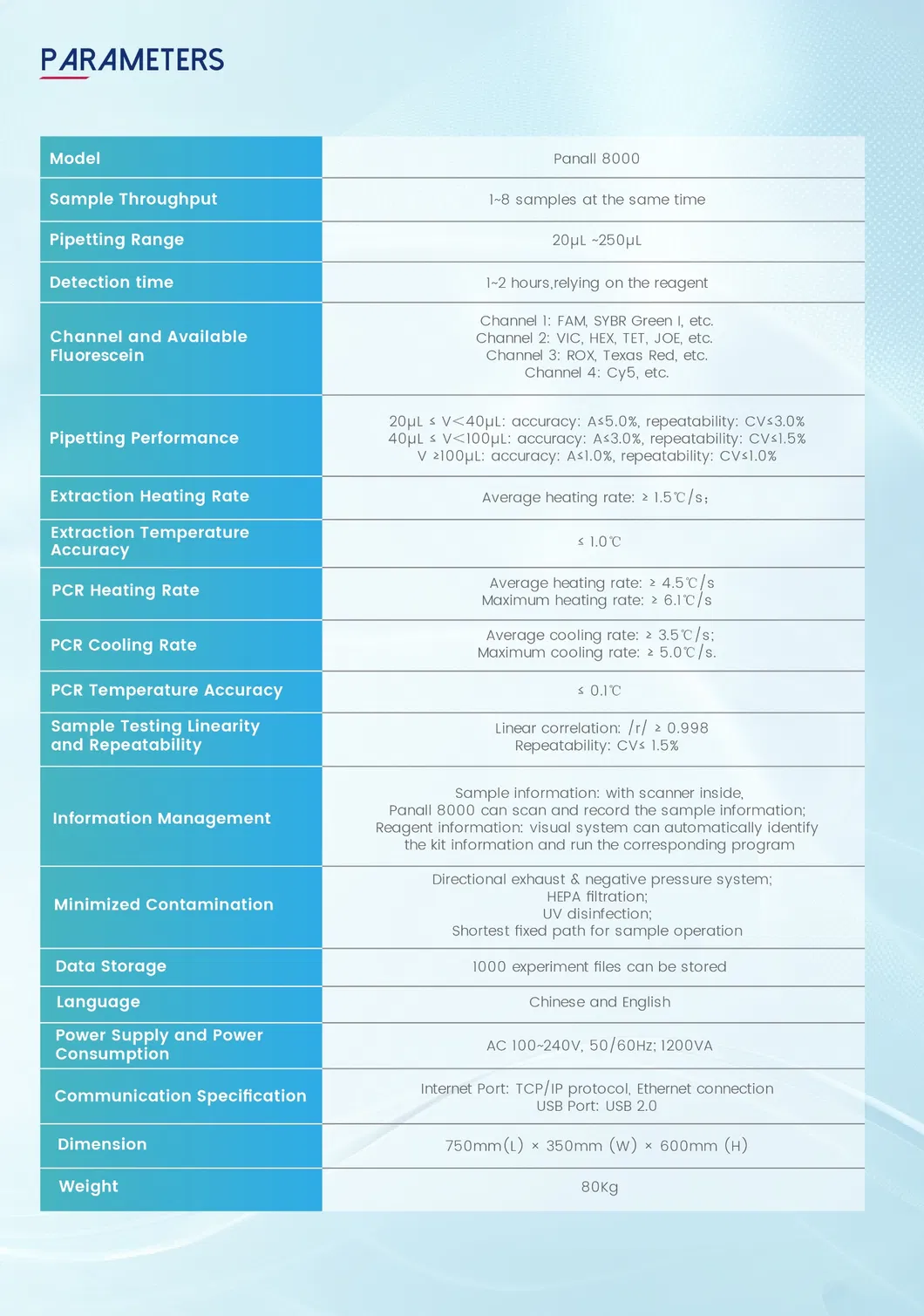

Leaflet 5

Packing List

Packing List
🏭

Production & Facilities

Flowchart
❓

Frequently Asked Questions

What makes the Panall 8000 an "Open System"?
It allows laboratories to program user-defined PCR analysis protocols and is compatible with PCR reagents from various manufacturers.
How many samples can the system process at once?
The system can handle between 1 to 8 samples simultaneously.
What certifications does the Panall 8000 hold?
The system is certified with CE, FDA, and ISO13485, and it meets EU RoHS environmental requirements.
What fluorescence channels are supported?
It features 4 channels supporting FAM, SYBR Green I, VIC, HEX, TET, JOE, ROX, Texas Red, and Cy5.
How does the system prevent contamination?
It utilizes a directional exhaust and negative pressure system, HEPA filtration, and UV disinfection to minimize cross-contamination.
Is there internal storage for experiment data?
Yes, the system can store up to 1000 experiment files internally.
