Tianlong Portable Laboratory Suitcase Nucleic Acid Extractor & Real-Time PCR System

Customization:	Available
Classification:	Biological Diagnostics
Type:	Biochemistry Analyzer

Send Inquiry

Product Description

Basic Information

Model NO.

iGenecase 1600+

Certification

CE, FDA, ISO13485, RoHS

Group

All

Model

iGenecase 1600+(Genflex16 & Gentier Mini+)

Warranty

2 Years

Instruments

Laboratory instruments, medical instruments

Power

With mobile power supply

Features

Lab in a suitcase

Transport Package

Paper Carton

Specification

50*30*75.5 cm

HS Code

9027509090

Production Capacity

5000 Units/Year

Product Overview

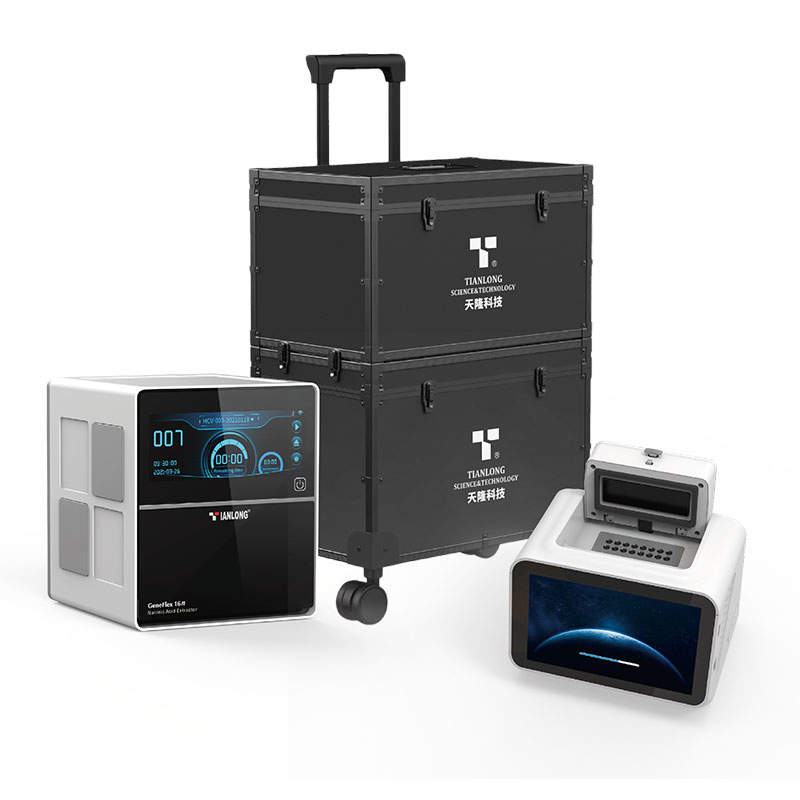

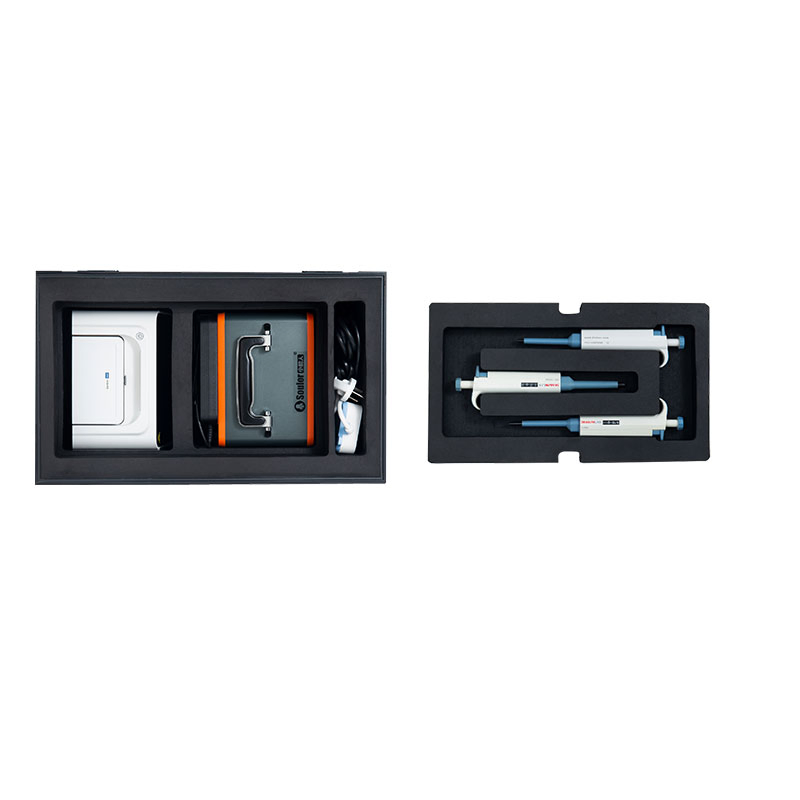

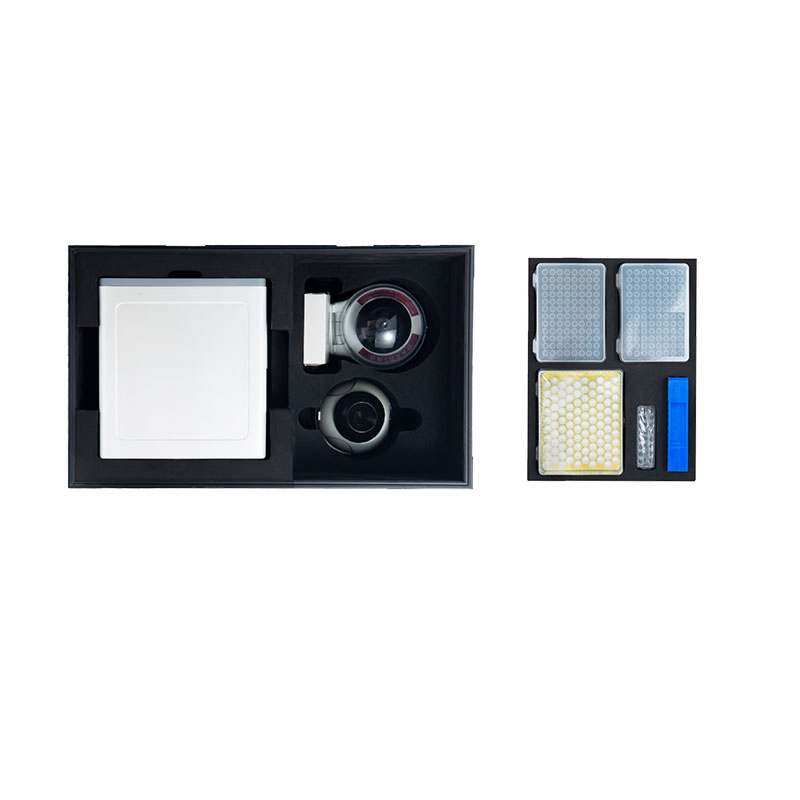

The suitcase laboratory iGenecase 1600+ contains all necessary devices (GeneFlex Nucleic Acid Extractor, Gentier mini+ Portable Real-Time PCR System) and compatible consumables for PCR detection. With mobile power supply, professionals can start the experiment anywhere. iGenecase 1600 can be applied in various scenarios including animal disease and infectious disease prevention and control, food safety, scientific research, and other fields. The small, mobile laboratory fitting in a suitcase can deliver test results quickly and accurately, which is ideal for your on-site testing needs.

Key Features

Portable to meet on-site testing needs Lab in a suitcase is portable and flexible to meet your on-site testing needs. Various scenarios applications include infectious disease prevention and control, food safety and other fields.

Flexible to take your testing anywhere With a mobile power supply, professionals can start the experiment anywhere. No need to worry about no power supply outdoors and sudden power off indoors.

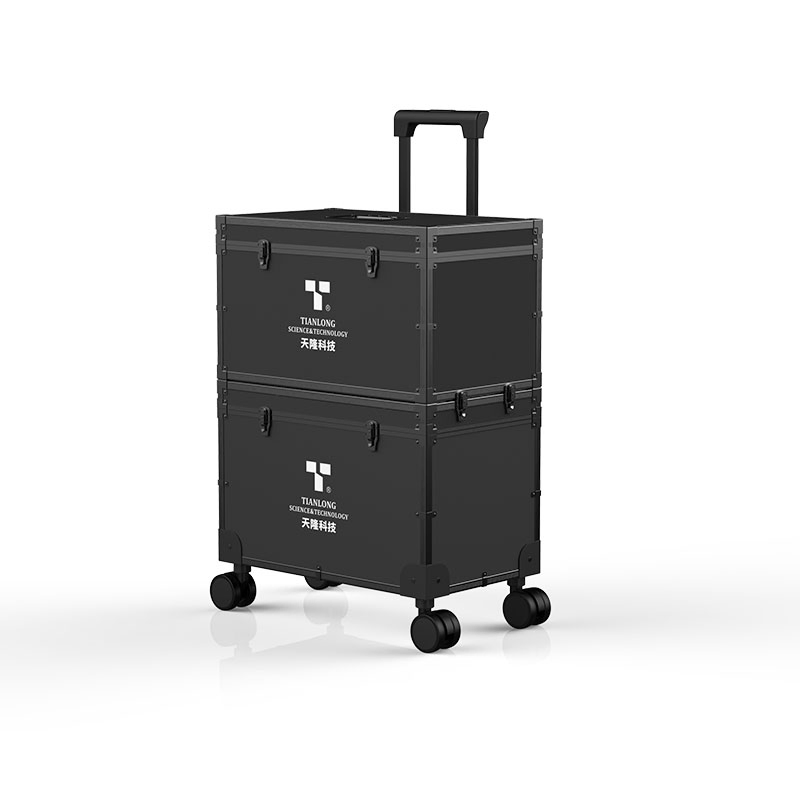

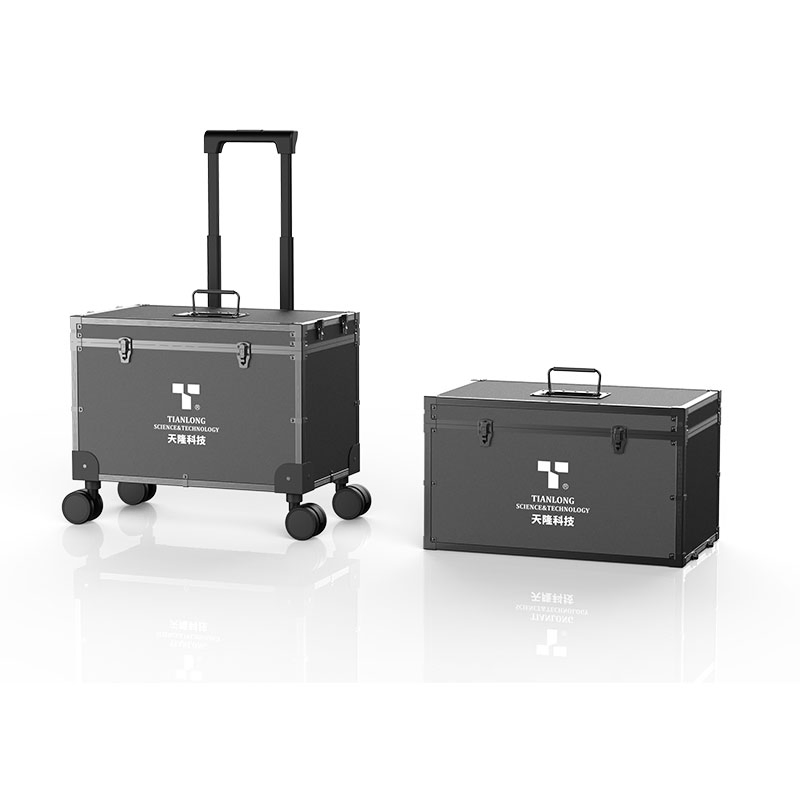

Convenient Lab-in-a-Suitcase The small, mobile laboratory fitting in a suitcase can deliver test results quickly, which is ideal for your on-site testing needs. Crash-proof design can ensure the stability of the suitcase lab.

Highly efficient extraction and detection 1s to complete fluorescence scanning of all wells; 15 min to complete sample nucleic acid extraction.

Easy operation 1 click to start nucleic acid extraction and 3 clicks to complete real-time PCR operations.

GeneFlex 16 Specifications

Parameter	Detail
Throughput	16
Processing Volume	20-1700μL
Sample Processing Volume	200-500μL
Compatible Consumables	Customized 96-deep-well plates, single 6-strip tubes
Inter-well Difference	CV≤3%
Mixing Method	Rotary mixing
Rotary Speed	100~3000rpm
Temperature Range	30°C to 120°C (separate for lysis and elution)
Temperature Accuracy	Accuracy: ±1.0°C; Uniformity: ≤1.0°C
Operation Mode	Android smartphone/tablet or 6.86 inch LCD screen
Disinfection	Ozone + UV disinfection
Weight / Dimensions	7.4Kg (net) / 210mm229mm242mm

Gentier Mini Series Specifications

Model	Gentier Mini+	Gentier Mini
Throughput	1-16	16
Fluorescence Channels	4	2
Scanning Time	1s for all wells	1s for all wells
Heating Rate	Max 5.0ºC/s	Max 5.0ºC/s
Temperature Accuracy	≤0.1ºC	≤0.1ºC
Lightsource	Maintenance-free LED	Maintenance-free LED
Hot Lid Temperature	40ºC-110ºC	40ºC-110ºC
Control Modes	7-inch touch-screen / PC software / Tablet	Touch-screen / PC software / Tablet
Network Connection	Internet, USB, WiFi	Internet, USB, WiFi
Dimensions & Weight	205156153mm; 3.2kg	205156153mm; 3.2kg

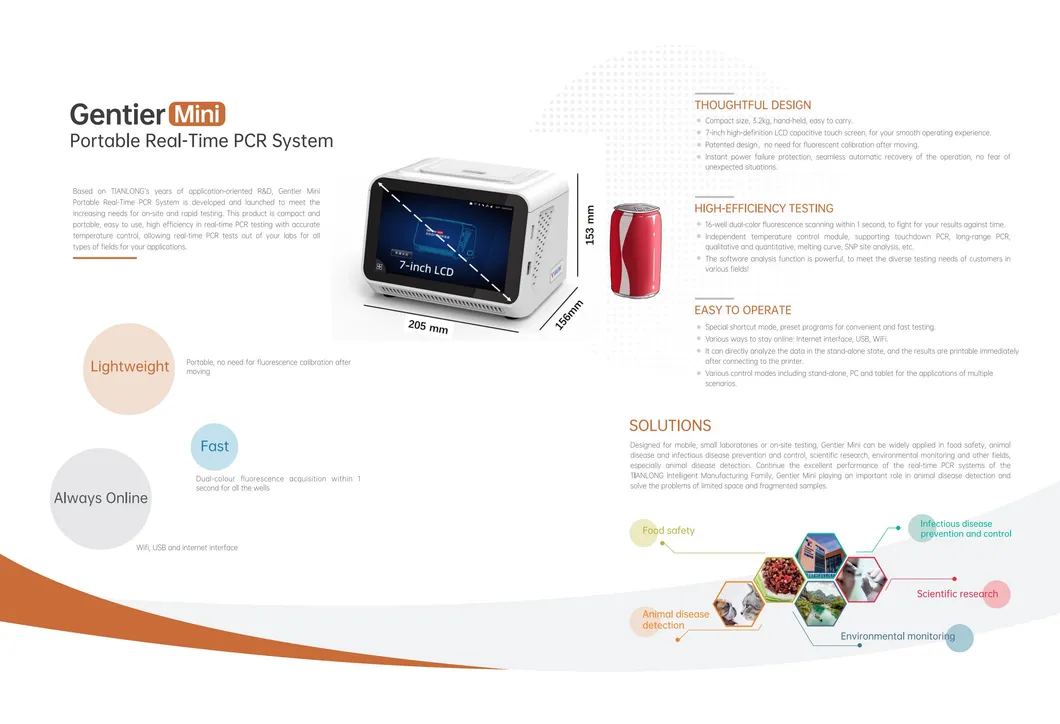

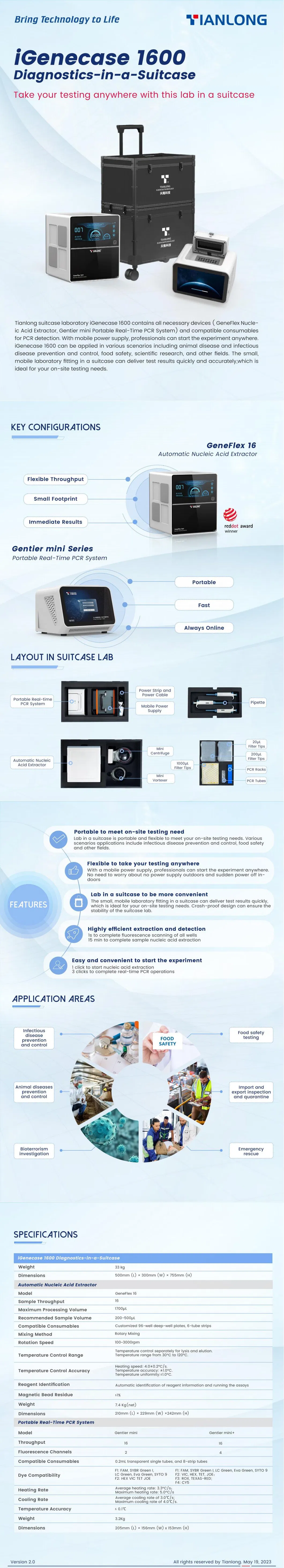

Product Gallery & Leaflet

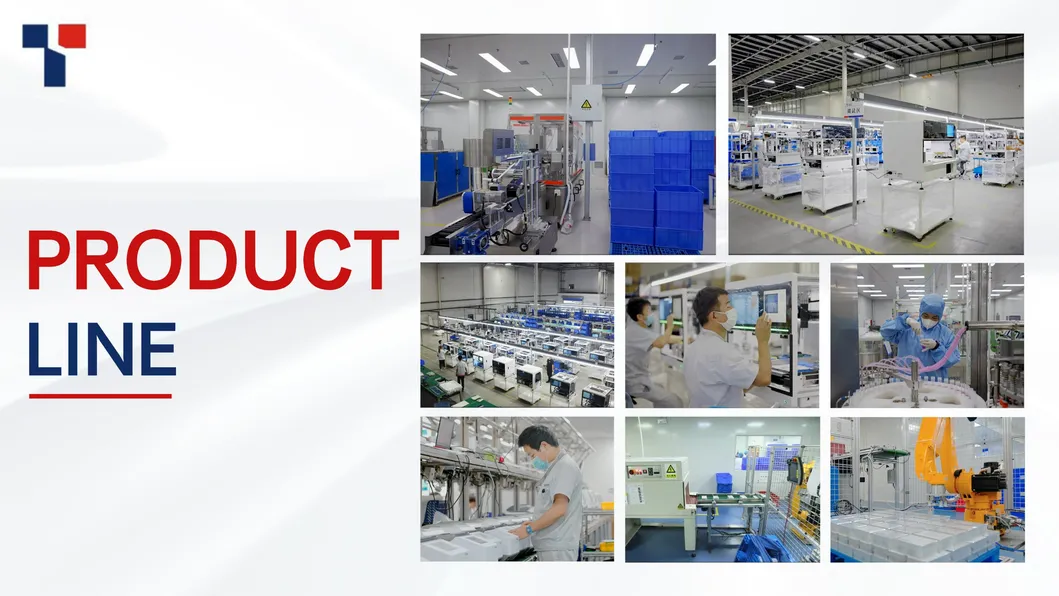

Manufacturing & Quality

Frequently Asked Questions

What instruments are included in the iGenecase 1600+?

The suitcase lab includes the GeneFlex Nucleic Acid Extractor and the Gentier mini+ Portable Real-Time PCR System, along with compatible consumables.

Is it suitable for outdoor testing where power is unavailable?

Yes, it comes with a mobile power supply, allowing professionals to conduct experiments anywhere, even in outdoor environments without direct power access.

How long does the extraction and detection process take?

The nucleic acid extraction can be completed in just 15 minutes, and fluorescence scanning of all wells takes only 1 second.

What are the primary applications of this mobile lab?

It is ideal for animal disease control, infectious disease prevention, food safety testing, and on-site scientific research.

Is the suitcase durable enough for transport?

Yes, the iGenecase 1600+ features a crash-proof design specifically engineered to ensure the stability of the instruments during transport and field use.

Can the results be analyzed without a computer?

Yes, results can be analyzed directly on the Gentier Mini touch-screen and can be printed via a connected thermal printer, though PC software analysis is also available.
