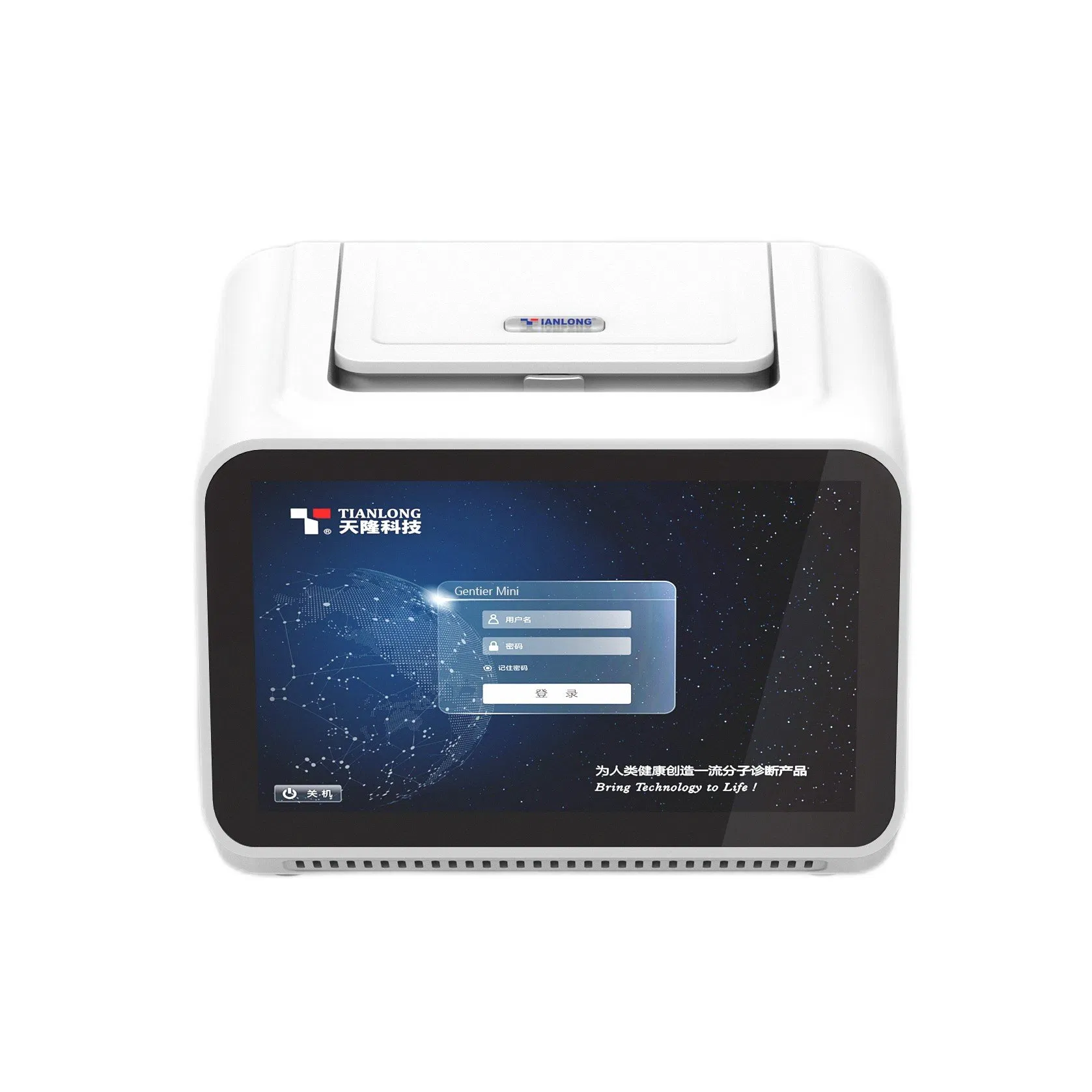

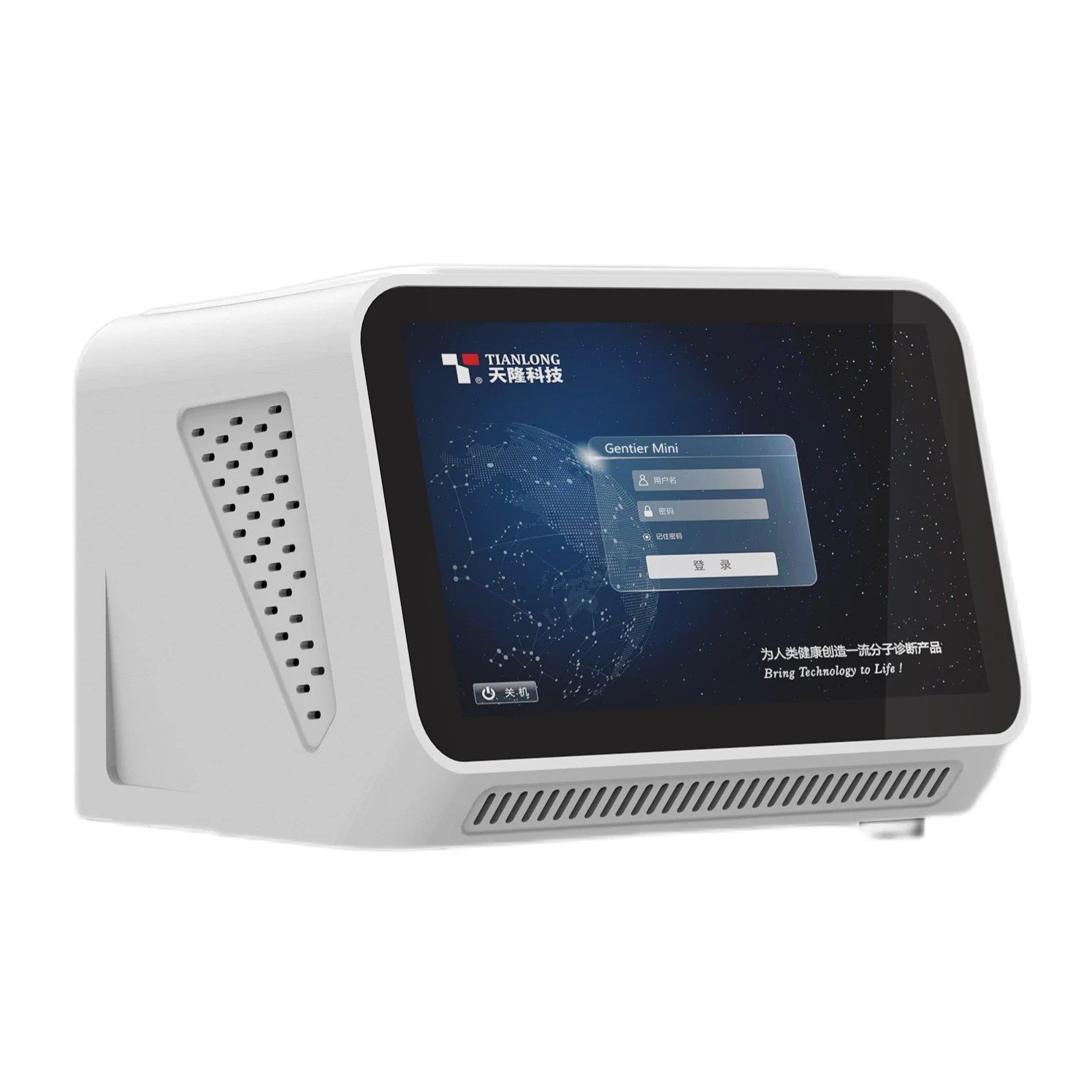

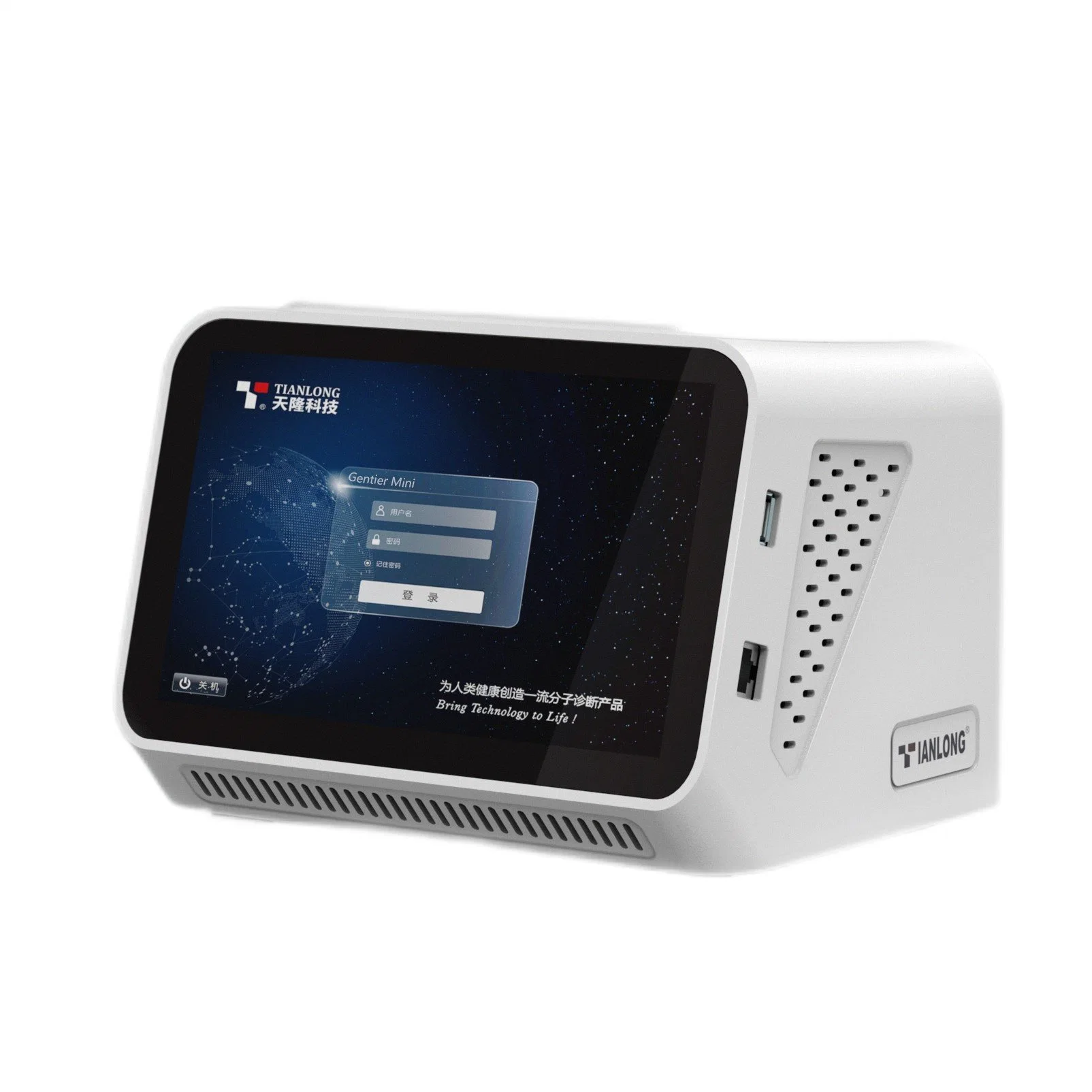

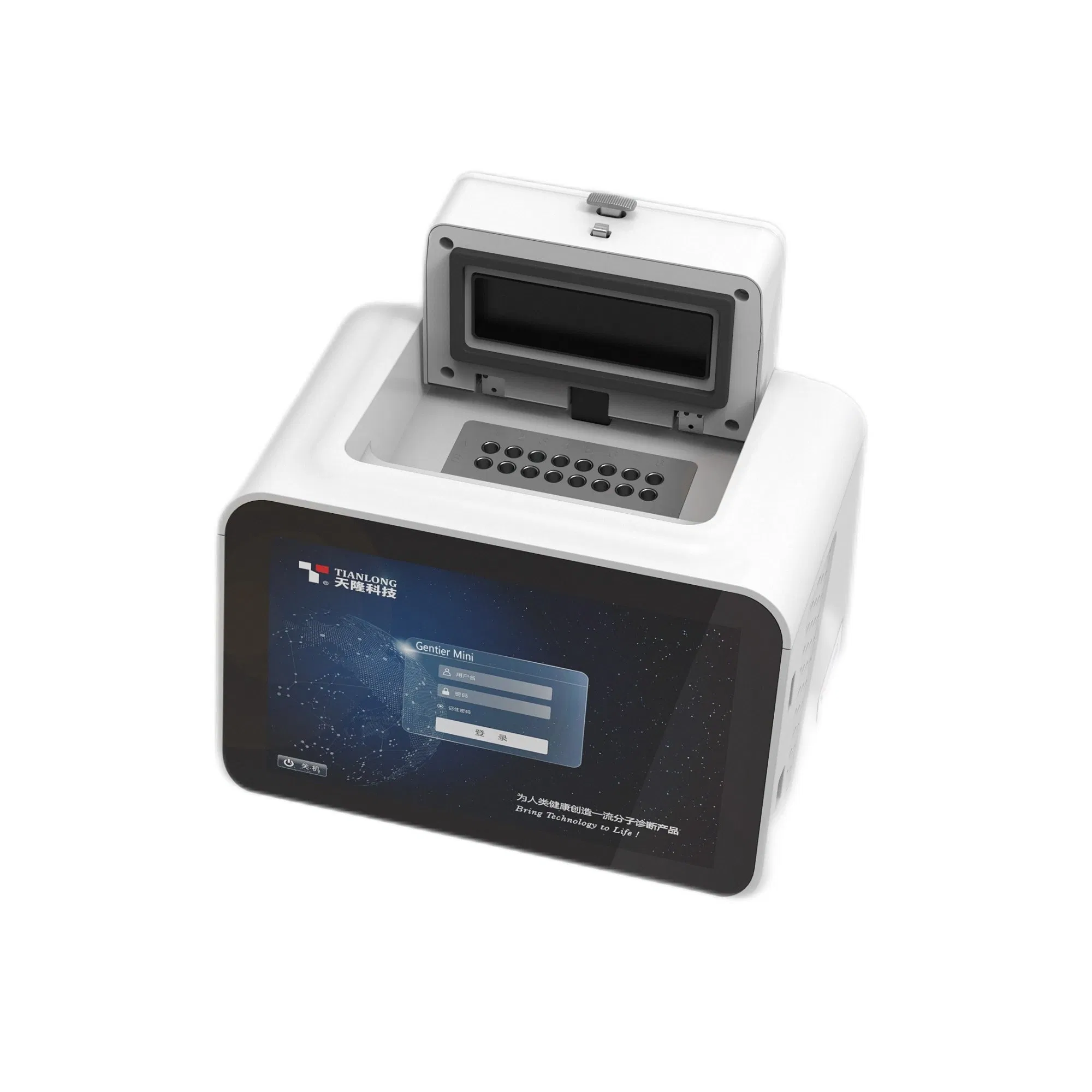

Tianlong Portable Real Time PCR System - Gentier Mini

1 / 5

Tianlong Portable Real Time PCR System - Gentier Mini

Customization:	Available
Type:	IVD Instrument
Sample Throughput:	16

Send Inquiry

Product Description

Basic Specifications

Model NO.

Gentier Mini

Fluorescence Channels

Transport Package

Paper Carton

Specification

27.5*19*23 cm

HS Code

9027509090

Production Capacity

5000 Units/Year

Product Overview

The Gentier Mini Portable Real-Time PCR System is developed to meet the increasing needs for on-site and rapid testing. This product is compact and portable, easy to use, and offers high efficiency in real-time PCR testing with accurate temperature control, allowing real-time PCR tests out of traditional labs for all types of field applications.

Designed for mobile, small laboratories, or on-site testing, Gentier Mini can be widely applied in food safety, animal disease and infectious disease prevention and control, scientific research, environmental monitoring, and other fields. It plays an important role in animal disease detection, solving the problems of limited space and fragmented samples.

★

Key Features

THOUGHTFUL DESIGN

Compact size, 3.2kg, hand-held, easy to carry.
7-inch high-definition LCD capacitive touch screen.
Patented design, no need for fluorescent calibration after moving.
Instant power failure protection with seamless automatic recovery.

HIGH-EFFICIENCY TESTING

16-well dual-color fluorescence scanning within 1 second.
Independent temperature control module supporting touchdown PCR and long-range PCR.
Supports qualitative/quantitative analysis, melting curve, and SNP site analysis.
Powerful software analysis for diverse testing needs.

EASY TO OPERATE

Special shortcut mode with preset programs.
Multiple connectivity: Internet interface, USB, WiFi.
Stand-alone data analysis and immediate printing capability.
Control via stand-alone mode, PC, or tablet.

Technical Parameters

Item	Parameters
Product Model	Gentier Mini
Sample Throughput	16
Fluorescence Channels	2
Suitable Consumables	0.2mL transparent single tubes and 8-strip tubes
Compatible Fluorophores	CH1: FAM, SYBR Green I, SYTO 9; CH2: HEX, VIC, TET, JOE
Heating Rate	Avg 3.39°C/s; Max 5.09°C/s
Cooling Rate	Avg 3.0°C/s; Max 4.0°C/s
Temperature Accuracy	≤0.1ºC
Light Source	High-brightness, maintenance-free LED
Hot Lid Temperature	40°C - 110°C
Control Methods	Touch-screen (stand-alone), Computer software, Tablet remote control
Network Connection	Internet interface, USB, WiFi
Dimensions & Weight	205mm(L) × 156mm(W) × 153mm(H); 3.2kg

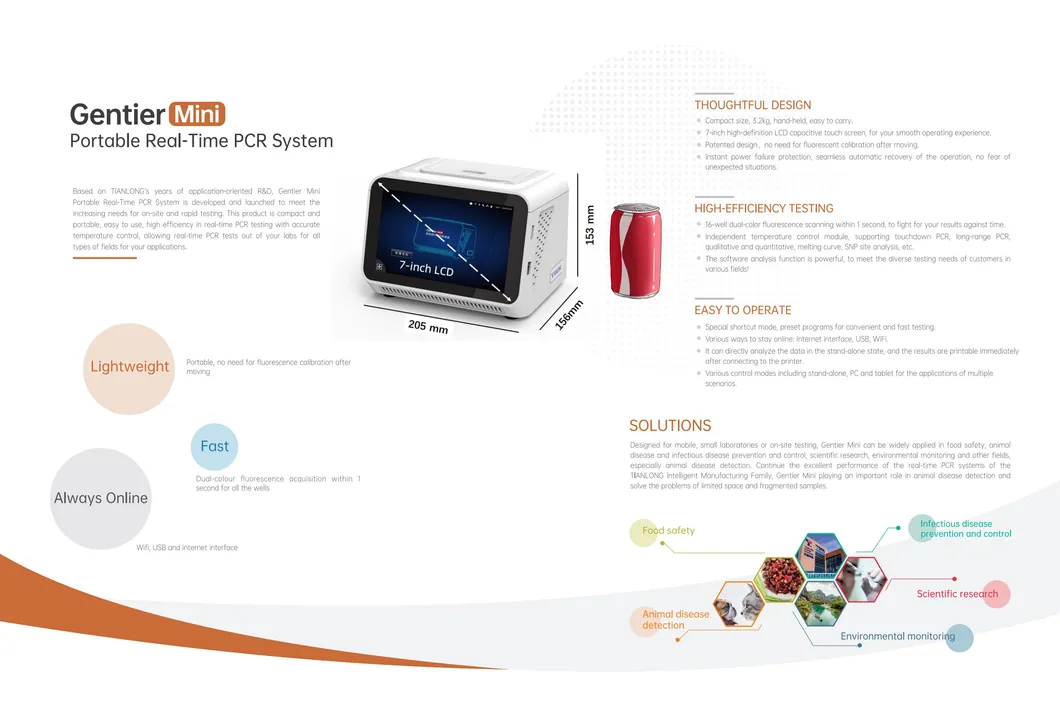

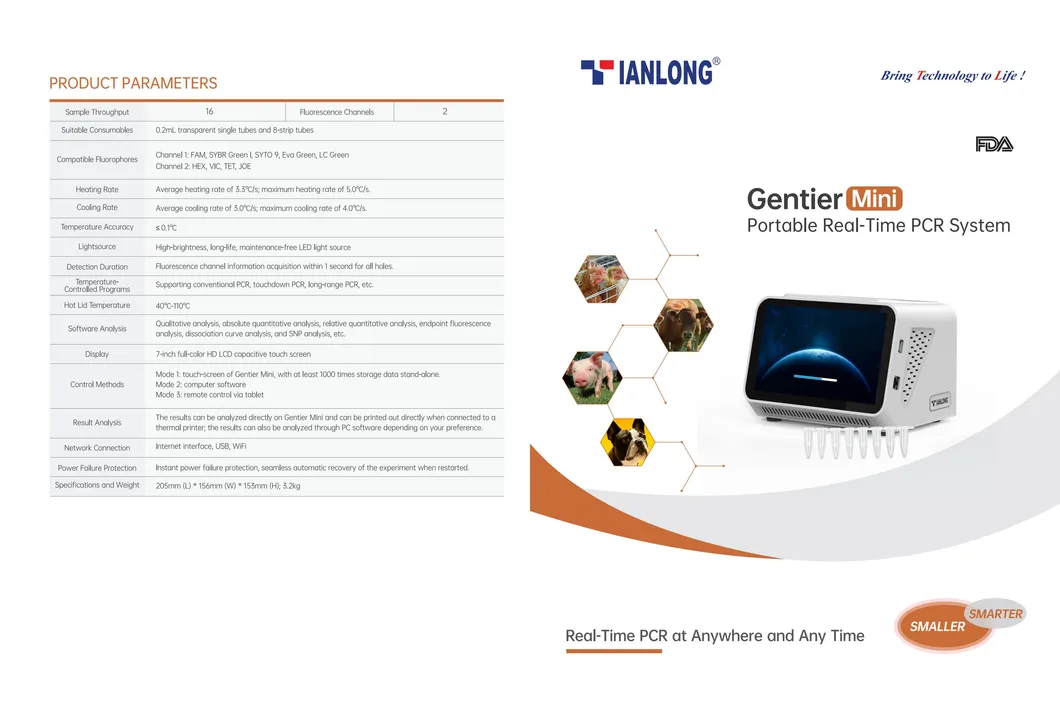

Product Visuals

Frequently Asked Questions

How portable is the Gentier Mini for on-site testing?

The Gentier Mini is highly portable, weighing only 3.2kg and featuring a compact design (205x156x153mm), making it easy to carry for mobile labs or field testing.

What types of PCR analysis does the software support?

The software supports qualitative analysis, absolute and relative quantitative analysis, endpoint fluorescence analysis, dissociation curve analysis, and SNP analysis.

Does the system require recalibration after being moved?

No, it features a patented design that eliminates the need for fluorescent calibration after moving, which is ideal for mobile applications.

How many samples can be processed at once?

The system has a sample throughput of 16 wells and can scan dual-color fluorescence within just 1 second.

What happens if there is a sudden power failure?

The device includes instant power failure protection, allowing for seamless automatic recovery of the experiment once power is restored.

What are the connectivity options for data transfer?

Users can connect via an Internet interface, USB, or WiFi, and data can be analyzed directly on the device or through a PC/tablet.
