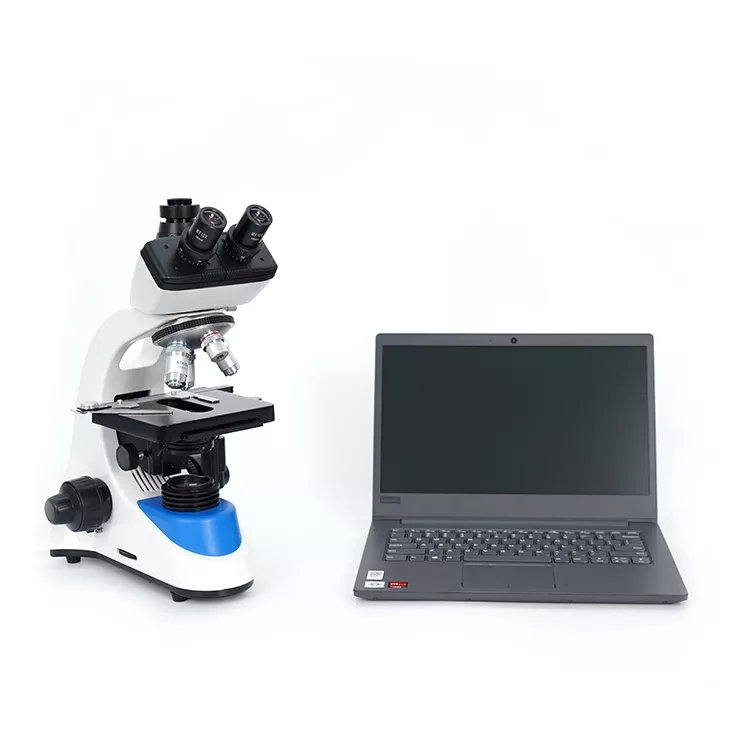

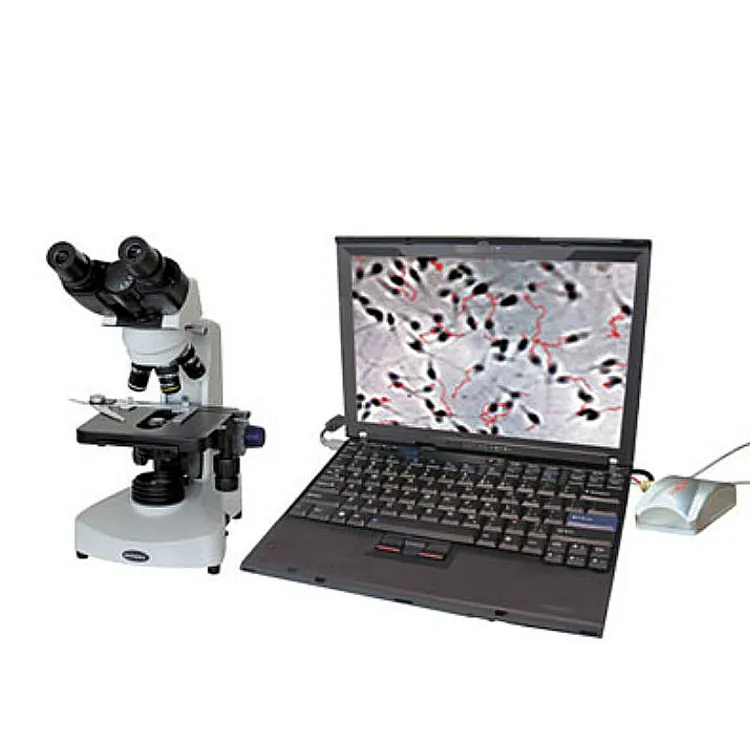

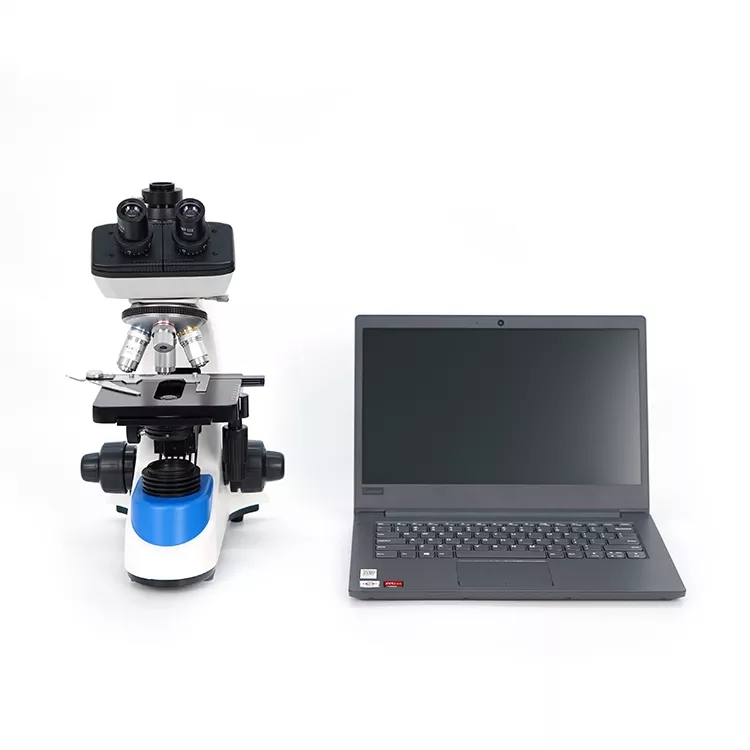

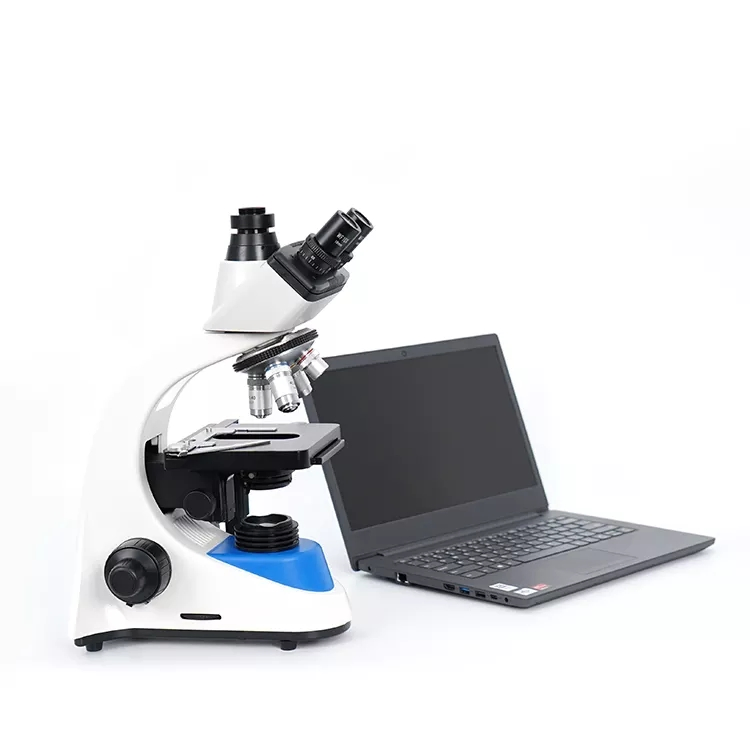

Veterinary Portable Sperm Machine Vet Sperm Analyzer Microscope Canine Semen Analysis System

Classification:	Biochemical Apparatus
Type:	Biochemistry Analyzer
Certification:	ISO13485

📋

Basic Specifications

Model NO.

CCV-6800P

MOQ

1 Unit

Main Unit

19" LCD Display

Camera

JVC High-Resolution

Software

Microscope Analysis Pro

Package

Standard Export Package

Origin

China

Capacity

1000 units/Month

🔬

Product Introduction

The Veterinary Portable Sperm Machine provides comprehensive and intuitive image data for animal semen analysis. It features rich test data and excellent operating performance, delivering intuitive, clear, and beautifully printed reports designed to make diagnostic results available at a glance.

💻

Advanced Software Features

✔ Windows XP compatible with Chinese-English switchable interface.

✔ Medical dedicated capture card supporting single field, single frame, and continuous frame collection.

✔ Automatic static and dynamic analysis of statistical data.

✔ Capabilities for visual analysis, diverse query, modification, statistics, storage, and print reporting.

📦

Standard Configuration

● Main unit with 19" LCD display (1 set)

● JVC camera (1 set)

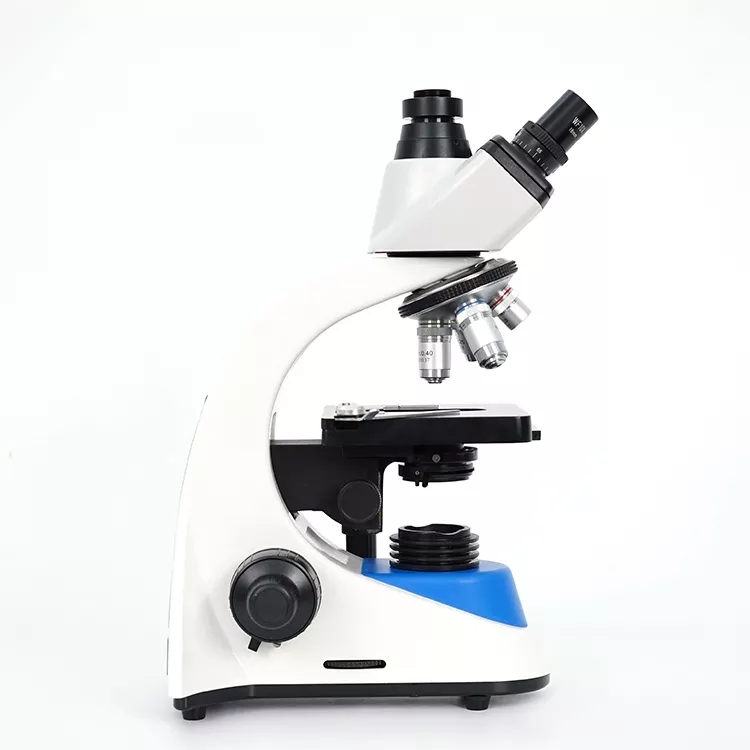

● NOVA Binocular Microscope (1 set)

● Microscope analysis software (1 pc)

● Counting plate (1 pc)

● Sperm thermostat (1 set)

● Microscope slides (1 set)

● User manual (1 pc)

📊

Technical Specifications

Motion Analysis: Curvilinear motion, linear motion, and average path.

Velocity Classification: Class A (rapid), Class B (slow), Class C (non-pre), Class D (slow/static).

Test Items: Sperm count, abnormal count, sperm appearance, and motion trajectories.

Capture Performance: 1-2000 samples, 0-75 images per group, 1-10um resolution diameter.

🧪

Key Analysis Parameters

Category	Parameters Tracked
Vitality (Motility)	VAP (Average rate), VCL (Track speed), VSL (Straight rate), ALH, BCF, LIN, STR, WOB
Concentration	Sperm per ml, total density (M/ML), total static (Type D), forward movement (A+B)
Morphology	Head deformities, head size (area, perimeter, length, width), middle size, normal tail

🖼️

Product Presentation

❓

Frequently Asked Questions

Q1: Which kinetic parameters does the system analyze for sperm motility?

The system tracks several vital parameters including VAP (Average Path Velocity), VCL (Track Velocity), VSL (Straight Line Velocity), ALH (Head Swing Frequency), and LIN (Linearity Index).

Q2: How accurate is the sperm concentration analysis?

The system follows WHO standards to detect sperm concentration automatically and accurately, providing data on millions per milliliter (M/ML) and categorizing sperm types from A to D.

Q3: What is included in the standard hardware package?

The standard configuration includes a main unit with a 19" LCD, a JVC high-resolution camera, a NOVA binocular microscope, a sperm thermostat, counting plates, and dedicated analysis software.

Q4: Can the software perform morphological deformity analysis?

Yes, the software includes a morphology analysis module that identifies head size, middle size, and tail abnormalities, providing quantitative data for individual sperm analysis.

Q5: How many sperm cells can the system detect per sample?

The system allows for a collection range of 1 to 2000 (or more) sperm cells per sample, with a detection velocity range of 0-200 um/s.

Q6: Is the test reporting customizable?

The software allows users to query, modify, store, and print professionally designed reports that include both statistical data and visual trajectory illustrations.
