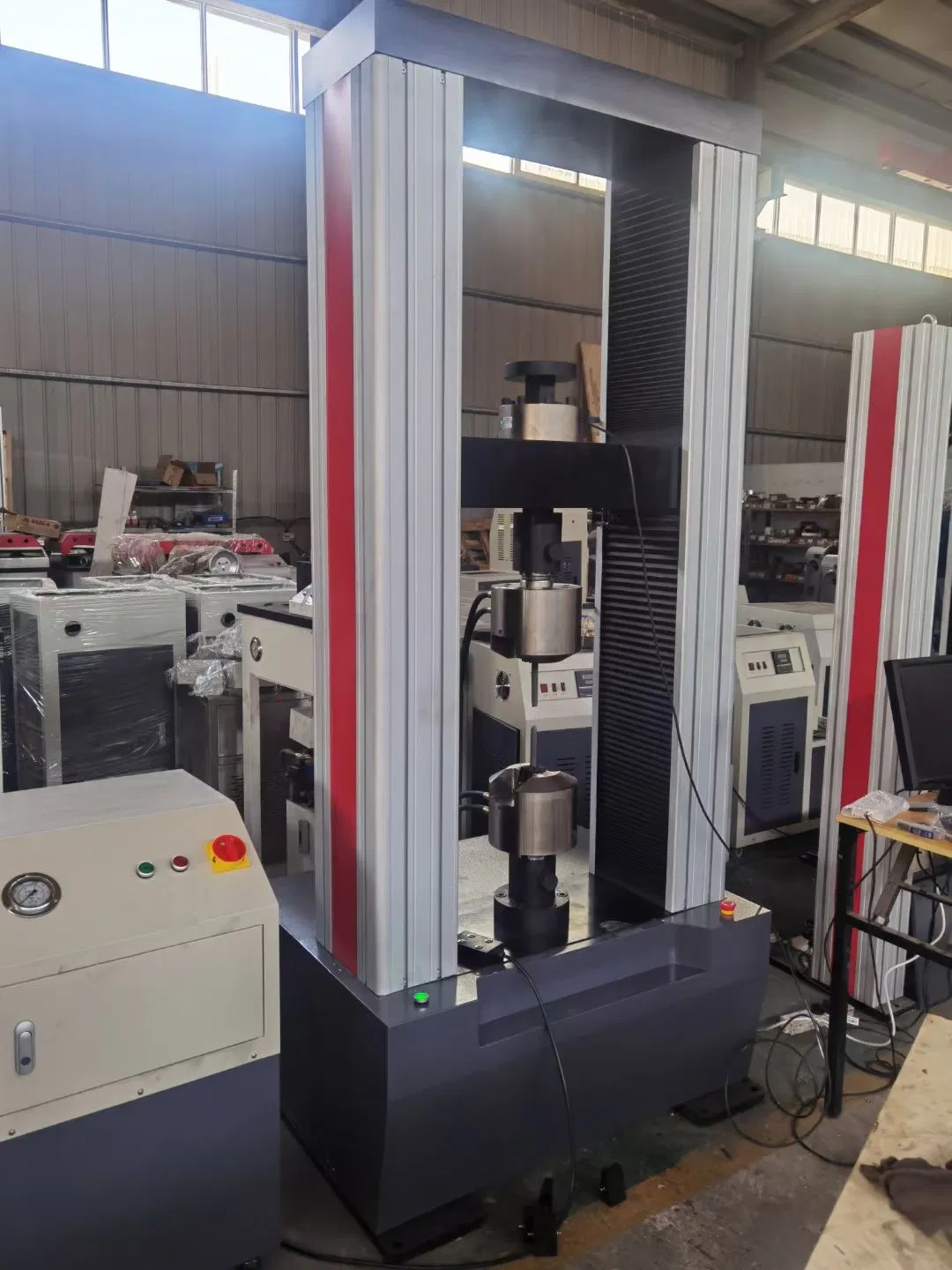

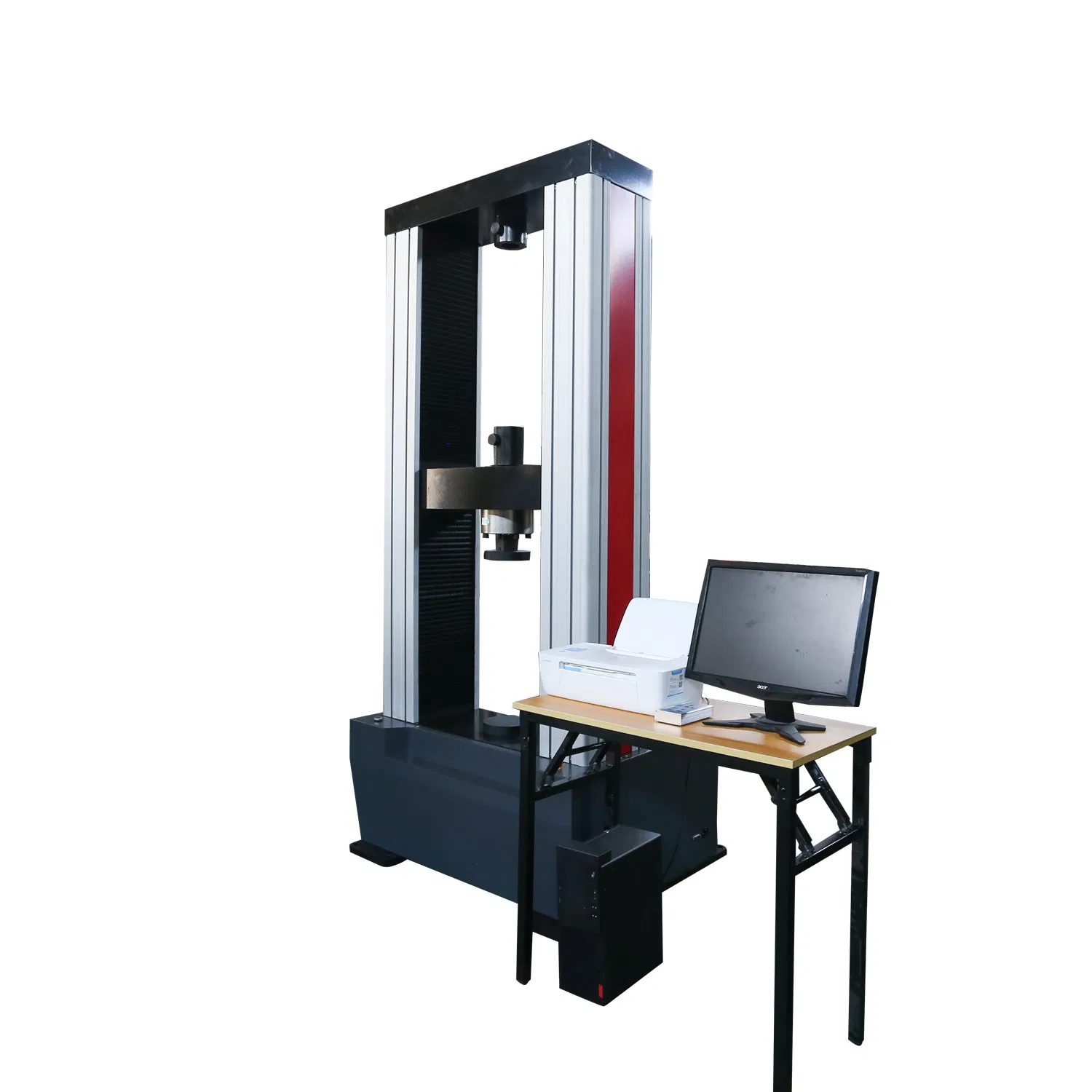

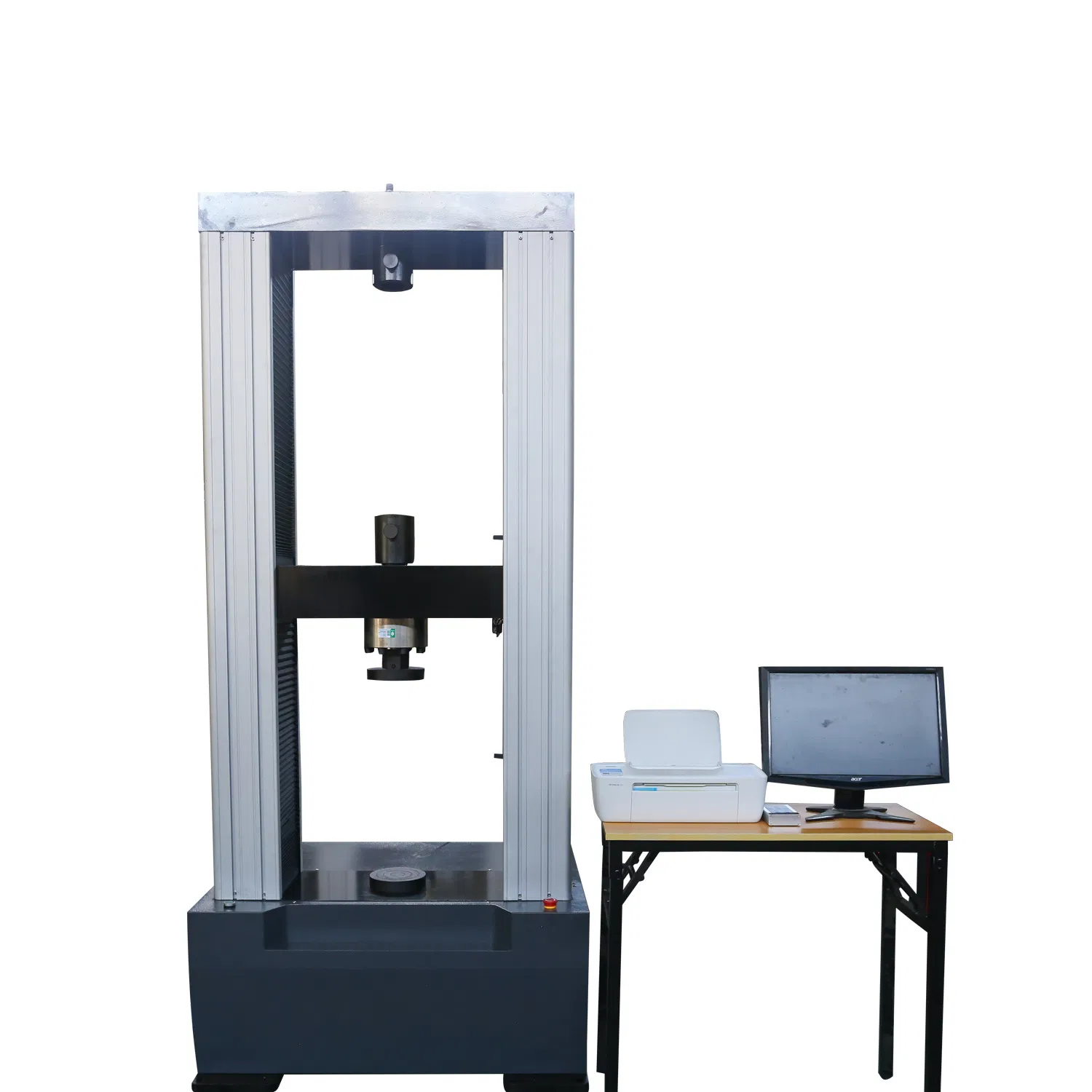

Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
1 / 5
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment
Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment

Quality and Quantity Assured Wdw-50d Universal Testing Machine Lab Equipment

Customization: Available
After-sales Service: Lifetime
Warranty: 1 Years
Send Inquiry

Product Description

Basic Info.
Model NO.
WDW-50D
Max Diameter
<500mm
Mass Scope
<900kg
Type
Universal Testing Machine
Maxcapacity
50kN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Static Load
Display
Computer
Control
Computer Control
Weight
100-500Kg
Power Source
AC220V
Specification
720*520*1850mm
Origin
China
HS Code
9024101000
Production Capacity
5000
Product Description

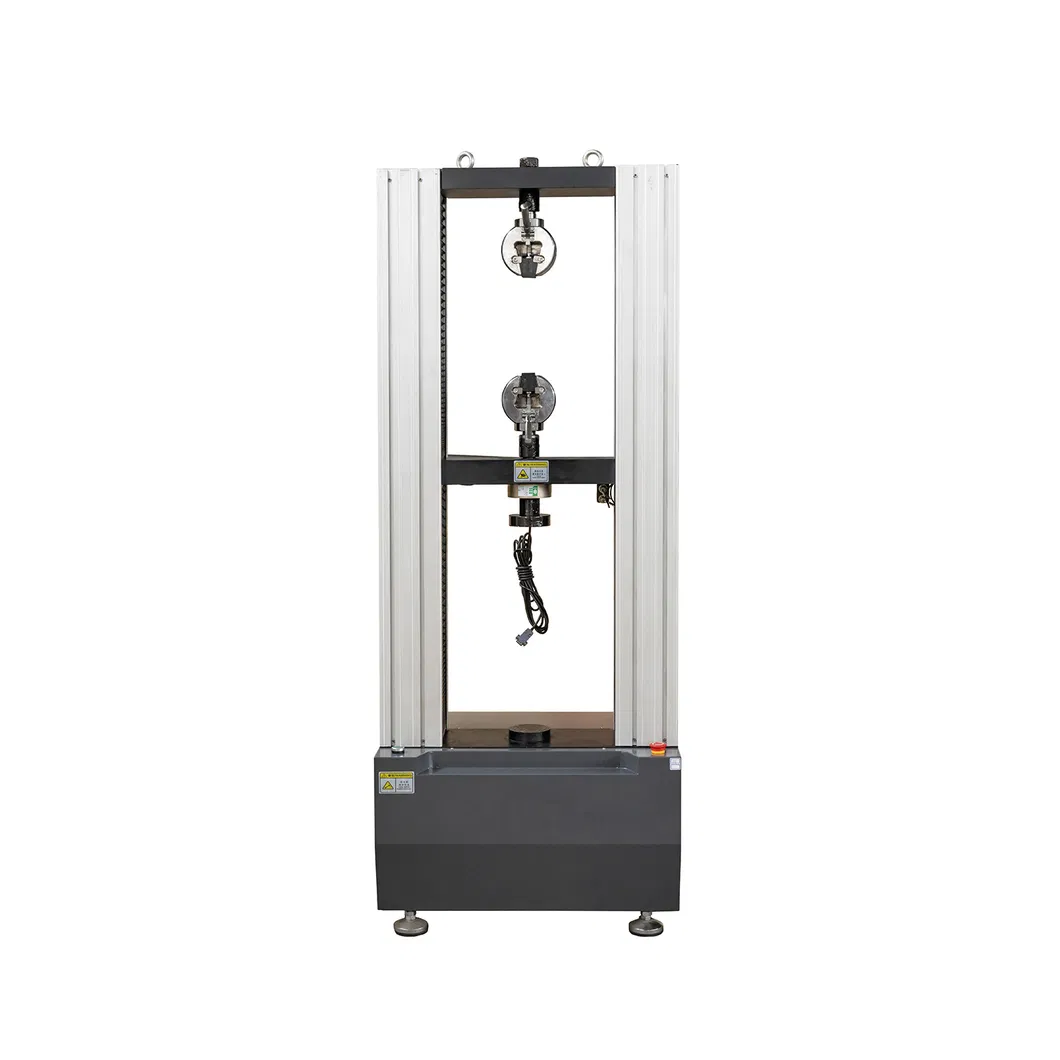

Universal Testing Machine
1. Applications

This product is mainly used for the testing of mechanical properties of various metals, non-metals and composite materials. It features enlarged word display with stable states, high accuracy, and easy data collection. High-precision synchronous belt reduction ensures stable transmission, low noise, and long service life. It can test tensile strength, elongation, max-force value, and deflection through a large liquid crystal display. Additionally, it offers an elegant appearance, user-friendly operation, and automatic overload protection.

Technical Parameters
ModelWDW-30/50
Max. load force30KN / 50KN
Crosshead Travel(mm)1000
Effective tensile space (mm)700
Effective Test width (mm)450
Crossbeam travel speed(mm/min)0.001-500
Load accuracyClass 1 (class 0.5 optional)
Load range1%-100%FS
Load resolution1/300000

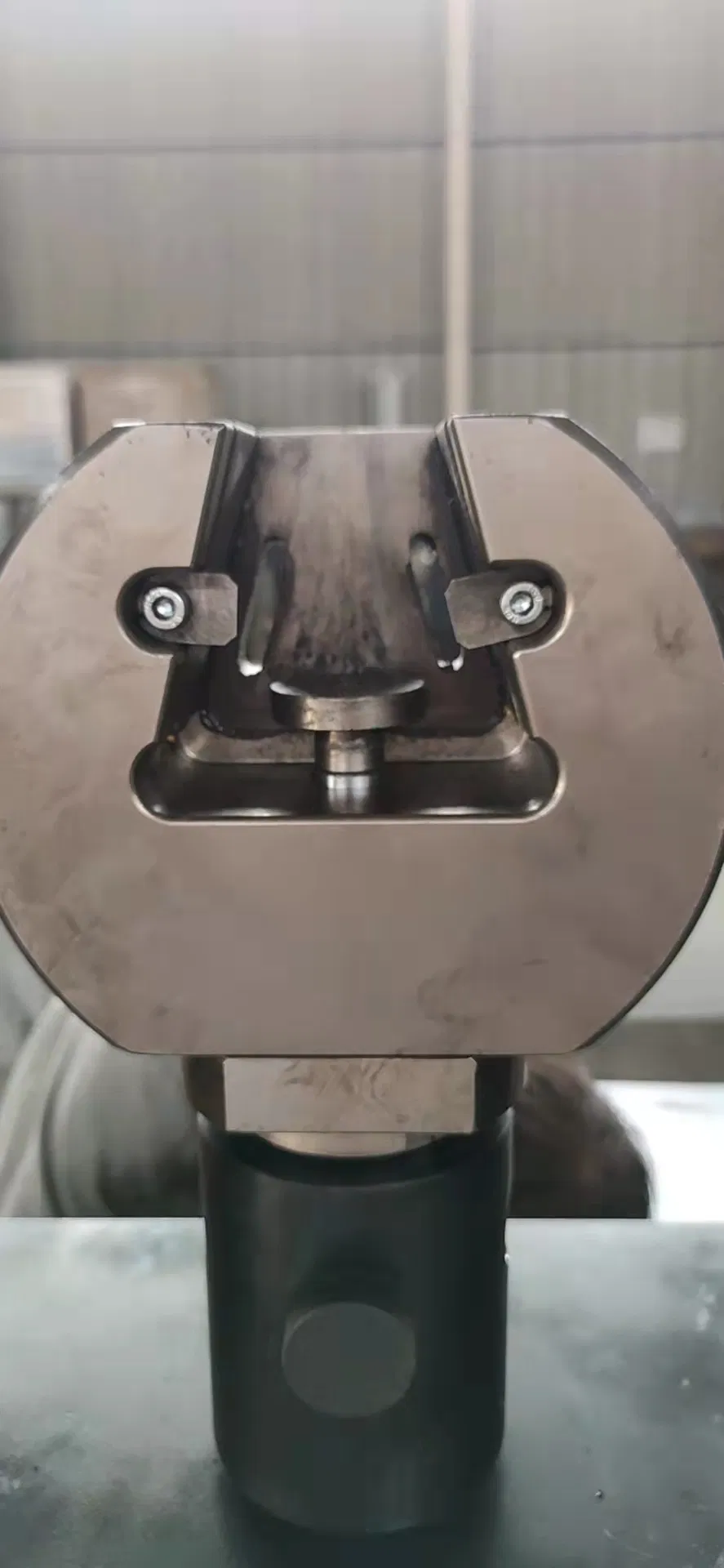

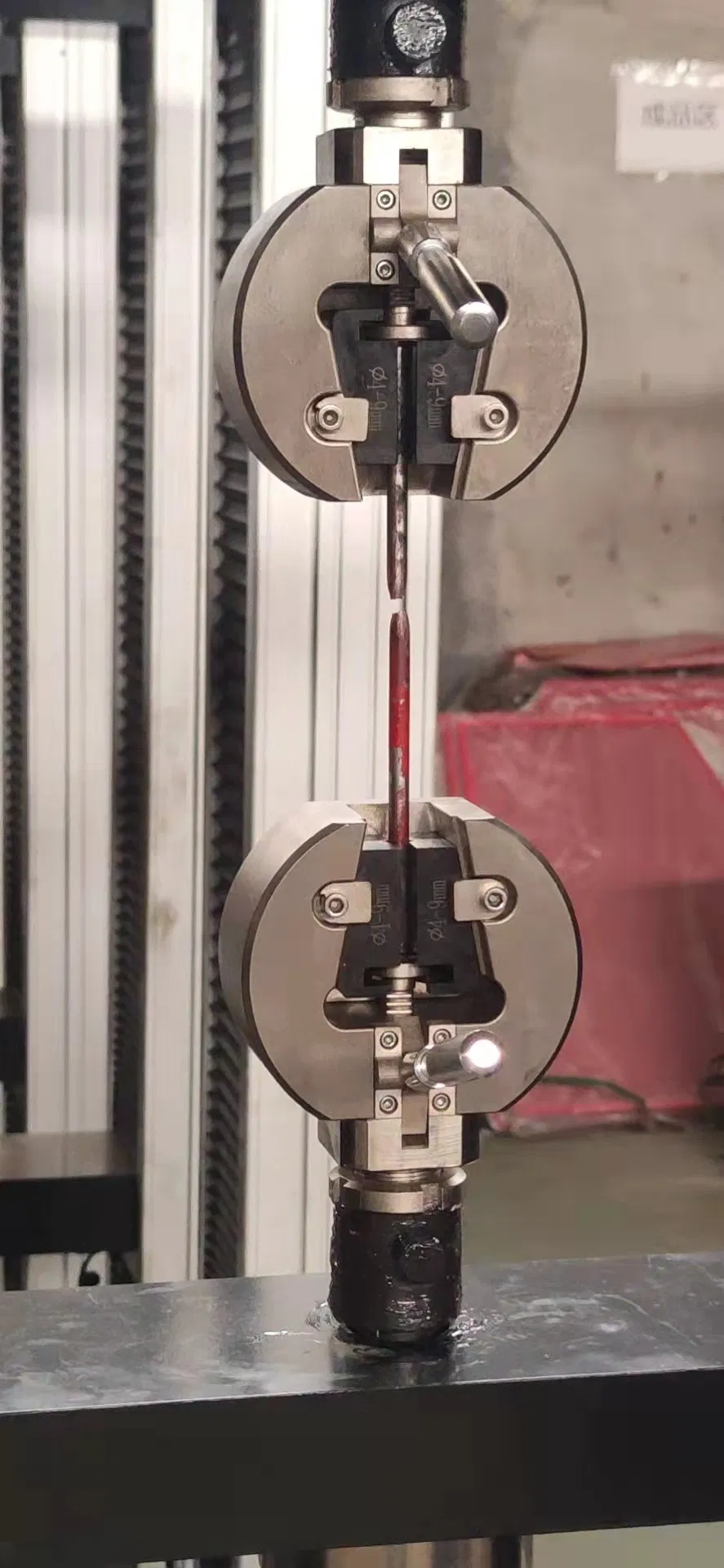

Tensile gripManual Wedge Fixture
Compression Plate(mm)Φ100x100 mm
Product Features
✔
Integrates various independent testing functions such as tension, compression, bending, tearing, and peeling.
✔
Synchronous belt drives the ball screw for high-precision and stable operation.
✔
1 ~ 500mm/min stepless speed change for versatile testing conditions.
✔
Intelligent configuration including multi-level limit protection, overload protection, and automatic high-speed return.
✔
Portable manual control system for quick and reliable test operations.
✔
Miniaturized and structural integration design to meet various site requirements.
✔
Professional software for group test curve overlay and comprehensive statistical analysis.
Detail Images
Detail 1

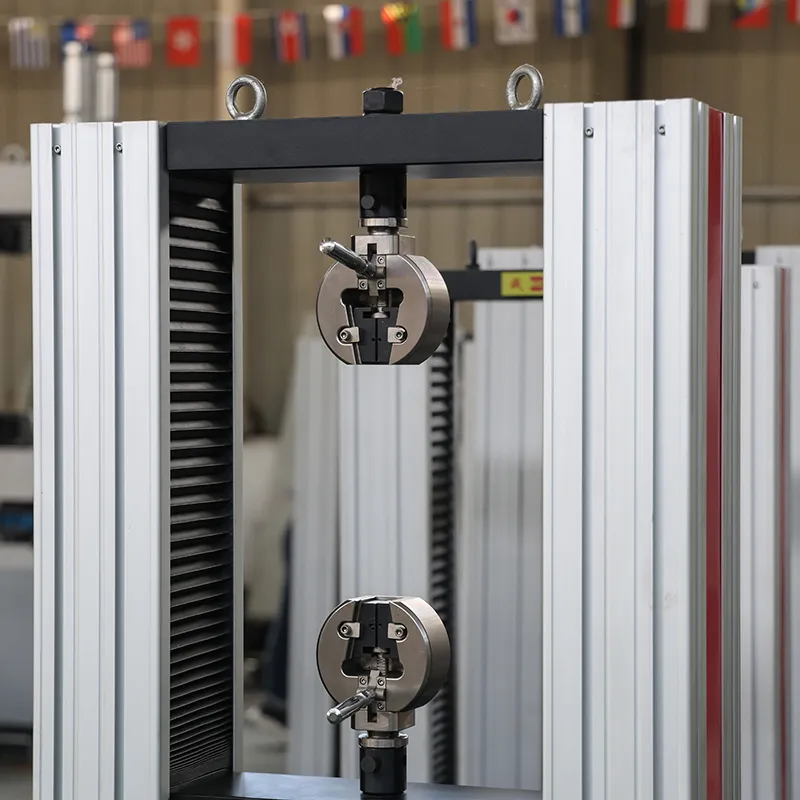

Detail 2

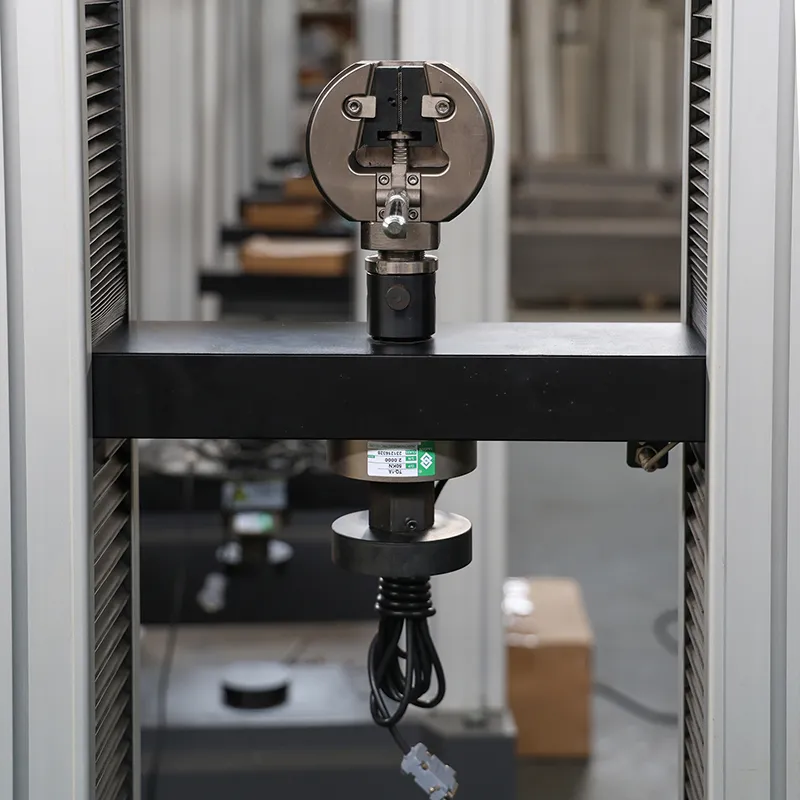

Detail 3

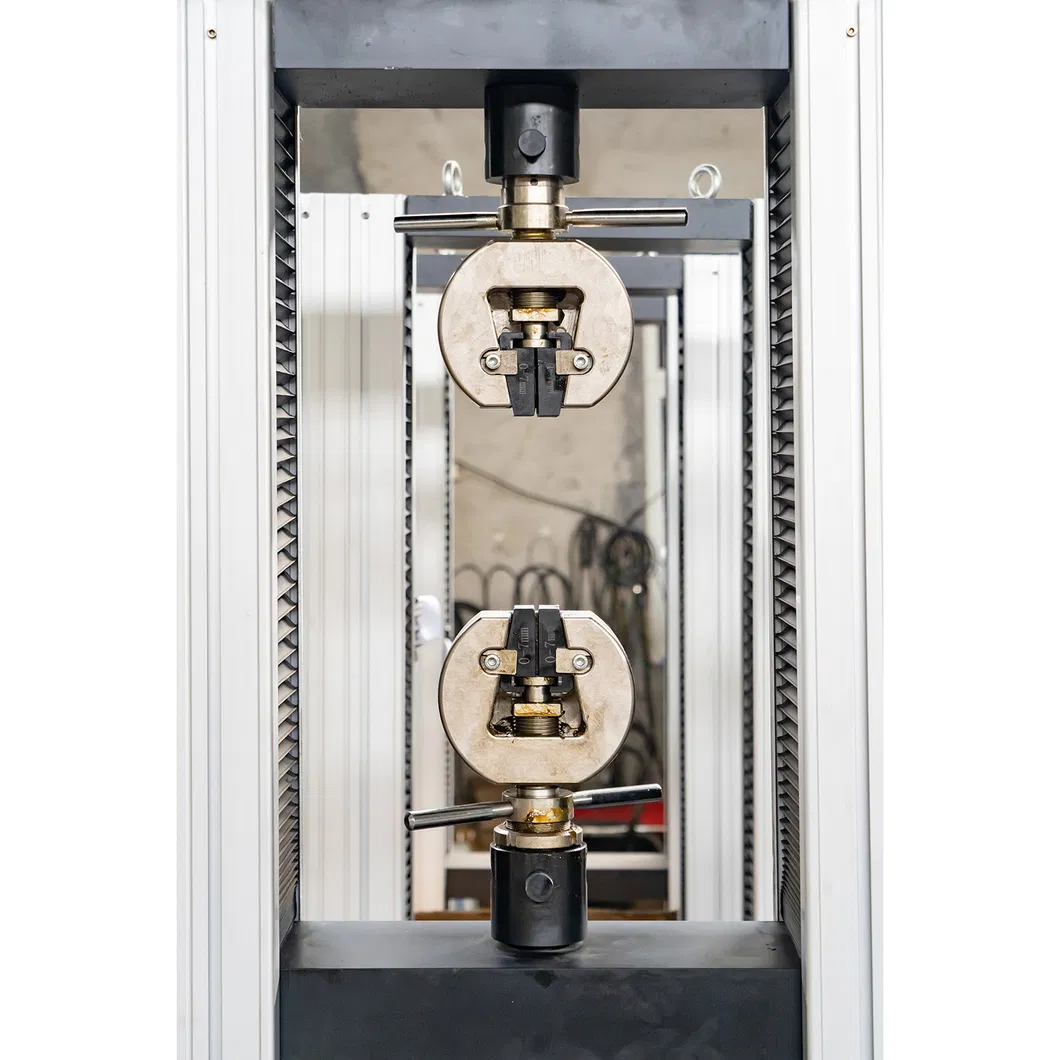

Detail 4
Detail 5
Detail 6

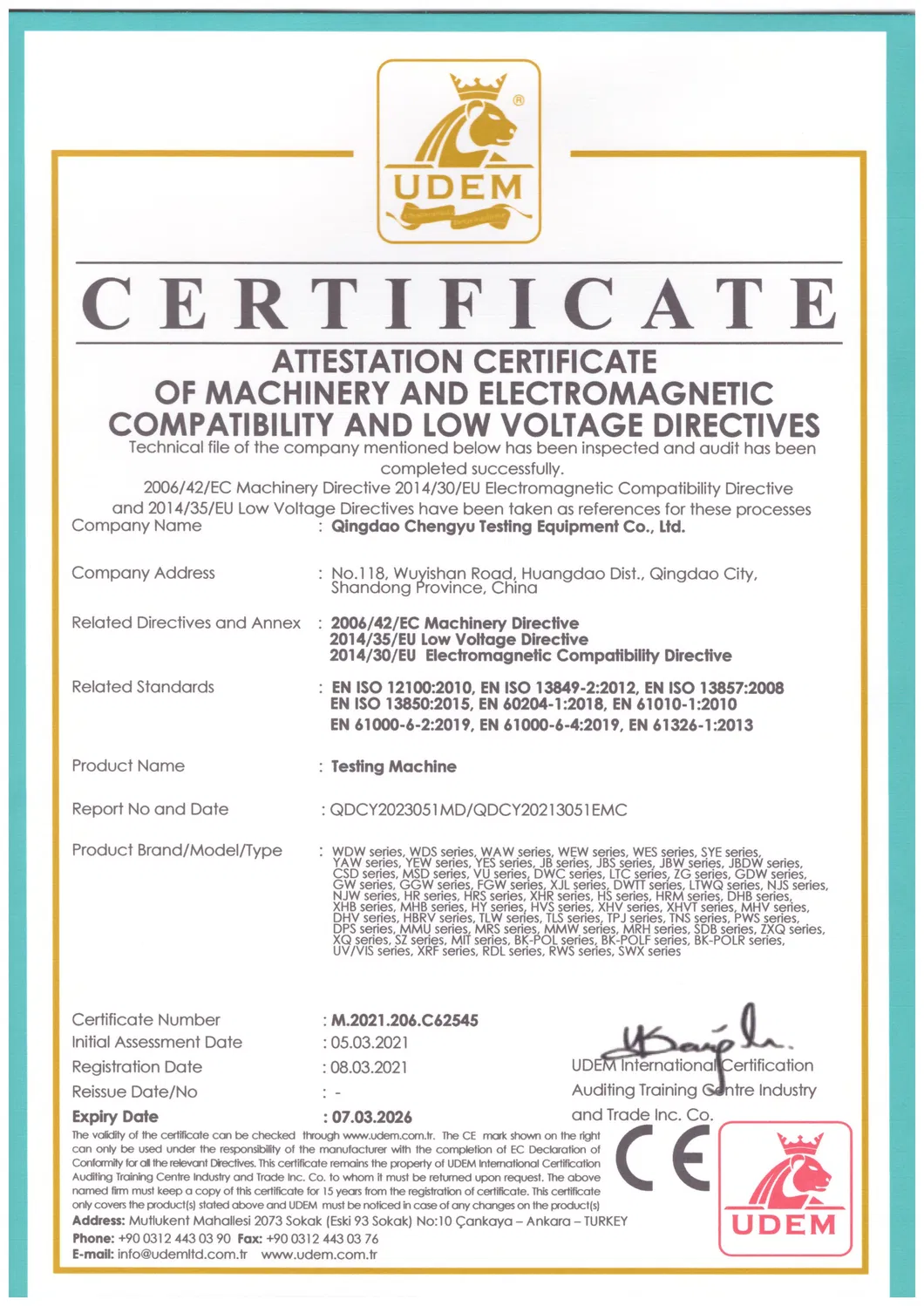

Detail 7
Detail 8
Detail 9
Detail 10
Detail 11
Frequently Asked Questions
What materials can this machine test?
The machine is designed for testing the mechanical properties of various metals, non-metals, and composite materials, including tensile, compression, and bending tests.
What safety features are included?
It includes multi-level limit protection, automatic overload protection, fault prompts, and an emergency return function to ensure operational safety.
Is the testing speed adjustable?
Yes, the machine features a stepless speed change ranging from 1 to 500 mm/min, allowing for various testing conditions.
Can the equipment be customized for specific needs?
Yes, we provide both standard machines and customized solutions tailored to specific testing requirements.
What is the standard delivery time?
If the item is in stock, it can be shipped quickly. Otherwise, the typical delivery lead time is 15 to 20 days after payment.
How is the equipment packaged for transport?
The machine is plastic-sealed and packed into a sturdy, fumigation-free wooden box to ensure safety during sea or air freight.
