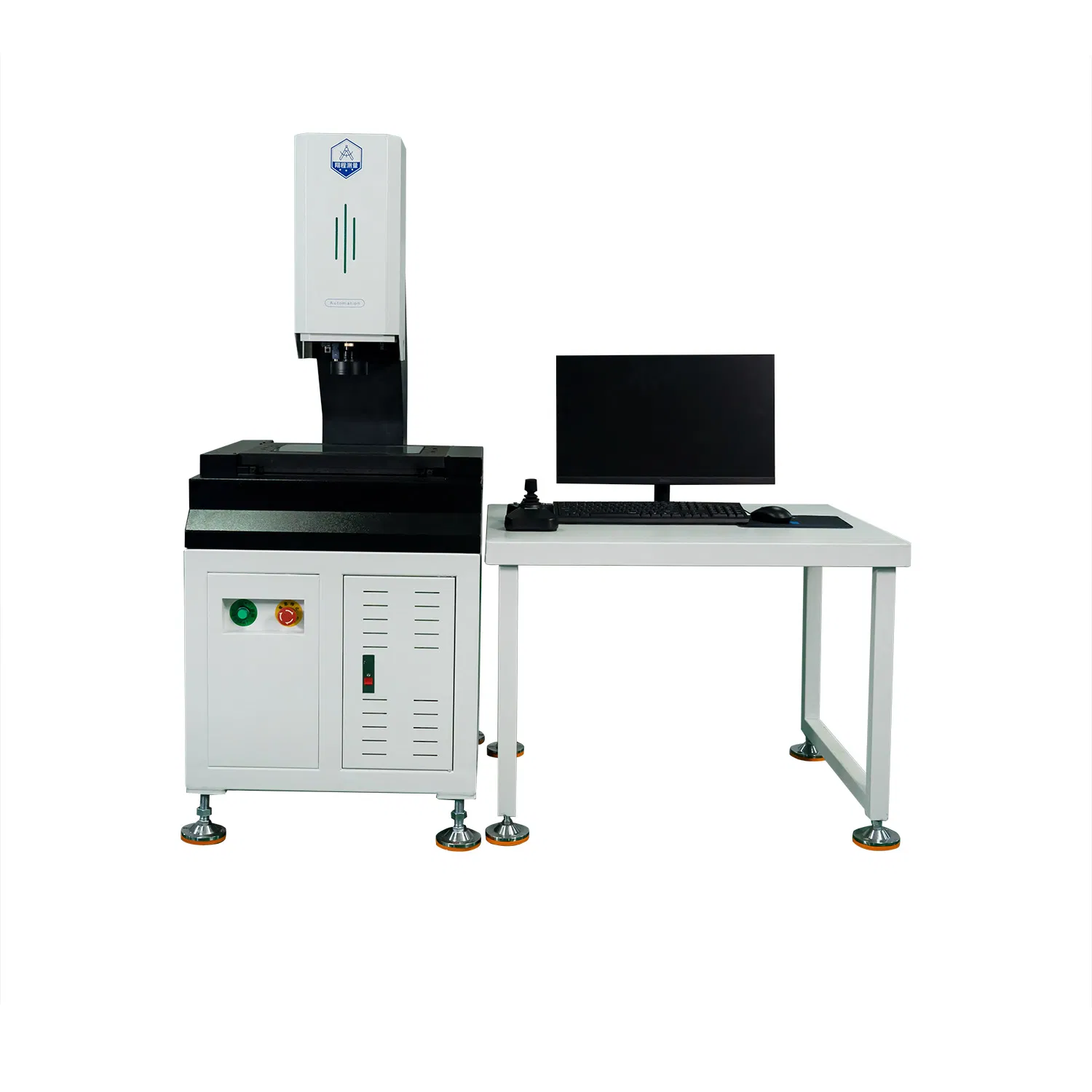

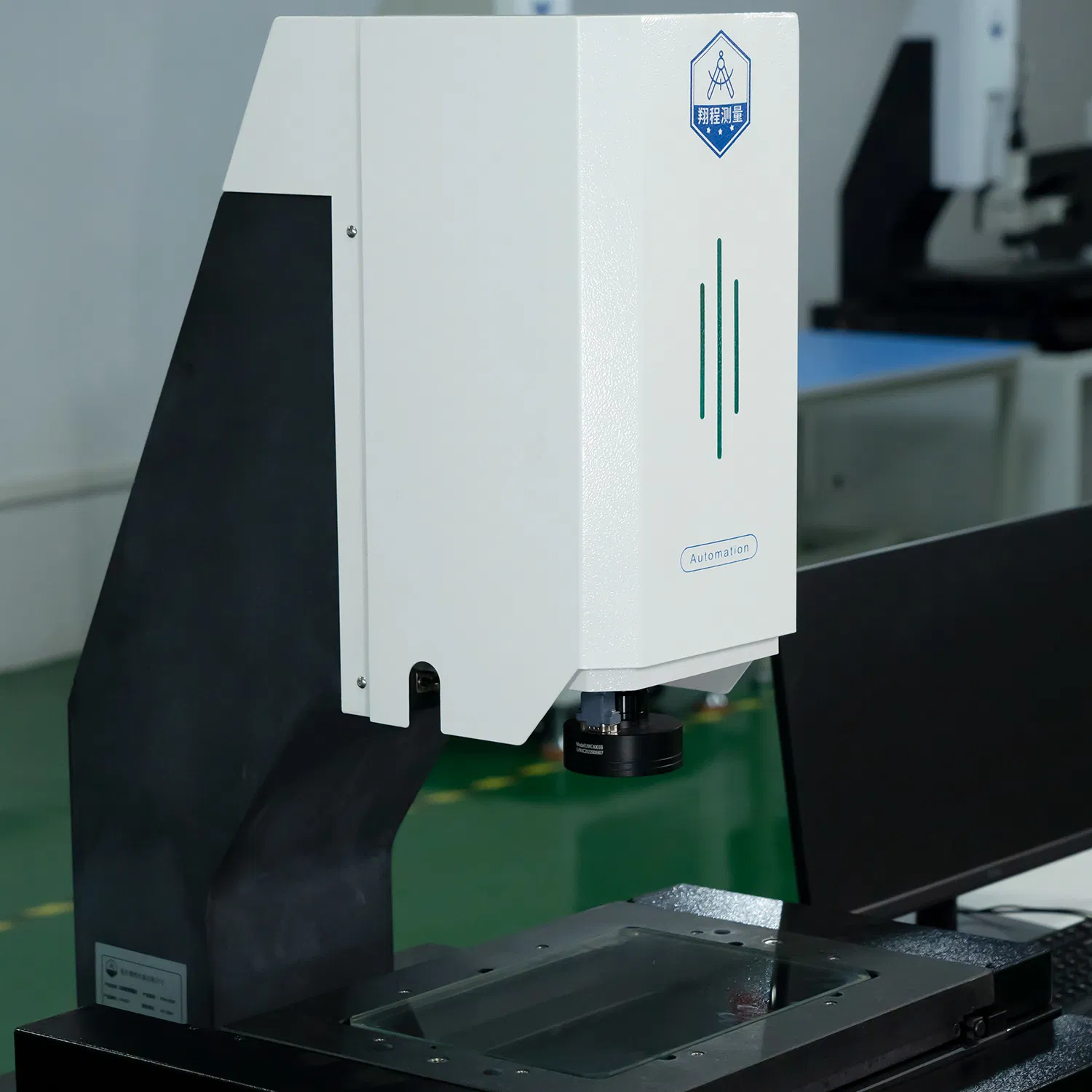

Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
1 / 5
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument
Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument

Xc Optical CNC Coordinate Vision Measure Industrial 3D Automated Laser Testing Machine Laboratory Equipment Coordinate Measuring Machine Optical Instrument

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
XCN
Type
3D Video Measuring System
Operate Method
Automated
Category Items
Xcn-3020
Instrument Material
00 Grade Natural Marble Base, Column, Work Surface
Measuring Stroke
300*200*200mm
Linear Accuracy
3+L/200 Um
Surface Lighting
3 Ring 8 Zone Multi-Angle Programmed Light Source
Control System
DC3000
Resolution
0.001mm (0.0005mm Optional)
Optical Magnification
30X to 200X
Origin
China
Product Description

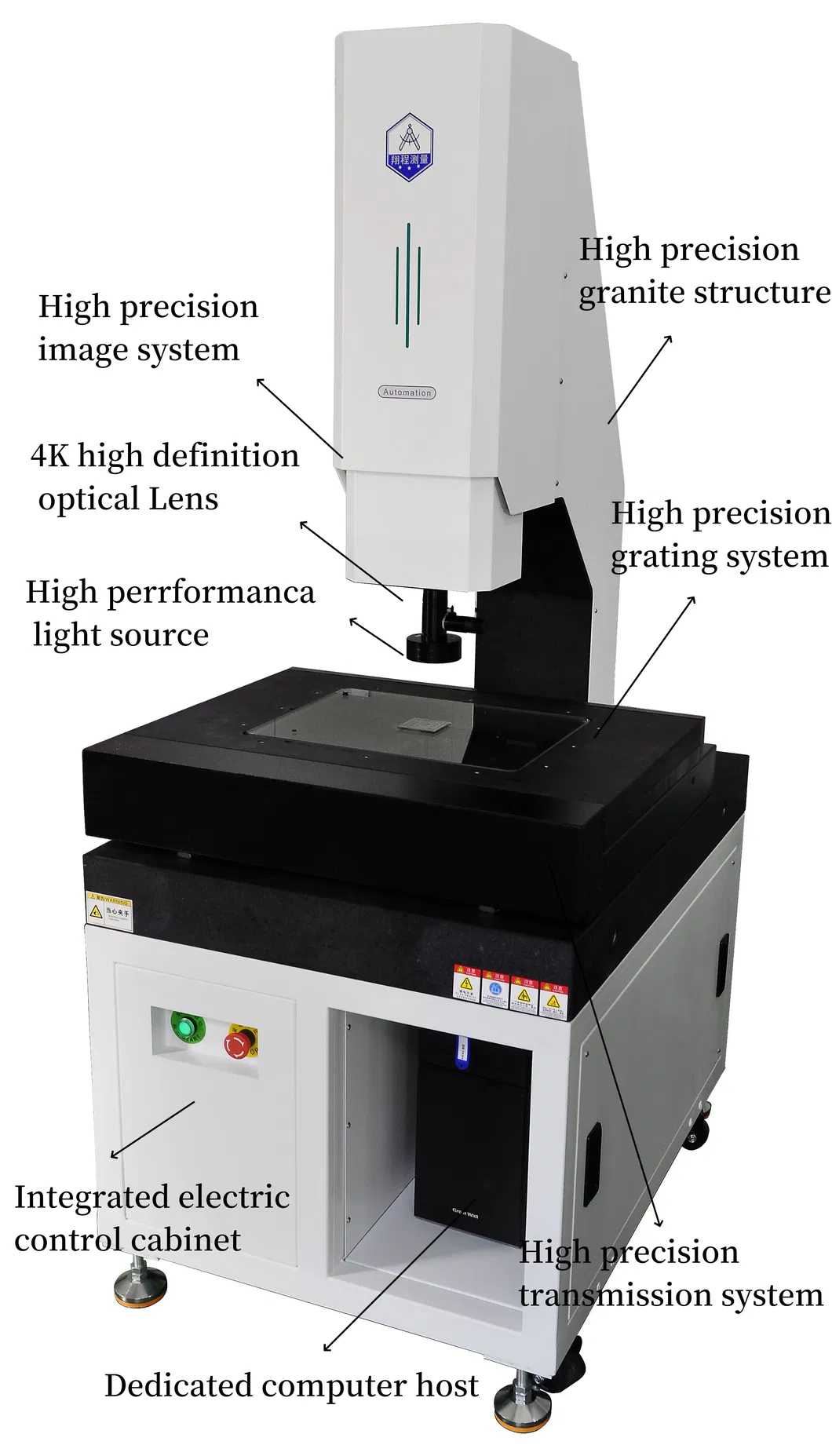

3D Automated Laser Testing Machine
Product Summary
Equipped with precision air source filter, the accuracy of oil and water filtration can reach 0.1um, and the filtration rate can reach 99.93%, which ensures the safe and reliable operation of the air float guide rail. The layout of granite air float guide rail is strictly in accordance with the principle of surface, line and point positioning.
✔ The main table adopts 3+2 support points to minimize deformation and improve accuracy.
✔ High-quality aluminum alloy frame ensures rigidity while reducing weight for stable motion.
✔ Precision granite air float guide rails on X, Y, Z axes for consistent accuracy across temperature gradients.
✔ Passed 72 hours of continuous trouble-free operation testing before leaving the factory.
Company Profile

We are a national surveying and mapping directly affiliated enterprise and a high-tech company specializing in instrument research, development, production, and sales. With more than 20 years of experience in manufacturing instruments and equipment, we integrate research and development with production, mainly producing products such as fully automatic gantry image measuring instruments, projectors, and more, widely used in machinery, semiconductors, and automotive fields.

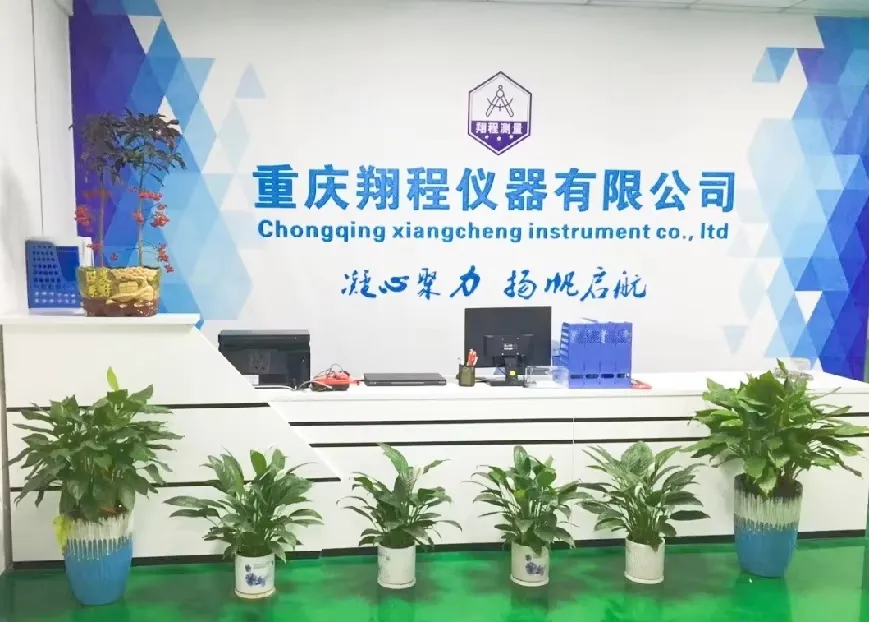

Workshop 1

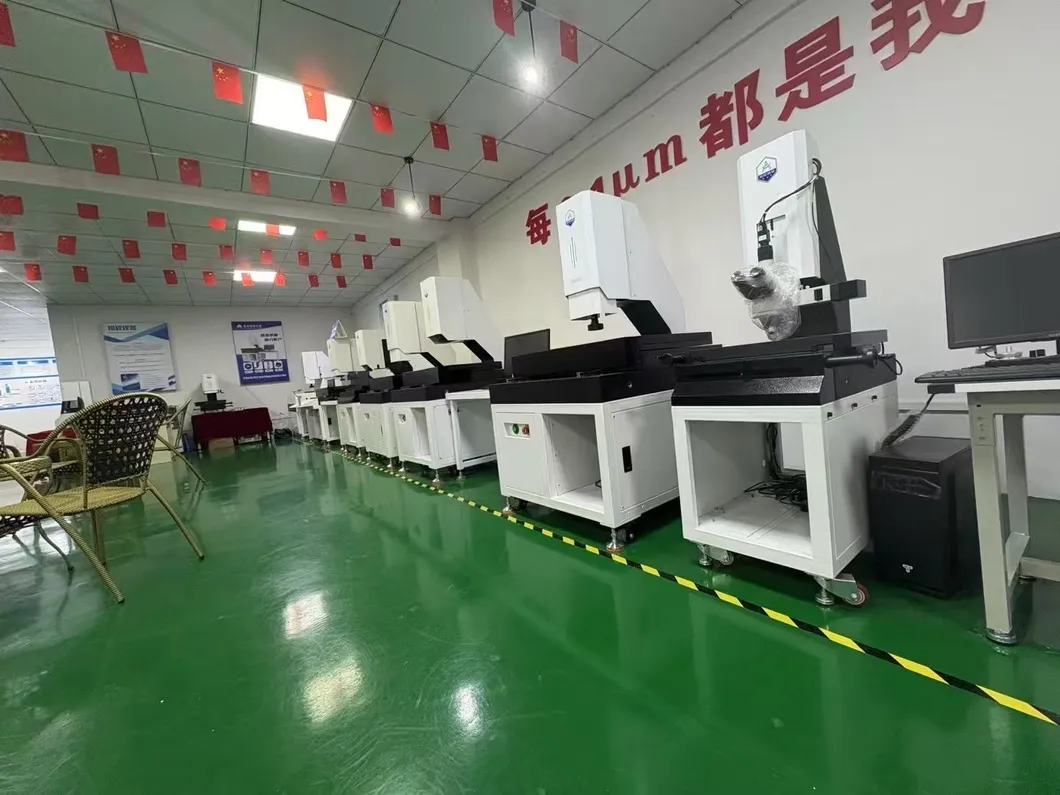

Workshop 2

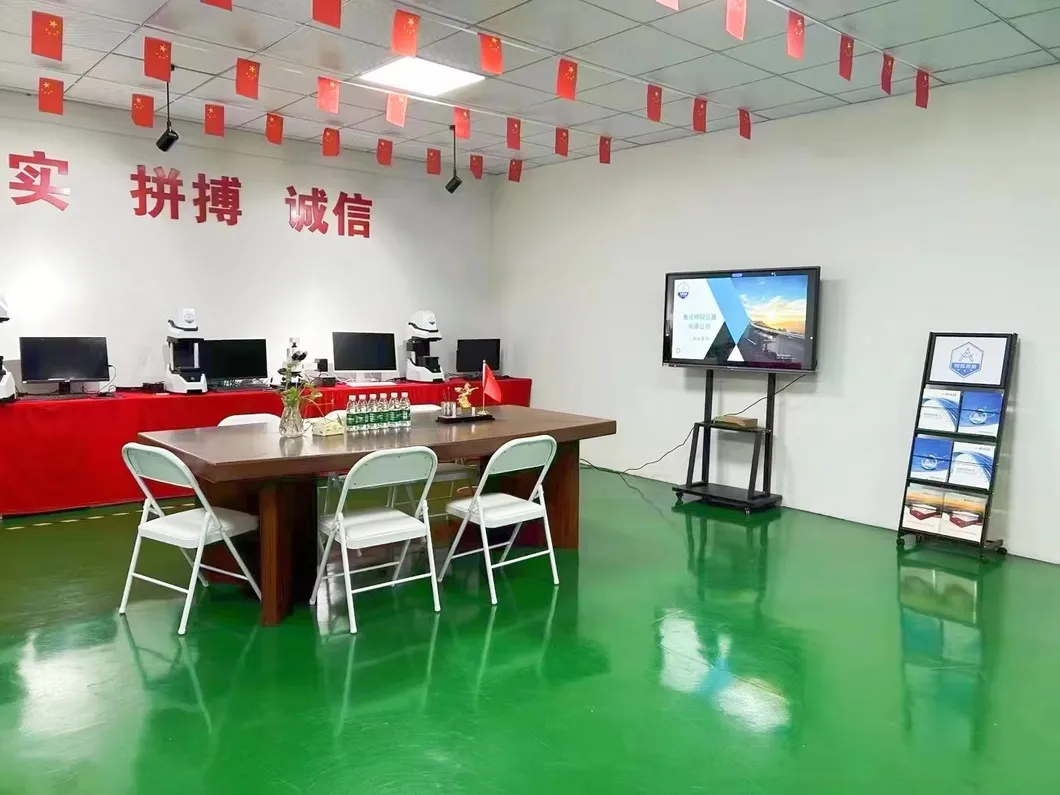

Workshop 3
Product Parameters
Parameter Model XCN-3020 XCN-4030 XCN-5040
Platform size (mm) 460 X 360 560 X 460 720 X 620
Glass table size (mm) 340 X 240 440 X 340 540 X 440
Travel X/Y/Z (mm) 300/200/200 400/300/200 500/400/200
Instrument precision (μm) (3+L/200)
Imaging system HD color
Total video magnification 30-200X
Weight (Kg) 300 400 500
Application Areas

Our measuring systems are widely utilized across various high-precision industries:

  • ◈ Machinery & Electronics
  • ◈ Molds & Plastics
  • ◈ Precision Metals & Stamping
  • ◈ Connectors & Wiring Terminals
  • ◈ Mobile Phones & Computers
  • ◈ Automobiles, Watches & Clocks
Application Areas
Certifications
Certification 1

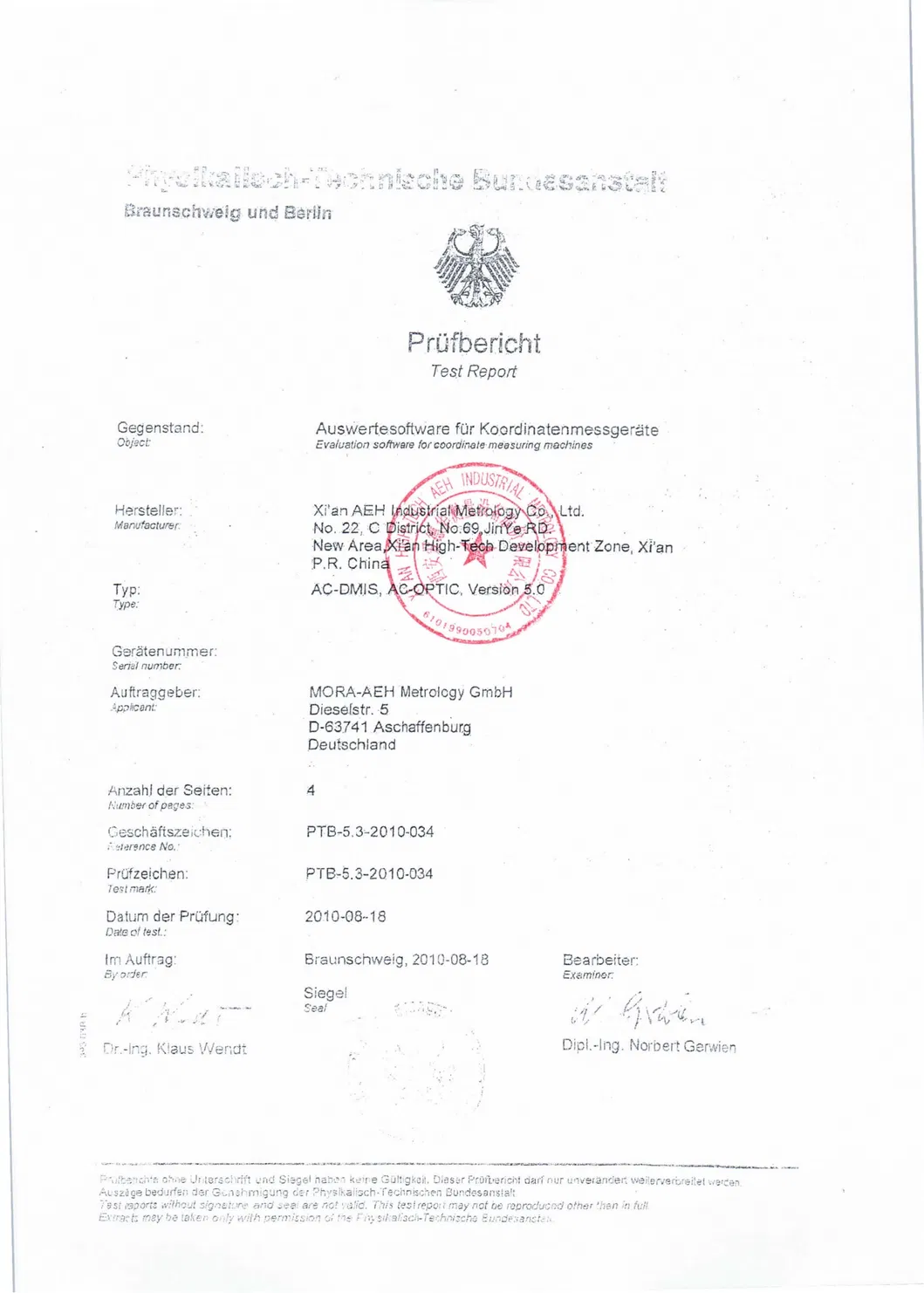

Certification 2

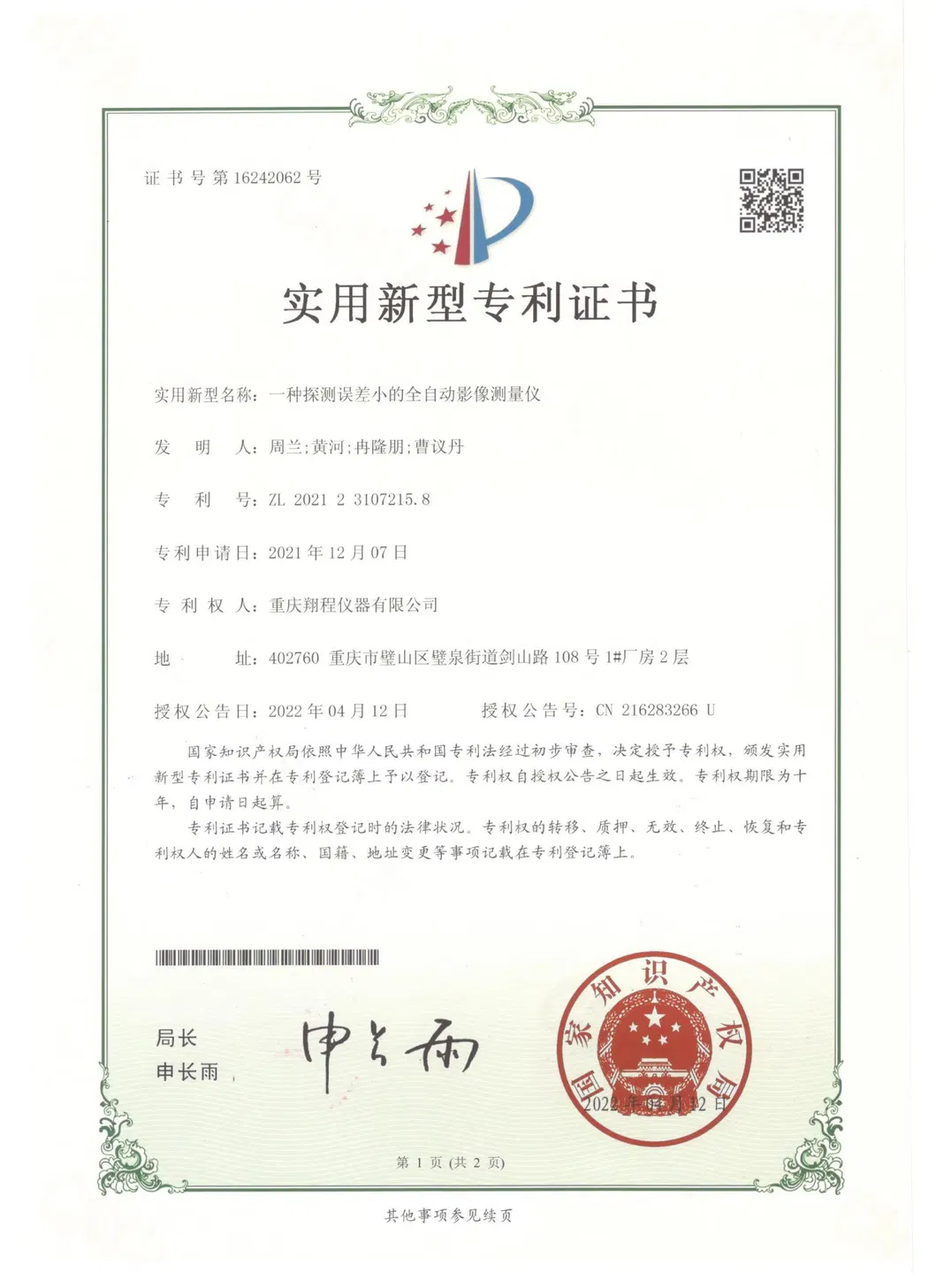

Certification 3

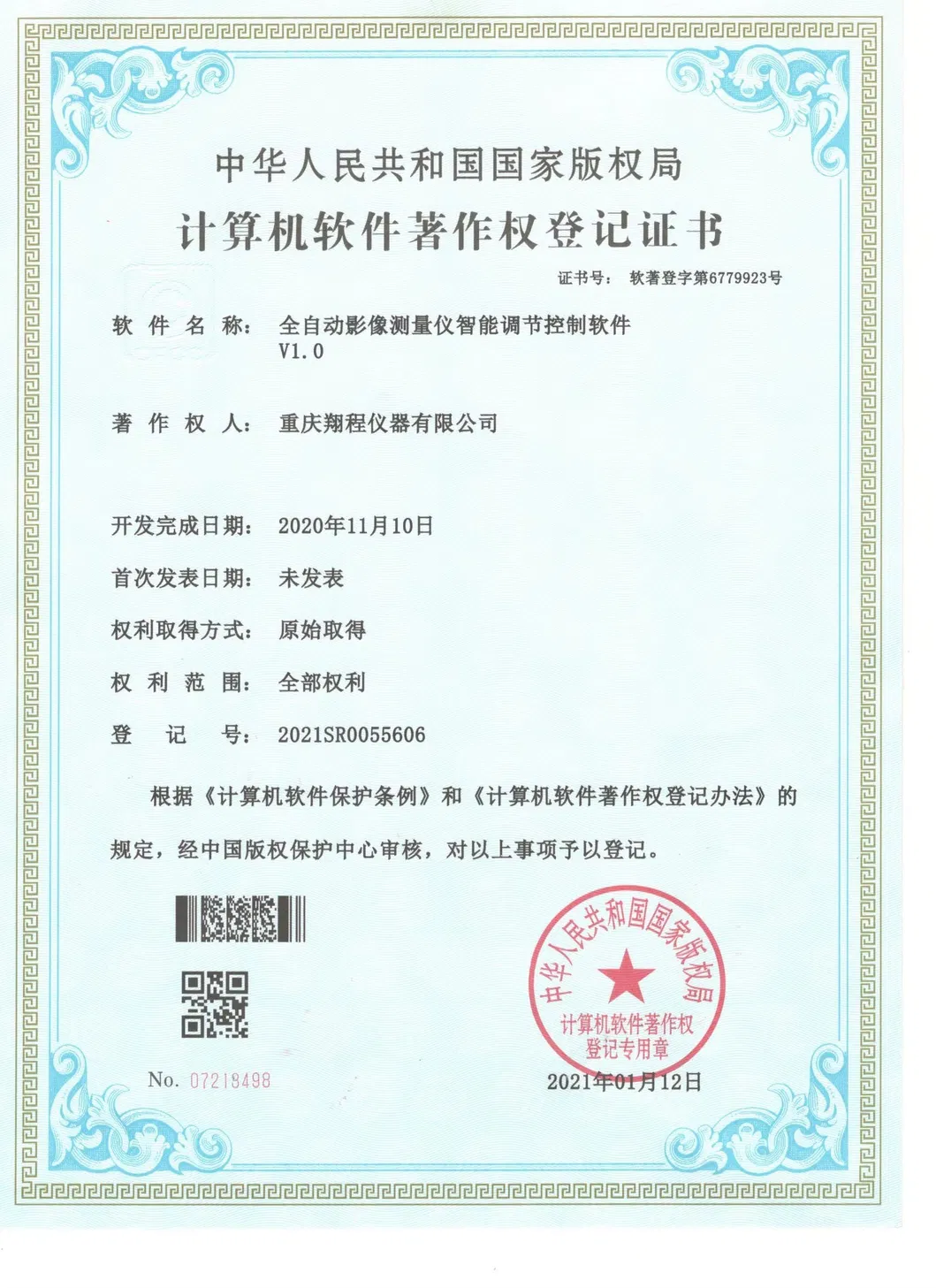

Certification 4
Packaging & Shipping
Packaging and Shipping
Standard wooden box packaging is used to ensure the safety of the instrument during long-distance transportation.
Frequently Asked Questions
How to choose the appropriate specification?
After receiving your requirements, our professional team will work out the best solutions by providing catalog specifications, demonstration videos, or other methods tailored to your needs.
What is the delivery term for your products?
Normally, we have standard products in stock. For larger sizes (over 1000mm), delivery is generally 7-10 working days after receipt of payment. We can make special arrangements for urgent orders.
Do you accept customized services?
Yes, OEM services are welcome. We can customize equipment based on specific client requirements.
What is your warranty period?
We provide a 12-month warranty. After the warranty period, our professional after-sales team continues to provide comprehensive technical support and handles any complaints or issues promptly.
Have you had clients in our country before?
Our equipment has been supplied to more than 30 countries, including the USA, UK, Germany, Japan, India, Malaysia, Singapore, Russia, Turkey, and many others.
How to install and use your product?
We provide operating instructions and videos in English. We can also send engineers to your country for installation and training, or provide spot service through our local agents.
