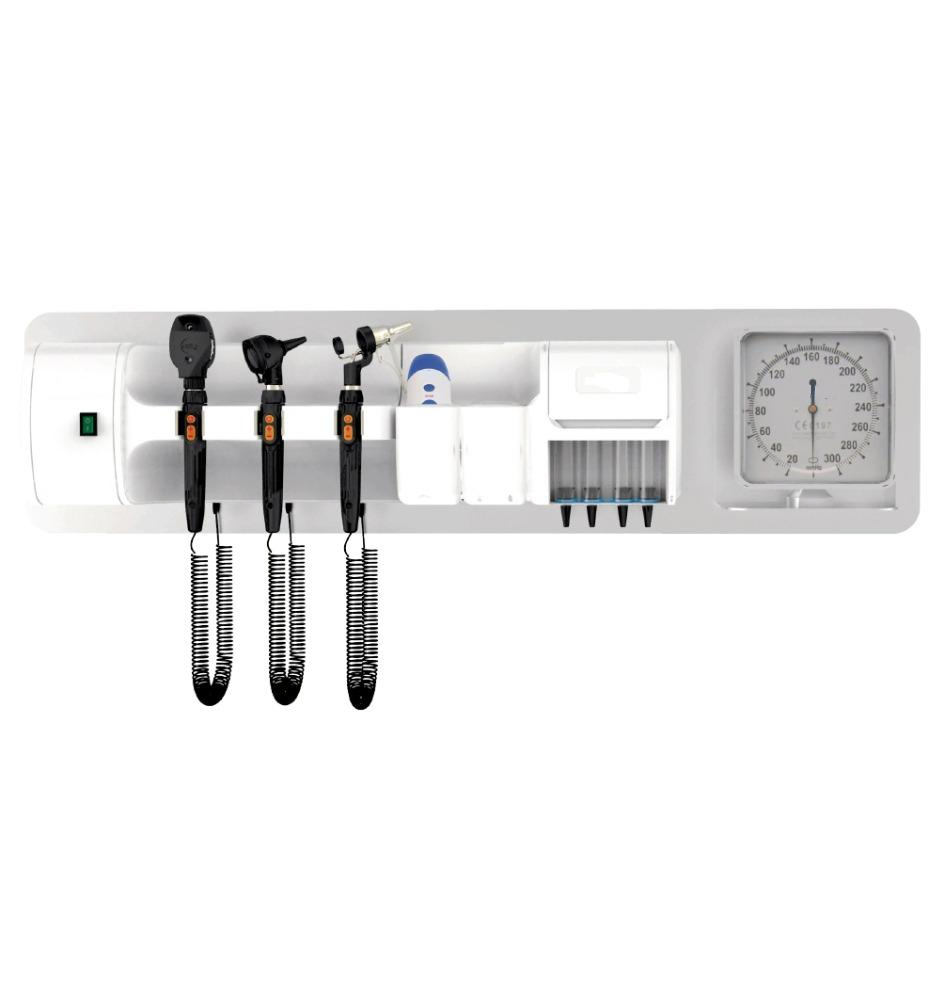

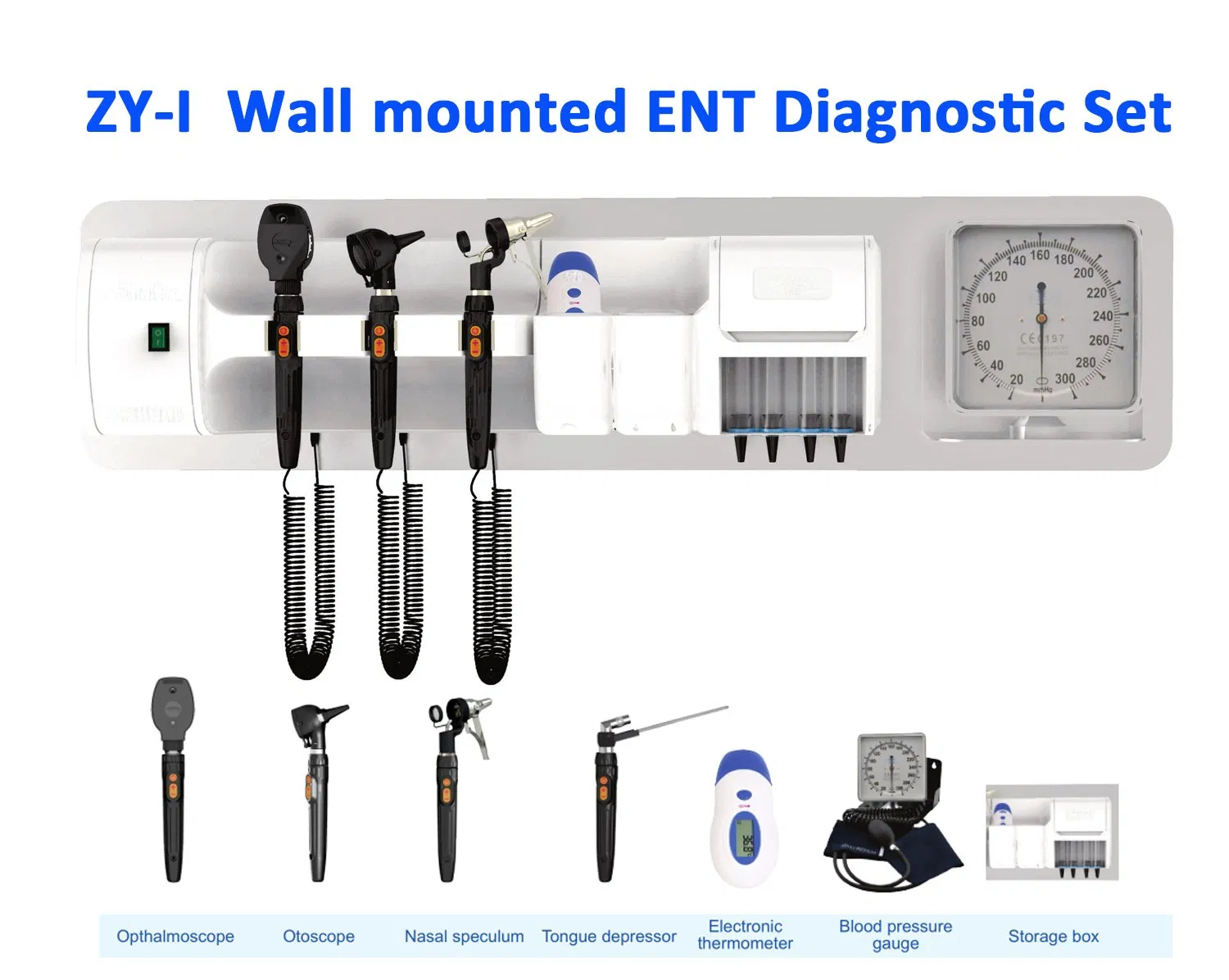

Wall mounted ENT Diagnostic Set (ZY-I)
Integrated diagnostic solution composed of ophthalmoscope, otoscope, nasal speculum, electronic thermometer (forehead and ear type), storage box, and hanging plate.
⚙️ Technical Configuration
- Power System: AC 110~240V, 47~63HZ. Battery handle is shared across instruments.
- Light Control: Adjustable brightness via key control for precise examination.
- Optional Components: Tongue depressor, finger clip pulse oximeter, and blood glucose meter.
Ophthalmoscope
Illumination: Small/Middle/Big spot, Central net, Cobalt blue filter, Slit.
Filters: Polarizing, No red-green.
Diopter: -25~+40 D
Otoscope
Transmission: Circle form optical fiber.
Speculum Sizes: 2.5, 3, 4, 5mm.
Magnifier: > 3 times magnification.
Electronic Thermometer
Range: 34°C~43°C.
Precision: ≤±0.2°C.
Blood Pressure Meter
Mechanical spring gauge: 0~300mmHg.
Measurement: Manual upper-arm.
Data error: ±3.75mmHg.
Storage Box: Specifically designed to hold 4 sizes of aural speculums and other medical consumables securely.
